CTH 2542 T (960610218-01) - Husqvarna Lawn Tractor (2008-11) ENGINE Parts Diagram

Lawn Tractor

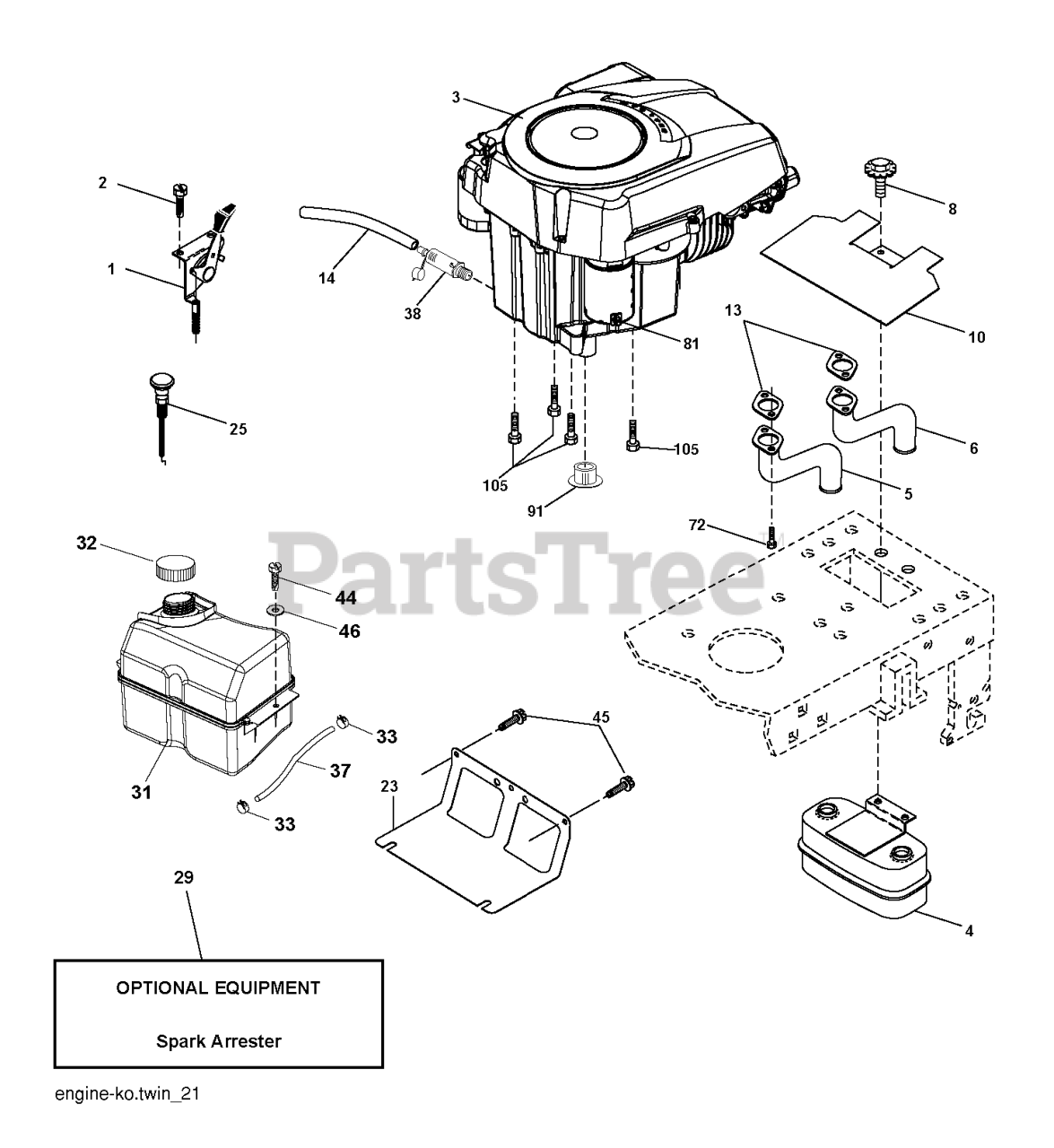

ENGINE Parts Diagram

  • Title
32

Husqvarna 532197725

FUEL CAP
(Superseded to 581075501)

$26.99

$

Usually ships in 3-10 days

0

81

Husqvarna 873510400

NUT
(Superseded to 873680400)

$4.99

$

In Stock, Qty 16

0

14

Husqvarna 532148456

TUBE, DRAIN OIL ASM.

$6.99

$

In Stock, only 4 left!

0

1

Husqvarna 532182937

THROTTLE CONTROL
(Superseded to 532177328)

$47.99

$

In Stock, only 3 left!

0

6

Husqvarna 532146700

RP.PIPE-EXHAUST RH
(Superseded to 583954801)

$20.99

$

In Stock, only 1 left!

0

31

Husqvarna 532407489

TANK.ASM.FUEL.FR.2.5GA.
(Superseded to 581290101)

$120.99

$

In Stock, only 1 left!

0

$6.49

$

Usually ships in 3-10 days

0

33

Husqvarna 532123487

HOSE CLAMP

$7.49

$

In Stock, only 4 left!

0

25

Husqvarna 532189541

CONTROL, CHOKE
(Superseded to 532187768)

$37.99

$

In Stock, only 2 left!

0

105

Husqvarna 817120616

SCREW 3/8-16X1

$5.99

$

In Stock, Qty 17

0

38

Husqvarna 532181654

PLUG DRAIN OIL EASY
(Superseded to 532428287)

$18.99

$

In Stock, only 4 left!

0

29

Husqvarna 532137180

KIT.SPARK ARRESTOR 794945 B&S

$182.99

$

In Stock, only 1 left!

0

23

Husqvarna 532169837

SHIELD.BROWNING.DBR.GUARD

$10.99

$

Usually ships in 3-10 days

0

13

Husqvarna 532186054

GASKET.EXHAUST.KOHL.CV18-CV26

$

$

Not available

44

Husqvarna 817670412

SCREW HEXWSHR 1/4-20X3/4

$6.49

$

Usually ships in 3-10 days

0

72

Husqvarna 532192334

SCREW.SOCKET HD.5/16-1
(Superseded to 596134201)

$3.99

$

In Stock, Qty 13

0

4

Husqvarna 532149723

MUFFLER.TWIN.CYL.LOW.TONE

$74.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532146699

RP.PIPE-EXHAUST LH
(Superseded to 583954501)

$22.99

$

In Stock, only 1 left!

0

91

Husqvarna 532187495

BUSHING.1.375OD

$6.49

$

In Stock, only 1 left!

0

8

Husqvarna 532171877

BOLT.5/16-18UNCX3/4 W/SEMS.BLK

$7.49

$

In Stock, Qty 5

0

10

Husqvarna 532146629

RP SHIELD HEAT MUFFLER
(Superseded to 532434017)

$15.99

$

Usually ships in 3-10 days

0

45

Husqvarna 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, only 2 left!

0

3

NEEDS DESCRIPTION

Note: Engine Kohler SV730

$

$

Not available

2

Husqvarna 532416358

SCREW.#10 X 0.750.BOS

$

$

Not available

37

Husqvarna 532137040

LINE.FUEL.20
(Superseded to 587044820)

$11.99

$

In Stock, Qty 11

0
