CTH 224 TFI (960510083-00) - Husqvarna Lawn Tractor (2013-10) ENGINE Parts Diagram

Lawn Tractor

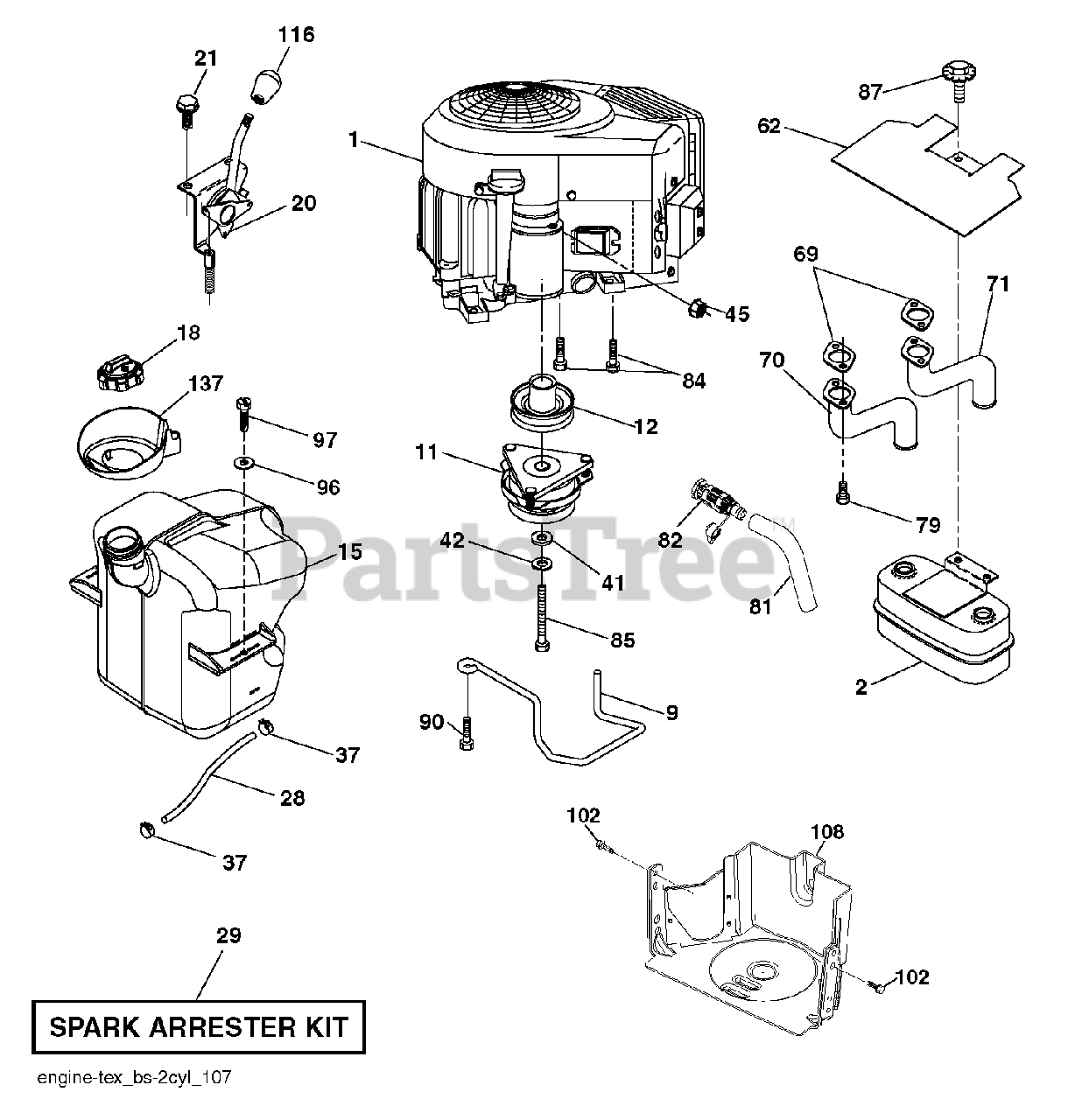

ENGINE Parts Diagram

  • Title

1

000000000

Note: Engine Briggs Model No 40R877-0005-B1 (585700601)

$

$

Not available

2

Husqvarna 532445962

MUFFLER.ASM.TWN.EXTNDED.DFLCTR
(Superseded to 589818702)

$51.99

$

In Stock, Qty 20+

0

9

Husqvarna 584908001

KEEPER BELT ENGINE
(Superseded to 501832602)

$

$

Not available

11

Husqvarna 532400008

CLUTCH.ELECTRIC.LT.48"*
(Superseded to 532414336)

$399.99

$

In Stock, Qty 9

0

12

Husqvarna 532405097

PULLEY.ENGINE.TUFFTORQ

$100.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532435816

FUEL TANK TANK. ASSEMBLY. EXTE
(Superseded to 583507201)

$455.99

$

Usually ships in 3-10 days

0

18

Husqvarna 532441462

CAP.ASM.FUEL.2.25"TOP.TURN

$14.99

$

Usually ships in 3-10 days

0

20

Husqvarna 532424340

CONTROL THROTTLE/CHOKE
(Superseded to 586219601)

$80.99

$

Usually ships in 3-10 days

0

21

Husqvarna 532416358

SCREW.#10 X 0.750.BOS

$

$

Not available

28

Husqvarna 532137040

LINE.FUEL.20
(Superseded to 587044820)

$11.99

$

In Stock, Qty 11

0

29

Husqvarna 532137180

KIT.SPARK ARRESTOR 794945 B&S

$182.99

$

In Stock, only 1 left!

0

37

Husqvarna 532123487

HOSE CLAMP

$7.49

$

In Stock, Qty 14

0

41

Husqvarna 532126197

WASHER

$8.99

$

In Stock, Qty 20+

0

42

Husqvarna 810040700

LOCKWASHER
(Superseded to 539990247)

$

$

Not available

45

Husqvarna 873510400

NUT
(Superseded to 873680400)

$4.99

$

In Stock, Qty 20+

0

62

Husqvarna 532434017

SHIELD.HEAT.MUFFLER

$15.99

$

Usually ships in 3-10 days

0

69

Husqvarna 532165391

GASKET.MUFFLER

$4.99

$

In Stock, Qty 20+

0

70

Husqvarna 581881101

EXHAUST.TUBE.LH.BS/TWIN

$44.99

$

In Stock, Qty 11

0

71

Husqvarna 581881001

EXHAUST.TUBE.RH.B&S.TWIN.INTEK

$27.99

$

In Stock, Qty 11

0

79

Husqvarna 532183906

SCREW.SOCKET.HEAD.5/16-18

$6.49

$

Usually ships in 3-10 days

0

81

Husqvarna 532148456

TUBE, DRAIN OIL ASM.

$6.99

$

In Stock, Qty 20+

0

82

Husqvarna 532428287

VALUE.OIL.DRAIN

$18.99

$

In Stock, Qty 20+

0

84

Husqvarna 817060620

SCREW.3/8-16

$7.49

$

In Stock, Qty 20+

0

85

Husqvarna 532173937

BOLT HEX 7/16-20X4-1/4"
(Superseded to 501606501)

$4.99

$

In Stock, Qty 20+

0

87

Husqvarna 532171877

BOLT, 5/16-18 X 1 3/4

$7.49

$

In Stock, Qty 20+

0

90

Husqvarna 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, Qty 20+

0

96

Husqvarna 819091416

WASHER

$6.49

$

Usually ships in 3-10 days

0

97

Husqvarna 817670412

SCREW HEXWSHR 1/4-20X3/4

$6.49

$

In Stock, only 2 left!

0

102

Husqvarna 817060516

SCREW 5/16-18X1

$6.49

$

Usually ships in 3-10 days

0

108

Husqvarna 532423041

COVER PULLEY
(Superseded to 583400501)

$

$

Not available

116

Husqvarna 539132624

KNOB - SHIFT

$7.99

$

In Stock, Qty 5

0

137

Husqvarna 532441461

SPILL.CUP

$9.99

$

Usually ships in 3-10 days

0
