CTH 2138 R (960510120-01) - Husqvarna Lawn Tractor (2014-05) STEERING Parts Diagram

Lawn Tractor

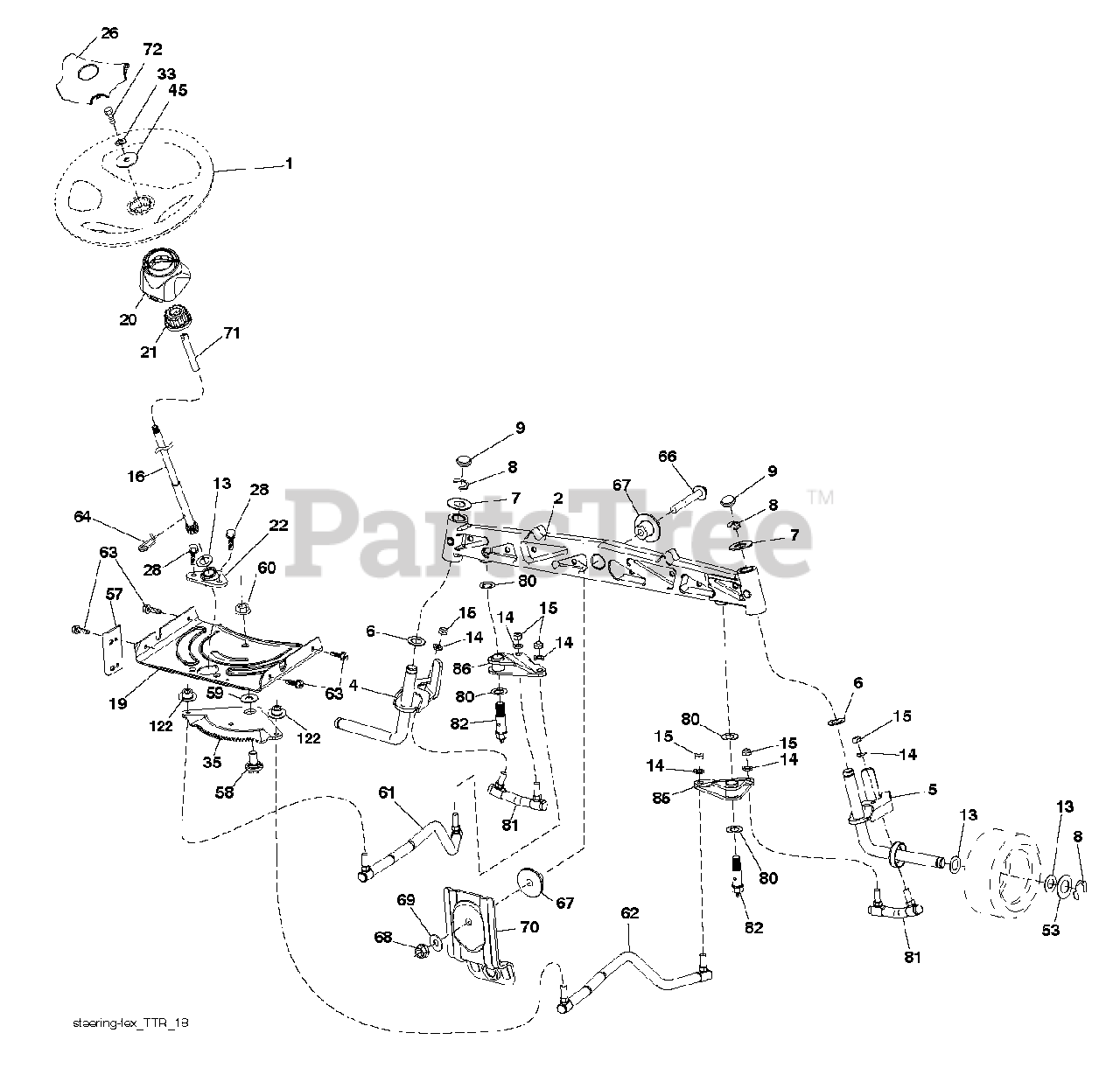

STEERING Parts Diagram

  • Title

1

Husqvarna 532439740

WHEEL.STEER.HUSQ.SR.498.OVMLD

$93.99

$

In Stock, only 1 left!

0

2

Husqvarna 532436870

RP SUBASM.AXLE.CAST.NZTR.
(Superseded to 583512701)

$206.99

$

Usually ships in 3-10 days

0

4

Husqvarna 532436873

SPINDLE WELDMENT.SPINDLE.LH.15
(Superseded to 583512801)

$50.99

$

In Stock, only 1 left!

0

5

Husqvarna 532436874

SPINDLE WELDMENT.SPINDLE.RH.15
(Superseded to 583512901)

$50.99

$

Usually ships in 3-10 days

0

6

Husqvarna 532124931

THRUST WASHER
(Superseded to 532006266)

$7.49

$

In Stock, Qty 11

0

7

Husqvarna 532121748

WASHER

$4.99

$

In Stock, Qty 20+

0

8

Husqvarna 812000029

RING CLIP

$4.99

$

Usually ships in 3-10 days

0

9

Husqvarna 532121232

CAP.SPINDLE.BLACK

$4.99

$

In Stock, Qty 9

0

13

Husqvarna 532121749

WASHER

$3.49

$

Usually ships in 3-10 days

0

14

Husqvarna 810040600

WASHER, LOCK 3/8
(Superseded to 596238701)

$4.99

$

In Stock, Qty 19

0

15

Husqvarna 873540600

NUT CROWNLOCK 3/8-24

$4.99

$

Usually ships in 3-10 days

0

16

Husqvarna 532444213

SHAFT SHAFT.STEERING/HIGH3PLAT
(Superseded to 583573801)

$51.99

$

In Stock, only 1 left!

0

19

Husqvarna 532194729

PLATE.STEER.DDL.NLT/NG

$18.99

$

Usually ships in 3-10 days

0

20

Husqvarna 532441425

STEERING.BOOT.HUSQ.LT

$9.49

$

Usually ships in 3-10 days

0

21

Husqvarna 532186737

ADAPTER, WHEEL STNG..
(Superseded to 587738905)

$9.49

$

In Stock, Qty 8

0

22

Husqvarna 532194845

BUSHING.ASM.STEERING.A
(Superseded to 587738901)

$17.99

$

In Stock, only 4 left!

0

26

Husqvarna 532439743

INSERT.CAP.WHL.STRG.HUSQ.PREM

$10.99

$

In Stock, only 1 left!

0

28

Husqvarna 817000612

SCREW, 3/8-16X3/4

$4.99

$

Usually ships in 3-10 days

0

33

Husqvarna 810040500

LOCKWASHER
(Superseded to 596238801)

$3.99

$

In Stock, only 3 left!

0

35

Husqvarna 532440770

GEAR GEAR.SECTOR.TEX.NZTR
(Superseded to 583551401)

$45.99

$

In Stock, only 1 left!

0

45

Husqvarna 819113812

WASHER.11/32

$6.49

$

Usually ships in 3-10 days

0

53

Husqvarna 532188967

WASHER.HARDENED

$4.99

$

In Stock, Qty 20+

0

57

Husqvarna 532407465

BRACKET.UPSTOP.TEX

$6.99

$

In Stock, only 1 left!

0

58

Husqvarna 532194747

BOLT.SHOULDER.SECTOR.P

$9.49

$

In Stock, only 3 left!

0

59

Husqvarna 532194748

WASHER.THURST.SECTOR.S

$7.49

$

In Stock, only 3 left!

0

60

Husqvarna 873971000

NUT FLANGE LOCK 5/8-11
(Superseded to 583612801)

$7.49

$

In Stock, only 1 left!

0

61

Husqvarna 532436884

LINK SUBASM.LINK.DRAG.LH.NZTR
(Superseded to 597069802)

$34.99

$

In Stock, only 2 left!

0

62

Husqvarna 532436885

TUBE TUBE
(Superseded to 597069902)

$34.99

$

In Stock, only 4 left!

0

63

Husqvarna 817000512

SCREW
(Superseded to 532428867)

$6.49

$

In Stock, Qty 11

0

64

Husqvarna 532199849

RETAINER.CLIP.SPRING.S

$6.49

$

In Stock, Qty 8

0

66

Husqvarna 871020748

BOLT HEX FGHD 7/16-14 X 3 SERR

$6.49

$

In Stock, only 4 left!

0

67

Husqvarna 532194737

BUSHING.PM.FRONT AXLE

$

$

Not available

68

Husqvarna 873900700

NUT.LOCK.FLANGE.7/16

$7.49

$

In Stock, Qty 13

0

69

Husqvarna 532199162

WASHER.1.5X.505X.118

$6.49

$

In Stock, only 1 left!

0

70

Husqvarna 585338801

BRACKET.FRT.DECK.SUSP.RR.MT431

$9.99

$

Usually ships in 3-10 days

0

71

Husqvarna 532190752

SHAFT.EXTEN.STRG.SPLINE

$17.99

$

In Stock, only 1 left!

0

72

Husqvarna 532428982

BOLT 5/16-18 X 4 W/PATCH

$4.99

$

Usually ships in 3-10 days

0

80

Husqvarna 532001370

THRUST WASHER

$6.49

$

In Stock, only 2 left!

0

81

Husqvarna 532436887

LINK SUBASM.LINK.CROSS.NZTR
(Superseded to 597069702)

$11.99

$

In Stock, only 4 left!

0

82

Husqvarna 532442147

SUBASM;PIVOT;BOLT;NZTR

$7.99

$

In Stock, only 2 left!

0

85

Husqvarna 532441873

PIVOT SUBASM.PIVOT.RH.NZTR
(Superseded to 583561101)

$

$

Not available

86

Husqvarna 532441872

PIVOT SUBASM.PIVOT.LH.NZTR
(Superseded to 583561001)

$40.99

$

In Stock, only 1 left!

0

122

Husqvarna 532444962

CAP.GEAR.SECTOR.TEX
(Superseded to 583576601)

$6.49

$

In Stock, only 3 left!

0
