CTH 210 XP (960610008-01) - Husqvarna Lawn Tractor (2005-04) MOWER LIFT / DECK LIFT Parts Diagram

Lawn Tractor

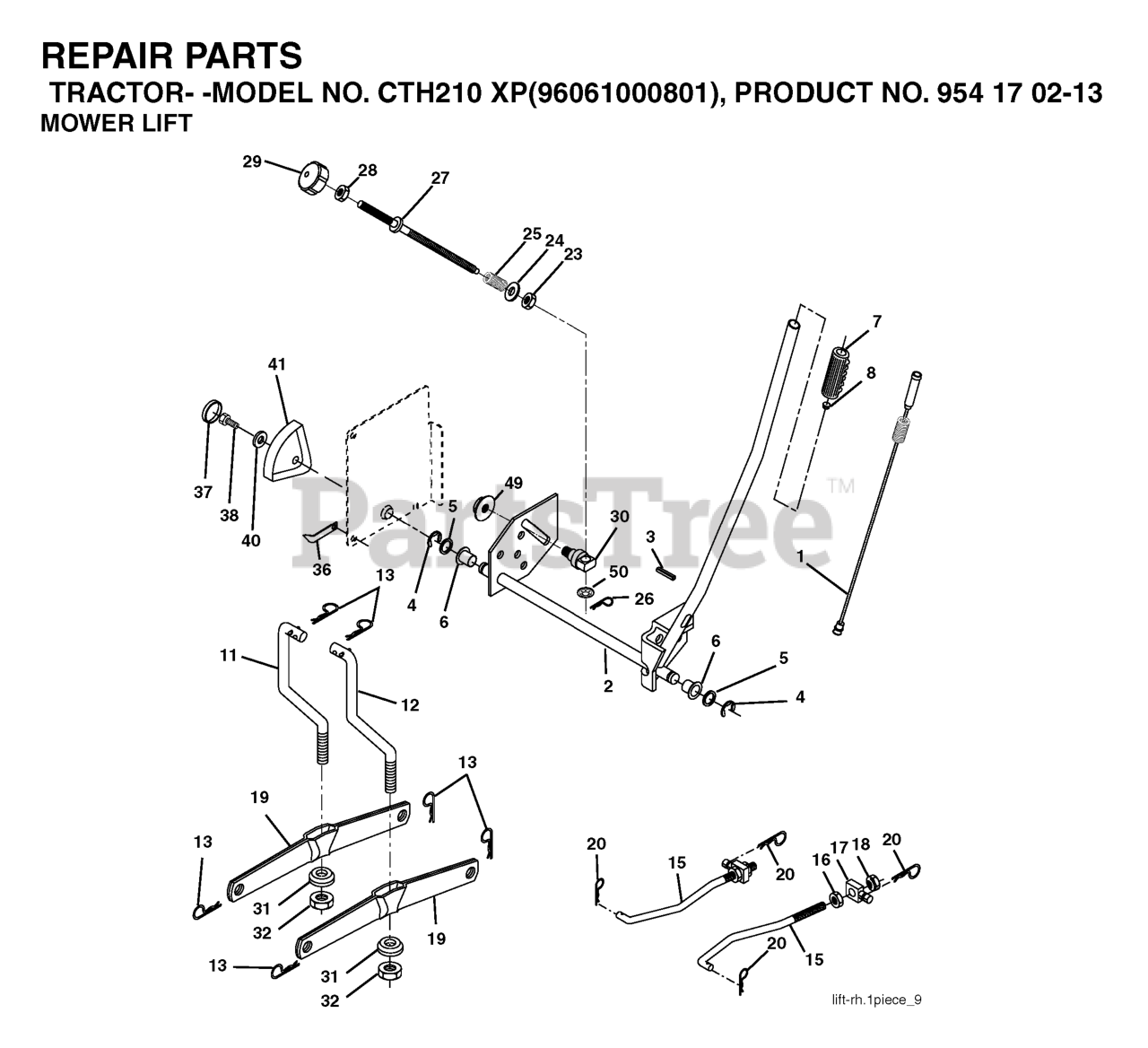

MOWER LIFT / DECK LIFT Parts Diagram

  • Title
1

Husqvarna 532159460

WIRE ASM INNER W/ PLUNGER LT

$26.99

$

Usually ships in 3-10 days

0

36

Husqvarna 532155097

POINTER, HEIGHT INDICATOR(2 2)

$

$

Not available

32

Husqvarna 873540600

NUT CROWNLOCK 3/8-24

$4.99

$

Usually ships in 3-10 days

0

26

Husqvarna 532169484

RETAINER CLIP

$

$

Not available

38

Husqvarna 817060516

SCREW 5/16-18X1

$6.49

$

Usually ships in 3-10 days

0

$6.49

$

Usually ships in 3-10 days

0

$6.49

$

In Stock, Qty 5

0

15

Husqvarna 532173288

LINK.SUSPENSION.FRONT

$13.99

$

In Stock, only 2 left!

0

$6.49

$

In Stock, only 2 left!

0

17

$

$

Not available

2

Husqvarna 532159471

SHAFT ASM R HANDLE

$54.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532138057

KNOB INF 3/8-16

$8.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532165829

LINK
(Superseded to 532165828)

$26.99

$

Usually ships in 3-10 days

0

4

Husqvarna 812000002

RETAINING RING LT

$7.49

$

In Stock, only 1 left!

0

7

Husqvarna 532125631

GRIP HANDLE

$7.99

$

In Stock, only 1 left!

0

13

Husqvarna 532124670

RETAINER-SPRNG RB

$

$

Not available

41

Husqvarna 532123934

HEIGHT INDICATOR

$

$

Not available

28

Husqvarna 873350600

NUT
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

16

Husqvarna 873350800

NUT.HEX.JAM.1/2-13

$

$

Not available

6

Husqvarna 532120183

BEARING.NYLON

$6.99

$

In Stock, only 3 left!

0

49

Husqvarna 532145212

NUT
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

25

Husqvarna 532124874

SPRING**
(Superseded to 532002876)

$7.49

$

Usually ships in 3-10 days

0

19

Husqvarna 532139868

ARM.REAR.SUSPENSION

$15.99

$

Usually ships in 3-10 days

0

37

$5.99

$

Usually ships in 3-10 days

0

30

$12.99

$

Usually ships in 3-10 days

0

3

Husqvarna 532105767

PIN GROOVE.

$6.49

$

In Stock, only 3 left!

0

18

Husqvarna 873800800

NUT.LK.W/WSH.1/2.
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

31

Husqvarna 532169865

BEARING.PIVOT.LIFT

$

$

Not available

27

Husqvarna 532126971

ROD ADJ LIFT

$

$

Not available

12

Husqvarna 532165831

LINK
(Superseded to 532165830)

$

$

Not available

$

$

Not available

20

Husqvarna 532163552

SPRING RETAINER
(Superseded to 532003146)

$3.99

$

In Stock, Qty 20+

0

50

Husqvarna 532110452

NUT PUSH M

$3.99

$

Usually ships in 3-10 days

0

8

Husqvarna 532124526

PLUNGER BUT KIT
(Superseded to 532125925)

$

$

Not available
