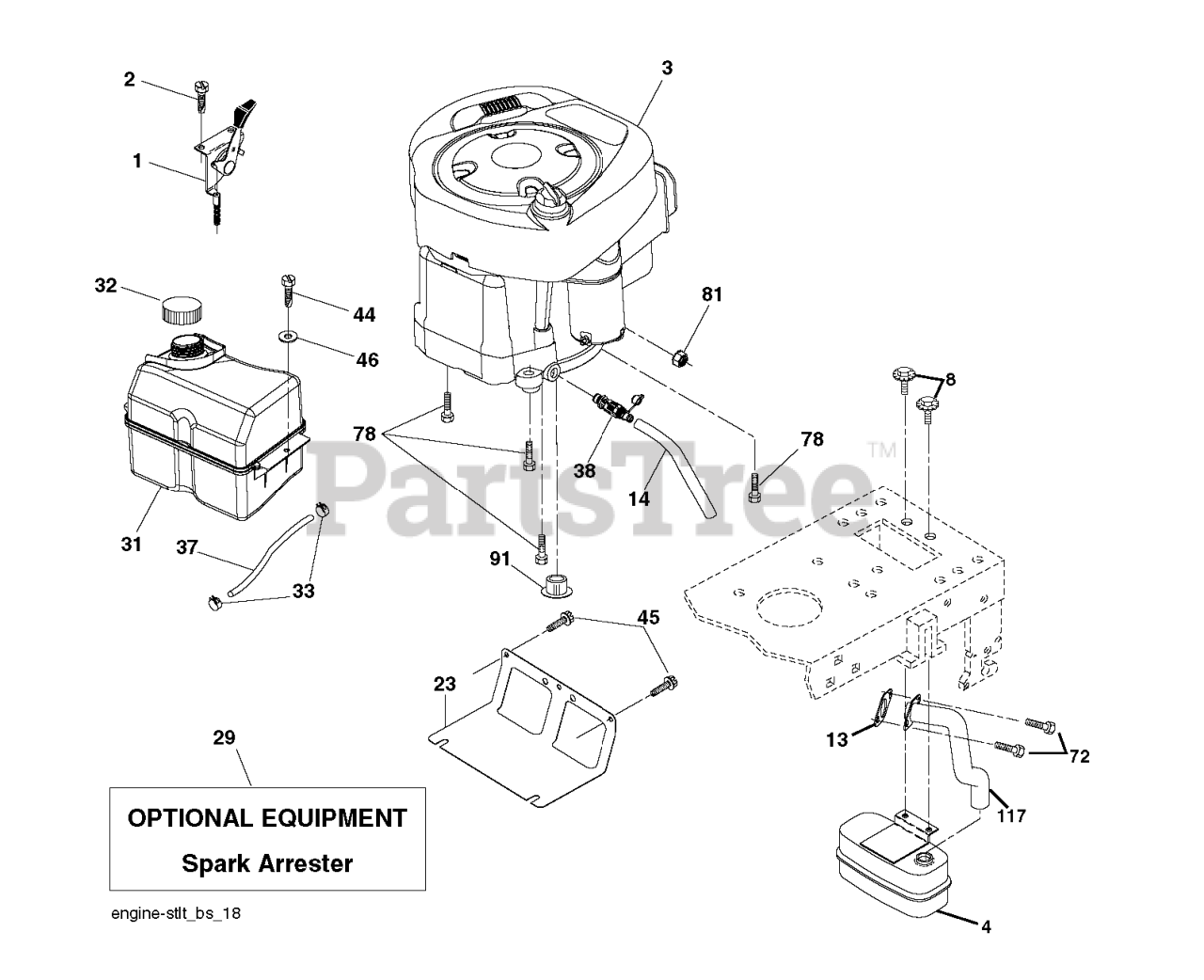

CTH 2038 (960610304-00) - Husqvarna Lawn Tractor (2010-02) ENGINE Parts Diagram

Lawn Tractor

ENGINE Parts Diagram

  • Title

91

Husqvarna 532187495

BUSHING.1.375OD

$6.49

$

In Stock, only 1 left!

0

31

Husqvarna 532407545

RP TANK FUEL FRT 1.5 GAL
(Superseded to 581289901)

$87.99

$

In Stock, only 1 left!

0

46

Husqvarna 819091416

WASHER

$6.49

$

Usually ships in 3-10 days

0

44

Husqvarna 817670412

SCREW HEXWSHR 1/4-20X3/4

$6.49

$

Usually ships in 3-10 days

0

23

Husqvarna 532169837

SHIELD.BROWNING.DBR.GUARD

$10.99

$

Usually ships in 3-10 days

0

13

Husqvarna 532165291

REPL BY 532 27 22-93
(Superseded to 532272293)

$12.99

$

Usually ships in 3-10 days

0

78

Husqvarna 817060620

SCREW.3/8-16

$7.49

$

In Stock, Qty 11

0

2

Husqvarna 532416358

SCREW.#10 X 0.750.BOS

$

$

Not available

14

Husqvarna 532148456

TUBE, DRAIN OIL ASM.

$6.99

$

In Stock, only 4 left!

0

117

Husqvarna 532405450

EXHAUST.TUBE.B&S.
(Superseded to 581880901)

$31.99

$

In Stock, only 3 left!

0

1

Husqvarna 532183897

CONTROL.TH/CK.C.
(Superseded to 532176636)

$37.99

$

Usually ships in 3-10 days

0

33

Husqvarna 532123487

HOSE CLAMP

$7.49

$

In Stock, only 4 left!

0

32

Husqvarna 532430220

CAP ASM.FUEL.2.25"FR.
(Superseded to 581075501)

$26.99

$

Usually ships in 3-10 days

0

4

Husqvarna 532188655

MUFFLER.SINGLE.CYL.KOHL/B&S

$45.99

$

In Stock, only 2 left!

0

3

000000000

Note: Engine B&S 33M677-1398-B1

$

$

Not available

38

Husqvarna 532428287

VALUE.OIL.DRAIN

$18.99

$

In Stock, only 4 left!

0

37

Husqvarna 532137040

LINE.FUEL.20
(Superseded to 587044820)

$11.99

$

In Stock, Qty 11

0

81

Husqvarna 873510400

NUT
(Superseded to 873680400)

$4.99

$

In Stock, Qty 16

0

72

Husqvarna 532192334

SCREW.SOCKET HD.5/16-1
(Superseded to 596134201)

$3.99

$

In Stock, Qty 13

0

45

Husqvarna 817000612

SCREW, 3/8-16X3/4

$4.99

$

Usually ships in 3-10 days

0

8

Husqvarna 532171877

BOLT.5/16-18UNCX3/4 W/SEMS.BLK

$7.49

$

In Stock, Qty 5

0

29

Husqvarna 532137180

KIT.SPARK ARRESTOR 794945 B&S

$182.99

$

In Stock, only 1 left!

0
