CTH 191 (960610189-04) - Husqvarna Lawn Tractor (2010-01) MOWER DECK / CUTTING DECK Parts Diagram

Lawn Tractor

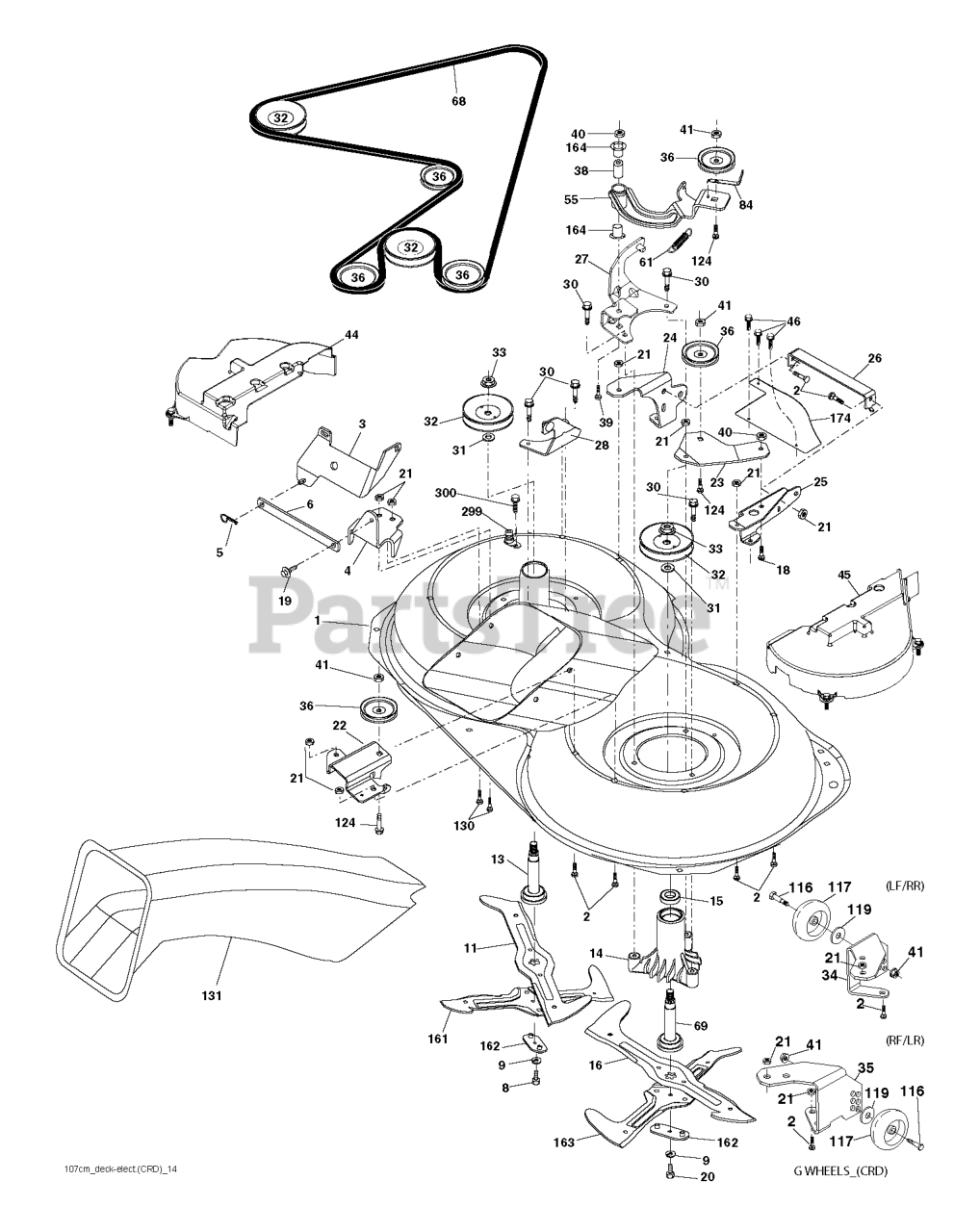

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

1

Husqvarna 532169160

Housing Asm. Mower 107 CRD

$

$

Not available

20

Husqvarna 532181713

BOLT.3/8-24X1.25GR8. LHTHRD
(Superseded to 583117001)

$4.99

$

In Stock, Qty 11

0

25

Husqvarna 532400105

BRACKET RF
(Superseded to 583259001)

$48.99

$

Usually ships in 3-10 days

0

- - -

Husqvarna 532181857

BEARING HOUSING
(Superseded to 583118201)

Note: Mandrel Assembly (Includes housing, shaft assembly, and bearing only - pulley/nut/washer and blade bolt/washers not included).

$91.99

$

Usually ships in 3-10 days

0

2

Husqvarna 872140506

RP BOLT 5/16-18 X3/4 ZN/YEL GR
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

31

Husqvarna 532187690

WASHER.SPACER.MANDREL

$4.99

$

In Stock, Qty 8

0

23

Husqvarna 532169166

BRACKET

$26.99

$

Usually ships in 3-10 days

0

163

Husqvarna 532180425

BLADE.CROSS.RH.CRD.107

$45.99

$

Usually ships in 3-10 days

0

174

Husqvarna 532400240

PLATE
(Superseded to 583260201)

$12.99

$

Usually ships in 3-10 days

0

299

Husqvarna 532415598

PORT.WASHOUT

$8.99

$

In Stock, Qty 11

0

- - -

Husqvarna 532181858

BEARING HOUSING
(Superseded to 583118301)

$96.99

$

Usually ships in 3-10 days

0

116

Husqvarna 532193406

BOLT.SHOULDER.3/8-16X3-5/8.
(Superseded to 596434404)

$5.99

$

In Stock, Qty 20+

0

55

Husqvarna 532169849

ARM.IDLER.107.CRD

$34.99

$

Usually ships in 3-10 days

0

27

Husqvarna 532169172

BRACKET

$28.99

$

Usually ships in 3-10 days

0

30

Husqvarna 532173984

SCREW, WASHER HEAD
(Superseded to 584953901)

$4.99

$

In Stock, Qty 20+

0

161

Husqvarna 532180424

$

$

Not available

164

Husqvarna 532124937

BRNG T
(Superseded to 532003366)

$4.99

$

In Stock, Qty 20+

0

26

Husqvarna 532400110

SUPPORT
(Superseded to 583259301)

$34.99

$

Usually ships in 3-10 days

0

38

Husqvarna 532169851

SPACER

$10.99

$

Usually ships in 3-10 days

0

22

Husqvarna 532169165

BRACKET.IDLER.RR.107.CRD

$

$

Not available

119

Husqvarna 819132012

WASHER
(Superseded to 596134901)

$3.49

$

Usually ships in 3-10 days

0

- - -

Husqvarna 532422789

NEEDS DESCRIPTION

$

$

Not available

84

Husqvarna 532156085

KEEPER, BELT IDLER
(Superseded to 532173968)

$

$

Not available

69

Husqvarna 532165482

SHAFT.ASM.W/LWR.BRG.RH.THREAD

$68.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532180583

BLADE.3N1.LH.CRD

$36.99

$

In Stock, only 1 left!

0

117

Husqvarna 532174873

RP WHEEL. GUAGE RALLY
(Superseded to 589527301)

$10.99

$

Usually ships in 3-10 days

0

9

Husqvarna 810030600

LOCKWASHER
(Superseded to 810040600)

$4.99

$

In Stock, Qty 19

0

46

Husqvarna 532137729

SCREW.1/4-20X5/8

$4.99

$

In Stock, Qty 19

0

33

Husqvarna 532400234

NUT.FLANGE.LOCK.TOP
(Superseded to 596134801)

$4.99

$

In Stock, Qty 15

0

24

Husqvarna 532413436

BRACKET
(Superseded to 583341901)

$27.99

$

Usually ships in 3-10 days

0

16

Husqvarna 532180584

BLADE.3N1.RH.CRD

$72.99

$

In Stock, only 1 left!

0

5

Husqvarna 532124670

RETAINER-SPRNG RB

$

$

Not available

300

Husqvarna 532152927

SCREW.TT.#10-32X.5.3/8.FLANGE

$7.49

$

In Stock, only 2 left!

0

14

Husqvarna 532128774

HOUSING.MANDREL.VENTED (MACHD)

$34.99

$

Usually ships in 3-10 days

0

28

Husqvarna 532169168

BRACKET
(Superseded to 583029401)

$27.99

$

Usually ships in 3-10 days

0

41

Husqvarna 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

124

Husqvarna 872110612

BOLT.3/8-16X1.50

$6.49

$

Usually ships in 3-10 days

0

68

Husqvarna 532402009

HEX-BELT 107 MOWER
(Superseded to 584897001)

$74.99

$

Usually ships in 3-10 days

0

61

Husqvarna 532199487

SPRING
(Superseded to 583252701)

$9.49

$

Usually ships in 3-10 days

0

21

Husqvarna 873680500

LOCKNUT
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

36

Husqvarna 532146763

PULLEY.IDLER.4.25

$

$

Not available

131

Husqvarna 532165661

CHUTE BAGGER

$93.99

$

Usually ships in 3-10 days

0

13

Husqvarna 532137645

SHAFT ASM VENT
(Superseded to 532137646)

$34.99

$

In Stock, only 3 left!

0

130

Husqvarna 872110506

BOLT.CARR.SQNK.5/16-18UNC.X3/4

$7.49

$

In Stock, Qty 20+

0

34

Husqvarna 532400103

BRACKET
(Superseded to 583258801)

$26.99

$

Usually ships in 3-10 days

0

6

Husqvarna 532165557

BAR.SWAY.92.CRD

$

$

Not available

32

Husqvarna 532198145

PULLEY.MANDREL.4.80 PD.2006

$

$

Not available

8

Husqvarna 532181712

BOLT.3/8-24X1.25 GR8
(Superseded to 583116901)

$7.49

$

Usually ships in 3-10 days

0

39

Husqvarna 872110622

BOLT

$4.99

$

In Stock, Qty 9

0

44

Husqvarna 532432404

COVER MANDREL LEFT
(Superseded to 583480701)

$47.99

$

Usually ships in 3-10 days

0

19

Husqvarna 532132827

BOLT SHD 5/16-18

$

$

Not available

18

Husqvarna 872110606

BOLT

$4.99

$

Usually ships in 3-10 days

0

45

Husqvarna 532432405

COVER MANDREL RIGHT
(Superseded to 583480801)

$60.99

$

Usually ships in 3-10 days

0

4

Husqvarna 532169167

BRACKET

$

$

Not available

35

Husqvarna 532400104

BRACKET
(Superseded to 583258901)

$22.99

$

Usually ships in 3-10 days

0

40

Husqvarna 873680600

LOCKNUT

$3.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532110485

BEARING

$13.99

$

In Stock, only 4 left!

0

3

Husqvarna 532431864

BRACKET.ASM.BAR.SWAY.CHASS

$24.99

$

Usually ships in 3-10 days

0

162

Husqvarna 532180878

$

$

Not available
