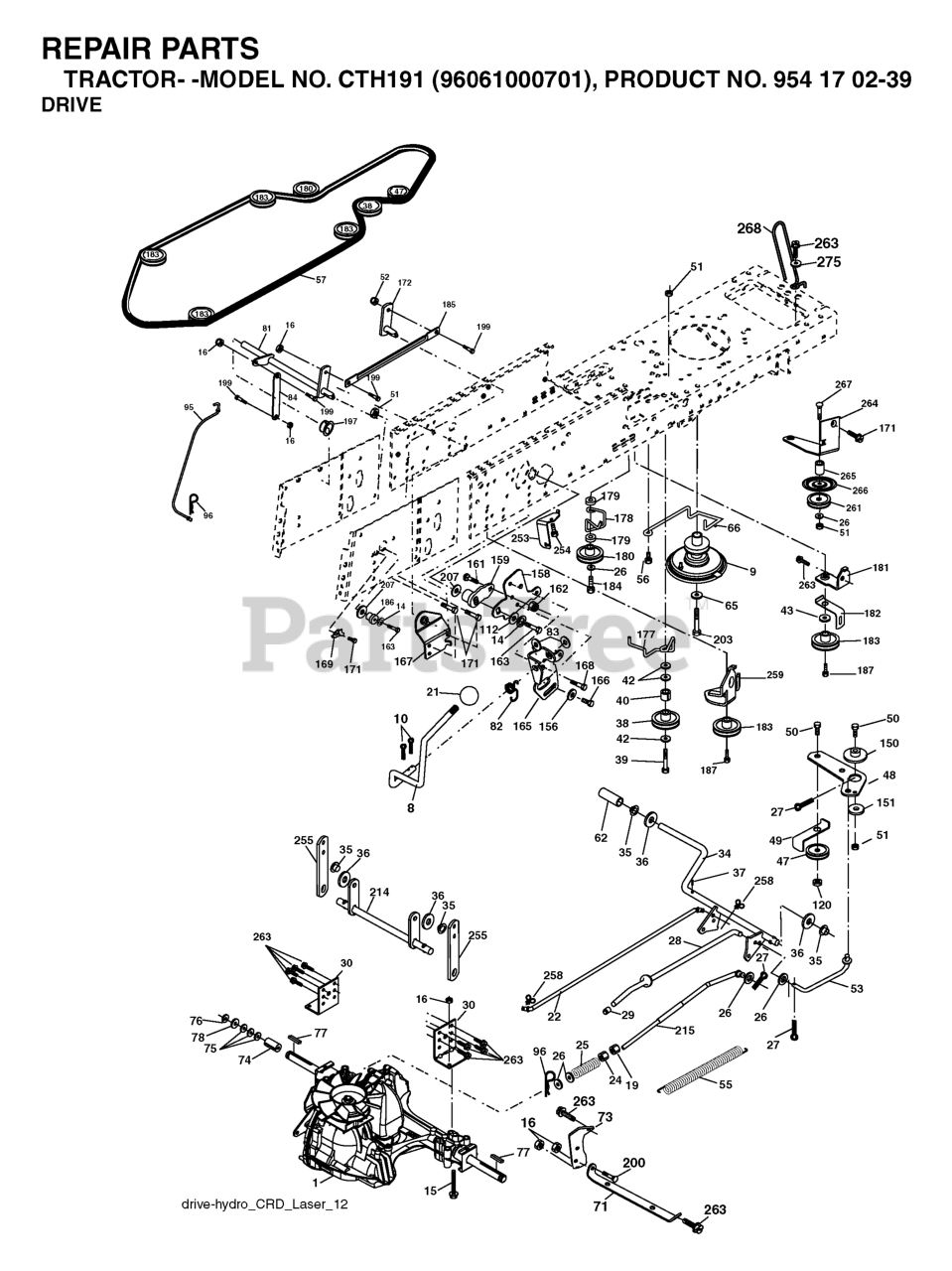

CTH 191 (960610007-01) - Husqvarna Lawn Tractor (2005-04) DRIVE Parts Diagram

Lawn Tractor

DRIVE Parts Diagram

  • Title
53

Husqvarna 532105710

LINK, CLUTCH LT
(Superseded to 532199652)

$13.99

$

Usually ships in 3-10 days

0

171

$6.49

$

Usually ships in 3-10 days

0

166

Husqvarna 817490510

CAPSCREW.HXHD.FLG.5/16-18X.625

$4.99

$

Usually ships in 3-10 days

0

9

Husqvarna 532180354

RP CLUTCH.NORAM.2002
(Superseded to 582219701)

$

$

Not available

186

Husqvarna 532165614

HUB.TAPERED.ROUND.CRD

$6.49

$

Usually ships in 3-10 days

0

50

Husqvarna 872110612

BOLT.3/8-16X1.50

$6.49

$

Usually ships in 3-10 days

0

10

Husqvarna 876020416

PIN COTTER

$3.99

$

Usually ships in 3-10 days

0

26

Husqvarna 819131316

WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

83

Husqvarna 819171216

WASHER
(Superseded to 734117771)

$6.49

$

In Stock, only 2 left!

0

21

Husqvarna 532121274

KNOB.DUCKHEAD.1/2

$10.99

$

Usually ships in 3-10 days

0

267

Husqvarna 872140626

NEEDS DESCRIPTION

$

$

Not available

38

Husqvarna 532165936

PULLEY.FLAT

$31.99

$

In Stock, only 1 left!

0

199

Husqvarna 532169612

BOLT SHOULDER 5/16-18 UNC
(Superseded to 596231101)

$4.99

$

In Stock, only 2 left!

0

36

$6.49

$

Usually ships in 3-10 days

0

178

$3.99

$

Usually ships in 3-10 days

0

16

Husqvarna 873800500

NUT.71038.31-18.HEX.NYLOCK

$3.99

$

Usually ships in 3-10 days

0

27

Husqvarna 876020412

COTTER PIN
(Superseded to 539990365)

$6.49

$

In Stock, Qty 20+

0

42

Husqvarna 819131312

WASHER
(Superseded to 734117201)

$3.49

$

Usually ships in 3-10 days

0

57

Husqvarna 532170140

V-BELT 113"
(Superseded to 583036701)

$85.99

$

Usually ships in 3-10 days

0

24

Husqvarna 873350600

NUT
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

30

Husqvarna 532169592

BRKT, TRNSXLE MNT 20"

$6.49

$

Usually ships in 3-10 days

0

76

$4.99

$

Usually ships in 3-10 days

0

14

Husqvarna 810040400

LOCKWASHER
(Superseded to 596029801)

$3.99

$

In Stock, only 2 left!

0

165

Husqvarna 532165623

RP BRACKET
(Superseded to 532438250)

$7.49

$

Usually ships in 3-10 days

0

145

Husqvarna 874490544

BOLT HEX 5/16-18 GR 5

$4.99

$

Usually ships in 3-10 days

0

203

Husqvarna 871170780

BOLT.HEX.7/16-20 X 5
(Superseded to 583789701)

$9.49

$

In Stock, only 1 left!

0

120

Husqvarna 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

168

Husqvarna 532165492

BOLT.SHOULDER.5/16-18X

$10.99

$

In Stock, only 3 left!

0

22

Husqvarna 532175652

ROD
(Superseded to 583070601)

$27.99

$

Usually ships in 3-10 days

0

43

$6.49

$

Usually ships in 3-10 days

0

177

$7.99

$

Usually ships in 3-10 days

0

40

$6.49

$

Usually ships in 3-10 days

0

34

Husqvarna 532175578

SHAFT, FOOT PEDAL

$31.99

$

Usually ships in 3-10 days

0

275

Husqvarna 819131614

WASHER
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

180

Husqvarna 532165630

PULLEY.FLAT.IDLER

$34.99

$

Usually ships in 3-10 days

0

182

Husqvarna 532182682

BELT GUIDE
(Superseded to 583123401)

$4.99

$

Usually ships in 3-10 days

0

$6.49

$

Usually ships in 3-10 days

0

96

Husqvarna 532124788

RETAINER M
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

$3.49

$

Usually ships in 3-10 days

0

264

Husqvarna 532181995

NEEDS DESCRIPTION

$

$

Not available

47

Husqvarna 532127783

IDLER PULLEY
(Superseded to 532139245)

$37.99

$

In Stock, only 2 left!

0

268

Husqvarna 532182402

GUARD MUFFLER
(Superseded to 583122001)

$7.49

$

Usually ships in 3-10 days

0

159

Husqvarna 532165494

HUB
(Superseded to 532444304)

$8.99

$

Usually ships in 3-10 days

0

73

Husqvarna 532169183

STRAP TORQUE LH HYDRO

$7.49

$

Usually ships in 3-10 days

0

150

Husqvarna 532165850

BUSHING.BELLCRANK.GRD.DR

$

$

Not available

156

Husqvarna 532166002

WASHER.SRRTD.5/16

$6.49

$

Usually ships in 3-10 days

0

$4.99

$

In Stock, Qty 20+

0

25

Husqvarna 532192036

SPRING BRAKE ROD
(Superseded to 583201301)

$4.99

$

Usually ships in 3-10 days

0

181

Husqvarna 532180211

BRACKET
(Superseded to 583099101)

$5.99

$

Usually ships in 3-10 days

0

214

Husqvarna 532175609

LEVER
(Superseded to 583070401)

$11.99

$

Usually ships in 3-10 days

0

35

Husqvarna 532120183

BEARING.NYLON

$6.99

$

In Stock, only 4 left!

0

185

Husqvarna 532170008

LINK
(Superseded to 583036001)

$13.99

$

Usually ships in 3-10 days

0

184

Husqvarna 817490644

SCREW.HXWSH.3/8

$

$

Not available

49

Husqvarna 532123205

RETAIN BELT

$6.49

$

Usually ships in 3-10 days

0

$6.49

$

Usually ships in 3-10 days

0

71

Husqvarna 532169182

STRAP TORQUE RH HYDRO

$17.99

$

In Stock, only 1 left!

0

187

Husqvarna 817580520

BOLT.5/16-18X1.25

$4.99

$

In Stock, only 3 left!

0

19

Husqvarna 873800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

51

$3.99

$

Usually ships in 3-10 days

0

179

$

$

Not available

151

Husqvarna 819133210

WASHER 12/32X2X10GA
(Superseded to 532413524)

$

$

Not available

77

Husqvarna 532123583

SQUARE KEY

$4.99

$

In Stock, Qty 7

0

56

Husqvarna 817060620

SCREW.3/8-16

$7.49

$

In Stock, Qty 11

0

$

$

Not available

37

Husqvarna 532124963

DRIVE PIN
(Superseded to 532002882)

$4.99

$

In Stock, Qty 7

0

162

Husqvarna 873680400

NUT.CROWNLOCK.1/4
(Superseded to 586668901)

$4.99

$

In Stock, Qty 16

0

261

Husqvarna 532131494

FLAT IDLER PULLEY
(Superseded to 597025001)

$26.99

$

In Stock, Qty 6

0

82

Husqvarna 532165711

SHIFT SPRING

$7.49

$

In Stock, only 1 left!

0

207

Husqvarna 532169845

WASHER NYL

$4.99

$

Usually ships in 3-10 days

0

112

$6.99

$

Usually ships in 3-10 days

0

266

Husqvarna 532182061

PROTECTOR
(Superseded to 583119101)

$6.49

$

Usually ships in 3-10 days

0

258

Husqvarna 532178062

CLIP RETAINER

$4.99

$

In Stock, only 1 left!

0

167

Husqvarna 532165588

BRACKET.SUPT.SHIFT.CRD

$20.99

$

Usually ships in 3-10 days

0

158

Husqvarna 532165589

BRACKET
(Superseded to 532437458)

$7.49

$

Usually ships in 3-10 days

0

$2.99

$

Usually ships in 3-10 days

0

81

Husqvarna 532170006

ASM.CROSS.SHAFT.REAR.CRD.0510

$

$

Not available

55

Husqvarna 532105709

SPRING, RETURN LT

$11.99

$

Usually ships in 3-10 days

0

62

Husqvarna 532123533

COVER, PEDAL (1 2)

$6.99

$

Usually ships in 3-10 days

0

48

Husqvarna 532154407

BELLCRANK, CLUTCH

$8.99

$

Usually ships in 3-10 days

0

8

Husqvarna 532165619

ROD.SHIFT.FENDER.ADJ.LT.CRD

$

$

Not available

265

Husqvarna 532182013

SPACER IDLER

$18.99

$

Usually ships in 3-10 days

0

263

Husqvarna 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, only 2 left!

0

255

Husqvarna 532175608

SHAFT
(Superseded to 583070301)

$2.99

$

Usually ships in 3-10 days

0

259

Husqvarna 532180212

BRACKET
(Superseded to 583099201)

$

$

Not available

28

Husqvarna 532175765

ROD, PARKING BRAKE

$6.49

$

Usually ships in 3-10 days

0

197

Husqvarna 532169613

NYLINER SNAP 5/8" ID

$7.49

$

In Stock, Qty 6

0

161

Husqvarna 872140406

BOLT
(Superseded to 872110407)

$4.99

$

Usually ships in 3-10 days

0

169

Husqvarna 532165580

PLATE.FASTENING.CROSS.SHAFT

$6.99

$

Usually ships in 3-10 days

0

66

Husqvarna 532154778

KEEPER BELT ENGINE

$12.99

$

Usually ships in 3-10 days

0

52

Husqvarna 873680500

LOCKNUT
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

254

Husqvarna 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, only 3 left!

0

172

Husqvarna 532170271

LINK
(Superseded to 583037801)

$24.99

$

Usually ships in 3-10 days

0

74

Husqvarna 532137057

SPACER AXLE

$7.49

$

In Stock, only 3 left!

0

183

Husqvarna 532186007

NEEDS DESCRIPTION

$

$

Not available

29

Husqvarna 532071673

PLUNGER CAP

$5.99

$

Usually ships in 3-10 days

0

215

Husqvarna 532175652

ROD
(Superseded to 583070601)

$27.99

$

Usually ships in 3-10 days

0

84

Husqvarna 532170007

LINK.PNT.TRANSAXLE.0510.CRD
(Superseded to 583035901)

$6.99

$

Usually ships in 3-10 days

0

65

Husqvarna 810040700

LOCKWASHER
(Superseded to 539990247)

$

$

Not available

95

Husqvarna 532170015

LINK
(Superseded to 583036101)

$21.99

$

Usually ships in 3-10 days

0
