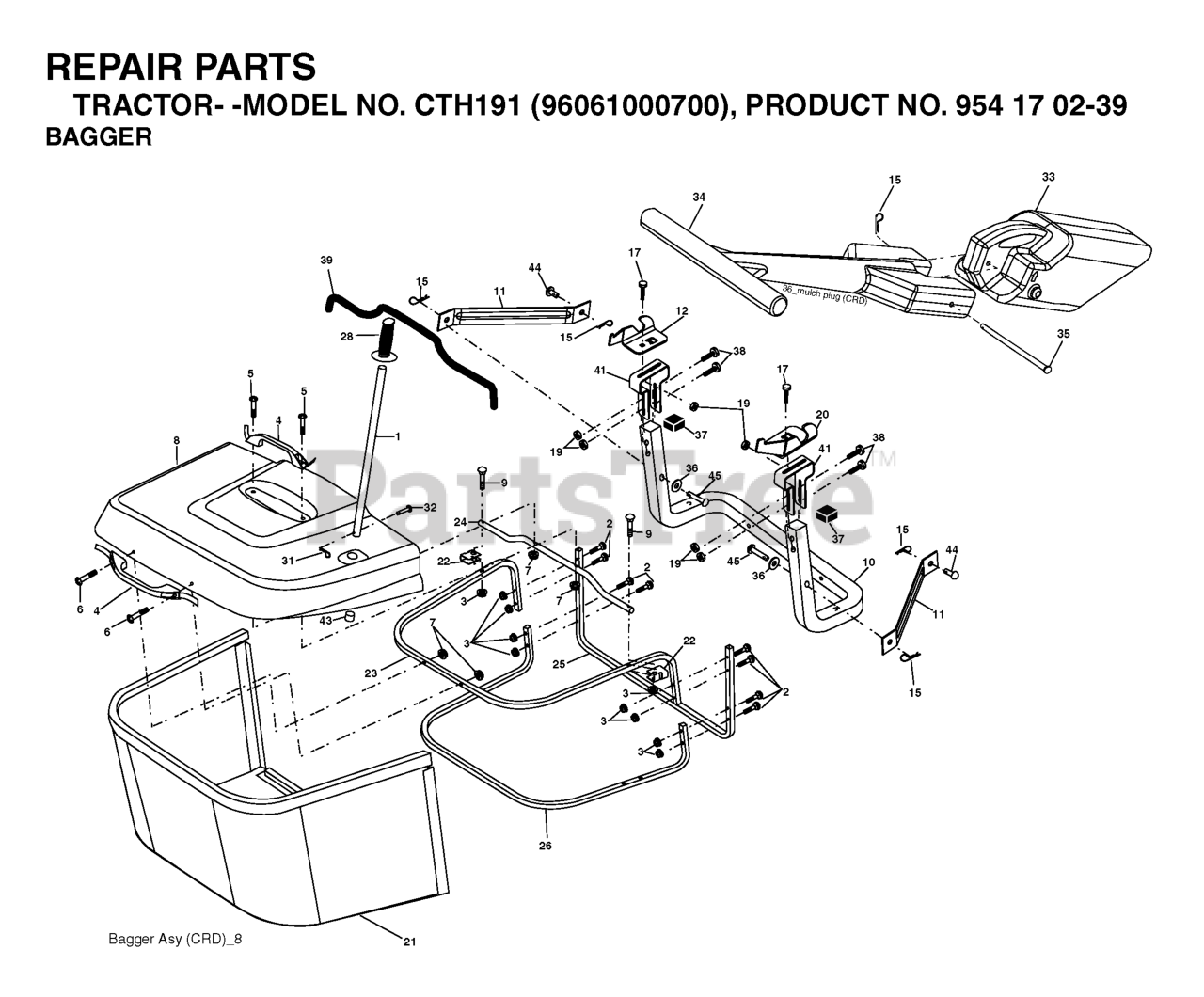

CTH 191 (960610007-00) - Husqvarna Lawn Tractor (2005-01) BAGGER Parts Diagram

Lawn Tractor

BAGGER Parts Diagram

  • Title
12

Husqvarna 532188848

BRKT PIVOT
(Superseded to 583173701)

$9.49

$

Usually ships in 3-10 days

0

43

Husqvarna 532174083

PLUG, TUBING END

$7.49

$

In Stock, only 3 left!

0

44

Husqvarna 532193312

NEEDS DESCRIPTION

$

$

Not available

23

Husqvarna 532165782

TUBE.UPPER.BAG.CRD

$

$

Not available

4

Husqvarna 532169916

HANDLE.BAGGER.W/LVRS.BLK.CRD

$11.99

$

Usually ships in 3-10 days

0

37

Husqvarna 532175401

Plug Support Bagger CRD

$

$

Not available

$14.99

$

Usually ships in 3-10 days

0

19

Husqvarna 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 583612701)

$

$

Not available

34

Husqvarna 532165570

HANDLE.MULCHER.92.CRD (2 2)

$60.99

$

Usually ships in 3-10 days

0

21

Husqvarna 532180880

GRASS BAG
(Superseded to 532406180)

$157.99

$

Usually ships in 3-10 days

0

9

Husqvarna 872140418

Bolt Carriage 1/4-20 x 2.25d x Gr.5

$

$

Not available

22

Husqvarna 532165781

BRKT.SIDE.BAG.CRD
(Superseded to 532428236)

$11.99

$

Usually ships in 3-10 days

0

38

Husqvarna 872010520

BOLT.5/16-18X2.5

$6.49

$

Usually ships in 3-10 days

0

11

Husqvarna 532165719

BRACKET.SUPPORT.UPPER.BAG.CRD

$11.99

$

Usually ships in 3-10 days

0

32

Husqvarna 532126875

RIVET,DRILLED

$6.49

$

In Stock, Qty 20+

0

24

Husqvarna 532165783

TUBE.PIVOT.BAG.CRD.BLACK

$26.99

$

Usually ships in 3-10 days

0

6

Husqvarna 874981032

REPL BY 532 75 00-29
(Superseded to 532750029)

$6.49

$

Usually ships in 3-10 days

0

39

Husqvarna 532180985

SEAL.TRIM.37'
(Superseded to 532416257)

$36.99

$

Usually ships in 3-10 days

0

$7.99

$

Usually ships in 3-10 days

0

20

Husqvarna 532188847

BRKT.PIVOT.RH.CRD

$9.49

$

Usually ships in 3-10 days

0

2

Husqvarna 872140416

Bolt Carriage 1/4-20 x 2.0 Gr.5

$

$

Not available

41

Husqvarna 532169683

BRKT.VERT.ADJ.BAGGER.CRD
(Superseded to 532432755)

$9.49

$

Usually ships in 3-10 days

0

26

Husqvarna 532165785

TUBE.LOWER.BAG.CRD

$

$

Not available

15

Husqvarna 532124670

RETAINER-SPRNG RB

$

$

Not available

25

Husqvarna 532180124

NEEDS DESCRIPTION

$

$

Not available

3

Husqvarna 532123976

NUT T
(Superseded to 873900400)

$4.99

$

In Stock, Qty 15

0

31

Husqvarna 532169484

RETAINER CLIP

$

$

Not available

33

Husqvarna 532169380

MULCH PLUG, CTH150
(Superseded to 532428683)

$48.99

$

Usually ships in 3-10 days

0

45

Husqvarna 532193313

NEEDS DESCRIPTION

$

$

Not available

17

Husqvarna 872140506

RP BOLT 5/16-18 X3/4 ZN/YEL GR
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

1

Husqvarna 532165249

TUBE HANDLE
(Superseded to 532170690)

$

$

Not available

5

Husqvarna 874981024

SCREW.PAN.HEAD

$9.99

$

In Stock, Qty 9

0

36

Husqvarna 819132012

WASHER
(Superseded to 596134901)

$3.49

$

Usually ships in 3-10 days

0

10

Husqvarna 532181282

TUBE
(Superseded to 583110201)

$

$

Not available

28

Husqvarna 532165787

GRIP.HANDLE.BLACK

$6.99

$

In Stock, only 2 left!

0

8

Husqvarna 532181095

COVER.PNT.BGR.CRD.WSLOTS.MS668
(Superseded to 532441543)

$227.99

$

Usually ships in 3-10 days

0
