CTH 184 T (960510077-00) - Husqvarna Lawn Tractor (2012-11) BAGGER Parts Diagram

Lawn Tractor

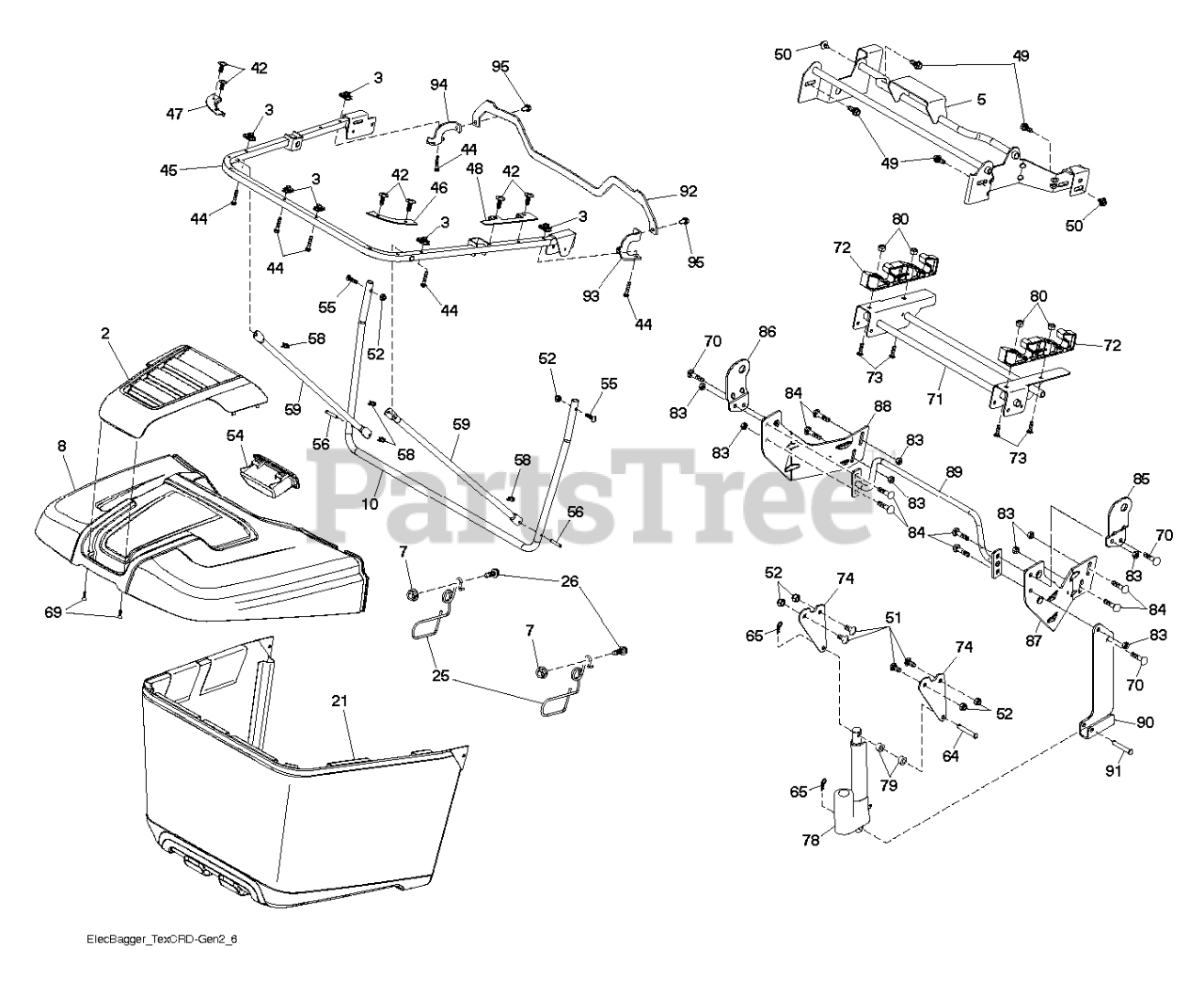

BAGGER Parts Diagram

  • Title
58

Husqvarna 532085179

RETAINER CLIP PM

$7.49

$

Usually ships in 3-10 days

0

80

Husqvarna 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 583612701)

$

$

Not available

$

$

Not available

94

Husqvarna 586052502

BRACKET.PNT.LH.SUPPORT.ATTACH

$10.99

$

Usually ships in 3-10 days

0

3

Husqvarna 532174814

1/4-20 U NUT

$6.49

$

In Stock, only 1 left!

0

$

$

Not available

26

Husqvarna 817490412

SCREW HEX CRT
(Superseded to 874760412)

$7.49

$

In Stock, only 1 left!

0

90

Husqvarna 581314202

BRACKET.ELE.DUMP.ACT.BAG.X431

$

$

Not available

88

Husqvarna 581314702

BRACKET.LH.MID.SUP.BAG.TEX.CRD

$56.99

$

Usually ships in 3-10 days

0

$4.99

$

Usually ships in 3-10 days

0

$

$

Currently unavailable

42

Husqvarna 532440428

CLIP CHRISTMAS TREE CLIP
(Superseded to 583548101)

$3.49

$

Usually ships in 3-10 days

0

79

Husqvarna 532447368

SPACER.NYLON.75" X .4375
(Superseded to 583590601)

$4.99

$

Usually ships in 3-10 days

0

45

Husqvarna 532443754

FRAME TEX_CRD_GEN2 UPPER U FRA
(Superseded to 583570301)

$113.99

$

Usually ships in 3-10 days

0

52

Husqvarna 873800500

NUT.71038.31-18.HEX.NYLOCK

$3.99

$

Usually ships in 3-10 days

0

91

Husqvarna 532448634

PIN.CLEVIS.(.375 X 1.25)
(Superseded to 583598001)

$3.99

$

In Stock, only 1 left!

0

$

$

Not available

50

Husqvarna 532171877

BOLT.5/16-18UNCX3/4 W/SEMS.BLK

$7.49

$

In Stock, Qty 5

0

73

Husqvarna 872110510

BOLT.CARRIAGE.5/16-18

$7.49

$

In Stock, Qty 20+

0

10

Husqvarna 532443755

FRAME TEX_CRD_GEN2 BAGGER FRAM
(Superseded to 583825801)

$34.99

$

Usually ships in 3-10 days

0

7

Husqvarna 873900400

NUT T
(Superseded to 873680400)

$4.99

$

In Stock, Qty 16

0

46

Husqvarna 532445541

CONNECTOR RIGHT BAGGER CORNER
(Superseded to 583580501)

$9.49

$

Usually ships in 3-10 days

0

83

Husqvarna 873800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

48

Husqvarna 532444080

BAFFLE BAGGER SIDE CLOSE-OUT
(Superseded to 583573101)

$9.49

$

Usually ships in 3-10 days

0

2

Husqvarna 532447572

APPLIQUE.BAGGER
(Superseded to 583765001)

$39.99

$

Usually ships in 3-10 days

0

$

$

Not available

54

Husqvarna 532447218

HANDLE BAGGER TOP FRONT HANDLE
(Superseded to 583827701)

$14.99

$

Usually ships in 3-10 days

0

56

Husqvarna 532420306

PIN.CLEVIS.183

$9.49

$

Usually ships in 3-10 days

0

86

Husqvarna 581314002

BRACKET.LH.PIVOT.ELE.DUMPX431

$

$

Not available

25

Husqvarna 532445528

LATCH LATCH. BAG. CRD GEN 2
(Superseded to 583580301)

$6.99

$

Usually ships in 3-10 days

0

70

Husqvarna 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, only 2 left!

0

87

Husqvarna 581314802

BRACKET.RH.MID.SUP.BAG.TEX.CRD

$40.99

$

Usually ships in 3-10 days

0

65

Husqvarna 532124788

RETAINER M
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

55

Husqvarna 872140512

BOLT
(Superseded to 582736101)

$

$

Not available

84

Husqvarna 872110608

BOLT D
(Superseded to 596728201)

$4.99

$

Usually ships in 3-10 days

0

49

Husqvarna 532171873

BOLT, SHOULDER 5/16-18

$5.99

$

Usually ships in 3-10 days

0

69

Husqvarna 532421801

SCREW,#8.FLAT.HEAD.DRILL.TIP
(Superseded to 583392101)

$

$

Not available

92

Husqvarna 586052302

BRACKET.PNT.BAGGER.TOP.SUPPORT

$31.99

$

Usually ships in 3-10 days

0

47

Husqvarna 532444079

CONNECTOR LEFT BAGGER CORNER C
(Superseded to 583573001)

$8.99

$

Usually ships in 3-10 days

0

59

Husqvarna 532444763

TUBE BAGGER SPREADER TUBE, TEX
(Superseded to 583826601)

$22.99

$

Usually ships in 3-10 days

0

95

Husqvarna 817000512

SCREW
(Superseded to 532428867)

$6.49

$

In Stock, Qty 11

0

93

Husqvarna 586052402

BRACKET.PNT.RH.SUPPORT.ATTACH

$10.99

$

Usually ships in 3-10 days

0

51

Husqvarna 872110506

BOLT.CARR.SQNK.5/16-18UNC.X3/4

$7.49

$

In Stock, Qty 20+

0

89

Husqvarna 581315102

WELDMENT.OFFSET.STRUT.SUP.BLAC

$

$

Not available

21

Husqvarna 532445943

BAG FRAME BAGGER ASSEMBLY. HUS
(Superseded to 583827001)

$125.99

$

Usually ships in 3-10 days

0

85

Husqvarna 581314102

BRACKET.RH.PIVOT.ELE.DUMPX431

$

$

Not available

$

$

Not available

$

$

Not available
