CTH 182 T (960610318-00) - Husqvarna Lawn Tractor (2010-11) ENGINE Parts Diagram

Lawn Tractor

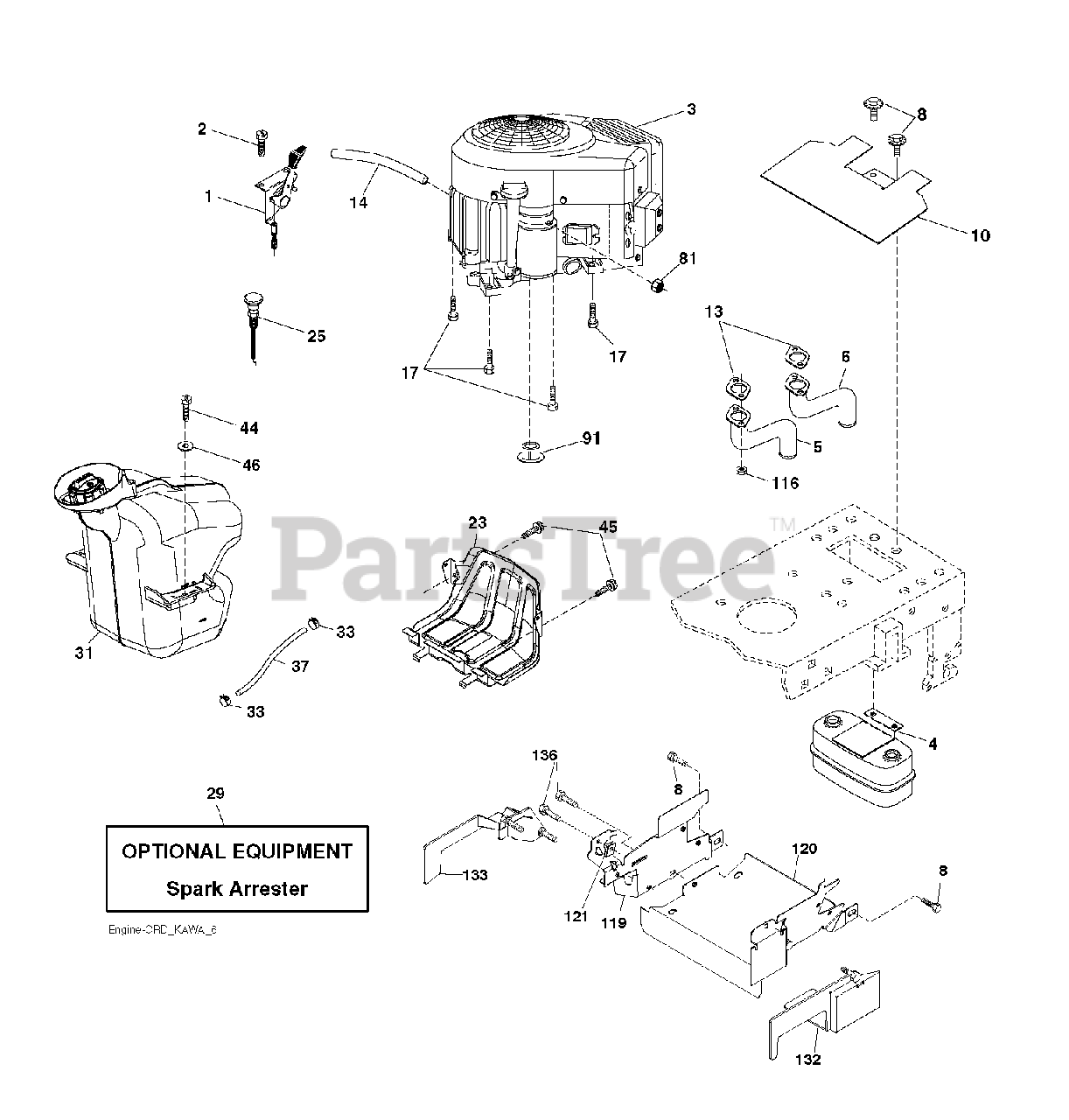

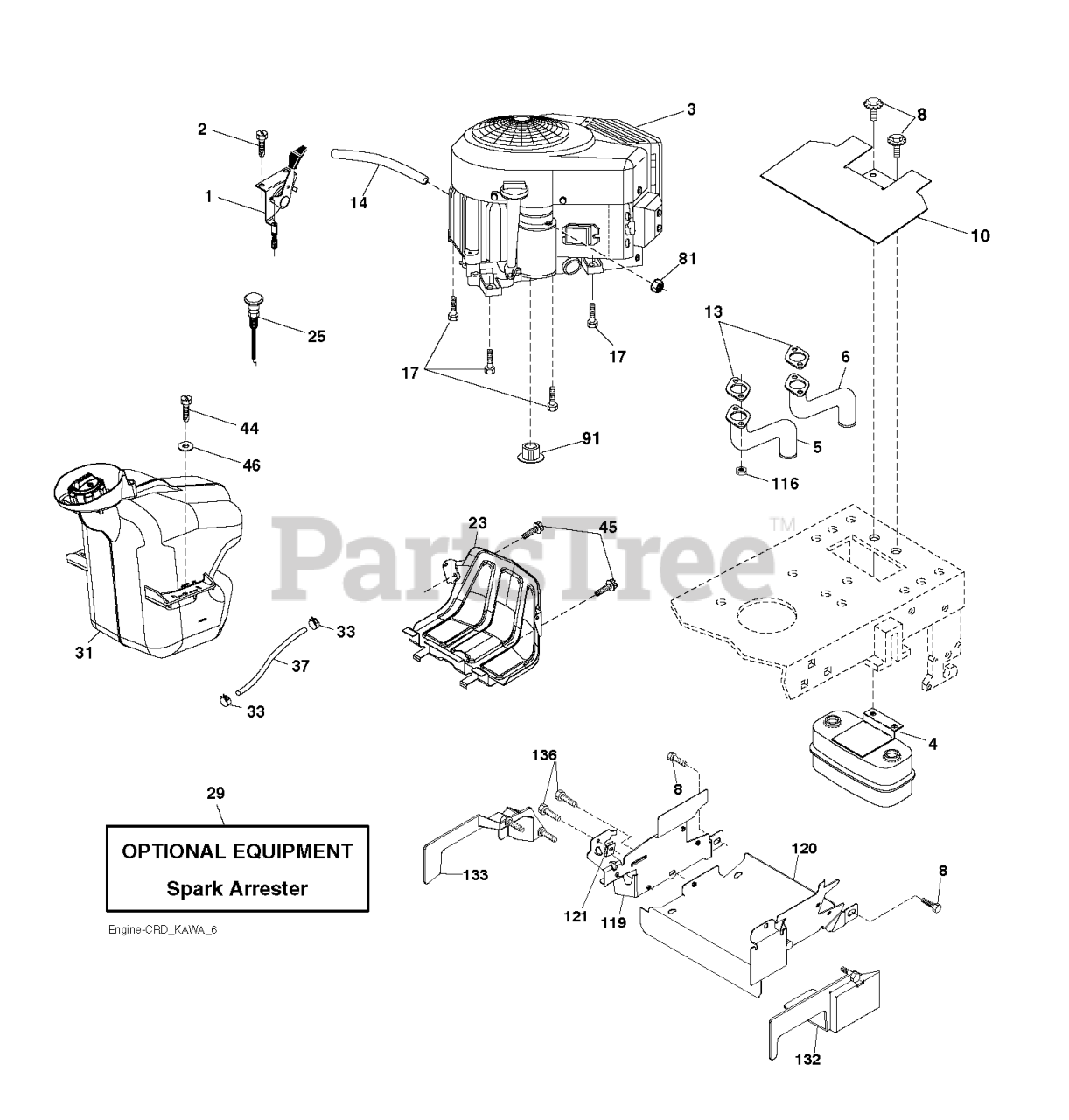

ENGINE Parts Diagram

  • Title

1

Husqvarna 532178385

THROTTLE CABLE
(Superseded to 532175437)

$44.99

$

In Stock, only 1 left!

0

2

Husqvarna 532416358

SCREW.#10 X 0.750.BOS

$

$

Not available

3

000000000

Note: Engine KAWA FS541V-AS51

$

$

Not available

4

Husqvarna 532149723

MUFFLER.TWIN.CYL.LOW.TONE

$74.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532424765

TUBE.EXHAUST.LH.FR961/FR730
(Superseded to 583955601)

$37.99

$

Usually ships in 3-10 days

0

6

Husqvarna 532424766

TUBE.EXHAUST.RH.FR961/FR730
(Superseded to 583955701)

$37.99

$

Usually ships in 3-10 days

0

8

Husqvarna 532171877

BOLT, 5/16-18 X 1 3/4

$7.49

$

In Stock, Qty 5

0

10

Husqvarna 532434017

SHIELD.HEAT.MUFFLER

$15.99

$

Usually ships in 3-10 days

0

13

Husqvarna 532178151

GASKET

$2.49

$

In Stock, Qty 20+

0

14

Husqvarna 532148456

TUBE, DRAIN OIL ASM.

$6.99

$

In Stock, only 4 left!

0

17

Husqvarna 817120616

SCREW 3/8-16X1

$5.99

$

In Stock, Qty 17

0

23

Husqvarna 532439870

SHIELD.BROWNING.PNT.GT.V2

$17.99

$

In Stock, only 2 left!

0

25

Husqvarna 532191596

CONTROL.CHOKE.ERGO.PUSH-IN.BLA

$40.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532137180

KIT.SPARK ARRESTOR 794945 B&S

$182.99

$

In Stock, only 1 left!

0

31

Husqvarna 532437592

$

$

Currently unavailable

33

Husqvarna 532123487

HOSE CLAMP

$7.49

$

In Stock, only 4 left!

0

37

Husqvarna 532137040

LINE.FUEL.20
(Superseded to 587044820)

$11.99

$

In Stock, Qty 11

0

44

Husqvarna 817670412

SCREW HEXWSHR 1/4-20X3/4

$6.49

$

Usually ships in 3-10 days

0

45

Husqvarna 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, only 2 left!

0

46

Husqvarna 819091416

WASHER

$6.49

$

Usually ships in 3-10 days

0

81

Husqvarna 873510400

NUT
(Superseded to 873680400)

$4.99

$

In Stock, Qty 16

0

91

Husqvarna 532187495

BUSHING.1.375OD

$6.49

$

In Stock, only 1 left!

0

116

Husqvarna 532184362

NUT.HEX.FLANGE.TOPLOCK

$6.49

$

In Stock, only 1 left!

0

119

Husqvarna 532199768

LENKRAD
(Superseded to 583254301)

$21.99

$

Usually ships in 3-10 days

0

120

Husqvarna 532199767

GUARD 532199767
(Superseded to 583254201)

$36.99

$

Usually ships in 3-10 days

0

121

Husqvarna 532196688

Clips

$4.99

$

In Stock, only 3 left!

0

132

Husqvarna 532420757

SHIELD RIGHT
(Superseded to 583383301)

$9.49

$

Usually ships in 3-10 days

0

133

Husqvarna 532420756

SHIELD LEFT
(Superseded to 583383201)

$6.99

$

Usually ships in 3-10 days

0

136

Husqvarna 532137729

SCREW.1/4-20X5/8

$4.99

$

In Stock, Qty 19

0
