CTH 180 XP (954170231-C) - Husqvarna Lawn Tractor (2004-09) MOWER DECK / CUTTING DECK Parts Diagram

Lawn Tractor

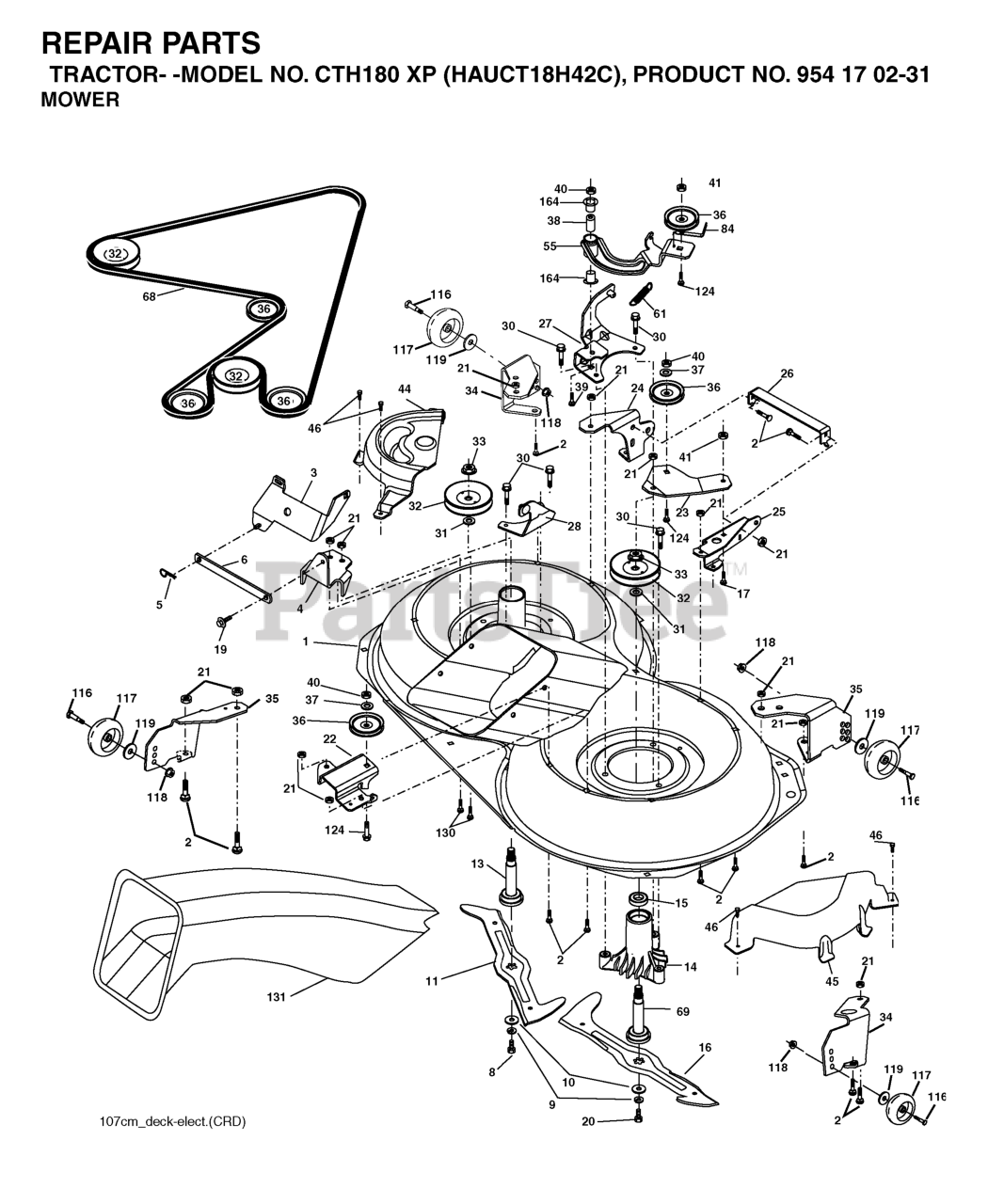

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

36

Husqvarna 532146763

PULLEY.IDLER.4.25

$

$

Not available

44

Husqvarna 532175538

NEEDS DESCRIPTION

$

$

Not available

9

Husqvarna 810030600

LOCKWASHER
(Superseded to 810040600)

$4.99

$

In Stock, Qty 20+

0

84

Husqvarna 532156085

KEEPER, BELT IDLER
(Superseded to 532173968)

$

$

Not available

27

Husqvarna 532169172

BRACKET

$31.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532169171

BRACKET.SUSPENSION.RF.107.CRD

$30.99

$

Usually ships in 3-10 days

0

22

Husqvarna 532169165

BRACKET.IDLER.RR.107.CRD

$

$

Not available

117

Husqvarna 532133957

WHEEL GAGE DONUT

$14.99

$

In Stock, Qty 20+

0

46

Husqvarna 532137729

SCREW.1/4-20X5/8

$4.99

$

In Stock, Qty 20+

0

24

Husqvarna 532169170

BRACKET

$

$

Not available

130

Husqvarna 872110506

BOLT.CARR.SQNK.5/16-18UNC.X3/4

$7.49

$

In Stock, Qty 9

0

45

Husqvarna 532175539

COVER.MANDREL.RH.CRD

$22.99

$

Usually ships in 3-10 days

0

21

Husqvarna 873680500

LOCKNUT
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

118

Husqvarna 873930600

LOCKNUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

164

Husqvarna 532124937

BRNG T
(Superseded to 532003366)

$4.99

$

In Stock, Qty 20+

0

11

Husqvarna 532180583

BLADE.3N1.LH.CRD

$36.99

$

In Stock, only 1 left!

0

4

Husqvarna 532169167

BRACKET

$

$

Not available

6

Husqvarna 532165557

BAR.SWAY.92.CRD

$

$

Not available

131

Husqvarna 532165661

CHUTE BAGGER

$102.99

$

Usually ships in 3-10 days

0

116

Husqvarna 532184219

SHOULDER BOLT
(Superseded to 532193406)

$5.99

$

In Stock, Qty 20+

0

10

Husqvarna 532140296

WASHER.BLADE

$6.99

$

In Stock, Qty 20+

0

23

Husqvarna 532169166

BRACKET

$51.99

$

Usually ships in 3-10 days

0

17

Husqvarna 872110606

BOLT

$4.99

$

Usually ships in 3-10 days

0

119

Husqvarna 819121414

WASHER.5/16.FLAT.STE.STD.
(Superseded to 596134901)

$3.49

$

In Stock, Qty 20+

0

--

Husqvarna 532175840

NEEDS DESCRIPTION

$

$

Currently unavailable

31

Husqvarna 532187690

WASHER.SPACER.MANDREL

$5.99

$

In Stock, Qty 20+

0

55

Husqvarna 532169849

ARM.IDLER.107.CRD

$34.99

$

Usually ships in 3-10 days

0

--

Husqvarna 532130794

KIT.MANDREL.ASM.3.BOLT

$62.99

$

In Stock, Qty 20+

0

--

Husqvarna 532165579

MANDREL ASM.CRD RH 6PT STAR

$96.99

$

Usually ships in 3-10 days

0

39

Husqvarna 872110622

BOLT

$4.99

$

In Stock, Qty 20+

0

5

Husqvarna 532124670

RETAINER-SPRNG RB

$

$

Not available

1

Husqvarna 532169160

Housing Asm. Mower 107 CRD

$

$

Not available

20

Husqvarna 532181713

BOLT.3/8-24X1.25GR8. LHTHRD
(Superseded to 583117001)

$4.99

$

In Stock, Qty 11

0

34

Husqvarna 532179509

NEEDS DESCRIPTION

$

$

Not available

15

Husqvarna 532110485

BEARING

$14.99

$

In Stock, Qty 20+

0

19

Husqvarna 532132827

BOLT SHD 5/16-18

$

$

Not available

16

Husqvarna 532180584

BLADE.3N1.RH.CRD

$72.99

$

In Stock, only 1 left!

0

69

Husqvarna 532165482

SHAFT.ASM.W/LWR.BRG.RH.THREAD

$74.99

$

Usually ships in 3-10 days

0

61

Husqvarna 532175159

NEEDS DESCRIPTION

$

$

Not available

8

Husqvarna 532181712

BOLT.3/8-24X1.25 GR8
(Superseded to 583116901)

$7.49

$

Usually ships in 3-10 days

0

14

Husqvarna 532128774

HOUSING.MANDREL.VENTED (MACHD)

$34.99

$

In Stock, Qty 20+

0

124

Husqvarna 872110612

BOLT.3/8-16X1.50

$6.49

$

Usually ships in 3-10 days

0

2

Husqvarna 872140506

RP BOLT 5/16-18 X3/4 ZN/YEL GR
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

28

Husqvarna 532169168

BRACKET
(Superseded to 583029401)

$28.99

$

Usually ships in 3-10 days

0

40

Husqvarna 873680600

LOCKNUT

$3.99

$

Usually ships in 3-10 days

0

38

Husqvarna 532169851

SPACER

$10.99

$

Usually ships in 3-10 days

0

32

Husqvarna 532175707

NEEDS DESCRIPTION

$

$

Not available

26

Husqvarna 532165237

BRACE.SUPT.SUSP.FRT.CRD
(Superseded to 583259301)

$37.99

$

Usually ships in 3-10 days

0

41

Husqvarna 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

35

Husqvarna 532176292

NEEDS DESCRIPTION

$

$

Not available

3

Husqvarna 532165569

BRACKET

$

$

Not available

13

Husqvarna 532137645

SHAFT ASM VENT
(Superseded to 532137646)

$34.99

$

In Stock, Qty 20+

0

68

Husqvarna 532169178

HEX-BELT 107 MOWER
(Superseded to 584897001)

$74.99

$

Usually ships in 3-10 days

0

30

Husqvarna 532173984

SCREW, WASHER HEAD
(Superseded to 584953901)

$4.99

$

In Stock, Qty 20+

0

33

Husqvarna 532178342

NUT, FLG TOPLOCK 9/16"
(Superseded to 596134801)

$4.99

$

In Stock, Qty 20+

0
