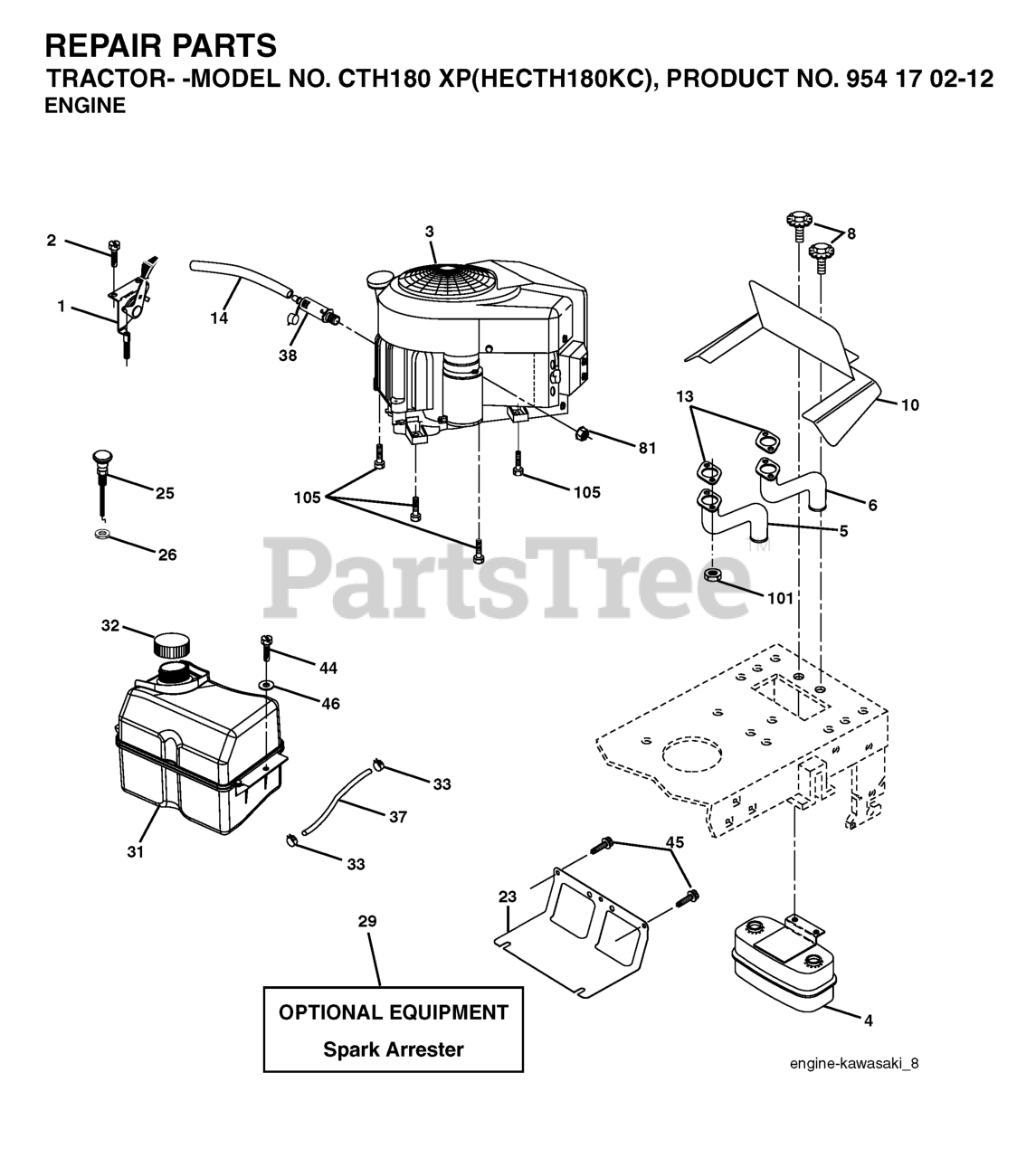

CTH 180 XP (954170212-C) - Husqvarna Lawn Tractor (2004-01) ENGINE Parts Diagram

Lawn Tractor

ENGINE Parts Diagram

  • Title
8

Husqvarna 532171877

BOLT.5/16-18UNCX3/4 W/SEMS.BLK

$7.49

$

In Stock, Qty 5

0

6

Husqvarna 532176068

EXHAUST.TUBE.RH.KAWASAKI.

$113.99

$

Usually ships in 3-10 days

0

31

Husqvarna 532185534

TANK FUEL
(Superseded to 581289901)

$87.99

$

In Stock, only 1 left!

0

101

Husqvarna 532184362

NUT.HEX.FLANGE.TOPLOCK

$6.49

$

In Stock, only 1 left!

0

37

Husqvarna 532137040

LINE.FUEL.20
(Superseded to 587044820)

$11.99

$

In Stock, Qty 11

0

33

Husqvarna 532123487

HOSE CLAMP

$7.49

$

In Stock, only 1 left!

0

5

Husqvarna 532176067

EXHAUST.TUBE.LH.KAWASAKI.

$113.99

$

Usually ships in 3-10 days

0

1

Husqvarna 532170803

CONTROL, THROTTLE

$30.99

$

In Stock, only 1 left!

0

2

Husqvarna 817720408

SCREW
(Superseded to 874780408)

$3.99

$

Usually ships in 3-10 days

0

44

Husqvarna 817670412

SCREW HEXWSHR 1/4-20X3/4

$6.49

$

Usually ships in 3-10 days

0

105

Husqvarna 817120616

SCREW 3/8-16X1

$5.99

$

In Stock, Qty 17

0

4

Husqvarna 532149723

MUFFLER.TWIN.CYL.LOW.TONE

$74.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532132782

CHOKE CONTROL
(Superseded to 532132781)

$

$

Not available

29

Husqvarna 532137180

KIT.SPARK ARRESTOR 794945 B&S

$182.99

$

In Stock, only 1 left!

0

23

Husqvarna 532169837

SHIELD.BROWNING.DBR.GUARD

$10.99

$

Usually ships in 3-10 days

0

14

Husqvarna 532148456

TUBE, DRAIN OIL ASM.

$6.99

$

In Stock, only 3 left!

0

45

Husqvarna 817000612

SCREW, 3/8-16X3/4

$4.99

$

Usually ships in 3-10 days

0

32

Husqvarna 532140527

FUEL CAP
(Superseded to 581075501)

$26.99

$

Usually ships in 3-10 days

0

$6.49

$

Usually ships in 3-10 days

0

81

Husqvarna 873510400

NUT
(Superseded to 873680400)

$4.99

$

In Stock, Qty 16

0

10

Husqvarna 532146629

RP SHIELD HEAT MUFFLER
(Superseded to 532434017)

$15.99

$

Usually ships in 3-10 days

0

26

Husqvarna 873920600

Nut Keps 3/8 - 24 UNF

$3.99

$

Usually ships in 3-10 days

0
