CTH 180 XP (954170091-A) - Husqvarna Lawn Tractor (2003-01) ENGINE & CUTTING EQUIPMENT Parts Diagram

Lawn Tractor

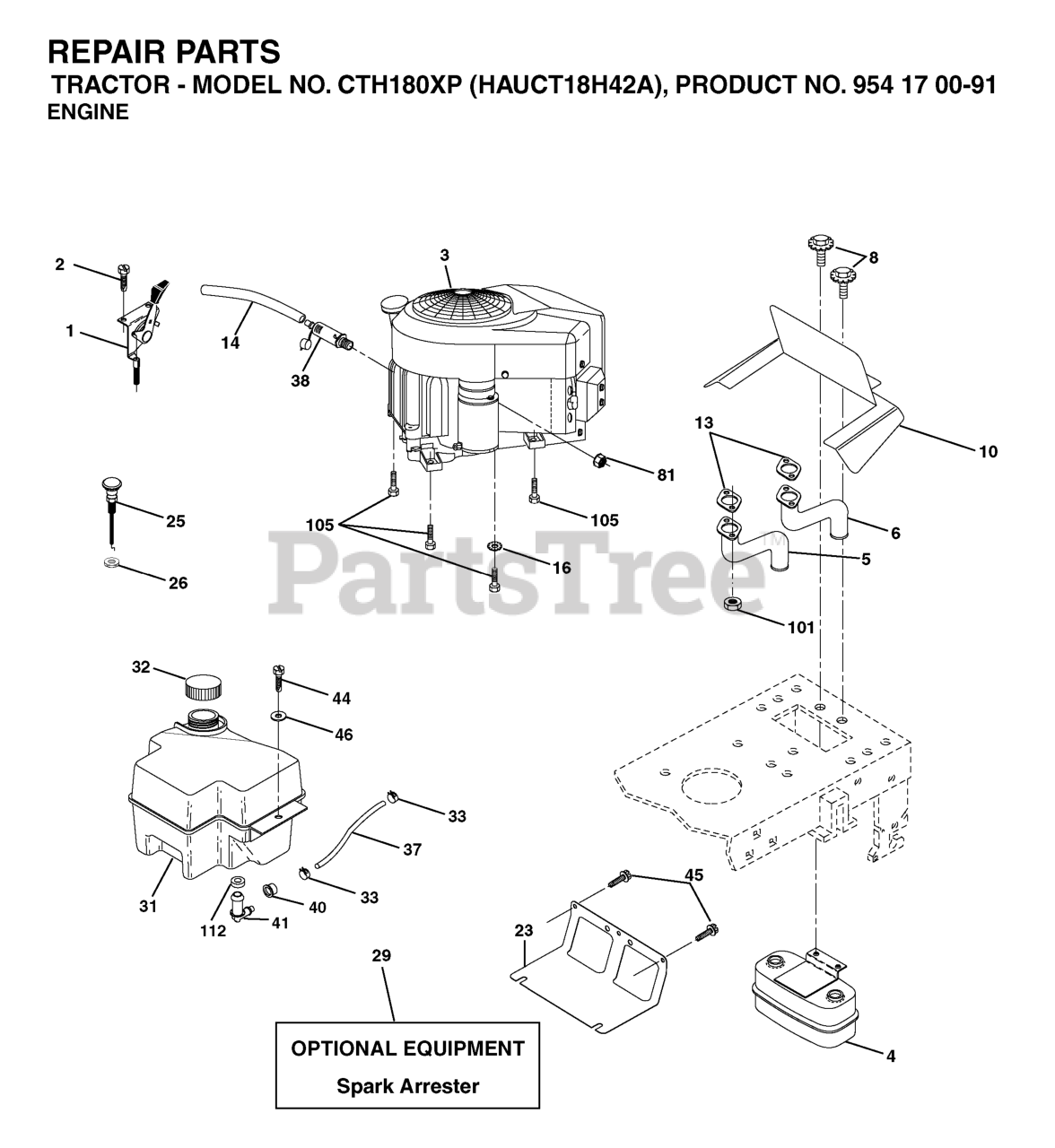

ENGINE & CUTTING EQUIPMENT Parts Diagram

  • Title
5

Husqvarna 532176067

EXHAUST.TUBE.LH.KAWASAKI.

$113.99

$

Usually ships in 3-10 days

0

101

Husqvarna 532163305

FLANGE NUT
(Superseded to 873030800)

$

$

Not available

105

Husqvarna 817120616

SCREW 3/8-16X1

$5.99

$

In Stock, Qty 17

0

14

Husqvarna 532148456

TUBE, DRAIN OIL ASM.

$6.99

$

In Stock, Qty 6

0

10

Husqvarna 532146629

RP SHIELD HEAT MUFFLER
(Superseded to 532434017)

$15.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532132782

CHOKE CONTROL
(Superseded to 532132781)

$

$

Not available

6

Husqvarna 532177068

NEEDS DESCRIPTION

$

$

Currently unavailable

33

Husqvarna 532123487

HOSE CLAMP

$7.49

$

In Stock, only 1 left!

0

29

Husqvarna 532137180

KIT.SPARK ARRESTOR 794945 B&S

$182.99

$

In Stock, only 1 left!

0

37

Husqvarna 532137040

LINE.FUEL.20
(Superseded to 587044820)

$11.99

$

In Stock, Qty 11

0

4

Husqvarna 532149723

MUFFLER.TWIN.CYL.LOW.TONE

$74.99

$

Usually ships in 3-10 days

0

8

Husqvarna 532171877

BOLT.5/16-18UNCX3/4 W/SEMS.BLK

$7.49

$

In Stock, Qty 6

0

13

Husqvarna 532165391

GASKET.MUFFLER

$4.99

$

In Stock, Qty 19

0

23

Husqvarna 532169837

SHIELD.BROWNING.DBR.GUARD

$10.99

$

Usually ships in 3-10 days

0

44

Husqvarna 817670412

SCREW HEXWSHR 1/4-20X3/4

$6.49

$

In Stock, only 2 left!

0

112

Husqvarna 532124952

BUSHING OUTLET T
(Superseded to 532003645)

$4.99

$

In Stock, only 2 left!

0

40

Husqvarna 532124028

BUSHING.SNAP.NYL.BLK.

$5.99

$

In Stock, only 3 left!

0

26

Husqvarna 873920600

Nut Keps 3/8 - 24 UNF

$3.99

$

Usually ships in 3-10 days

0

81

Husqvarna 873510400

NUT
(Superseded to 873680400)

$4.99

$

In Stock, Qty 15

0

31

Husqvarna 532180645

GAS TANK 2GAL

$

$

Not available

1

Husqvarna 532170803

CONTROL, THROTTLE

$30.99

$

In Stock, only 1 left!

0

32

Husqvarna 532140527

FUEL CAP
(Superseded to 581075501)

$26.99

$

Usually ships in 3-10 days

0

$6.49

$

Usually ships in 3-10 days

0

45

Husqvarna 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, only 2 left!

0

2

Husqvarna 817720408

SCREW
(Superseded to 874780408)

$3.99

$

Usually ships in 3-10 days

0

16

Husqvarna 811050600

LOCKWASHER
(Superseded to 810040600)

$4.99

$

In Stock, Qty 15

0

41

Husqvarna 532139277

STEM FUEL TANK

$8.99

$

In Stock, only 1 left!

0
