CTH 180 - Husqvarna Lawn Tractor (1999-01) TRANSMISSION 2 Parts Diagram

Lawn Tractor

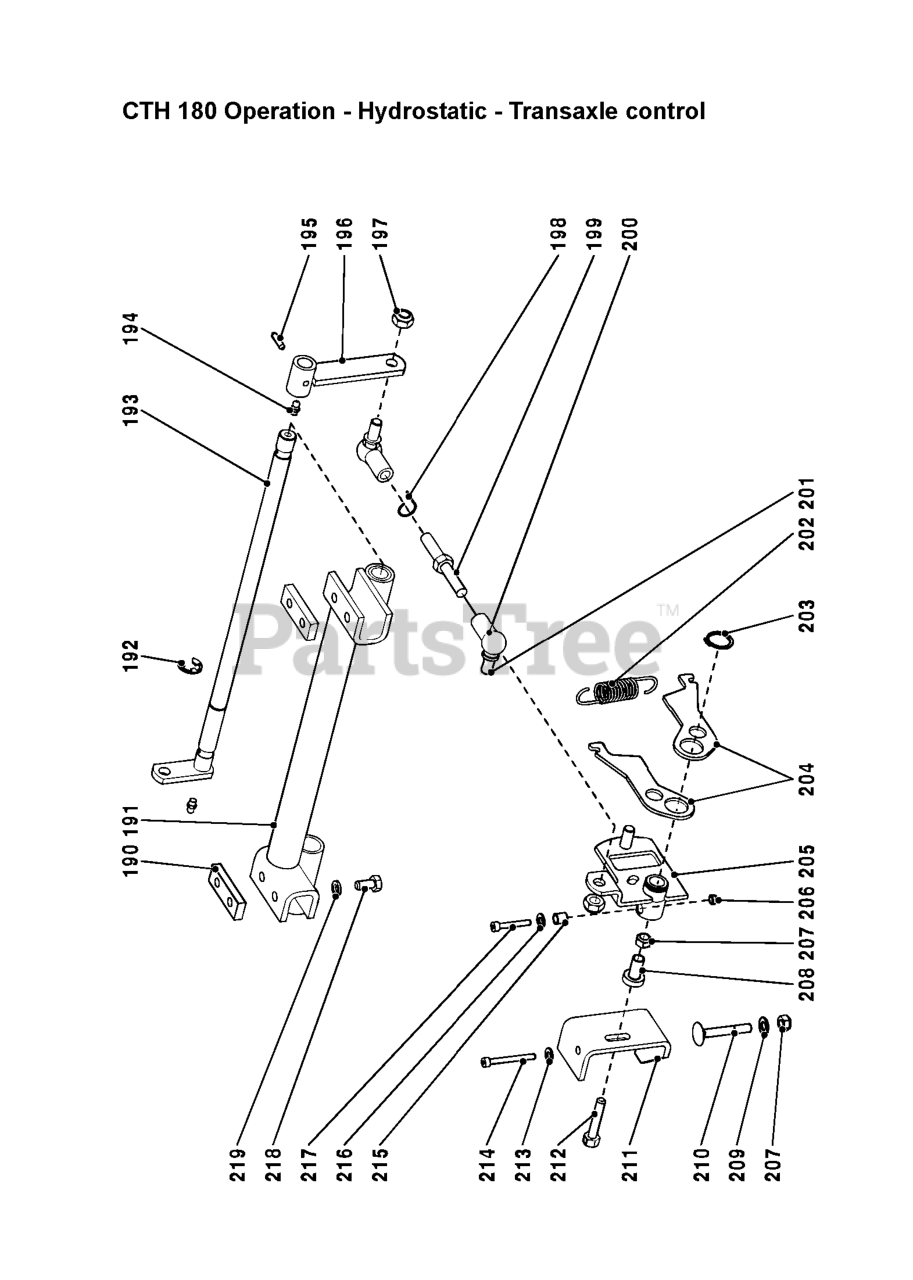

TRANSMISSION 2 Parts Diagram

  • Title

216

Husqvarna 531005830

WASHER

$

$

Not available

217

Husqvarna 531005829

SCREW

$

$

Not available

195

Husqvarna 531005820

PIN

$

$

Not available

202

Husqvarna 531005825

SPRING

$

$

Not available

205

Husqvarna 531006129

FRAME

$

$

Not available

211

Husqvarna 531005835

HOLDER

$

$

Not available

199

Husqvarna 531006128

PIN

$

$

Not available

201

Husqvarna 531005809

BALL JOINT

$

$

Not available

191

Husqvarna 531005816

SHAFT

$

$

Not available

212

Husqvarna 531005838

SCREW

$

$

Not available

197

Husqvarna 531005813

NUT

$

$

Not available

207

Husqvarna 531005767

NUT
(Superseded to 732251871)

$3.99

$

Usually ships in 3-10 days

0

213

Husqvarna 531005837

WASHER

$

$

Not available

204

Husqvarna 531005826

ARM

$

$

Not available

192

Husqvarna 531005939

RETAINING RING

$

$

Not available

203

Husqvarna 531005827

RETAINING RING

$

$

Not available

194

Husqvarna 531005818

NIPPLE

$

$

Not available

196

Husqvarna 531005819

ARM

$

$

Not available

209

Husqvarna 531005824

WASHER

$

$

Not available

210

Husqvarna 531005834

BOLT

$

$

Not available

206

Husqvarna 531005831

NUT

$

$

Not available

219

Husqvarna 531005455

SPRING WASHER

$

$

Not available

214

Husqvarna 531005940

SCREW

$

$

Not available

208

Husqvarna 531005833

BUSHING

$

$

Not available

215

Husqvarna 531005832

BUSHING

$

$

Not available

190

Husqvarna 531005817

SPACER

$

$

Not available

218

Husqvarna 531005966

SCREW

$

$

Not available

193

Husqvarna 531005815

SHAFT

$

$

Not available

200

Husqvarna 531005421

BALL JOINT

$

$

Not available

198

Husqvarna 531005811

CLIP

$

$

Not available
