CTH 180 - Husqvarna Lawn Tractor (1999-01) ASSEMBLY Parts Diagram

Lawn Tractor

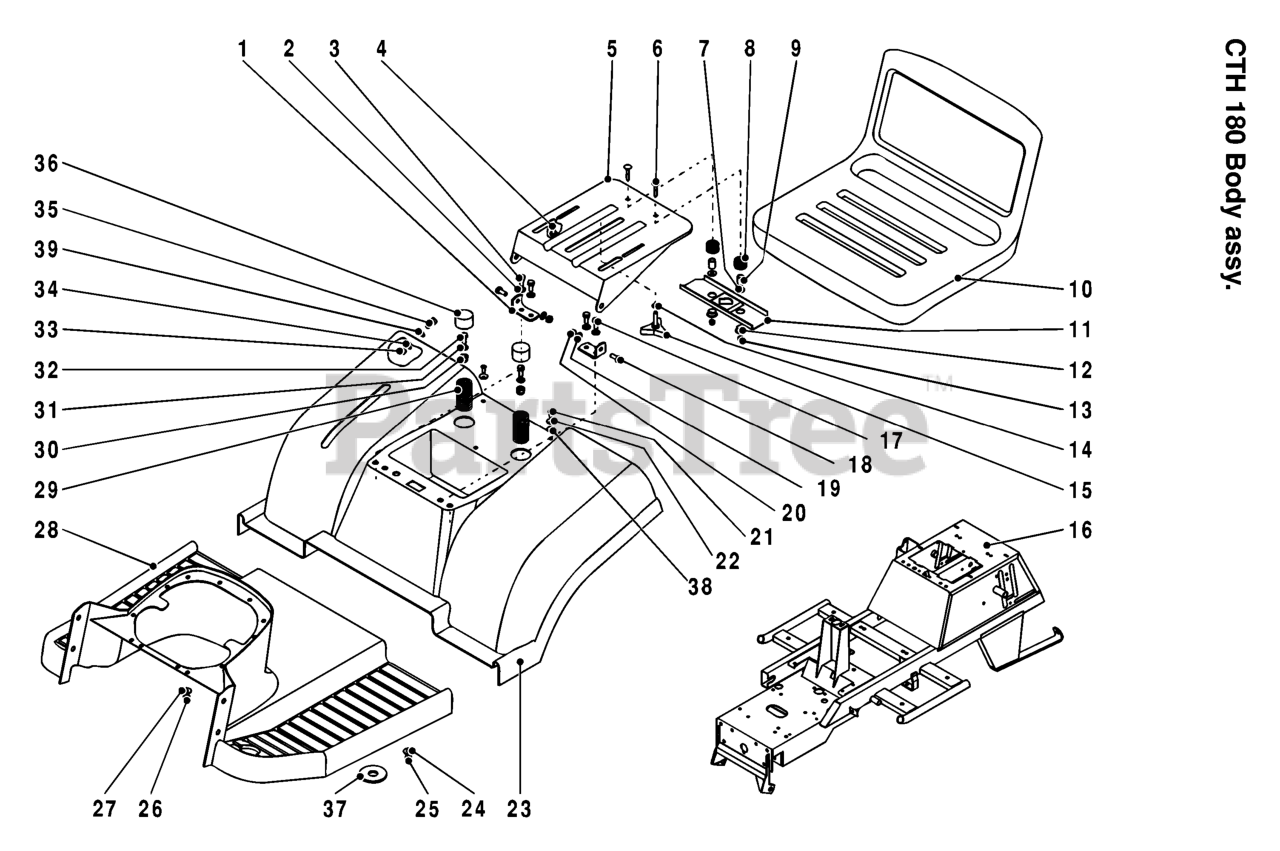

ASSEMBLY Parts Diagram

  • Title

23

Husqvarna 531006166

GUARD

$

$

Not available

2

Husqvarna 531005455

SPRING WASHER

$

$

Not available

15

Husqvarna 532120068

KNOB 1/2" YT
(Superseded to 532166369)

$10.99

$

In Stock, only 1 left!

0

28

Husqvarna 531006167

SUPPORT

$

$

Not available

18

Husqvarna 531005685

BOLT

$

$

Not available

9

Husqvarna 531006163

SPACER

$

$

Not available

26

Husqvarna 531005831

NUT

$

$

Not available

10

Husqvarna 532127440

SEAT
(Superseded to 532401043)

$

$

Not available

14

Husqvarna 531005682

WASHER

$

$

Not available

22

Husqvarna 734114571

Washer 0 5.3

$

$

Not available

21

Husqvarna 723133101

HEX BOLT
(Superseded to 503200220)

$6.49

$

In Stock, Qty 18

0

17

Husqvarna 531005842

SCREW

$

$

Not available

30

Husqvarna 531005767

NUT
(Superseded to 732251871)

$3.99

$

Usually ships in 3-10 days

0

11

Husqvarna 531006165

FRAME

$

$

Not available

29

Husqvarna 531005621

SPRING

$

$

Not available

19

Husqvarna 531005824

WASHER

$

$

Not available

8

Husqvarna 531006222

SPRING

$

$

Not available

16

Husqvarna 531006165

FRAME

$

$

Not available

1

Husqvarna 531006161

BRACKET

$

$

Not available

33

Husqvarna 531005760

NUT

$

$

Not available

34

Husqvarna 734113601

WASHER

$4.99

$

Usually ships in 3-10 days

0

5

Husqvarna 531006162

SUPPORT

$

$

Not available

27

Husqvarna 531005866

WASHER

$

$

Not available

25

Husqvarna 732252001

NUT

$4.99

$

In Stock, only 2 left!

0

4

Husqvarna 531005684

SCREW

$

$

Not available

13

Husqvarna 732261601

Blocking nut M 6 Z

$

$

Not available

7

Husqvarna 734115201

WASHER - M6

$4.99

$

Usually ships in 3-10 days

0

35

Husqvarna 531006168

SCREW

$

$

Not available

31

Husqvarna 531005674

WASHER

$

$

Not available

6

Husqvarna 727637451

NEEDS DESCRIPTION

$

$

Not available

24

Husqvarna 734117201

WASHER
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

20

Husqvarna 531005767

NUT
(Superseded to 732251871)

$3.99

$

Usually ships in 3-10 days

0

37

Husqvarna 531006254

GASKET

$

$

Not available

36

Husqvarna 531006224

HUB CAP

$

$

Not available

12

Husqvarna 531006223

BUSHING

$

$

Not available

3

Husqvarna 725245171

SCREW

$1.49

$

In Stock, Qty 5

0

39

Husqvarna 531006250

GASKET

$

$

Not available
