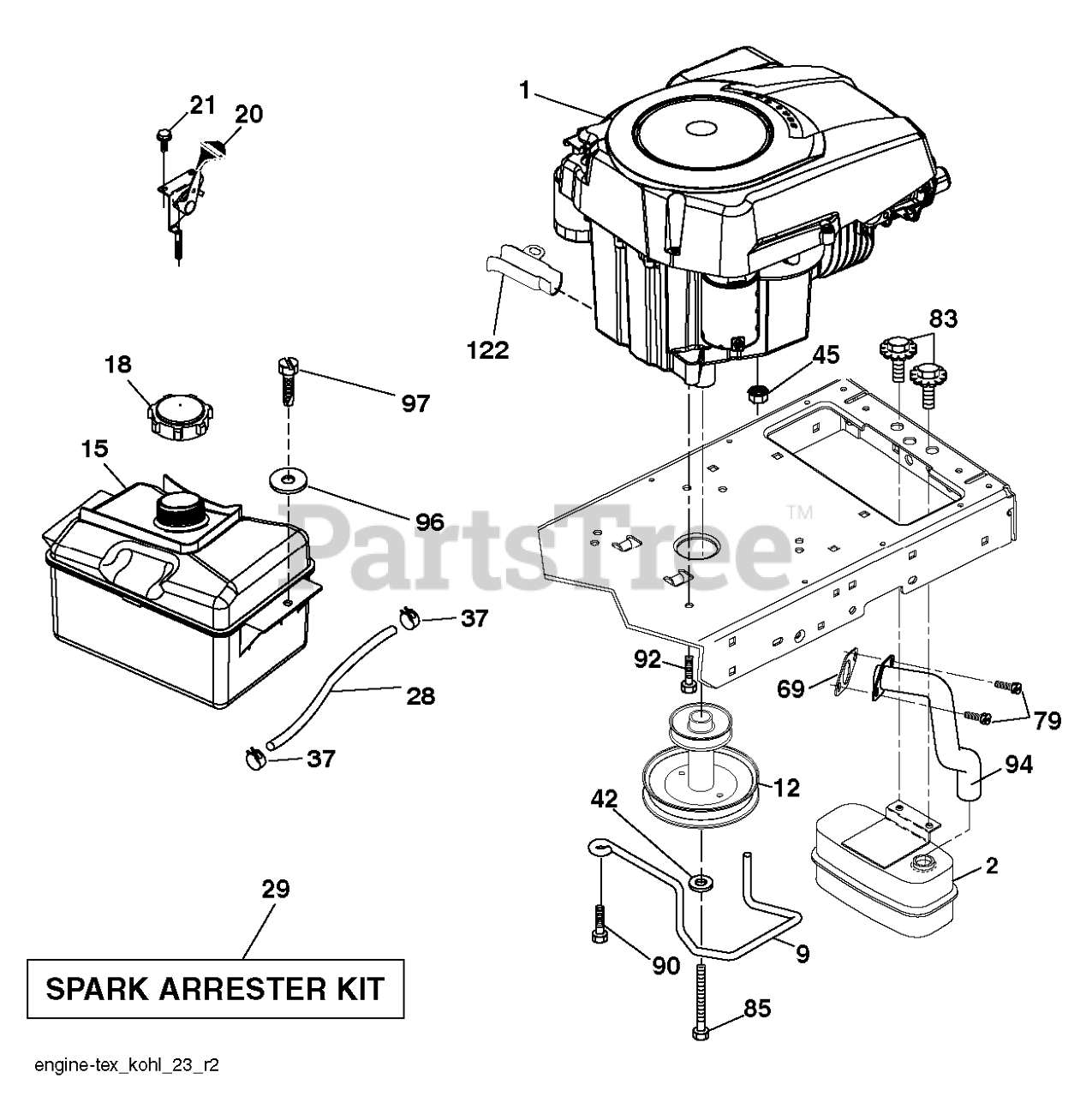

CTH 173 (960510002-00) - Husqvarna Lawn Tractor (2011-01) ENGINE Parts Diagram

Lawn Tractor

ENGINE Parts Diagram

  • Title
45

Husqvarna 873510400

NUT
(Superseded to 873680400)

$4.99

$

In Stock, Qty 15

0

21

Husqvarna 532416358

SCREW.#10 X 0.750.BOS

$

$

Not available

97

Husqvarna 817670412

SCREW HEXWSHR 1/4-20X3/4

$6.49

$

In Stock, only 2 left!

0

79

Husqvarna 532192334

SCREW.SOCKET HD.5/16-1
(Superseded to 596134201)

$3.99

$

In Stock, Qty 17

0

85

Husqvarna 532173937

BOLT HEX 7/16-20X4-1/4"
(Superseded to 501606501)

$4.99

$

In Stock, only 1 left!

0

69

Husqvarna 532165291

REPL BY 532 27 22-93
(Superseded to 532272293)

$12.99

$

Usually ships in 3-10 days

0

$6.49

$

Usually ships in 3-10 days

0

2

Husqvarna 532188655

MUFFLER.SINGLE.CYL.KOHL/B&S

$45.99

$

In Stock, only 1 left!

0

122

Husqvarna 532421922

EXTENSION DRAIN OIL

$40.99

$

In Stock, Qty 8

0

90

Husqvarna 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, only 3 left!

0

94

Husqvarna 532405450

EXHAUST.TUBE.B&S.
(Superseded to 581880901)

$31.99

$

In Stock, only 3 left!

0

9

Husqvarna 532194320

KEEPER.BELT.ENGINE.4.2
(Superseded to 584908001)

$

$

Not available

12

Husqvarna 532405471

PULLY ENGINE
(Superseded to 586478501)

$40.99

$

In Stock, only 2 left!

0

29

Husqvarna 532137180

KIT.SPARK ARRESTOR 794945 B&S

$182.99

$

In Stock, only 1 left!

0

1

000000000

Note: Engine Kohler Model No. SV470-0212 (422743)

$

$

Not available

20

Husqvarna 532183897

CONTROL.TH/CK.C.
(Superseded to 532176636)

$37.99

$

Usually ships in 3-10 days

0

92

Husqvarna 817120616

SCREW 3/8-16X1

$5.99

$

In Stock, Qty 17

0

37

Husqvarna 532123487

HOSE CLAMP

$7.49

$

In Stock, only 1 left!

0

18

Husqvarna 532430220

CAP ASM.FUEL.2.25"FR.
(Superseded to 581075501)

$26.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532407545

RP TANK FUEL FRT 1.5 GAL
(Superseded to 581289901)

$87.99

$

In Stock, only 1 left!

0

83

Husqvarna 532171877

BOLT.5/16-18UNCX3/4 W/SEMS.BLK

$7.49

$

In Stock, Qty 6

0

42

Husqvarna 810040700

LOCKWASHER
(Superseded to 539990247)

$

$

Not available

28

Husqvarna 532137040

LINE.FUEL.20
(Superseded to 587044820)

$11.99

$

In Stock, Qty 11

0
