CTH 173 (960510002-00) - Husqvarna Lawn Tractor (2011-01) CHASSIS & ENCLOSURES Parts Diagram

Lawn Tractor

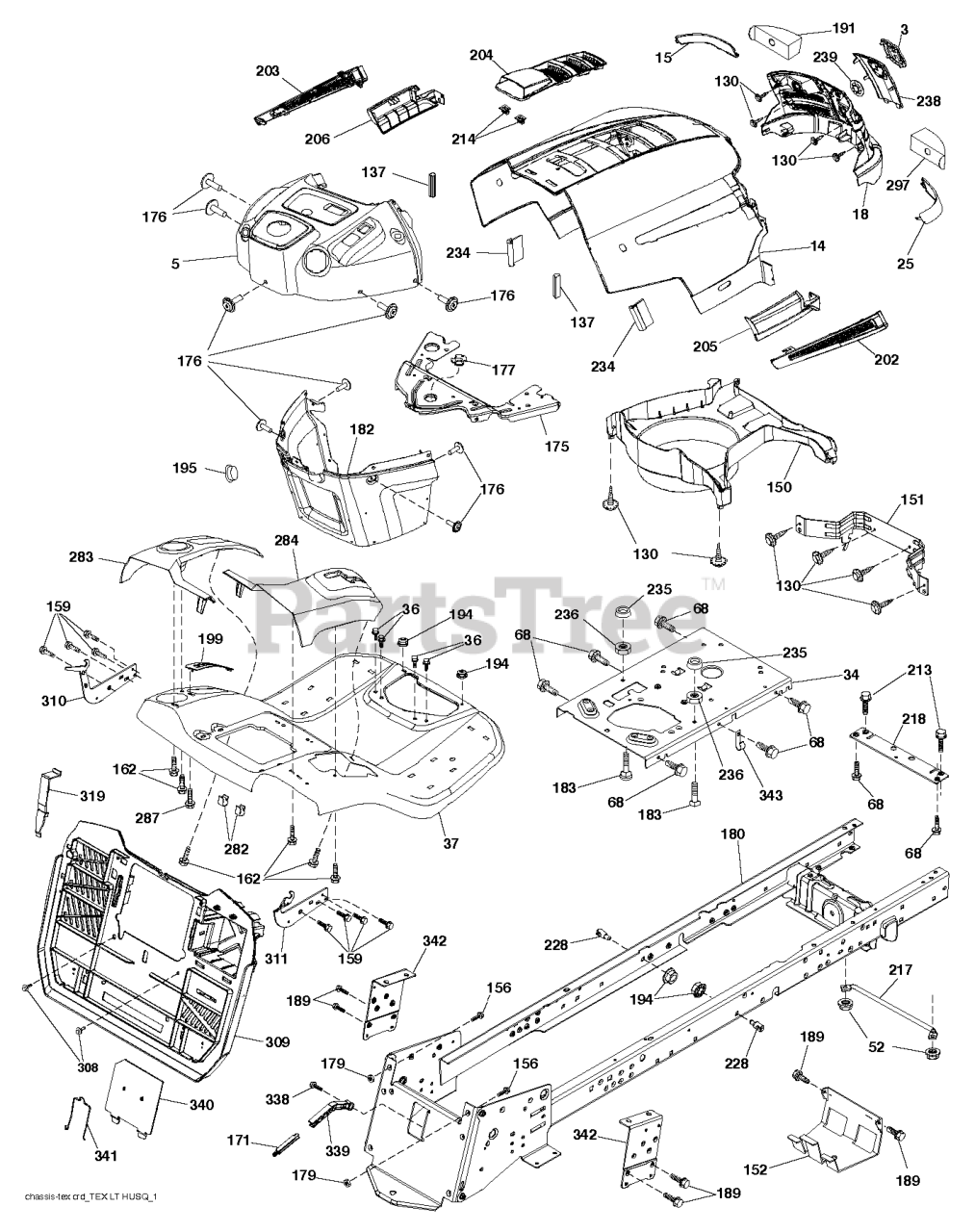

CHASSIS & ENCLOSURES Parts Diagram

  • Title

130

Husqvarna 532416358

SCREW.#10 X 0.750.BOS

$

$

Not available

68

Husqvarna 817490508

Screw 5/16-18 x 1/2 Hex, Self Tapping 5/16-18 x 1/2
(Superseded to 539990858)

$3.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532441428

LENS.HUSQVARNA LT.RH
(Superseded to 532406664)

$24.99

$

Usually ships in 3-10 days

0

284

Husqvarna 532440528

NEEDS DESCRIPTION

$

$

Not available

150

Husqvarna 532407537

DUCT.AIR.

$40.99

$

Usually ships in 3-10 days

0

287

Husqvarna 817600406

SCREW 1/4X20

$6.49

$

In Stock, only 2 left!

0

205

Husqvarna 532441344

SKIRT.SIDE.HUSQVARNA.LT.RT

$13.99

$

Usually ships in 3-10 days

0

340

Husqvarna 532440931

DOOR.PNT.BATTERY.TRY.TEX.CRD.

$9.49

$

Usually ships in 3-10 days

0

206

Husqvarna 532441345

SKIRT.SIDE.HUSQVARNA.LT.LEFT

$13.99

$

Usually ships in 3-10 days

0

236

Husqvarna 873930500

NUT.CENTERLOCK.5/16-

$7.49

$

Usually ships in 3-10 days

0

156

Husqvarna 872140614

BOLT

$4.99

$

Usually ships in 3-10 days

0

182

Husqvarna 532407176

DASH.LOWER.PREDATOR LT

$79.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532441427

LENS.HUSQVARNA LT.RH
(Superseded to 532406663)

$24.99

$

Usually ships in 3-10 days

0

189

Husqvarna 817000512

SCREW
(Superseded to 532428867)

$6.49

$

In Stock, Qty 14

0

151

Husqvarna 532407807

BRACKET PIVOT

$31.99

$

Usually ships in 3-10 days

0

14

Husqvarna 532441287

HOOD.PNT.PREDATOR.LT.TX.667

$102.99

$

Usually ships in 3-10 days

0

203

Husqvarna 532441343

VENT.SIDE.HUSQVARNA.LT.LFT
(Superseded to 532406671)

$10.99

$

Usually ships in 3-10 days

0

319

Husqvarna 532174662

BRACKET.ACTUATOR.BAGGER.SRD

$5.99

$

Usually ships in 3-10 days

0

194

Husqvarna 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 583612701)

$

$

Not available

228

Husqvarna 532195161

STUD.FASTNER.W/ANTI-ROTATE

$

$

Not available

175

Husqvarna 532199472

CROSSMEMBER

$28.99

$

Usually ships in 3-10 days

0

339

Husqvarna 532441288

LEVER.BAGGER.FULL.TEX.
(Superseded to 583510301)

$8.99

$

Usually ships in 3-10 days

0

37

Husqvarna 532441419

FENDER.TEX.SRD.CRD.BASE

$182.99

$

Usually ships in 3-10 days

0

213

Husqvarna 874760512

BOLT
(Superseded to 874780512)

$4.99

$

In Stock, Qty 20+

0

177

Husqvarna 532195228

BUSHING STEERING

$5.99

$

Usually ships in 3-10 days

0

180

Husqvarna 532435472

$

$

Not available

341

Husqvarna 532436638

LATCH
(Superseded to 583510101)

$4.99

$

Usually ships in 3-10 days

0

199

Husqvarna 532418739

PLATE DECK LIFT
(Superseded to 583371401)

$9.99

$

Usually ships in 3-10 days

0

338

Husqvarna 532436640

BOLT BOLT SHOULDER
(Superseded to 583510201)

$6.49

$

Usually ships in 3-10 days

0

5

Husqvarna 532438964

SUBASM.DASH.UPPER.W/BUMPER

Note: DASH

$78.99

$

Usually ships in 3-10 days

0

239

Husqvarna 532404883

IS ITO

$15.99

$

Usually ships in 3-10 days

0

36

Husqvarna 817060512

SCREW 5/16"
(Superseded to 817490508)

$3.99

$

Usually ships in 3-10 days

0

34

Husqvarna 532447253

PLATE PLATE ENGINE
(Superseded to 583590301)

$68.99

$

In Stock, only 1 left!

0

152

Husqvarna 532199535

SHIELD.BROWNING.W/TEX

$

$

Not available

18

Husqvarna 532441368

GRILLE.SVC.HUSQVARNA.GREY
(Superseded to 532426963)

$72.99

$

Usually ships in 3-10 days

0

176

Husqvarna 532400776

SCREW.#10-24X5/8.RN.QU

$10.99

$

Usually ships in 3-10 days

0

159

Husqvarna 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, only 4 left!

0

234

Husqvarna 532404742

BUMPER.HOOD.TEX.HUSQVARNA

$6.99

$

In Stock, only 2 left!

0

171

Husqvarna 532441289

EXTENSION.BAGGER.FULL.
(Superseded to 583510301)

$8.99

$

Usually ships in 3-10 days

0

342

Husqvarna 532435938

SUPPORT SUPPORT FENDER
(Superseded to 583507901)

$20.99

$

Usually ships in 3-10 days

0

235

Husqvarna 532406129

SPACER FENDER

$4.99

$

Usually ships in 3-10 days

0

3

Husqvarna 532405012

RP LOGO
(Superseded to 532430771)

$8.99

$

In Stock, only 1 left!

0

137

Husqvarna 532407590

BUMPER DASH

$6.49

$

In Stock, Qty 6

0

310

Husqvarna 532446636

LH.ADJUST.HANGER.BRACKET.ASM
(Superseded to 583586501)

$40.99

$

Usually ships in 3-10 days

0

183

Husqvarna 874520520

BOLT.5/16-18X1-1/4 FULL THD

$4.99

$

Usually ships in 3-10 days

0

179

Husqvarna 532168937

NUT

$4.99

$

Usually ships in 3-10 days

0

297

Husqvarna 532406665

INSERT REFLECTIVE

$9.99

$

Usually ships in 3-10 days

0

282

Husqvarna 532414110

CLIP.RETAINER.CONSOLE.LT.HUSQ

$6.49

$

In Stock, Qty 15

0

202

Husqvarna 532441342

VENT.SIDE.HUSQVARNA.LT.RT

$13.99

$

Usually ships in 3-10 days

0

283

Husqvarna 532440361

CONSOLE.DECKLIFT.LH.SRD.TEXCRD

$125.99

$

Usually ships in 3-10 days

0

238

Husqvarna 532441374

TRIM.HUSQ LT.668
(Superseded to 532407881)

$22.99

$

Usually ships in 3-10 days

0

217

Husqvarna 532409167

ROD.PIVOT.HOOD

$13.99

$

In Stock, only 2 left!

0

191

Husqvarna 532416501

INSERT.REFLECTIVE.RH.
(Superseded to 583358401)

$15.99

$

Usually ships in 3-10 days

0

311

Husqvarna 532446637

RH.ADJUST.HANGER.BRACKET.ASM
(Superseded to 583586601)

$40.99

$

Usually ships in 3-10 days

0

309

Husqvarna 532436626

$

$

Not available

343

Husqvarna 532440749

CLIP CLIP
(Superseded to 582671501)

$2.99

$

Usually ships in 3-10 days

0

214

Husqvarna 532199145

CLIP.RETAINER.TINNER.

$6.49

$

In Stock, only 4 left!

0

308

Husqvarna 532171877

BOLT.5/16-18UNCX3/4 W/SEMS.BLK

$7.49

$

In Stock, only 2 left!

0

218

Husqvarna 532196395

X-PIECE.HOOD.STOP.NON/

$7.99

$

Usually ships in 3-10 days

0

162

Husqvarna 532142432

SCREW.HI-LO.CONSOLE

$6.49

$

Usually ships in 3-10 days

0

52

Husqvarna 873680500

LOCKNUT
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

195

Husqvarna 532439976

PLUG.TEX.DASH.SVC.MINDER.GREY

$6.49

$

Usually ships in 3-10 days

0

204

Husqvarna 532441375

SUBASM.TOP.VENT.HUSQ.LT

$30.99

$

Usually ships in 3-10 days

0
