CTH 172 (954170210-C) - Husqvarna Lawn Tractor (2004-06) STEERING Parts Diagram

Lawn Tractor

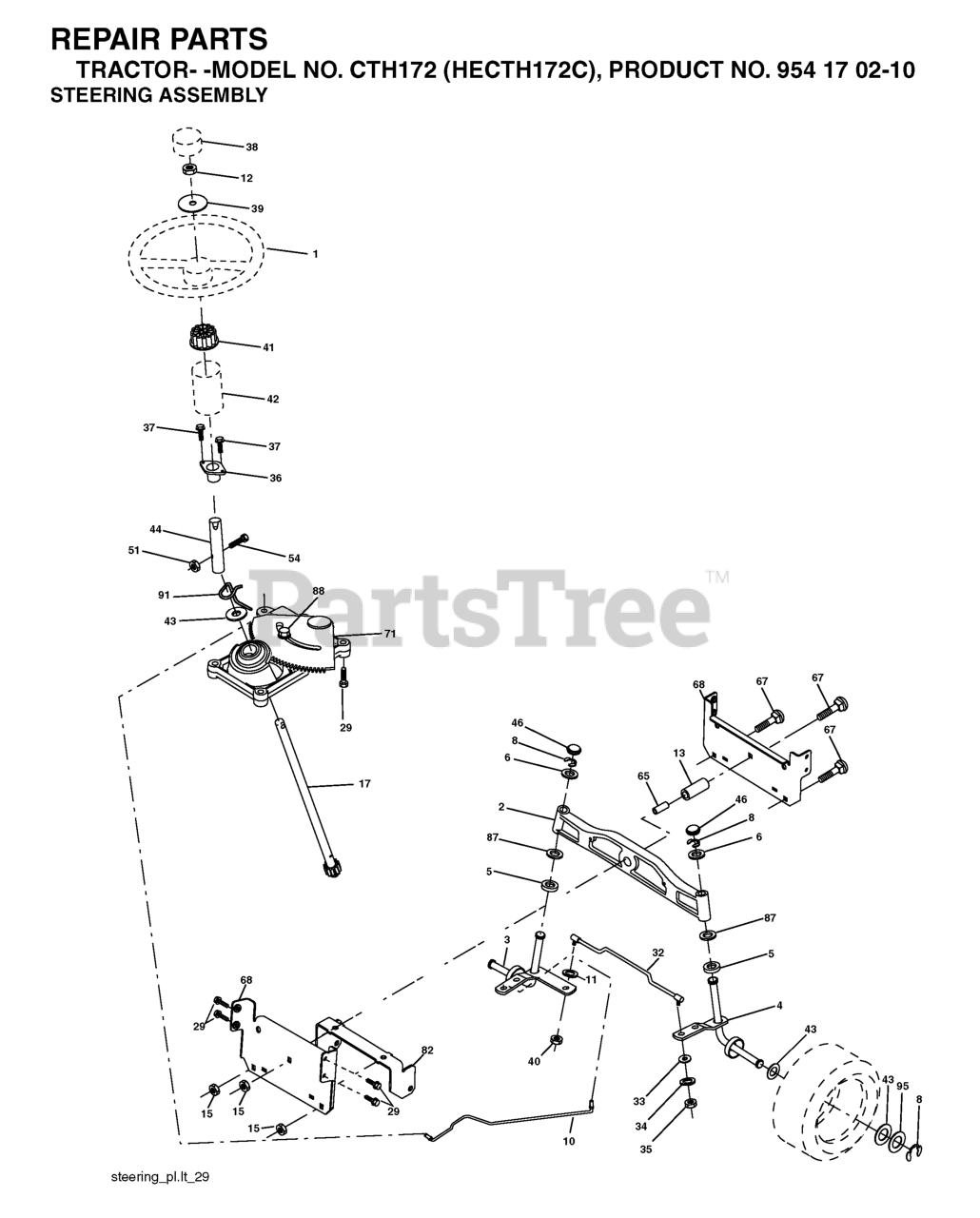

STEERING Parts Diagram

  • Title
65

Husqvarna 532160367

SPACER BRACE AXLE
(Superseded to 532414736)

$6.99

$

In Stock, Qty 5

0

8

$4.99

$

Usually ships in 3-10 days

0

91

Husqvarna 532175553

CLIP.STEERING

$13.99

$

In Stock, only 1 left!

0

46

Husqvarna 532121232

CAP.SPINDLE.BLACK

$4.99

$

In Stock, Qty 9

0

88

Husqvarna 532175118

BOLT, SHOULDER 7/16-20

$6.49

$

Usually ships in 3-10 days

0

33

Husqvarna 819111216

WASHER M
(Superseded to 734116301)

$3.99

$

In Stock, Qty 20+

0

12

Husqvarna 873940800

NUT.HEX.1/2-20

$7.49

$

In Stock, only 4 left!

0

39

Husqvarna 819182411

Washer 9/16 ID x 1 1/2 OD 11 Ga. Zin

$6.49

$

Usually ships in 3-10 days

0

38

Husqvarna 532166626

CAP.WHEEL.STEERING.GREY
(Superseded to 532172092)

$17.99

$

Usually ships in 3-10 days

0

17

Husqvarna 532180641

SHAFT ASM, STEERING
(Superseded to 532407600)

$

$

Not available

1

Husqvarna 532166627

STEERING WHEEL
(Superseded to 532159944)

$

$

Not available

34

Husqvarna 810040500

WASHER.LOCK.HVY.HLCL.SPR.5/16
(Superseded to 596238801)

$3.99

$

In Stock, only 3 left!

0

51

Husqvarna 873540400

NUT.CROWNLOCK.1/4-28

$6.49

$

Usually ships in 3-10 days

0

3

Husqvarna 532169840

SPINDLE.ASM.LH.15"TIRES
(Superseded to 596873901)

$18.99

$

Usually ships in 3-10 days

0

$4.99

$

In Stock, Qty 20+

0

13

Husqvarna 532136518

TUBE, PIVOT AXLE

$9.99

$

In Stock, only 1 left!

0

5

Husqvarna 532124931

THRUST WASHER
(Superseded to 532006266)

$7.49

$

In Stock, Qty 11

0

32

Husqvarna 532170162

ROD.ASM.TIE.BALL.JOINT.NOVAN

$93.99

$

In Stock, only 4 left!

0

82

Husqvarna 532169835

BRACKET
(Superseded to 532199978)

$15.99

$

Usually ships in 3-10 days

0

11

Husqvarna 810040600

WASHER, LOCK 3/8
(Superseded to 596238701)

$4.99

$

In Stock, Qty 19

0

15

Husqvarna 532145212

NUT
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

36

Husqvarna 532155099

BUSHING, STEERING
(Superseded to 532155106)

$10.99

$

In Stock, Qty 13

0

87

Husqvarna 532173966

WASHER, FLAT .781 X 1 1/2"

$7.49

$

Usually ships in 3-10 days

0

68

Husqvarna 532169827

BRACE.AXLE.15"TIRES

$21.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532184706

AXLE ASSY FRONT
(Superseded to 532193542)

$169.99

$

Usually ships in 3-10 days

0

67

Husqvarna 872110618

BOLT CARRIAGE

$6.49

$

In Stock, only 2 left!

0

37

Husqvarna 532152927

SCREW.TT.#10-32X.5.3/8.FLANGE

$7.49

$

In Stock, only 2 left!

0

29

Husqvarna 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, only 2 left!

0

10

Husqvarna 532175121

DRAGLINK.15".TIRES.2001

$68.99

$

In Stock, only 1 left!

0

71

Husqvarna 532175146

STEERING ASM

$182.99

$

In Stock, only 3 left!

0

40

Husqvarna 873540600

NUT CROWNLOCK 3/8-24

$4.99

$

Usually ships in 3-10 days

0

4

Husqvarna 532169839

SPINDLE.ASM.RH.15"TIRES
(Superseded to 596873801)

$31.99

$

In Stock, only 1 left!

0

44

Husqvarna 532180640

EXT, STEERING SHAFT
(Superseded to 532407600)

$

$

Not available

$3.49

$

Usually ships in 3-10 days

0

42

Husqvarna 532169634

BOOT STEERING
(Superseded to 532145054)

$

$

Not available

54

Husqvarna 871130420

Bolt Hex 1/4-28 unf x 1-1/4 Gr. 8

$6.49

$

Usually ships in 3-10 days

0

95

Husqvarna 532188967

WASHER.HARDENED

$4.99

$

In Stock, Qty 20+

0

41

Husqvarna 532159945

STEERING WHEEL ADAPTOR

$

$

Not available

35

Husqvarna 873540500

NUT, CROWNLOCK

$7.49

$

Usually ships in 3-10 days

0
