CTH 171 (960610184-04) - Husqvarna Lawn Tractor (2008-11) ENGINE Parts Diagram

Lawn Tractor

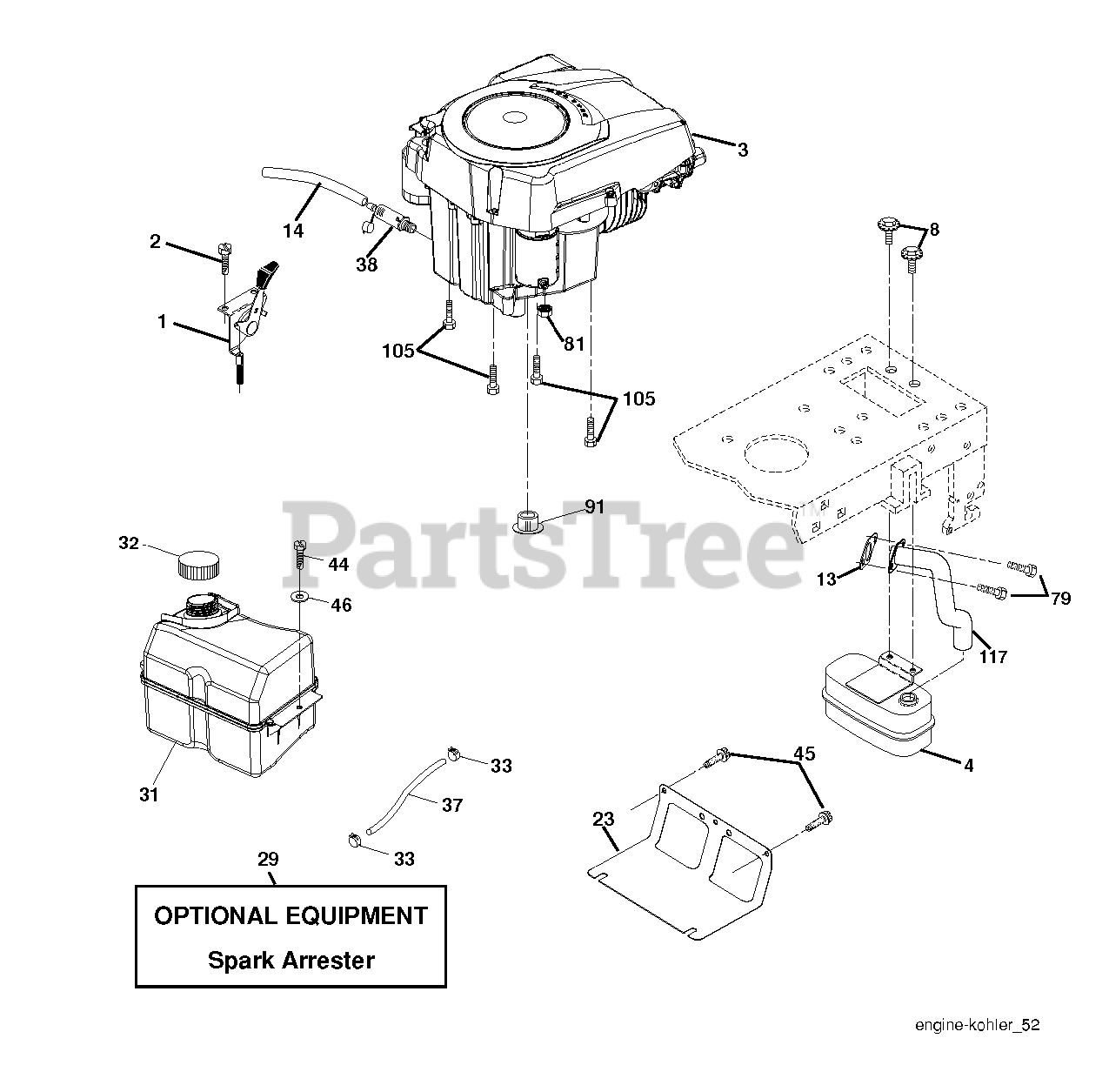

ENGINE Parts Diagram

  • Title

81

Husqvarna 873510400

NUT
(Superseded to 873680400)

$4.99

$

In Stock, Qty 20+

0

8

Husqvarna 532171877

BOLT.5/16-18UNCX3/4 W/SEMS.BLK

$7.49

$

In Stock, Qty 18

0

91

Husqvarna 532187495

BUSHING.1.375OD

$6.49

$

Usually ships in 3-10 days

0

1

Husqvarna 532183897

CONTROL.TH/CK.C.
(Superseded to 532176636)

$37.99

$

In Stock, Qty 8

0

44

Husqvarna 817670412

SCREW HEXWSHR 1/4-20X3/4

$6.49

$

In Stock, only 2 left!

0

45

Husqvarna 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, Qty 20+

0

46

Husqvarna 819091416

WASHER

$6.49

$

Usually ships in 3-10 days

0

32

Husqvarna 532197725

FUEL CAP
(Superseded to 581075501)

$26.99

$

In Stock, Qty 20+

0

14

Husqvarna 532148456

TUBE, DRAIN OIL ASM.

$6.99

$

In Stock, Qty 20+

0

13

Husqvarna 532185909

GASKET.EXHAUST.KOHLER

$4.99

$

In Stock, Qty 20+

0

79

Husqvarna 532192334

SCREW.SOCKET HD.5/16-1
(Superseded to 596134201)

$3.99

$

In Stock, Qty 20+

0

31

Husqvarna 532407545

RP TANK FUEL FRT 1.5 GAL
(Superseded to 581289901)

$87.99

$

In Stock, Qty 12

0

29

Husqvarna 532137180

KIT.SPARK ARRESTOR 794945 B&S

$193.99

$

In Stock, only 1 left!

0

117

Husqvarna 532188654

RP.TUBE.EXHAUST.KOHL.COURAGE
(Superseded to 583955301)

$34.99

$

In Stock, Qty 12

0

23

Husqvarna 532169837

SHIELD.BROWNING.DBR.GUARD

$22.99

$

Usually ships in 3-10 days

0

4

Husqvarna 532188655

MUFFLER.SINGLE.CYL.KOHL/B&S

$51.99

$

In Stock, Qty 16

0

3

NEEDS DESCRIPTION

Note: Engine Kohler SV530

$

$

Not available

38

Husqvarna 532181654

PLUG DRAIN OIL EASY
(Superseded to 532428287)

$20.99

$

In Stock, Qty 20+

0

33

Husqvarna 532123487

HOSE CLAMP

$7.49

$

In Stock, Qty 14

0

2

Husqvarna 532416358

SCREW.#10 X 0.750.BOS

$

$

Not available

105

Husqvarna 817120616

SCREW 3/8-16X1

$5.99

$

In Stock, Qty 20+

0

37

Husqvarna 532137040

LINE.FUEL.20
(Superseded to 587044820)

$13.99

$

In Stock, Qty 11

0
