CTH 164 T (960510094-00) - Husqvarna Lawn Tractor (2013-06) MOWER DECK / CUTTING DECK Parts Diagram

Lawn Tractor

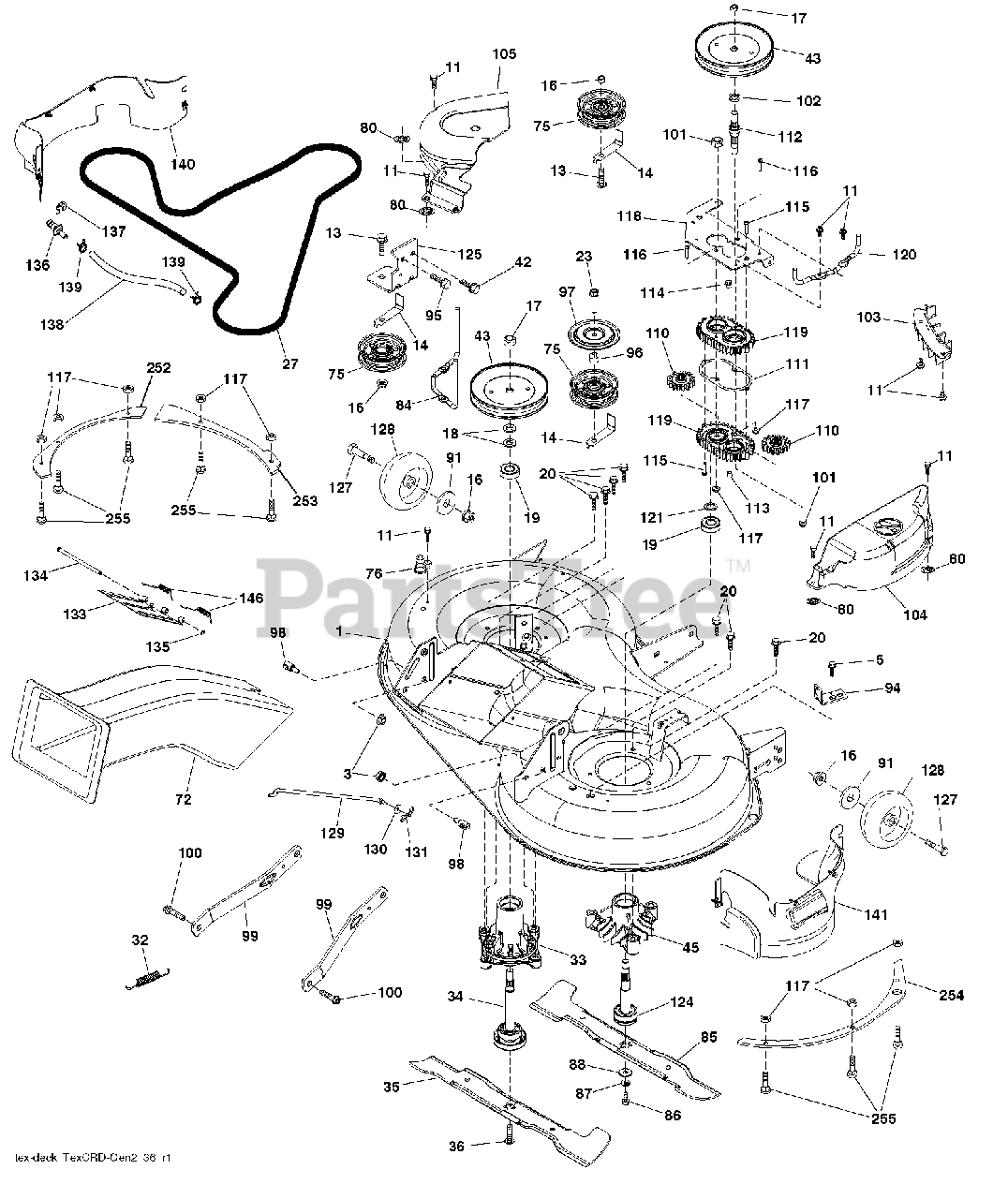

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

1

Husqvarna 580465302

DECK.SVC.WLDT.97EL.TCRD.EZ.498
(Superseded to 583766801)

$302.99

$

Usually ships in 3-10 days

0

3

Husqvarna 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 583612701)

Note: RH

$

$

Not available

5

Husqvarna 817000510

BOLT.5/16HEX.WHS.HD

$7.49

$

In Stock, Qty 12

0

11

Husqvarna 532137729

SCREW.1/4-20X5/8

$4.99

$

In Stock, Qty 20+

0

13

Husqvarna 872110612

BOLT.3/8-16X1.50

$6.49

$

Usually ships in 3-10 days

0

14

Husqvarna 532156085

KEEPER, BELT IDLER
(Superseded to 532173968)

$

$

Not available

16

Husqvarna 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

17

Husqvarna 532400234

NUT.FLANGE.LOCK.TOP
(Superseded to 596134801)

$4.99

$

In Stock, Qty 12

0

18

Husqvarna 532187690

WASHER.SPACER.MANDREL

$4.99

$

In Stock, Qty 20+

0

19

Husqvarna 532110485

BEARING

$13.99

$

In Stock, Qty 11

0

20

Husqvarna 532173984

SCREW, WASHER HEAD
(Superseded to 584953901)

$4.99

$

In Stock, Qty 16

0

23

Husqvarna 817490628

SCREW LT
(Superseded to 596564003)

$3.49

$

Usually ships in 3-10 days

0

27

Husqvarna 532445834

BELT 97CM ELECTRIC
(Superseded to 583581401)

$91.99

$

Usually ships in 3-10 days

0

32

Husqvarna 532446205

SPRING 107CM & 97CM ELECTRIC D
(Superseded to 583584001)

$11.99

$

Usually ships in 3-10 days

0

33

Husqvarna 532187281

HOUSING.MANDREL.4PT.
(Superseded to 587819701)

$56.99

$

In Stock, Qty 17

0

34

Husqvarna 532192872

SHAFT.ASM.MDRL.N/GREASE.38
(Superseded to 587819701)

$56.99

$

In Stock, Qty 17

0

35

Husqvarna 532427984

BLADE.3N1.LH.CRD.97

$66.99

$

Usually ships in 3-10 days

0

36

Husqvarna 532193003

BOLT.WASHER.ASM.7/16-2

$8.99

$

Usually ships in 3-10 days

0

42

Husqvarna 817000512

SCREW
(Superseded to 532428867)

$6.49

$

In Stock, Qty 6

0

43

Husqvarna 532199789

PULLEY.MANDREL.5.0.PD.38"

$20.99

$

Usually ships in 3-10 days

0

45

Husqvarna 532137152

HOUSING.MANDREL.44/46" VENT

$40.99

$

In Stock, only 1 left!

0

72

Husqvarna 581454101

CHUTE.107/97.TEX.GEN2.TRIMMED
(Superseded to 581454103)

$91.99

$

Usually ships in 3-10 days

0

75

Husqvarna 532131494

FLAT IDLER PULLEY
(Superseded to 597025001)

$26.99

$

In Stock, Qty 6

0

76

Husqvarna 532439640

1/2" BARB.DECK.WASHOUT.PORT
(Superseded to 583544301)

$8.99

$

Usually ships in 3-10 days

0

80

Husqvarna 532423062

PALNUT 1/4

$4.99

$

In Stock, only 2 left!

0

84

Husqvarna 532400140

BELT KEEPER.MANDREL.38"COATED

$53.99

$

In Stock, only 1 left!

0

85

Husqvarna 532427985

BLADE.3N1.RH.CRD.97

$66.99

$

Usually ships in 3-10 days

0

86

Husqvarna 532181713

BOLT.3/8-24X1.25GR8. LHTHRD
(Superseded to 583117001)

$4.99

$

In Stock, Qty 11

0

87

Husqvarna 810030600

LOCKWASHER
(Superseded to 810040600)

$4.99

$

In Stock, Qty 15

0

88

Husqvarna 532140296

WASHER.BLADE

$6.99

$

In Stock, only 2 left!

0

91

Husqvarna 819132012

WASHER
(Superseded to 596134901)

$3.49

$

Usually ships in 3-10 days

0

94

Husqvarna 532197250

BRKT.CLUTCH.CABLE

$6.49

$

In Stock, only 2 left!

0

95

Husqvarna 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, only 2 left!

0

96

Husqvarna 532400271

SPACER
(Superseded to 583261101)

$6.49

$

Usually ships in 3-10 days

0

97

Husqvarna 532182061

PROTECTOR
(Superseded to 583119101)

$6.49

$

Usually ships in 3-10 days

0

98

Husqvarna 532195161

STUD.FASTNER.W/ANTI-ROTATE

$

$

Not available

99

Husqvarna 532195186

ARM.SUSPENSION.MOWER.R

$17.99

$

Usually ships in 3-10 days

0

100

Husqvarna 532196539

BOLT.SHOULDER

$7.49

$

In Stock, Qty 20+

0

101

Husqvarna 873680900

NUT.CROWNLOCK.9/16 -18.UNC
(Superseded to 583612301)

$4.99

$

Usually ships in 3-10 days

0

102

Husqvarna 532402511

SPACER BEARING

$4.99

$

In Stock, only 1 left!

0

103

Husqvarna 532436992

GUARD GUARD FRONT VENT
(Superseded to 583514601)

$8.99

$

Usually ships in 3-10 days

0

104

Husqvarna 532438968

97.CRD.RH.MANDREL.COVER

$28.99

$

Usually ships in 3-10 days

0

105

Husqvarna 532438744

MANDREL MANDREL COVER LH
(Superseded to 583534001)

$28.99

$

In Stock, only 1 left!

0

110

Husqvarna 532415356

GEAR GEAR OUTPUT
(Superseded to 587934801)

$13.99

$

Usually ships in 3-10 days

0

111

Husqvarna 532436979

GASKET GASKET GEARCASE
(Superseded to 583514001)

$6.49

$

Usually ships in 3-10 days

0

112

Husqvarna 532443852

SHAFT SHAFT. CRD GEARCASE ADAP
(Superseded to 583571601)

$17.99

$

In Stock, only 1 left!

0

113

Husqvarna 532438533

PLUG PLUG OIL
(Superseded to 583533001)

$4.99

$

Usually ships in 3-10 days

0

114

Husqvarna 532438534

VALVE VALVE RELIEF
(Superseded to 588170501)

$10.99

$

Usually ships in 3-10 days

0

115

Husqvarna 818031016

SCREW
(Superseded to 583608901)

$4.99

$

Usually ships in 3-10 days

0

116

Husqvarna 872110414

BOLT.CARIGE.SS.1/4-20X1.75GR5
(Superseded to 583611101)

$

$

Not available

117

Husqvarna 873900400

NUT T
(Superseded to 873680400)

$4.99

$

In Stock, Qty 15

0

118

Husqvarna 532436989

ARM ARM CLUTCHING
(Superseded to 583514401)

$20.99

$

Usually ships in 3-10 days

0

119

Husqvarna 532438166

GEARCASE GEARCASE SUBASM
(Superseded to 583527601)

$74.99

$

Usually ships in 3-10 days

0

120

Husqvarna 532436991

BRACKET KEEPER BELT RH
(Superseded to 583514501)

$9.99

$

In Stock, only 1 left!

0

121

Husqvarna 532436985

WASHER WASHER
(Superseded to 583514101)

$4.99

$

Usually ships in 3-10 days

0

124

Husqvarna 532436986

MANDREL SHAFT NON/GREASE
(Superseded to 583514201)

$43.99

$

In Stock, only 4 left!

0

125

Husqvarna 532436994

BRACKET BRACKET IDLER CHASSES
(Superseded to 583514801)

$10.99

$

Usually ships in 3-10 days

0

127

Husqvarna 532193406

BOLT.SHOULDER.3/8-16X3-5/8.
(Superseded to 596434404)

$5.99

$

In Stock, Qty 20+

0

128

Husqvarna 532174873

WHEEL. GUAGE RALLY
(Superseded to 589527301)

$10.99

$

Usually ships in 3-10 days

0

129

Husqvarna 532443237

ROD ROD. SWAY CRD GEN II
(Superseded to 583568101)

$26.99

$

In Stock, only 1 left!

0

130

Husqvarna 819131312

WASHER
(Superseded to 734117201)

$3.49

$

Usually ships in 3-10 days

0

131

Husqvarna 532194208

PIN.COTTER.5/16.BOW TI

$3.99

$

Usually ships in 3-10 days

0

133

Husqvarna 532435538

DOOR
(Superseded to 583505301)

$13.99

$

Usually ships in 3-10 days

0

134

Husqvarna 532435861

PIN PIN.HINGE
(Superseded to 583507401)

$8.99

$

Usually ships in 3-10 days

0

135

Husqvarna 532437988

E-RING.5/16"

$9.49

$

Usually ships in 3-10 days

0

136

Husqvarna 532439639

PLUG WASHOUT PORT HOOKUP
(Superseded to 583544201)

$6.49

$

Usually ships in 3-10 days

0

137

Husqvarna 812000029

RING CLIP

$4.99

$

Usually ships in 3-10 days

0

138

Husqvarna 532440743

HOSE.3/8ID.BULK.12"

$4.99

$

Usually ships in 3-10 days

0

139

Husqvarna 532440742

HOSE.3/8.CLAMP (2 2)

$

$

Not available

140

Husqvarna 532448632

GUARD
(Superseded to 583597801)

$56.99

$

Usually ships in 3-10 days

0

141

Husqvarna 532448529

GUARD SUBASM.TEX CRD 97CM RH F
(Superseded to 583596401)

$84.99

$

Usually ships in 3-10 days

0

146

Husqvarna 532445896

SPRING SPRING: EZ MULCH DOOR
(Superseded to 583582001)

$3.49

$

Usually ships in 3-10 days

0

252

Husqvarna 581554402

PLATE 97 LEFT BOLT REINFORCING
(Superseded to 585308705)

$11.99

$

Usually ships in 3-10 days

0

253

Husqvarna 581554502

PLATE 97 LH SIDE BOLT ON
(Superseded to 585308805)

$

$

Not available

254

Husqvarna 581554702

PLATE 97 RH SIDE BOLT ON
(Superseded to 585309005)

$13.99

$

Usually ships in 3-10 days

0

255

Husqvarna 539109800

RHSNB, 1/4-20 X 1, GR5
(Superseded to 592807801)

$4.99

$

In Stock, only 3 left!

0

--

Husqvarna 532192870

RB MANDREL.ASM.SUB-NON.GR
(Superseded to 587819701)

Note: MANDREL ASSEMBLY (Includes Housing (Key 14) Shaft Assembly (Key 13) and Bearing Only (Key 15)- Pulley /Nut /Washer and Blade Bolt /Washers Not Included)

$56.99

$

In Stock, Qty 17

0

--

Husqvarna 532447875

Note: Includes housing shaft assembly and bearing only- pulley /nut /washer and blade bolt /washers not included

$

$

Currently unavailable
