CTH 164 T (960510032-00) - Husqvarna Lawn Tractor (2011-11) BAGGER Parts Diagram

Lawn Tractor

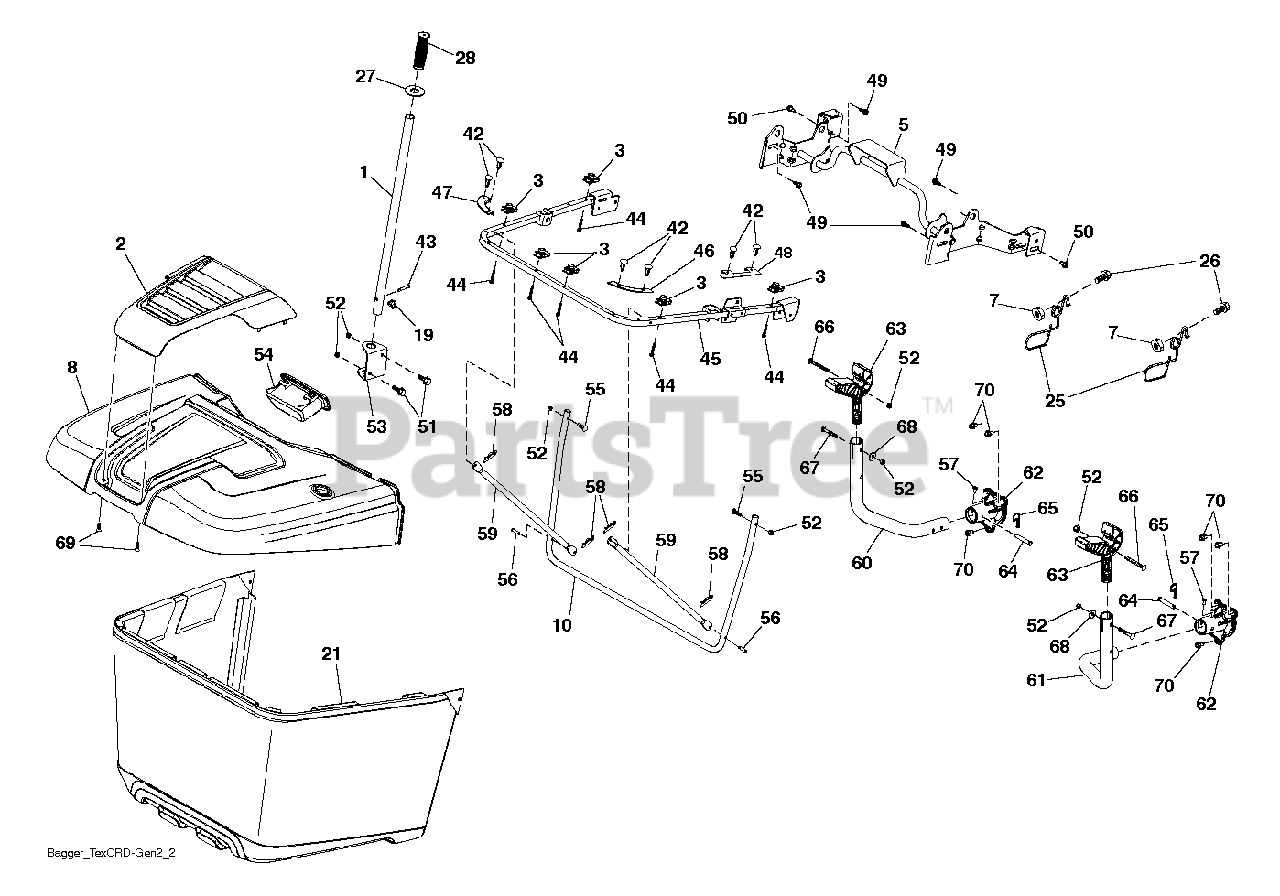

BAGGER Parts Diagram

  • Title

1

Husqvarna 532428610

TUBE.HANDLE.BAGGER.CRD/SRD.BLA

$15.99

$

Usually ships in 3-10 days

0

2

Husqvarna TBD

Note: (532 44 75-72)

$

$

Not available

3

Husqvarna 532174814

1/4-20 U NUT

$6.49

$

In Stock, only 1 left!

0

5

Husqvarna 532443762

FRAME TEX_CRD_GEN2 UPPER PIVOT
(Superseded to 583570401)

$133.99

$

Usually ships in 3-10 days

0

7

Husqvarna 873900400

NUT T
(Superseded to 873680400)

$4.99

$

In Stock, Qty 16

0

8

Husqvarna TBD

Note: (532 44 75-75)

$

$

Not available

10

Husqvarna 532443755

FRAME TEX_CRD_GEN2 BAGGER FRAM
(Superseded to 583825801)

$34.99

$

Usually ships in 3-10 days

0

19

Husqvarna 532194208

PIN.COTTER.5/16.BOW TI

$3.99

$

Usually ships in 3-10 days

0

21

Husqvarna TBD

Note: (532 44 59-43)

$

$

Not available

25

Husqvarna 532445528

LATCH LATCH. BAG. CRD GEN 2
(Superseded to 583580301)

$6.99

$

Usually ships in 3-10 days

0

26

Husqvarna 817490412

SCREW HEX CRT
(Superseded to 874760412)

$7.49

$

In Stock, only 1 left!

0

27

Husqvarna 532445529

GROMMET RUBBER GROMMET, DUMP T
(Superseded to 583580401)

$5.99

$

Usually ships in 3-10 days

0

28

Husqvarna 532165787

GRIP.HANDLE.BLACK

$6.99

$

In Stock, only 2 left!

0

42

Husqvarna 532440428

CLIP CHRISTMAS TREE CLIP
(Superseded to 583548101)

$3.49

$

Usually ships in 3-10 days

0

43

Husqvarna 532126875

RIVET,DRILLED

$6.49

$

In Stock, Qty 20+

0

44

Husqvarna 532199687

SCREW

$4.99

$

Usually ships in 3-10 days

0

45

Husqvarna 532443754

FRAME TEX_CRD_GEN2 UPPER U FRA
(Superseded to 583570301)

$113.99

$

Usually ships in 3-10 days

0

46

Husqvarna 532445541

CONNECTOR RIGHT BAGGER CORNER
(Superseded to 583580501)

$9.49

$

Usually ships in 3-10 days

0

47

Husqvarna 532444079

CONNECTOR LEFT BAGGER CORNER C
(Superseded to 583573001)

$8.99

$

Usually ships in 3-10 days

0

48

Husqvarna 532444080

BAFFLE BAGGER SIDE CLOSE-OUT
(Superseded to 583573101)

$9.49

$

Usually ships in 3-10 days

0

49

Husqvarna 532171873

BOLT, SHOULDER 5/16-18

$5.99

$

Usually ships in 3-10 days

0

50

Husqvarna 532171877

BOLT, 5/16-18 X 1 3/4

$7.49

$

In Stock, Qty 5

0

51

Husqvarna 872110506

BOLT.CARR.SQNK.5/16-18UNC.X3/4

$7.49

$

In Stock, Qty 20+

0

52

Husqvarna 873800500

NUT.71038.31-18.HEX.NYLOCK

$3.99

$

Usually ships in 3-10 days

0

53

Husqvarna 532444195

BRACKET DUMP HANDLE BRACKET, T
(Superseded to 583573601)

$10.99

$

Usually ships in 3-10 days

0

54

Husqvarna TBD

Note: (532 44 72-18)

$

$

Not available

55

Husqvarna 872140512

BOLT
(Superseded to 582736101)

$

$

Not available

56

Husqvarna 532420306

PIN.CLEVIS.183

$9.49

$

Usually ships in 3-10 days

0

57

Husqvarna 532199855

SCREW T-30 1/4-20 X
(Superseded to 583254901)

$4.99

$

Usually ships in 3-10 days

0

58

Husqvarna 532085179

RETAINER CLIP PM

$7.49

$

Usually ships in 3-10 days

0

59

Husqvarna 532444763

TUBE BAGGER SPREADER TUBE, TEX
(Superseded to 583826601)

$22.99

$

Usually ships in 3-10 days

0

60

Husqvarna 532444105

$

$

Not available

61

Husqvarna 532444106

$

$

Not available

62

Husqvarna 532444542

$

$

Not available

63

Husqvarna 532444110

$

$

Currently unavailable

64

Husqvarna 532430422

$

$

Not available

65

Husqvarna 532124788

RETAINER M
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

66

Husqvarna 532446723

$

$

Currently unavailable

67

Husqvarna 872110518

$

$

Not available

68

Husqvarna 819111610

WASHER

$6.49

$

Usually ships in 3-10 days

0

69

Husqvarna 532421801

SCREW,#8.FLAT.HEAD.DRILL.TIP
(Superseded to 583392101)

$

$

Not available

70

Husqvarna 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, only 2 left!

0
