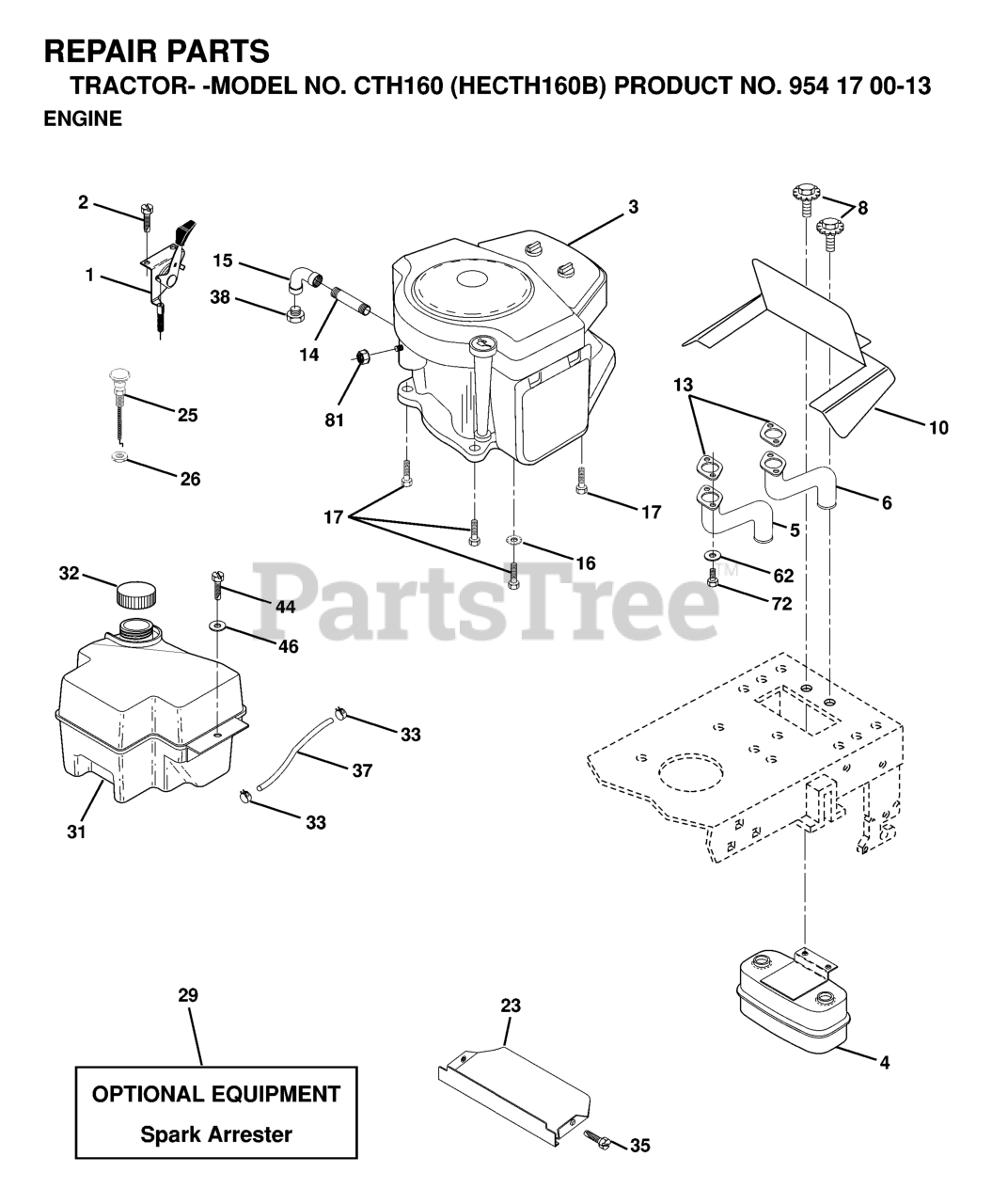

CTH 160 (954170013-B) - Husqvarna Lawn Tractor (1999-03) ENGINE & CUTTING EQUIPMENT Parts Diagram

Lawn Tractor

ENGINE & CUTTING EQUIPMENT Parts Diagram

  • Title
23

$

$

Not available

17

Husqvarna 817490624

SCREW LT
(Superseded to 874930624)

$7.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532145996

CONTROL, CHOKE

$

$

Not available

8

Husqvarna 532150176

BOLT HEX WASHER HD 5/16-18
(Superseded to 532171877)

$7.49

$

In Stock, Qty 5

0

5

Husqvarna 532159955

RP.EXHAUST.TUBE.LH.BS/TWIN
(Superseded to 581881101)

$44.99

$

In Stock, only 1 left!

0

4

Husqvarna 532149723

MUFFLER.TWIN.CYL.LOW.TONE

$74.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532137180

KIT.SPARK ARRESTOR 794945 B&S

$182.99

$

In Stock, only 1 left!

0

10

Husqvarna 532162797

SHIELD.BROWNING.B&S
(Superseded to 532146629)

$15.99

$

Usually ships in 3-10 days

0

15

Husqvarna 813200300

ELBOW
(Superseded to 532428287)

$18.99

$

In Stock, only 4 left!

0

37

Husqvarna 532137040

LINE.FUEL.20
(Superseded to 587044820)

$11.99

$

In Stock, Qty 11

0

44

Husqvarna 817490412

SCREW HEX CRT
(Superseded to 874760412)

$7.49

$

In Stock, only 1 left!

0

31

Husqvarna 532161911

FUEL TANK
(Superseded to 532180645)

$

$

Not available

26

Husqvarna 873920600

Nut Keps 3/8 - 24 UNF

$3.99

$

Usually ships in 3-10 days

0

16

Husqvarna 811050600

LOCKWASHER
(Superseded to 810040600)

$4.99

$

In Stock, Qty 20+

0

32

Husqvarna 532140527

FUEL CAP
(Superseded to 581075501)

$26.99

$

Usually ships in 3-10 days

0

13

Husqvarna 532165391

GASKET.MUFFLER

$4.99

$

In Stock, Qty 20+

0

81

Husqvarna 532128861

NUT FLANGE 1/4-20 STARTER NUT
(Superseded to 873220400)

$6.49

$

In Stock, only 1 left!

0

35

Husqvarna 817490512

SCREW.THDROL.5/16-18X3/4.TTY
(Superseded to 874780512)

$4.99

$

In Stock, Qty 20+

0

6

Husqvarna 532160589

EXHAUST.TUBE.RH.BS/TWIN
(Superseded to 581881001)

$27.99

$

In Stock, only 1 left!

0

2

Husqvarna 817720410

SCREW LT
(Superseded to 874780410)

$3.99

$

In Stock, only 1 left!

0

33

Husqvarna 532123487

HOSE CLAMP

$7.49

$

In Stock, only 4 left!

0

$6.49

$

Usually ships in 3-10 days

0

1

Husqvarna 532148875

CONTROL THROTTLE 36"
(Superseded to 532170771)

$

$

Not available

14

Husqvarna 813280336

Nipple, Pipe 3/8 NPT x 4-1/2

$

$

Not available

62

Husqvarna 810040500

WASHER.LOCK.HVY.HLCL.SPR.5/16
(Superseded to 596238801)

$3.99

$

In Stock, only 3 left!

0

72

Husqvarna 871070512

SCREW
(Superseded to 532192334)

$

$

Not available
