CTH 151 (960610276-00) - Husqvarna Lawn Tractor (2010-01) BAGGER Parts Diagram

Lawn Tractor

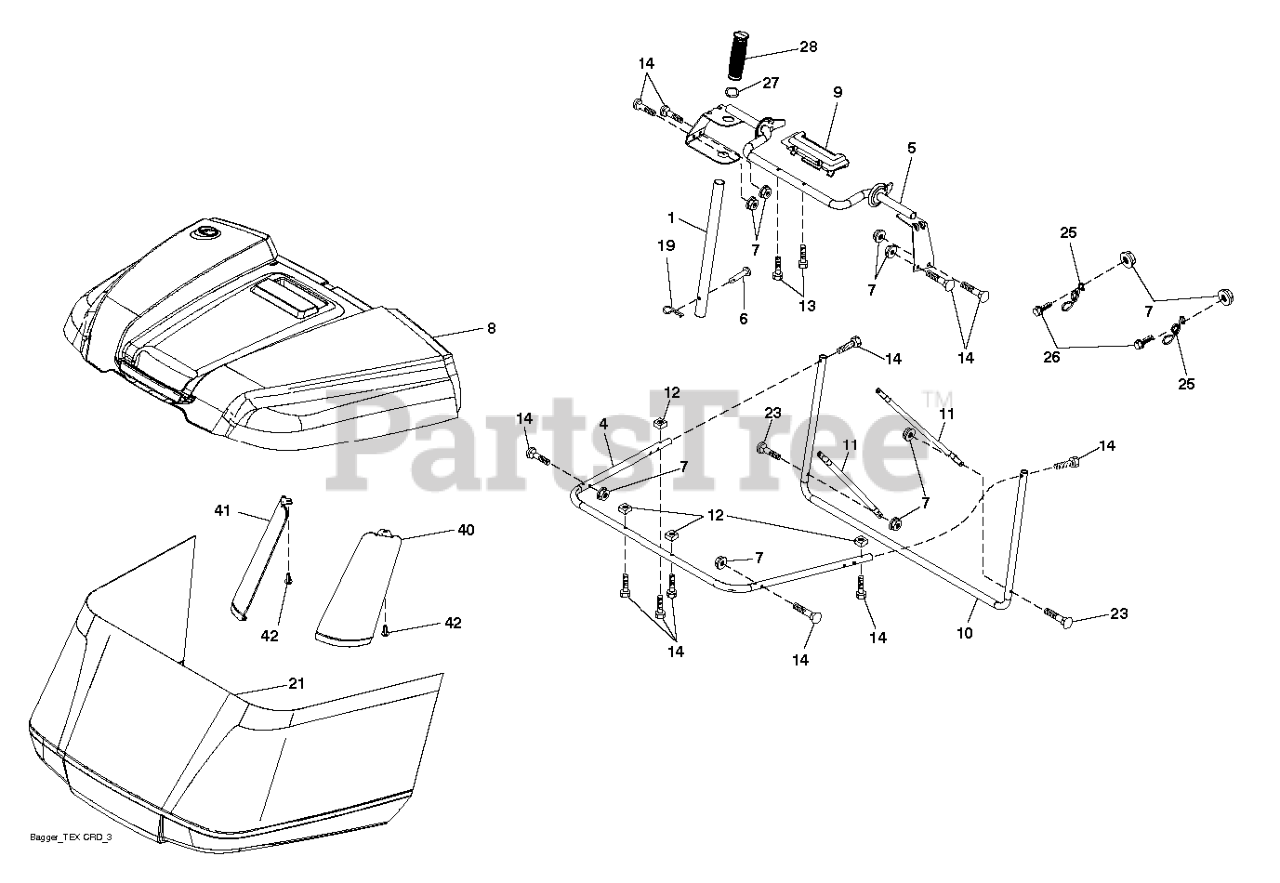

BAGGER Parts Diagram

  • Title
14

Husqvarna 532421800

BOLT.SHOULDER.HX.WSH.1/4X1.150
(Superseded to 583392001)

$7.99

$

Usually ships in 3-10 days

0

26

Husqvarna 817490412

SCREW HEX CRT
(Superseded to 874760412)

$7.49

$

In Stock, only 1 left!

0

7

Husqvarna 873900400

NUT T
(Superseded to 873680400)

$4.99

$

In Stock, Qty 16

0

28

Husqvarna 532165787

GRIP.HANDLE.BLACK

$6.99

$

In Stock, only 2 left!

0

13

Husqvarna 532421780

SCREW.1/4X1.150.HXWSH
(Superseded to 583391201)

$4.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532417632

FRAME.ASM.TOP.BAGGER.SRD
(Superseded to 583365901)

$145.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532421614

SPRING.LATCH.BAGGER.SRD
(Superseded to 583389801)

$4.99

$

In Stock, only 2 left!

0

$

$

Not available

27

Husqvarna 532421262

RB GROMMET.RUBBER.SRD
(Superseded to 583387201)

$4.99

$

Usually ships in 3-10 days

0

10

Husqvarna 532436770

FRAME FRAME.FRONT.TEX.CRD
(Superseded to 583511501)

$78.99

$

Usually ships in 3-10 days

0

9

Husqvarna 532417629

INSERT.HANDLE.BAGGER.(2 2)
(Superseded to 583365801)

$26.99

$

Usually ships in 3-10 days

0

$6.49

$

Usually ships in 3-10 days

0

1

Husqvarna 532428610

TUBE.HANDLE.BAGGER.CRD/SRD.BLA

$15.99

$

Usually ships in 3-10 days

0

42

Husqvarna 532440428

CLIP CHRISTMAS TREE CLIP
(Superseded to 583548101)

$3.49

$

Usually ships in 3-10 days

0

8

Husqvarna 532435165

BAGGER.TOP.SUB.ASSEM.SRD
(Superseded to 583503801)

$157.99

$

Usually ships in 3-10 days

0

$

$

Not available

11

Husqvarna 532436771

BRACE BRACE SIDE TUBE
(Superseded to 583511601)

$15.99

$

Usually ships in 3-10 days

0

$

$

Not available

19

Husqvarna 532194208

PIN.COTTER.5/16.BOW TI

$3.99

$

Usually ships in 3-10 days

0

6

Husqvarna 532126875

RIVET,DRILLED

$6.49

$

In Stock, Qty 20+

0

4

Husqvarna 532439612

SUBASM.TOP.TUBE.TEX.CRD
(Superseded to 583544101)

$48.99

$

Usually ships in 3-10 days

0

12

Husqvarna 532421793

NUT.SQUARE.1/4
(Superseded to 583391701)

$4.99

$

In Stock, only 2 left!

0
