CTH 150 (960610182-03) - Husqvarna Lawn Tractor (2009-01) ENGINE Parts Diagram

Lawn Tractor

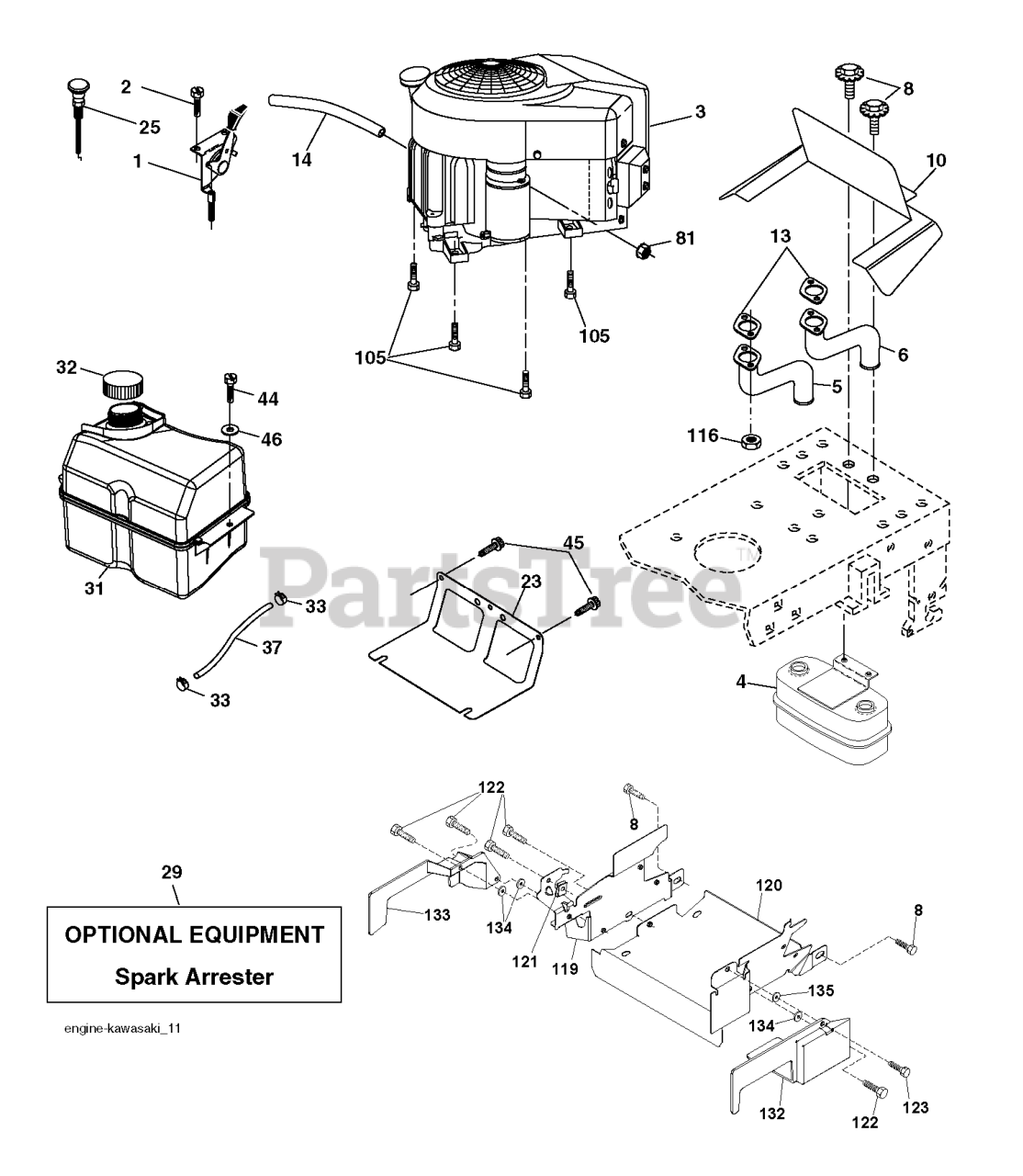

ENGINE Parts Diagram

  • Title

731 23 18-01

Husqvarna 731231801

NUT
(Superseded to 695008078)

$

$

Not available

506 78 39-01

Husqvarna 506783901

Button

$

$

Not available

735 31 18-20

Husqvarna 735311820

Lock Ring

$

$

Not available

506 78 36-01

Husqvarna 506783601

LEVER

$

$

Not available

506 50 82-01

Husqvarna 506508201

CLAMP

$

$

Not available

506 78 40-01

Husqvarna 506784001

PAWL
(Superseded to 504907901)

$

$

Not available

506 86 59-02

Husqvarna 506865902

CHOKE CONTROL

$

$

Not available

506 92 85-01

Husqvarna 506928501

PLATE

$

$

Not available

506 55 47-01

Husqvarna 506554701

LINK

$5.99

$

In Stock, only 1 left!

0

506 90 56-01

Husqvarna 506905601

PULLEY

$17.99

$

Usually ships in 3-10 days

0

506 83 94-01

Husqvarna 506839401

SPRINGWASHER

$4.99

$

Usually ships in 3-10 days

0

725 24 97-51

Husqvarna 725249751

SCREW

$5.99

$

Usually ships in 3-10 days

0

506 55 46-04

Husqvarna 506554604

CHAIN

$

$

Not available

506 54 20-01

Husqvarna 506542001

GEAR STICK KNOB

$

$

Not available

506 79 24-01

Husqvarna 506792401

ROD

$

$

Not available

506 88 91-02

Husqvarna 506889102

KNOB

$30.99

$

Usually ships in 3-10 days

0

735 31 22-20

Husqvarna 735312220

CIRCLIP

$

$

Not available

506 86 59-01

Husqvarna 506865901

THROTTLE TRIGGER

$

$

Not available

732 21 18-01

Husqvarna 732211801

LOCKNUT M8

$4.99

$

In Stock, Qty 12

0

725 23 74-71

Husqvarna 725237471

SCREW M6S 6X30

$5.99

$

In Stock, Qty 20+

0

506 78 45-01

Husqvarna 506784501

SHAFT

$

$

Not available

721 62 01-01

Husqvarna 721620101

SPLIT PIN

$

$

Not available

506 51 57-01

Husqvarna 506515701

WASHER

$

$

Not available

731 23 20-51

Husqvarna 731232051

NUT
(Superseded to 731232001)

$6.49

$

In Stock, only 2 left!

0

721 68 02-51

Husqvarna 721680251

R-CLIP

$7.49

$

Usually ships in 3-10 days

0

721 61 83-01

Husqvarna 721618301

Split Pin

$

$

Not available

506 86 39-02

Husqvarna 506863902

CHOKEWIRE

Note: CHOKE

$

$

Not available

506 88 91-01

Husqvarna 506889101

HANDLE

$7.49

$

Usually ships in 3-10 days

0

735 31 09-20

Husqvarna 735310920

E-RING 5

$7.49

$

In Stock, Qty 8

0

506 78 41-01

Husqvarna 506784101

SPRING

$

$

Not available

506 86 42-01

Husqvarna 506864201

BUSHING
(Superseded to 506905801)

$

$

Not available

506 78 46-01

Husqvarna 506784601

Pins

$9.99

$

Usually ships in 3-10 days

0

506 78 42-01

Husqvarna 506784201

PIN

$

$

Not available

506 90 57-01

Husqvarna 506905701

SHAFT

$

$

Not available

735 31 15-20

Husqvarna 735311520

RETAINING RING

$3.49

$

Usually ships in 3-10 days

0

725 23 35-51

Husqvarna 725233551

SCREW

$0.99

$

Usually ships in 3-10 days

0

732 31 22-01

Husqvarna 732312201

NUT

$

$

Not available

506 81 47-01

Husqvarna 506814701

EYE BOLT

$

$

Not available

506 78 44-01

Husqvarna 506784401

LEVER

$

$

Not available

506 55 65-01

Husqvarna 506556501

BEARING FLANGE
(Superseded to 584871301)

$5.99

$

Usually ships in 3-10 days

0

506 85 45-01

Husqvarna 506854501

ROD

$

$

Not available

732 21 14-01

Husqvarna 732211401

LOCKNUT M5

$6.49

$

In Stock, Qty 7

0

506 55 43-01

Husqvarna 506554301

BUSHING
(Superseded to 584871302)

$5.99

$

Usually ships in 3-10 days

0

506 78 43-01

Husqvarna 506784301

LEVER CLUTCH

$34.99

$

Usually ships in 3-10 days

0

506 81 70-01

Husqvarna 506817001

SPRING

$

$

Not available

506 79 17-01

Husqvarna 506791701

Hand Grip

$

$

Not available

734 11 77-71

Husqvarna 734117771

BUSHING

$6.49

$

In Stock, only 2 left!

0

506 53 14-01

Husqvarna 506531401

HAIR PIN SPRING

$

$

Not available

506 85 41-01

Husqvarna 506854101

LINK

$

$

Not available

725 25 42-51

Husqvarna 725254251

Screw

$7.49

$

Usually ships in 3-10 days

0

735 31 12-20

Husqvarna 735311220

Retaining Ring

$2.99

$

Usually ships in 3-10 days

0

506 78 47-01

Husqvarna 506784701

LEVER

$

$

Not available

729 44 08-01

Husqvarna 729440801

Screw

$

$

Not available

506 86 39-01

Husqvarna 506863901

THROTTLE WIRE

Note: GAS

$

$

Not available

506 86 41-01

Husqvarna 506864101

CHAIN WHEEL
(Superseded to 506924201)

$

$

Not available

506 88 89-01

Husqvarna 506888901

BUSHING

$

$

Not available

506 53 15-01

Husqvarna 506531501

PIVOT PIN

$

$

Not available

725 21 16-01

Husqvarna 725211601

$

$

Currently unavailable

506 81 41-01

Husqvarna 506814101

SHAFT

$

$

Not available

506 85 46-02

Husqvarna 506854602

ROD

$

$

Not available
