CTH 150 (960610181-02) - Husqvarna Lawn Tractor (2007-09) CHASSIS & ENCLOSURES Parts Diagram

Lawn Tractor

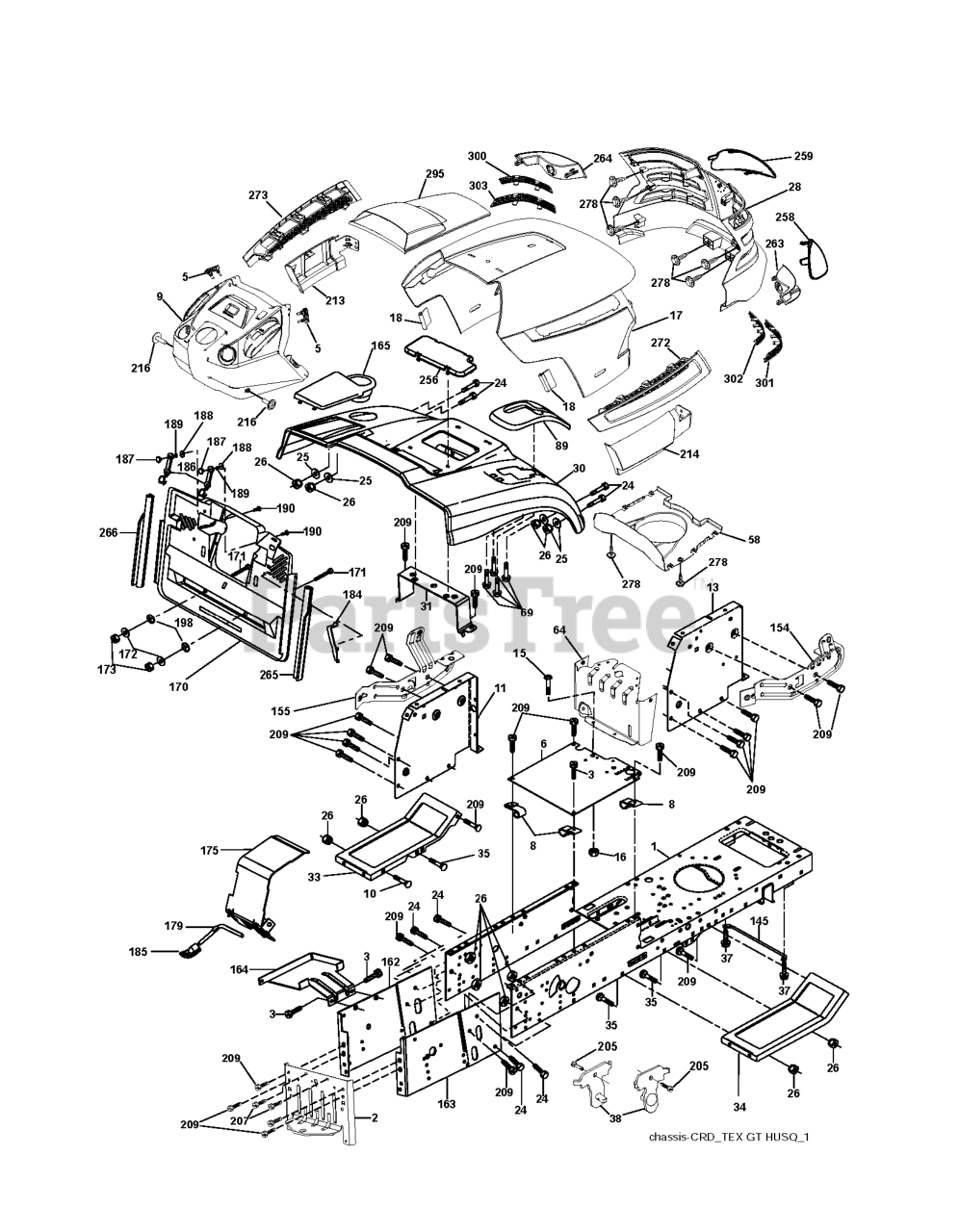

CHASSIS & ENCLOSURES Parts Diagram

  • Title

26

Husqvarna 873800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

31

Husqvarna 532165156

BRACKET SUPPORT FENDER

$

$

Not available

185

Husqvarna 532181101

$

$

Not available

272

Husqvarna 532403048

VENT.SIDE.HOOD.HUSQ.RH.GREY

$

$

Not available

164

Husqvarna 532165605

SUPPORT

$

$

Not available

186

532160793

LATCH ASSY

$

$

Not available

216

Husqvarna 817060410

SCREW 14-20 X 5/8

$7.49

$

Usually ships in 3-10 days

0

172

Husqvarna 819132016

WASHER
(Superseded to 819132012)

$3.49

$

Usually ships in 3-10 days

0

265

Husqvarna 532185704

SEALING
(Superseded to 583146701)

$21.99

$

Usually ships in 3-10 days

0

24

Husqvarna 874780616

BOLT

$6.49

$

Usually ships in 3-10 days

0

13

Husqvarna 532178298

PANEL DASH RH

$

$

Not available

89

Husqvarna 532197377

CONSOLE.CRD.AUTO.GREY.2005
(Superseded to 532441574)

$8.99

$

Usually ships in 3-10 days

0

295

Husqvarna 532416615

VENT.ASM.TORPHD.HUSQGT.LOGO.CL

$19.99

$

Usually ships in 3-10 days

0

37

Husqvarna 817490508

Screw 5/16-18 x 1/2 Hex, Self Tapping 5/16-18 x 1/2
(Superseded to 539990858)

$3.99

$

Usually ships in 3-10 days

0

207

Husqvarna 817670508

SCREW, 5/16-18 X 1/2

$9.49

$

In Stock, only 2 left!

0

303

Husqvarna 532199133

INSERT.HEX.GRILL.HUSQ.

$3.49

$

Usually ships in 3-10 days

0

256

Husqvarna 532181361

COVER FENDER CRD
(Superseded to 532197364)

$133.99

$

Usually ships in 3-10 days

0

30

Husqvarna 532197376

CONSOLE.CRD.AUTO.GRY

$8.99

$

Usually ships in 3-10 days

0

263

Husqvarna 532197198

BEZEL.RH.TEX.GT.HUSQ

$26.99

$

Usually ships in 3-10 days

0

259

Husqvarna 532198907

LENS.LH.TEX.GT.HUSQ.CL

$44.99

$

In Stock, Qty 5

0

6

Husqvarna 532184419

PLATE
(Superseded to 583133601)

$12.99

$

Usually ships in 3-10 days

0

302

Husqvarna 532199132

INSERT.HEX.GRILL.HUSQ.

$2.99

$

Usually ships in 3-10 days

0

58

Husqvarna 532198514

AIR.DUCT.TEXGT.HUSQ.31

$

$

Not available

35

Husqvarna 872110606

BOLT

$4.99

$

Usually ships in 3-10 days

0

154

Husqvarna 532408690

$

$

Currently unavailable

301

Husqvarna 532199130

INSERT.HEX.GRILL.HUSQ.GREY

$5.99

$

Usually ships in 3-10 days

0

179

Husqvarna 532188202

ROD PIVOT FBI
(Superseded to 583170601)

$27.99

$

Usually ships in 3-10 days

0

300

Husqvarna 532199131

INSERT.HEX.GRILL.HUSQ.

$

$

Not available

3

Husqvarna 817060612

SCREW 3/8-16X3/4
(Superseded to 817000612)

$4.99

$

In Stock, only 2 left!

0

205

Husqvarna 817490608

SCREW LT

$6.49

$

Usually ships in 3-10 days

0

25

Husqvarna 819131312

WASHER
(Superseded to 734117201)

$3.49

$

Usually ships in 3-10 days

0

2

Husqvarna 532180384

DRAWBAR
(Superseded to 583101001)

$

$

Not available

18

Husqvarna 532404742

BUMPER.HOOD.TEX.HUSQVARNA

$6.99

$

In Stock, only 2 left!

0

188

Husqvarna 819061216

WASHER

$4.99

$

Usually ships in 3-10 days

0

9

Husqvarna 532408911

NEEDS DESCRIPTION

$

$

Currently unavailable

163

Husqvarna 532180383

BRACKET EXTEN CHASSIS RH CRD
(Superseded to 583100901)

$42.99

$

Usually ships in 3-10 days

0

33

Husqvarna 532181057

FOOTREST PNT LH
(Superseded to 532182507)

$43.99

$

Usually ships in 3-10 days

0

64

Husqvarna 532199395

$

$

Not available

278

Husqvarna 532191611

SCREW
(Superseded to 532416358)

$

$

Not available

198

Husqvarna 532168937

NUT

$4.99

$

Usually ships in 3-10 days

0

175

Husqvarna 532188203

DOOR TRAP
(Superseded to 583707801)

$24.99

$

Usually ships in 3-10 days

0

258

Husqvarna 532198906

LENS.RH.TEX.GT.HUSQ.CL

$44.99

$

Usually ships in 3-10 days

0

266

Husqvarna 532185703

SEALING
(Superseded to 583146601)

$21.99

$

Usually ships in 3-10 days

0

165

Husqvarna 532181100

RP.COVER.BATTERY.CRD.GREY
(Superseded to 532441516)

$20.99

$

In Stock, only 1 left!

0

145

Husqvarna 532409167

ROD.PIVOT.HOOD

$13.99

$

In Stock, only 2 left!

0

10

Husqvarna 872140608

BOLT D
(Superseded to 872110608)

$4.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532407590

BUMPER DASH

$6.49

$

In Stock, Qty 6

0

171

Husqvarna 872140620

BOLT

$3.99

$

Usually ships in 3-10 days

0

155

Husqvarna 532408691

$

$

Currently unavailable

162

Husqvarna 532180382

BRACKET
(Superseded to 583100801)

$47.99

$

Usually ships in 3-10 days

0

187

Husqvarna 532125004

WELDNUT
(Superseded to 596987401)

$3.99

$

In Stock, Qty 20+

0

15

Husqvarna 874180512

Screw, Machine, Truss Head 5/16-18 UNC x 3/4

$

$

Not available

214

Husqvarna 532401709

SKIRT.HOOD.SIDE.HUSQ.RH.GREY

$7.99

$

Usually ships in 3-10 days

0

16

Husqvarna 873510500

NUT
(Superseded to 873680500)

$3.99

$

Usually ships in 3-10 days

0

34

Husqvarna 532181058

FOOTREST PNT RH
(Superseded to 532442579)

$

$

Not available

11

Husqvarna 532167203

PANEL DASH LH

$24.99

$

Usually ships in 3-10 days

0

184

Husqvarna 532174662

BRACKET.ACTUATOR.BAGGER.SRD

$5.99

$

Usually ships in 3-10 days

0

17

Husqvarna 532411046

HOOD
(Superseded to 532442396)

$

$

Not available

173

Husqvarna 873510600

NUT

$6.49

$

Usually ships in 3-10 days

0

273

Husqvarna 532403076

VENT.SIDE.HOOD.HUSQ.LH.GRAY

$

$

Not available

28

Husqvarna 532408607

GRILL.ASM.HUSQ.TG/CRD.W/TRIM

$

$

Not available

1

Husqvarna 532174620

CHASSIS

$136.99

$

Usually ships in 3-10 days

0

189

Husqvarna 810071000

LOCKWASHER #10

$4.99

$

In Stock, Qty 11

0

170

Husqvarna 532199488

$

$

Not available

69

Husqvarna 532142432

SCREW.HI-LO.CONSOLE

$6.49

$

Usually ships in 3-10 days

0

8

Husqvarna 532126471

CLIP,INSULATOR

$4.99

$

Usually ships in 3-10 days

0

264

Husqvarna 532197199

BEZEL.LH.TEX.GT.HUSQ

$20.99

$

Usually ships in 3-10 days

0

213

Husqvarna 532401711

SKIRT.HOOD.SIDE.HUSQ.LH.GREY

$

$

Not available

190

Husqvarna 871081010

SCREW
(Superseded to 596039001)

$3.99

$

In Stock, Qty 17

0

209

Husqvarna 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, only 2 left!

0

38

Husqvarna 532181748

BRACKET ASM PIVOT MOWER REAR
(Superseded to 583117401)

$11.99

$

Usually ships in 3-10 days

0
