CTH 150 (954140101-A) - Husqvarna Lawn Tractor (1999-10) Seat Assembly Parts Diagram

Lawn Tractor

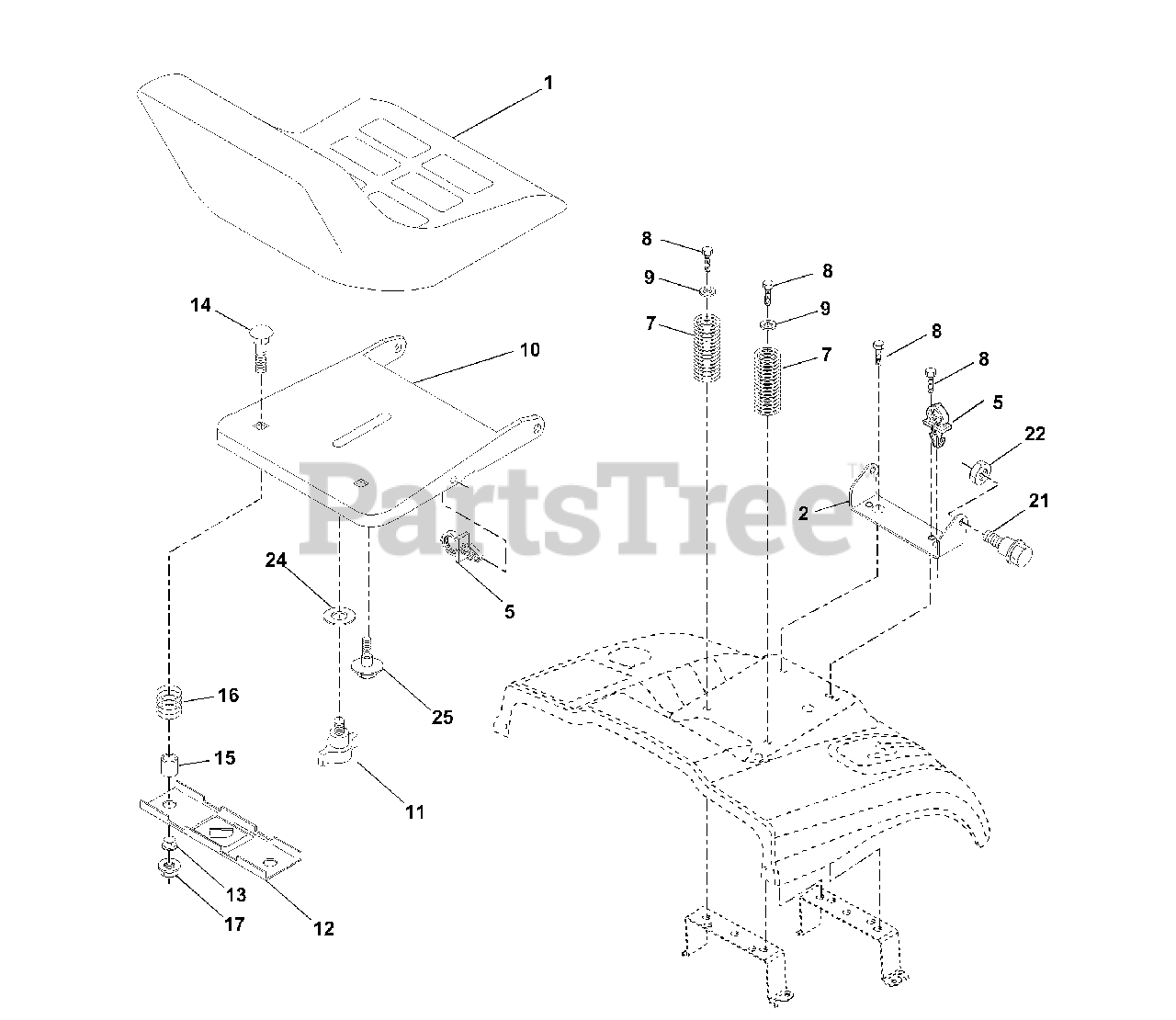

Seat Assembly Parts Diagram

  • Title

1

Husqvarna 532140839

Seat
(Superseded to 532439699)

$206.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532140551

Bracket Pivot Seat 8 720

$6.49

$

Usually ships in 3-10 days

0

5

Husqvarna 532145006

Clip Push-In

$6.49

$

Usually ships in 3-10 days

0

7

Husqvarna 532124181

Spring Seat Cprsn 2 250 Blk Zi
(Superseded to 587613301)

$6.99

$

In Stock, only 4 left!

0

8

Husqvarna 532171235

Screw 3/8-16 X 1-1/2
(Superseded to 817000616)

$7.49

$

In Stock, only 3 left!

0

9

Husqvarna 532171236

Washer 13/32 X 1 X 14 Ga.
(Superseded to 819131614)

$6.49

$

Usually ships in 3-10 days

0

10

Husqvarna 532155925

Pan Seat
(Superseded to 532195530)

$21.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532166369

Knob Seat Adj. Wingnut

$10.99

$

In Stock, only 1 left!

0

12

Husqvarna 532121246

Bracket Mounting Switch
(Superseded to 532174648)

$10.99

$

Usually ships in 3-10 days

0

13

Husqvarna 532121248

Bushing Snap Blk Nyl 50 Id

$6.49

$

Usually ships in 3-10 days

0

14

Husqvarna 532171040

Bolt Rdhd Sqnk 1/4-20x1-1/2
(Superseded to 872050412)

$6.49

$

Usually ships in 3-10 days

0

15

Husqvarna 532134300

Spacer Split 28x .96 Zinc

$7.49

$

Usually ships in 3-10 days

0

16

Husqvarna 532121250

Spring Cprsn

$7.49

$

Usually ships in 3-10 days

0

17

Husqvarna 532171041

Nut Lock 1/4 Lge Flg Gr 5 Zinc
(Superseded to 586668901)

$4.99

$

In Stock, Qty 16

0

21

Husqvarna 532171130

Bolt Shoulder 5/16-18 Unc
(Superseded to 587907801)

$4.99

$

In Stock, Qty 8

0

22

Husqvarna 532171026

Nut Crownlock 5/16-18
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

24

Husqvarna 532171261

Washer 17/32 X 1-3/16 X 12 Ga.
(Superseded to 819171912)

$7.49

$

In Stock, only 1 left!

0

25

Husqvarna 532171260

Bolt Shoulder 5/16-18 X 62
(Superseded to 532127018)

$7.49

$

Usually ships in 3-10 days

0
