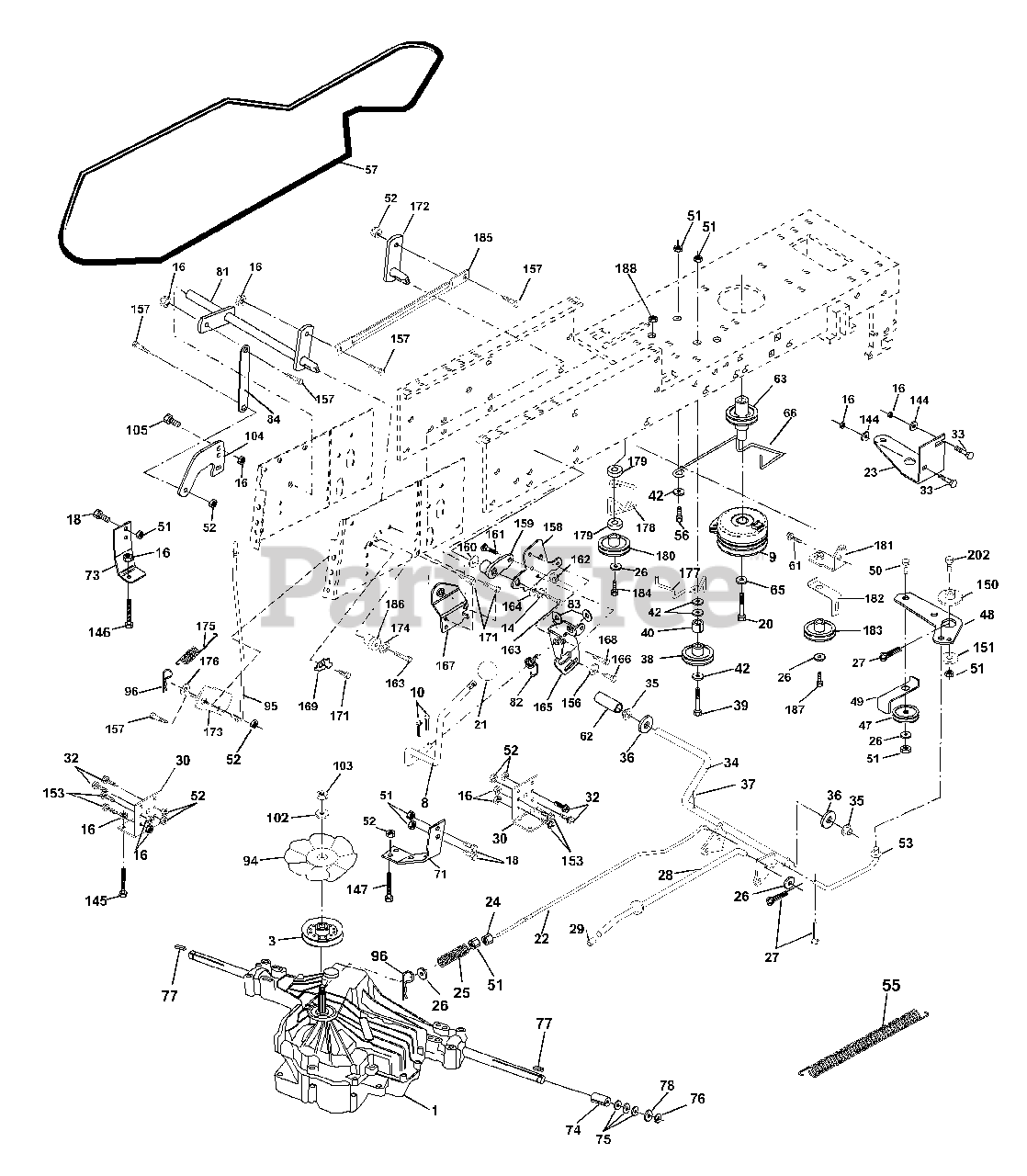

CTH 150 (954140101-A) - Husqvarna Lawn Tractor (1999-10) Drive Parts Diagram

Lawn Tractor

Drive Parts Diagram

  • Title
1

Transaxle Hydro Gear Model 331-0650 (See Breakdown)

$

$

Not available

3

Husqvarna 532143995

Pulley, Transaxle

$34.99

$

Usually ships in 3-10 days

0

8

Husqvarna 532165619

Rod Shift Fender Adjust Evx 80 lb

$

$

Not available

9

Husqvarna 532169992

Clutch Elect

$485.99

$

Usually ships in 3-10 days

0

10

Husqvarna 532171231

Pin Cotter 1/8 x 1 CAD
(Superseded to 876020416)

$3.99

$

Usually ships in 3-10 days

0

14

Husqvarna 532171185

Washer Lock Hvy Helical
(Superseded to 810040400)

$3.99

$

In Stock, only 2 left!

0

16

UNKNOWN

$

$

Not available

18

Husqvarna 532171356

Bolt Fin Hex 3/8-16 Unc x 1 Gr. 5
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

20

Husqvarna 532150280

Bolt, Hex 7/16-20 x 4-1/4
(Superseded to 532173937)

$4.99

$

In Stock, only 1 left!

0

21

Husqvarna 532121274

Knob, Duckhead 1/2-13

$10.99

$

Usually ships in 3-10 days

0

22

Husqvarna 532171161

Rod, Brake Hydro
(Superseded to 532165689)

$

$

Not available

23

Husqvarna 532170171

Bracket Asm Clutch

$

$

Not available

24

Husqvarna 532171163

Nut Hex Jam 3/8-16
(Superseded to 873350600)

$6.49

$

In Stock, only 2 left!

0

25

Husqvarna 532171164

Spring, Brake Rod
(Superseded to 532151332)

$6.49

$

In Stock, only 1 left!

0

26

Husqvarna 532171140

Washer 13/32 x 13/16 x 16 Ga.
(Superseded to 819131316)

$3.99

$

In Stock, Qty 20+

0

27

Husqvarna 532171165

Pin Cotter 1/8 x 3/4 CAD.
(Superseded to 876020412)

$6.49

$

In Stock, Qty 20+

0

28

Husqvarna 532171166

Rod, Parking Brake
(Superseded to 532145204)

$

$

Not available

29

Husqvarna 532071673

Cap, Parking Brake

$5.99

$

Usually ships in 3-10 days

0

30

Husqvarna 532130807

Bracket, Transaxle

$3.99

$

Usually ships in 3-10 days

0

32

UNKNOWN

$

$

Not available

33

Husqvarna 532171221

Bolt Rdhd Sqnk 5/16-18 unc x 3/4
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

34

Husqvarna 532165496

Shaft, Foot Pedal

$31.99

$

Usually ships in 3-10 days

0

35

Husqvarna 532120183

Bearing, Nylon

$6.99

$

In Stock, only 3 left!

0

36

Husqvarna 532171368

Washer 21/32 x 1 x 16 Ga
(Superseded to 819211616)

$6.49

$

Usually ships in 3-10 days

0

37

Husqvarna 532124963

Pin, Roll
(Superseded to 532002882)

$4.99

$

In Stock, Qty 7

0

38

Husqvarna 532165936

Pulley, Flat

$31.99

$

In Stock, only 1 left!

0

39

Husqvarna 532171247

Nut Rdhd 3/8-16 Unc x 2-3/4 Gr. 5
(Superseded to 872110622)

$4.99

$

In Stock, Qty 10

0

40

Husqvarna 532124965

Spacer, Split

$6.49

$

Usually ships in 3-10 days

0

42

Husqvarna 532171151

Washer 13/32 x 13/16 x 12 Gauge
(Superseded to 596134901)

$3.49

$

Usually ships in 3-10 days

0

47

Husqvarna 532127783

Pulley, Idler, V-Groove
(Superseded to 532139245)

$37.99

$

In Stock, only 1 left!

0

48

Husqvarna 532154407

Bellcrank Assembly

$8.99

$

Usually ships in 3-10 days

0

49

Husqvarna 532123205

Retainer, Belt

$6.49

$

Usually ships in 3-10 days

0

50

Husqvarna 532171180

Bolt Carr Sh 3/8-16 x 1-1/2 Gr. 5
(Superseded to 872110612)

$6.49

$

Usually ships in 3-10 days

0

51

Husqvarna 532171168

Nut Crownlock 3/8-16 UNC
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

52

Husqvarna 532171026

Nut Crownlock 5/16-18 UNC
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

53

Husqvarna 532105710

Link, Clutch
(Superseded to 532199652)

$13.99

$

Usually ships in 3-10 days

0

55

Husqvarna 532105709

Spring, Return, Clutch

$11.99

$

Usually ships in 3-10 days

0

56

Husqvarna 532171187

Bolt Fin Hex 3/8-16 UNC x 1-1/4
(Superseded to 874760620)

$7.49

$

Usually ships in 3-10 days

0

57

Husqvarna 532165632

V-Belt, Ground Drive

$

$

Not available

61

Husqvarna 532171167

Screw 3/8-16 x 3/4
(Superseded to 817000612)

$4.99

$

In Stock, only 2 left!

0

62

Husqvarna 532124872

Cover, Pedal
(Superseded to 532008883)

$6.49

$

In Stock, Qty 14

0

63

Husqvarna 532145868

Pulley, Engine

$100.99

$

Usually ships in 3-10 days

0

65

Husqvarna 532171220

Washer
(Superseded to 810040700)

$

$

Not available

66

Husqvarna 532154778

Keeper Belt Engine

$12.99

$

Usually ships in 3-10 days

0

71

Husqvarna 532140158

Strap Torque Lh Hydro

$

$

Not available

73

Husqvarna 532156347

Strap Torque Rh Hydro

$

$

Not available

74

Husqvarna 532121199

Spacer, Split

$

$

Not available

75

Husqvarna 532171038

Washer 25/32 x 1-1/4 x 16 Gauge
(Superseded to 532121749)

$3.49

$

Usually ships in 3-10 days

0

$4.99

$

Usually ships in 3-10 days

0

77

Husqvarna 532123583

Key, Square

$4.99

$

In Stock, only 4 left!

0

78

Husqvarna 532171039

Washer 25/32 x 1-5/8 x 16 Gauge
(Superseded to 532121748)

$4.99

$

In Stock, Qty 20+

0

81

Husqvarna 532165585

Shaft Asm. Cross

$26.99

$

Usually ships in 3-10 days

0

82

Husqvarna 532123782

Spring Torsion

$

$

Not available

83

Husqvarna 532171230

Washer 17/32 x 3/4 x 16 Ga.
(Superseded to 819171216)

$6.49

$

In Stock, only 2 left!

0

84

Husqvarna 532165629

Link Transaxle

$

$

Not available

94

Husqvarna 532140462

Fan, Hydro 7"

$12.99

$

Usually ships in 3-10 days

0

95

Husqvarna 532171158

Rod Bypass CRD
(Superseded to 532165935)

$

$

Not available

96

Husqvarna 532171160

Retainer Spring 1" Zinc/Cad
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

102

Husqvarna 532171127

Washer Beliville .501D x 1.50D
(Superseded to 532141322)

$4.99

$

Usually ships in 3-10 days

0

103

Husqvarna 532171128

Nut, Hex, Jam Toplock 1/2-20 UNF
(Superseded to 873940800)

$7.49

$

In Stock, only 4 left!

0

104

Husqvarna 532140156

Arm, Control Hydro

$

$

Not available

105

Husqvarna 532171131

Screw Cap Hex 5/16 x 18 x 1
(Superseded to 871070516)

$4.99

$

Usually ships in 3-10 days

0

144

Husqvarna 532171222

Washer 11/32 x 5/8 x 16 Ga.
(Superseded to 819111016)

$3.99

$

Usually ships in 3-10 days

0

145

Husqvarna 532171153

Bolt Hex Flghd 5/16-18 Gr.5
(Superseded to 874490540)

$4.99

$

Usually ships in 3-10 days

0

146

Husqvarna 532171157

Bolt Hex Flghd 5/16-18 x 2-1/4
(Superseded to 874490536)

$

$

Not available

147

Husqvarna 532171155

Bolt Hex Flghd 5/16-18 x 1-1/2
(Superseded to 874490524)

$

$

Not available

150

Husqvarna 532165850

Bushing Bellcrank

$

$

Not available

151

Husqvarna 532171179

Washer 13/32 x 2 x 10 Ga.
(Superseded to 532413524)

$

$

Not available

153

Husqvarna 532171138

Bolt Hex Hd 5/16-18 UNC x 1
(Superseded to 874780516)

$6.49

$

Usually ships in 3-10 days

0

156

Husqvarna 532166002

Washer Srrted 5/16 ID x 1.125

$6.49

$

Usually ships in 3-10 days

0

157

Husqvarna 532171130

Bolt Shoulder 5/16-18 Unc - 2A
(Superseded to 587907801)

$4.99

$

In Stock, Qty 8

0

158

Husqvarna 532165589

Bracket Shift Mount
(Superseded to 532437458)

$7.49

$

Usually ships in 3-10 days

0

159

Husqvarna 532165494

Hub Tapered Flange Shift Lt
(Superseded to 532444304)

$8.99

$

Usually ships in 3-10 days

0

160

Husqvarna 532171182

Washer 29/32 x 1-1/4 x 16 Ga
(Superseded to 819292016)

$7.99

$

Usually ships in 3-10 days

0

161

Husqvarna 532171183

Bolt Rdhd Sqnk 1/4-20 x 3/4 Gr. 5
(Superseded to 872110407)

$4.99

$

Usually ships in 3-10 days

0

162

Husqvarna 532171184

Nut Crownlock 1/4-20 Unc
(Superseded to 873680400)

$4.99

$

In Stock, Qty 15

0

163

Husqvarna 532171186

Bolt Hex Fin 1/4-20 Unc x 1 Gr 5
(Superseded to 874780416)

$6.49

$

Usually ships in 3-10 days

0

164

Husqvarna 532171172

Washer 5/8 x .281 x 10 Ga
(Superseded to 819091010)

$

$

Not available

165

Husqvarna 532165623

Bracket Pivot Lever
(Superseded to 532438250)

$7.49

$

Usually ships in 3-10 days

0

166

Husqvarna 532166880

Screw 5/16-18 x 5/8

$6.49

$

Usually ships in 3-10 days

0

167

Husqvarna 532165588

Bracket Support Shift CRD

$20.99

$

Usually ships in 3-10 days

0

168

Husqvarna 532165492

Bolt Shoulder 5/16-18 x .561

$10.99

$

In Stock, only 3 left!

0

169

Husqvarna 532165580

Plate Fastening Cross Shf. Stlt/CRD

$6.99

$

Usually ships in 3-10 days

0

171

UNKNOWN

$

$

Not available

172

Husqvarna 532165587

Shaft Asm Shifter Frt CRD

$

$

Not available

173

Husqvarna 532165934

Bracket Hydro Bypass CRD

$5.99

$

Usually ships in 3-10 days

0

174

Husqvarna 532171135

Washer Lock 1/4
(Superseded to 596029801)

$3.99

$

In Stock, only 2 left!

0

175

Husqvarna 532165931

Spring Bypass CRD

$4.99

$

Usually ships in 3-10 days

0

176

Husqvarna 532171159

Washer 7/32 x 1/2 x 16 Ga
(Superseded to 819070816)

$6.99

$

In Stock, only 1 left!

0

177

Husqvarna 532165932

Keeper Flat Idler

$7.99

$

Usually ships in 3-10 days

0

178

Husqvarna 532165933

Keeper Belt Idler

$3.99

$

Usually ships in 3-10 days

0

179

Husqvarna 532120958

Washer Sintered

$

$

Not available

180

Husqvarna 532165630

Pulley Flat Idler

$34.99

$

Usually ships in 3-10 days

0

181

Husqvarna 532165797

Bracket Idler Ground Drive CRD

$2.99

$

Usually ships in 3-10 days

0

182

Husqvarna 532165634

Keeper Belt 2.5"OD V-Idler CRD
(Superseded to 583123401)

$4.99

$

Usually ships in 3-10 days

0

183

Husqvarna 532165626

Pulley V-Idler 2.50" OD CRD

$34.99

$

In Stock, only 2 left!

0

184

Husqvarna 532171171

Scr Hexwsh Thdrol 3/8-16 x 2-3/4
(Superseded to 596564005)

$18.99

$

In Stock, only 1 left!

0

185

Husqvarna 532165541

Link shift CRD Hydro 0650

$7.49

$

Usually ships in 3-10 days

0

186

Husqvarna 532165614

Hub Tapered Round CRD

$6.49

$

Usually ships in 3-10 days

0

187

UNKNOWN

$

$

Not available

188

Husqvarna 532110436

Bushing Snap Split Blk
(Superseded to 532009151)

$

$

Not available

190

Husqvarna 532171181

Screw Thdrol 3/8-16 x 1/2 TYTT
(Superseded to 817490608)

$6.49

$

Usually ships in 3-10 days

0

191

Husqvarna 532171352

Bolt Shoulder 5/16-18 Unc -2A BD
(Superseded to 587907801)

$4.99

$

In Stock, Qty 8

0

192

Husqvarna 532171248

Nut Crown Lock 5/16-18 Slvr DC
(Superseded to 873800500)

$3.99

$

Usually ships in 3-10 days

0

193

Husqvarna 532171358

Nut Crown Lock 5/16-18 Slvr DC
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

194

Husqvarna 532171162

Nut Crown Lock 3/8-16 Unc
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

202

UNKNOWN

$

$

Not available
