CTH 140 (960610192-02) - Husqvarna Lawn Tractor (2007-09) MOWER DECK / CUTTING DECK Parts Diagram

Lawn Tractor

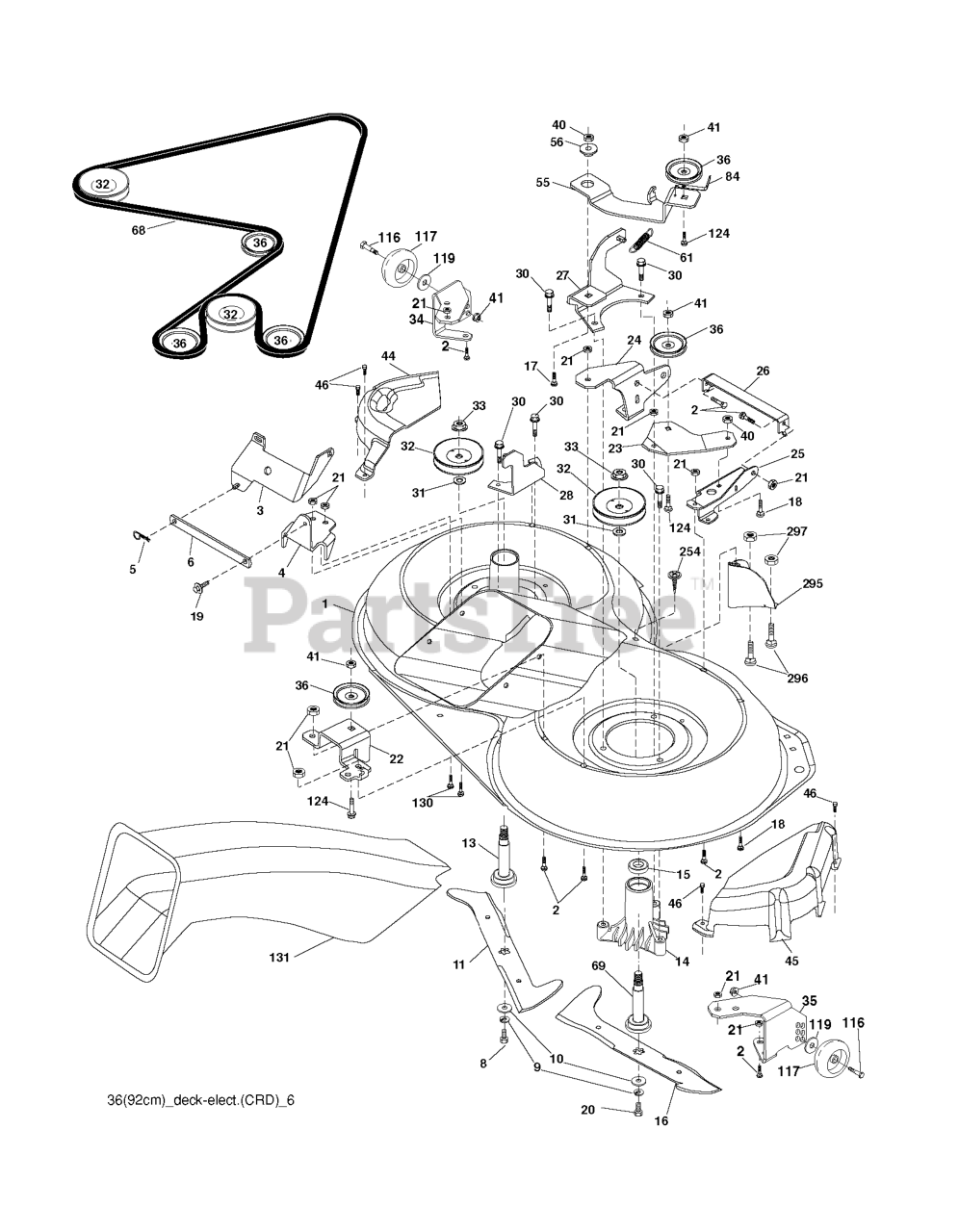

MOWER DECK / CUTTING DECK Parts Diagram

  • Title
31

Husqvarna 532187690

WASHER.SPACER.MANDREL

$4.99

$

In Stock, Qty 20+

0

56

Husqvarna 532165723

SPACER.RETAINER.MOWER

$6.99

$

In Stock, only 1 left!

0

41

Husqvarna 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

6

Husqvarna 532165557

BAR.SWAY.92.CRD

$

$

Not available

40

$3.99

$

Usually ships in 3-10 days

0

61

Husqvarna 532199486

SPRING
(Superseded to 583252601)

$10.99

$

Usually ships in 3-10 days

0

23

$

$

Not available

9

Husqvarna 810030600

LOCKWASHER
(Superseded to 810040600)

$4.99

$

In Stock, Qty 15

0

27

$27.99

$

Usually ships in 3-10 days

0

124

Husqvarna 872110612

BOLT.3/8-16X1.50

$6.49

$

Usually ships in 3-10 days

0

16

Husqvarna 532186386

NEEDS DESCRIPTION

$

$

Not available

10

Husqvarna 532140296

WASHER.BLADE

$6.99

$

In Stock, only 2 left!

0

119

Husqvarna 819132012

WASHER
(Superseded to 596134901)

$3.49

$

Usually ships in 3-10 days

0

46

Husqvarna 532137729

SCREW.1/4-20X5/8

$4.99

$

In Stock, Qty 20+

0

19

Husqvarna 532132827

BOLT SHD 5/16-18

$

$

Not available

44

Husqvarna 532175538

NEEDS DESCRIPTION

$

$

Not available

131

Husqvarna 532165661

CHUTE BAGGER

$93.99

$

Usually ships in 3-10 days

0

8

Husqvarna 532181712

BOLT.3/8-24X1.25 GR8
(Superseded to 583116901)

$7.49

$

Usually ships in 3-10 days

0

116

Husqvarna 532193406

BOLT.SHOULDER.3/8-16X3-5/8.
(Superseded to 596434404)

$5.99

$

In Stock, Qty 20+

0

35

Husqvarna 532400106

NEEDS DESCRIPTION

$

$

Not available

21

Husqvarna 873680500

LOCKNUT
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

33

Husqvarna 532400234

NUT.FLANGE.LOCK.TOP
(Superseded to 596134801)

$4.99

$

In Stock, Qty 12

0

25

$

$

Not available

$

$

Not available

30

Husqvarna 532173984

SCREW, WASHER HEAD
(Superseded to 584953901)

$4.99

$

In Stock, Qty 16

0

20

Husqvarna 532181713

BOLT.3/8-24X1.25GR8. LHTHRD
(Superseded to 583117001)

$4.99

$

In Stock, Qty 11

0

$4.99

$

Usually ships in 3-10 days

0

14

Husqvarna 532128774

HOUSING.MANDREL.VENTED (MACHD)

$34.99

$

Usually ships in 3-10 days

0

68

Husqvarna 532402008

BELT.DRIVE.92CM.CRD.2006

$91.99

$

Usually ships in 3-10 days

0

69

Husqvarna 532165482

SHAFT.ASM.W/LWR.BRG.RH.THREAD

$68.99

$

Usually ships in 3-10 days

0

55

Husqvarna 532199498

ARM.IDLER.92 CRD.2006
(Superseded to 583252901)

$30.99

$

Usually ships in 3-10 days

0

296

Husqvarna 872140406

BOLT
(Superseded to 872110407)

$4.99

$

Usually ships in 3-10 days

0

$

$

Not available

--

Husqvarna 532181857

BEARING HOUSING
(Superseded to 583118201)

$91.99

$

Usually ships in 3-10 days

0

--

Husqvarna 532181858

BEARING HOUSING
(Superseded to 583118301)

$96.99

$

Usually ships in 3-10 days

0

13

Husqvarna 532137645

SHAFT ASM VENT
(Superseded to 532137646)

$34.99

$

In Stock, only 3 left!

0

84

Husqvarna 532156085

KEEPER, BELT IDLER
(Superseded to 532173968)

$

$

Not available

2

Husqvarna 872140506

RP BOLT 5/16-18 X3/4 ZN/YEL GR
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

1

Husqvarna 532400108

NEEDS DESCRIPTION

$

$

Not available

36

Husqvarna 532146763

PULLEY.IDLER.4.25

$

$

Not available

--

Husqvarna 532413711

NEEDS DESCRIPTION

$

$

Not available

295

Husqvarna 532412171

NEEDS DESCRIPTION

$

$

Not available

26

Husqvarna 532400110

SUPPORT
(Superseded to 583259301)

$34.99

$

Usually ships in 3-10 days

0

297

Husqvarna 873930400

NUT CENTERLOCK
(Superseded to 873690400)

$4.99

$

In Stock, Qty 15

0

130

Husqvarna 872110506

BOLT.CARR.SQNK.5/16-18UNC.X3/4

$7.49

$

In Stock, Qty 20+

0

34

Husqvarna 532400107

NEEDS DESCRIPTION

$

$

Not available

5

Husqvarna 532124670

RETAINER-SPRNG RB

$

$

Not available

254

Husqvarna 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, only 3 left!

0

32

Husqvarna 532153532

PULLEY MANDREL
(Superseded to 532173435)

$22.99

$

In Stock, only 2 left!

0

15

$13.99

$

In Stock, Qty 11

0

22

Husqvarna 532199590

NEEDS DESCRIPTION

$

$

Not available

11

Husqvarna 532186385

NEEDS DESCRIPTION

$

$

Not available

45

Husqvarna 532175539

COVER.MANDREL.RH.CRD

$21.99

$

Usually ships in 3-10 days

0

117

Husqvarna 532174873

RP WHEEL. GUAGE RALLY
(Superseded to 589527301)

$10.99

$

Usually ships in 3-10 days

0

17

Husqvarna 872140610

BOLT.3/8-14X1.25
(Superseded to 583611601)

$

$

Not available

28

$

$

Not available

24

$

$

Not available
