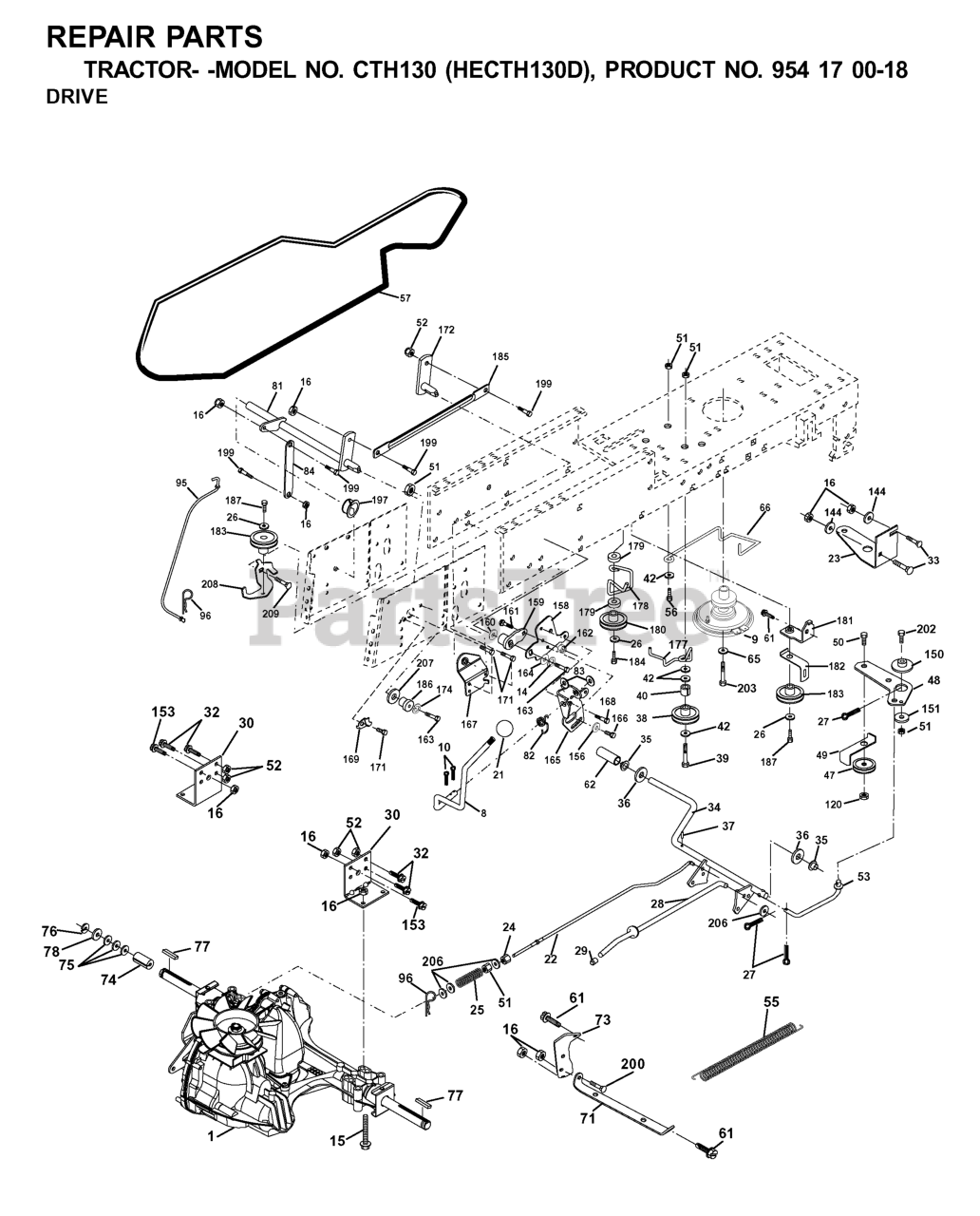

CTH 130 (954170018-D) - Husqvarna Lawn Tractor (2001-02) DRIVE Parts Diagram

Lawn Tractor

DRIVE Parts Diagram

  • Title

95

Husqvarna 532170015

LINK
(Superseded to 583036101)

$21.99

$

Usually ships in 3-10 days

0

10

Husqvarna 876020416

PIN COTTER

$3.99

$

Usually ships in 3-10 days

0

206

Husqvarna 819131416

WASHER
(Superseded to 819131414)

$6.49

$

In Stock, only 2 left!

0

76

Husqvarna 812000001

E-RING LT

$4.99

$

Usually ships in 3-10 days

0

23

Husqvarna 532170017

Bracket Clutch Noram

$

$

Not available

84

Husqvarna 532170007

LINK.PNT.TRANSAXLE.0510.CRD
(Superseded to 583035901)

$6.99

$

Usually ships in 3-10 days

0

158

Husqvarna 532165589

BRACKET
(Superseded to 532437458)

$7.49

$

Usually ships in 3-10 days

0

203

Husqvarna 871170780

BOLT.HEX.7/16-20 X 5
(Superseded to 583789701)

$9.49

$

In Stock, only 1 left!

0

42

Husqvarna 819131312

WASHER
(Superseded to 734117201)

$3.49

$

Usually ships in 3-10 days

0

21

Husqvarna 532121274

KNOB.DUCKHEAD.1/2

$10.99

$

Usually ships in 3-10 days

0

167

Husqvarna 532165588

BRACKET.SUPT.SHIFT.CRD

$20.99

$

Usually ships in 3-10 days

0

52

Husqvarna 873680500

LOCKNUT
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

151

Husqvarna 819133210

WASHER 12/32X2X10GA
(Superseded to 532413524)

$

$

Not available

51

Husqvarna 873680600

LOCKNUT

$3.99

$

Usually ships in 3-10 days

0

169

Husqvarna 532165580

PLATE.FASTENING.CROSS.SHAFT

$6.99

$

Usually ships in 3-10 days

0

8

Husqvarna 532165619

ROD.SHIFT.FENDER.ADJ.LT.CRD

$

$

Not available

35

Husqvarna 532120183

BEARING.NYLON

$6.99

$

In Stock, only 3 left!

0

199

Husqvarna 532169612

BOLT SHOULDER 5/16-18 UNC
(Superseded to 596231101)

$4.99

$

In Stock, only 2 left!

0

73

Husqvarna 532169182

STRAP TORQUE RH HYDRO

$17.99

$

In Stock, only 1 left!

0

197

Husqvarna 532169613

NYLINER SNAP 5/8" ID

$7.49

$

In Stock, Qty 6

0

14

Husqvarna 810040400

LOCKWASHER
(Superseded to 596029801)

$3.99

$

In Stock, only 2 left!

0

39

Husqvarna 874760644

BOLT

$6.49

$

Usually ships in 3-10 days

0

29

Husqvarna 532071673

PLUNGER CAP

$5.99

$

Usually ships in 3-10 days

0

96

Husqvarna 532124788

RETAINER M
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

183

Husqvarna 532165626

PULLEY.V-IDLER

$34.99

$

In Stock, only 2 left!

0

172

Husqvarna 532170271

LINK
(Superseded to 583037801)

$24.99

$

Usually ships in 3-10 days

0

144

Husqvarna 819111016

Washer 11/32 x 5/8 x 16 Ga SD

$3.99

$

Usually ships in 3-10 days

0

178

Husqvarna 532165933

KEEPER

$3.99

$

Usually ships in 3-10 days

0

120

Husqvarna 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

171

Husqvarna 817490608

SCREW LT

$6.49

$

Usually ships in 3-10 days

0

47

Husqvarna 532127783

IDLER PULLEY
(Superseded to 532139245)

$37.99

$

In Stock, only 1 left!

0

50

Husqvarna 874760624

BOLT
(Superseded to 874930624)

$7.99

$

Usually ships in 3-10 days

0

71

Husqvarna 532169183

STRAP TORQUE LH HYDRO

$7.49

$

Usually ships in 3-10 days

0

166

Husqvarna 532166880

SCREW

$6.49

$

Usually ships in 3-10 days

0

49

Husqvarna 532123205

RETAIN BELT

$6.49

$

Usually ships in 3-10 days

0

81

Husqvarna 532170006

ASM.CROSS.SHAFT.REAR.CRD.0510

$

$

Not available

160

Husqvarna 819292016

Washer 29/32 x 1 - 1/4 x 16 Ga.

$7.99

$

Usually ships in 3-10 days

0

180

Husqvarna 532165630

PULLEY.FLAT.IDLER

$34.99

$

Usually ships in 3-10 days

0

61

Husqvarna 817060612

SCREW 3/8-16X3/4
(Superseded to 817000612)

$4.99

$

In Stock, only 2 left!

0

34

Husqvarna 532165496

SHAFT

$31.99

$

Usually ships in 3-10 days

0

78

Husqvarna 532121748

WASHER

$4.99

$

In Stock, Qty 20+

0

38

Husqvarna 532165936

PULLEY.FLAT

$31.99

$

In Stock, only 1 left!

0

37

Husqvarna 532124963

DRIVE PIN
(Superseded to 532002882)

$4.99

$

In Stock, Qty 7

0

177

Husqvarna 532165932

KEEPER

$7.99

$

Usually ships in 3-10 days

0

179

Husqvarna 532120958

WASHER

$

$

Not available

162

Husqvarna 873680400

NUT.CROWNLOCK.1/4
(Superseded to 586668901)

$4.99

$

In Stock, Qty 15

0

186

Husqvarna 532165614

HUB.TAPERED.ROUND.CRD

$6.49

$

Usually ships in 3-10 days

0

32

Husqvarna 874760512

BOLT
(Superseded to 874780512)

$4.99

$

In Stock, Qty 20+

0

55

Husqvarna 532105709

SPRING, RETURN LT

$11.99

$

Usually ships in 3-10 days

0

36

Husqvarna 819211616

WASHER LT

$6.49

$

Usually ships in 3-10 days

0

77

Husqvarna 532123583

SQUARE KEY

$4.99

$

In Stock, only 4 left!

0

24

Husqvarna 873350600

NUT
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

184

Husqvarna 817490644

SCREW.HXWSH.3/8

$

$

Not available

16

Husqvarna 873800500

NUT.71038.31-18.HEX.NYLOCK

$3.99

$

Usually ships in 3-10 days

0

159

Husqvarna 532165494

HUB
(Superseded to 532444304)

$8.99

$

Usually ships in 3-10 days

0

174

Husqvarna 810090400

LOCKWASHER
(Superseded to 810040400)

$3.99

$

In Stock, only 2 left!

0

27

Husqvarna 876020412

COTTER PIN
(Superseded to 539990365)

$6.49

$

In Stock, Qty 20+

0

56

Husqvarna 874760620

BOLT

$7.49

$

Usually ships in 3-10 days

0

82

Husqvarna 532123782

SPRING,TORSION

$

$

Not available

57

Husqvarna 532170140

V-BELT 113"
(Superseded to 583036701)

$85.99

$

Usually ships in 3-10 days

0

15

Husqvarna 874490544

BOLT HEX 5/16-18 GR 5

$4.99

$

Usually ships in 3-10 days

0

163

Husqvarna 874780416

BOLT

$6.49

$

Usually ships in 3-10 days

0

153

Husqvarna 874760516

BOLT RB
(Superseded to 874780516)

$6.49

$

Usually ships in 3-10 days

0

182

Husqvarna 532165634

KEEPER BELT
(Superseded to 583123401)

$4.99

$

Usually ships in 3-10 days

0

74

Husqvarna 532137057

SPACER AXLE

$7.49

$

In Stock, only 3 left!

0

9

Husqvarna 532170163

CLUTCH ASSY
(Superseded to 532179887)

$605.99

$

Usually ships in 3-10 days

0

156

Husqvarna 532166002

WASHER.SRRTD.5/16

$6.49

$

Usually ships in 3-10 days

0

200

Husqvarna 872140508

BOLT

$2.99

$

Usually ships in 3-10 days

0

208

Husqvarna 532169844

NEEDS DESCRIPTION

$

$

Not available

75

Husqvarna 532121749

WASHER

$3.49

$

Usually ships in 3-10 days

0

40

Husqvarna 532124965

SPACER T

$6.49

$

Usually ships in 3-10 days

0

48

Husqvarna 532154407

BELLCRANK, CLUTCH

$8.99

$

Usually ships in 3-10 days

0

30

Husqvarna 532169592

BRKT, TRNSXLE MNT 20"

$6.49

$

Usually ships in 3-10 days

0

28

Husqvarna 532145204

ROD BRAKE PARK LT

$

$

Not available

168

Husqvarna 532165492

BOLT.SHOULDER.5/16-18X

$10.99

$

In Stock, only 3 left!

0

62

Husqvarna 532123533

COVER, PEDAL (1 2)

$6.99

$

Usually ships in 3-10 days

0

53

Husqvarna 532105710

LINK, CLUTCH LT
(Superseded to 532199652)

$13.99

$

Usually ships in 3-10 days

0

33

Husqvarna 872140506

RP BOLT 5/16-18 X3/4 ZN/YEL GR
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

65

Husqvarna 810040700

LOCKWASHER
(Superseded to 539990247)

$

$

Not available

161

Husqvarna 872140406

BOLT
(Superseded to 872110407)

$4.99

$

Usually ships in 3-10 days

0

209

Husqvarna 872110606

BOLT

$4.99

$

Usually ships in 3-10 days

0

165

Husqvarna 532165623

RP BRACKET
(Superseded to 532438250)

$7.49

$

Usually ships in 3-10 days

0

207

Husqvarna 532169845

WASHER NYL

$4.99

$

Usually ships in 3-10 days

0

202

Husqvarna 872110612

BOLT.3/8-16X1.50

$6.49

$

Usually ships in 3-10 days

0

164

Husqvarna 819091010

Washer 5/8 x .281 x 10 Ga.

$

$

Not available

25

Husqvarna 532106888

SPRING ROD LT
(Superseded to 532151332)

$6.49

$

In Stock, only 1 left!

0

26

Husqvarna 819131316

WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

83

Husqvarna 819171216

WASHER
(Superseded to 734117771)

$6.49

$

In Stock, only 2 left!

0

181

Husqvarna 532165797

BRKT.IDLER.GRD.DR.CRD

$2.99

$

Usually ships in 3-10 days

0

66

Husqvarna 532154778

KEEPER BELT ENGINE

$12.99

$

Usually ships in 3-10 days

0

187

Husqvarna 817060620

SCREW.3/8-16

$7.49

$

In Stock, Qty 11

0

185

Husqvarna 532170008

LINK
(Superseded to 583036001)

$13.99

$

Usually ships in 3-10 days

0

22

Husqvarna 532170137

NEEDS DESCRIPTION

$

$

Not available

150

Husqvarna 532165850

BUSHING.BELLCRANK.GRD.DR

$

$

Not available
