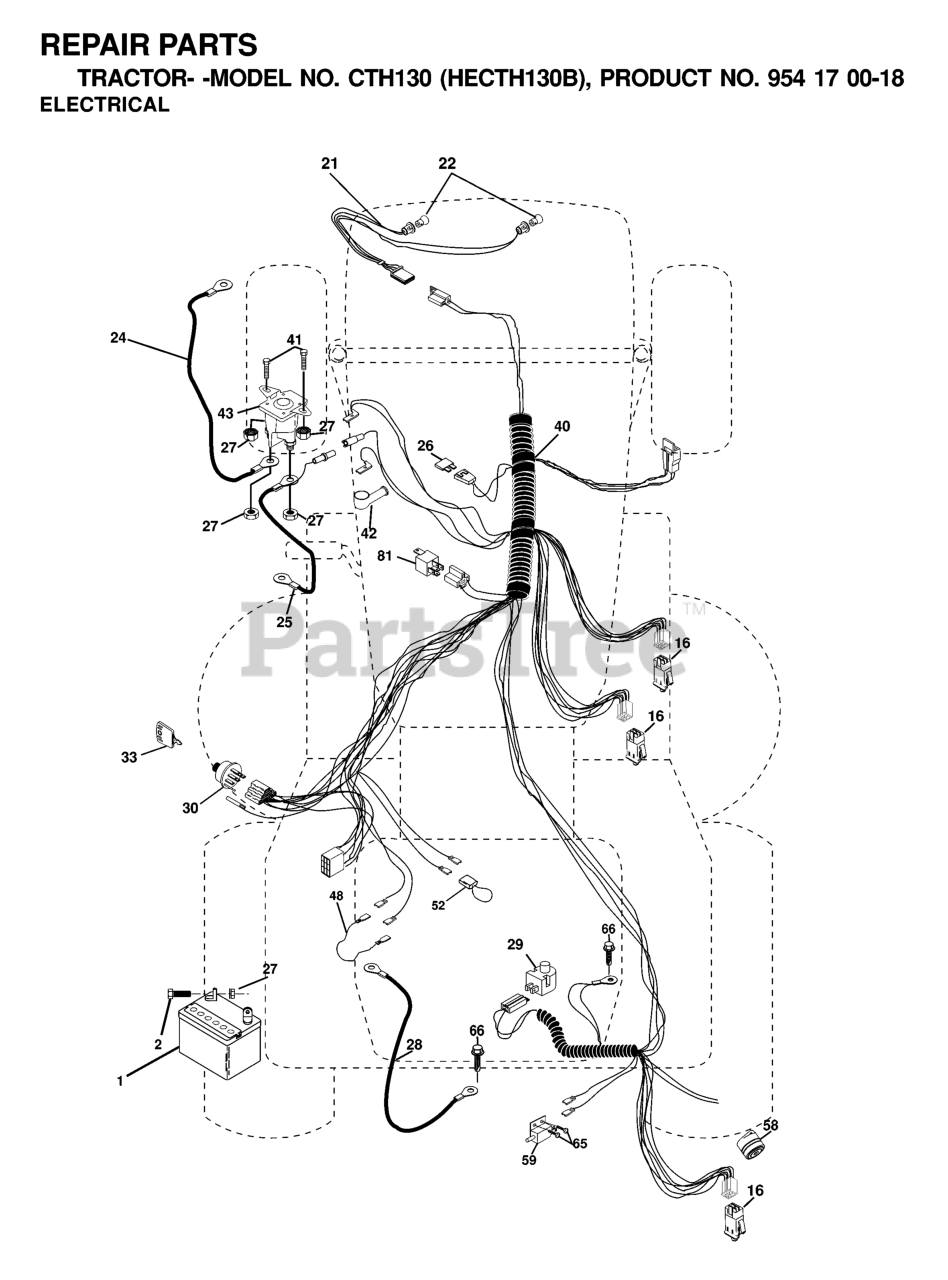

CTH 130 (954170018-B) - Husqvarna Lawn Tractor (2000-03) ELECTRICAL Parts Diagram

Lawn Tractor

ELECTRICAL Parts Diagram

  • Title
28

Husqvarna 532127725

CABLE GROUND

$

$

Not available

42

Husqvarna 532131563

TERMINAL COVER
(Superseded to 532154336)

$8.99

$

In Stock, only 2 left!

0

81

Husqvarna 532109748

RELAY.ASSY.T

$30.99

$

In Stock, only 1 left!

0

$

$

Not available

40

Husqvarna 532170164

Harness Ign Crd Noram

$

$

Not available

2

Husqvarna 874760412

BOLT.HEX.1/4.X.3/4.DICHROMATE

$7.49

$

In Stock, only 1 left!

0

43

Husqvarna 532145673

SOLINOID
(Superseded to 532146154)

$24.99

$

In Stock, only 2 left!

0

41

Husqvarna 871110408

BOLT
(Superseded to 539990071)

$3.99

$

Usually ships in 3-10 days

0

22

$4.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532160784

PLUNGER SWITCH (COLOR:OLIVE)

$20.99

$

In Stock, only 1 left!

0

1

Husqvarna 532144925

BATTERY 12 VOLT 25 AMP
(Superseded to 532123899)

$194.99

$

In Stock, only 2 left!

0

52

Husqvarna 532141940

WIRE PROTECTION LOOP

$7.49

$

Usually ships in 3-10 days

0

26

Husqvarna 532166180

FUSE 15 AMP
(Superseded to 532175158)

$7.49

$

In Stock, only 1 left!

0

16

Husqvarna 532153664

SWITCH INTERLOCK
(Superseded to 532176138)

$22.99

$

In Stock, Qty 5

0

48

Husqvarna 532140844

ADAPTER.AMMETER

$6.49

$

Usually ships in 3-10 days

0

20

Husqvarna 873350400

NUT
(Superseded to 873220400)

$6.49

$

In Stock, only 1 left!

0

65

Husqvarna 817211008

Screw, Hex Wsh. Tap #10-16 x 1/2

$4.99

$

Usually ships in 3-10 days

0

30

Husqvarna 532163968

SWITCH IGN
(Superseded to 532175566)

$26.99

$

In Stock, only 4 left!

0

24

Husqvarna 532124780

BATTERY CABLE GT
(Superseded to 532004799)

$10.99

$

Usually ships in 3-10 days

0

33

Husqvarna 532140401

KEY MLD GEN DELTA

$6.99

$

In Stock, Qty 7

0

25

Husqvarna 532165987

CABLE BATTERY

$30.99

$

Usually ships in 3-10 days

0

27

Husqvarna 873510400

NUT
(Superseded to 873680400)

$4.99

$

In Stock, Qty 15

0

21

$

$

Not available

66

$6.49

$

Usually ships in 3-10 days

0

58

Husqvarna 532169419

BUZZER
(Superseded to 532169420)

$74.99

$

Usually ships in 3-10 days

0
