CTH 130 (954140100-A) - Husqvarna Lawn Tractor (1999-10) Steering Assembly Parts Diagram

Lawn Tractor

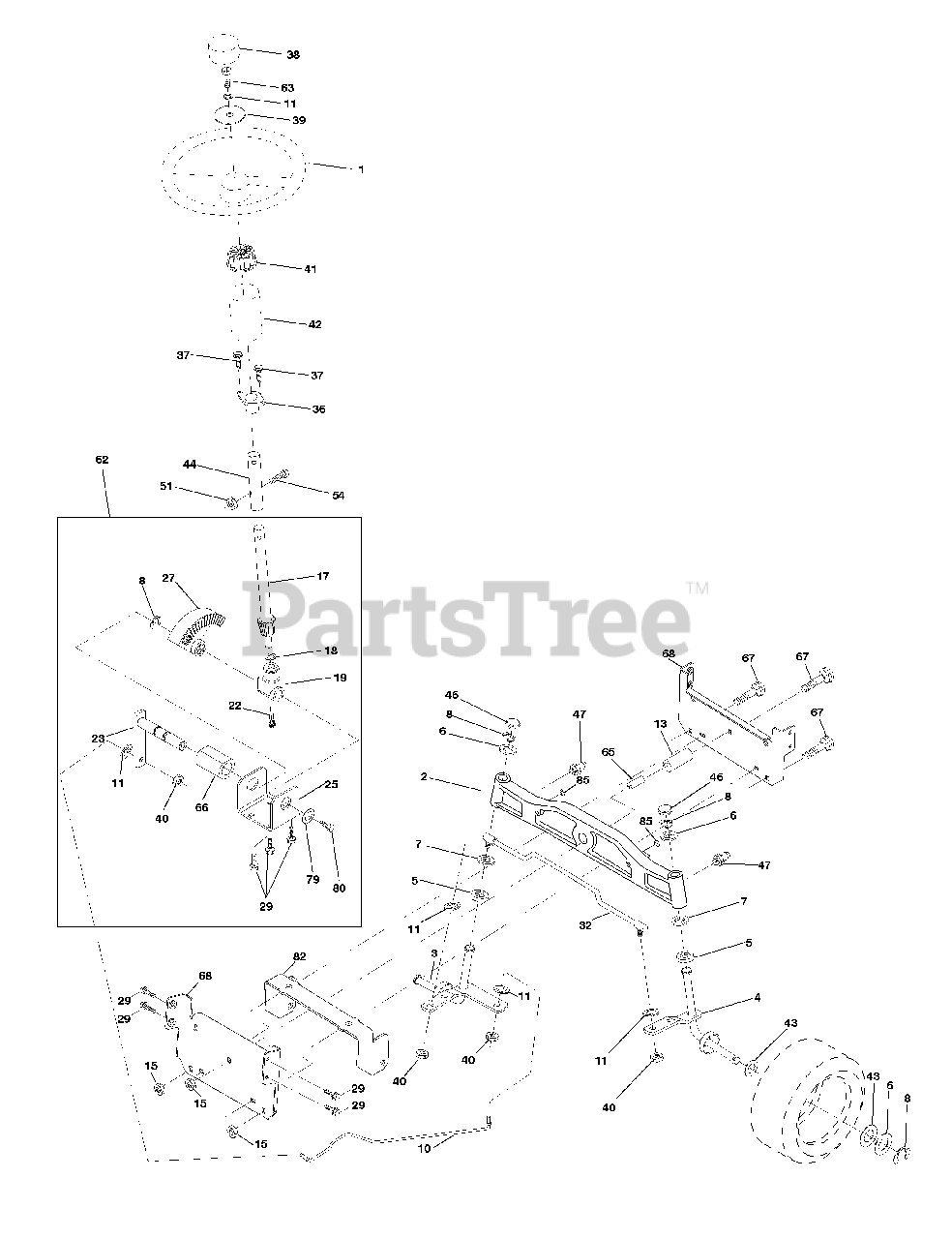

Steering Assembly Parts Diagram

  • Title
1

Husqvarna 532166627

Wheel Steering
(Superseded to 532159944)

$

$

Not available

2

Husqvarna 532165854

Axle Cast Lt Machined
(Superseded to 532193542)

$169.99

$

In Stock, only 1 left!

0

3

Husqvarna 532169840

Spindle Asm LH
(Superseded to 596873901)

$18.99

$

Usually ships in 3-10 days

0

4

Husqvarna 532169839

Spindle Asm RH
(Superseded to 596873801)

$31.99

$

In Stock, only 1 left!

0

5

Husqvarna 532124931

Bearing Race Thrust Harden
(Superseded to 532006266)

$7.49

$

In Stock, Qty 10

0

6

Husqvarna 532171039

Washer 25/32 X 1-5/8 X 16 Ga
(Superseded to 532121748)

$4.99

$

In Stock, Qty 20+

0

7

Husqvarna 532171240

Washer 27/32 X 1-1/4 X 16 Ga
(Superseded to 819272016)

$6.49

$

In Stock, only 2 left!

0

8

Husqvarna 812000029

Ring Klip #t5304-75

$4.99

$

Usually ships in 3-10 days

0

10

Husqvarna 532169832

Link Drag Extended Cast

$80.99

$

In Stock, only 1 left!

0

11

Husqvarna 532171029

Washer Lock Hvy Hlcl Spr 3/8
(Superseded to 596238701)

$4.99

$

In Stock, Qty 15

0

13

Husqvarna 532136518

Spacer Brg Axle Front

$9.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532171178

Nut Hex Flange Lock Yel D
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

17

Husqvarna 532156546

Shaft Asm Strg
(Superseded to 531166901)

$49.99

$

In Stock, only 3 left!

0

18

Husqvarna 532057079

Washer Thrust 515x 750x 033

$6.49

$

In Stock, Qty 10

0

19

Husqvarna 532160395

Support Shaft

$10.99

$

In Stock, Qty 7

0

22

Husqvarna 532171188

Screw Hex Wshhd Torx
(Superseded to 532165857)

$6.49

$

In Stock, only 3 left!

0

23

Husqvarna 532165851

Shaft Asm Pittman

$22.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532154406

Bracket Steering

$8.99

$

In Stock, only 1 left!

0

27

Husqvarna 532136874

Gear Sector

$80.99

$

In Stock, only 1 left!

0

29

Husqvarna 532171167

Screw 3/8-16x3/4
(Superseded to 817000612)

$4.99

$

In Stock, only 2 left!

0

32

$93.99

$

In Stock, only 4 left!

0

36

Husqvarna 532155099

Bushing Strg
(Superseded to 532155106)

$10.99

$

In Stock, Qty 12

0

37

Husqvarna 532171193

Screw
(Superseded to 532152927)

$7.49

$

In Stock, only 2 left!

0

38

Husqvarna 532166626

Insert Cap Strg Wh
(Superseded to 532172092)

$17.99

$

Usually ships in 3-10 days

0

39

Husqvarna 532171388

Washer 13/32 x 1-1/20 x 11 Ga.
(Superseded to 819132411)

$

$

Not available

40

Husqvarna 532171175

Lock nut
(Superseded to 873610600)

$3.99

$

Usually ships in 3-10 days

0

41

Husqvarna 532159945

Adaptor Wheel Strg

$

$

Not available

42

Husqvarna 532169634

Boot Steering
(Superseded to 532145054)

$

$

Not available

43

Husqvarna 532171038

Washer 25/32 X 1 1/4 X 16 Ga
(Superseded to 532121749)

$3.49

$

Usually ships in 3-10 days

0

44

Husqvarna 532171024

Extension Steering Non-Adjust
(Superseded to 532153721)

$

$

Not available

46

Husqvarna 532121232

Cap Spindle Fr Top Blk

$4.99

$

In Stock, Qty 8

0

47

Husqvarna 532124836

Fitting Grease
(Superseded to 532183226)

$7.49

$

In Stock, only 2 left!

0

51

Husqvarna 532171026

Nut Crown Lock 5/16-18
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

54

Husqvarna 532171025

Bolt Fin Hex 5/16-18 Unc x 1 1/4
(Superseded to 874520520)

$4.99

$

Usually ships in 3-10 days

0

62

Husqvarna 532167902

Kit, Steering Assembly Svc
(Superseded to 584371701)

$136.99

$

In Stock, only 1 left!

0

63

Husqvarna 532171031

Bolt Fin Hex 3/8-16 Unc x 1 Gr 5
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

65

Husqvarna 532160367

Spacer Axle
(Superseded to 532414736)

$6.99

$

In Stock, only 4 left!

0

66

Husqvarna 532154404

Bearing Arm Pittman

$6.49

$

In Stock, only 3 left!

0

67

Husqvarna 532171176

Bolt, Rdhd Sqnk 3/8-16 x 2-1/4
(Superseded to 872110618)

$6.49

$

In Stock, only 2 left!

0

68

Husqvarna 532169827

Axle, Brace

$21.99

$

Usually ships in 3-10 days

0

74

Husqvarna 532109850

Joint Asm Ball Rh
(Superseded to 532121160)

$24.99

$

In Stock, only 1 left!

0

75

Husqvarna 532109851

Joint Asm Ball Lh

$31.99

$

Usually ships in 3-10 days

0

76

Husqvarna 532170257

Rod Tie Link Noram

$

$

Not available

77

Husqvarna 532171257

Nut Hex Jam 3/8-24 Unf Lh
(Superseded to 873700600)

$6.49

$

Usually ships in 3-10 days

0

78

Husqvarna 532171259

Nut Hex Jam 3/8-24 Unf
(Superseded to 873360600)

$6.49

$

Usually ships in 3-10 days

0

79

Husqvarna 532171189

Washer 13/32 x 1 1/4 x 12 Ga
(Superseded to 596134901)

$3.49

$

Usually ships in 3-10 days

0

80

Husqvarna 532171190

Bolt Hex Nylon 3/8-16 x 3/4
(Superseded to 874950612)

$6.49

$

In Stock, only 3 left!

0

82

Husqvarna 532169835

Bracket Susp Chassis Front 15"
(Superseded to 532199978)

$15.99

$

Usually ships in 3-10 days

0

85
