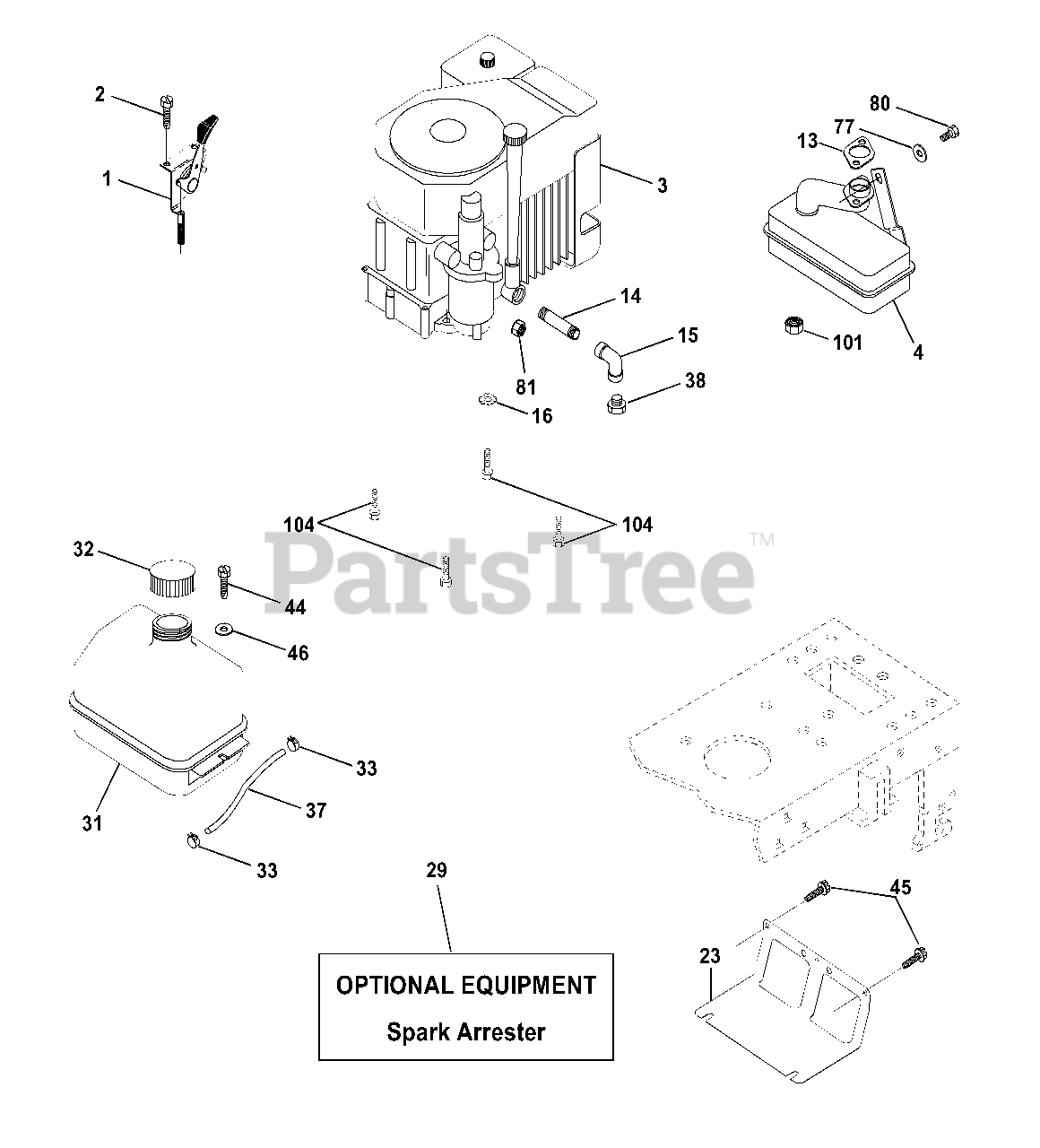

CTH 130 (954140100-A) - Husqvarna Lawn Tractor (1999-10) Engine Parts Diagram

Lawn Tractor

Engine Parts Diagram

  • Title
1

Husqvarna 532141296

Control, Throttle / Choke
(Superseded to 532170805)

$

$

Not available

2

Husqvarna 532171192

Screw Hex Thd Cut 1/4-20 x 5/8
(Superseded to 539990072)

$3.99

$

In Stock, only 1 left!

0

3

Engine Kohler Model CV15

Note: (Order parts from engine manufacturer)

$

$

Not available

4

Husqvarna 532159420

Muffler, Kohler

$121.99

$

Usually ships in 3-10 days

0

13

Husqvarna 532163831

Kohler Gasket

$

$

Not available

14

Husqvarna 532171373

Nipple, Pipe
(Superseded to 813280328)

$4.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532171215

Elbow, Standard 90°, 3/8-18 NPT
(Superseded to 532428287)

$18.99

$

In Stock, Qty 5

0

16

Husqvarna 532171217

Washer, Lock Ext tooth 3/8
(Superseded to 596238701)

$4.99

$

In Stock, Qty 15

0

23

Husqvarna 532169837

Shield, Browning/Debris Guard

$10.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532137180

Arrester, Spark

$182.99

$

In Stock, only 1 left!

0

31

Husqvarna 532109202

Tank, Fuel
(Superseded to 532184900)

$45.99

$

Usually ships in 3-10 days

0

32

Husqvarna 532158990

Cap Gauge, Fuel
(Superseded to 581075501)

$26.99

$

Usually ships in 3-10 days

0

33

Husqvarna 532123487

Clamp, Hose Blk

$7.49

$

In Stock, only 1 left!

0

37

Husqvarna 532137040

Line, Fuel
(Superseded to 587044820)

$11.99

$

In Stock, Qty 11

0

38

Plug, Oil Drain

Note: (Order From Engine Manufacturer)

$

$

Not available

44

Husqvarna 532171239

Screw Hexwsh Thdrol 1/4-20 x 3/4

$

$

Currently unavailable

45

Husqvarna 532171154

Screw 3/8-16 x 3/4
(Superseded to 817000612)

$4.99

$

In Stock, only 2 left!

0

46

Husqvarna 532171224

Washer 9/32 x 7/8 x 16 Ga
(Superseded to 819091416)

$6.49

$

Usually ships in 3-10 days

0

77

Husqvarna 532171372

Washer 5/16 x 3/4 x 16 Ga.
(Superseded to 734115441)

$4.99

$

In Stock, only 1 left!

0

80

Husqvarna 532171371

Bolt Hex Hd 5/16-18 Unc x 1/2
(Superseded to 874760508)

$3.99

$

Usually ships in 3-10 days

0

81

Husqvarna 532128861

Nut Flange 1/4-20 Starter Nut
(Superseded to 873220400)

$6.49

$

In Stock, only 1 left!

0

101

Husqvarna 532163305

Nut Flange M8 - 1.25
(Superseded to 873030800)

$

$

Not available

104

Husqvarna 532171374

Screw 3/8-16 x 1-1/2
(Superseded to 817000616)

$7.49

$

In Stock, only 3 left!

0
