CTH 130 (954140100-A) - Husqvarna Lawn Tractor (1999-10) Bagger Parts Diagram

Lawn Tractor

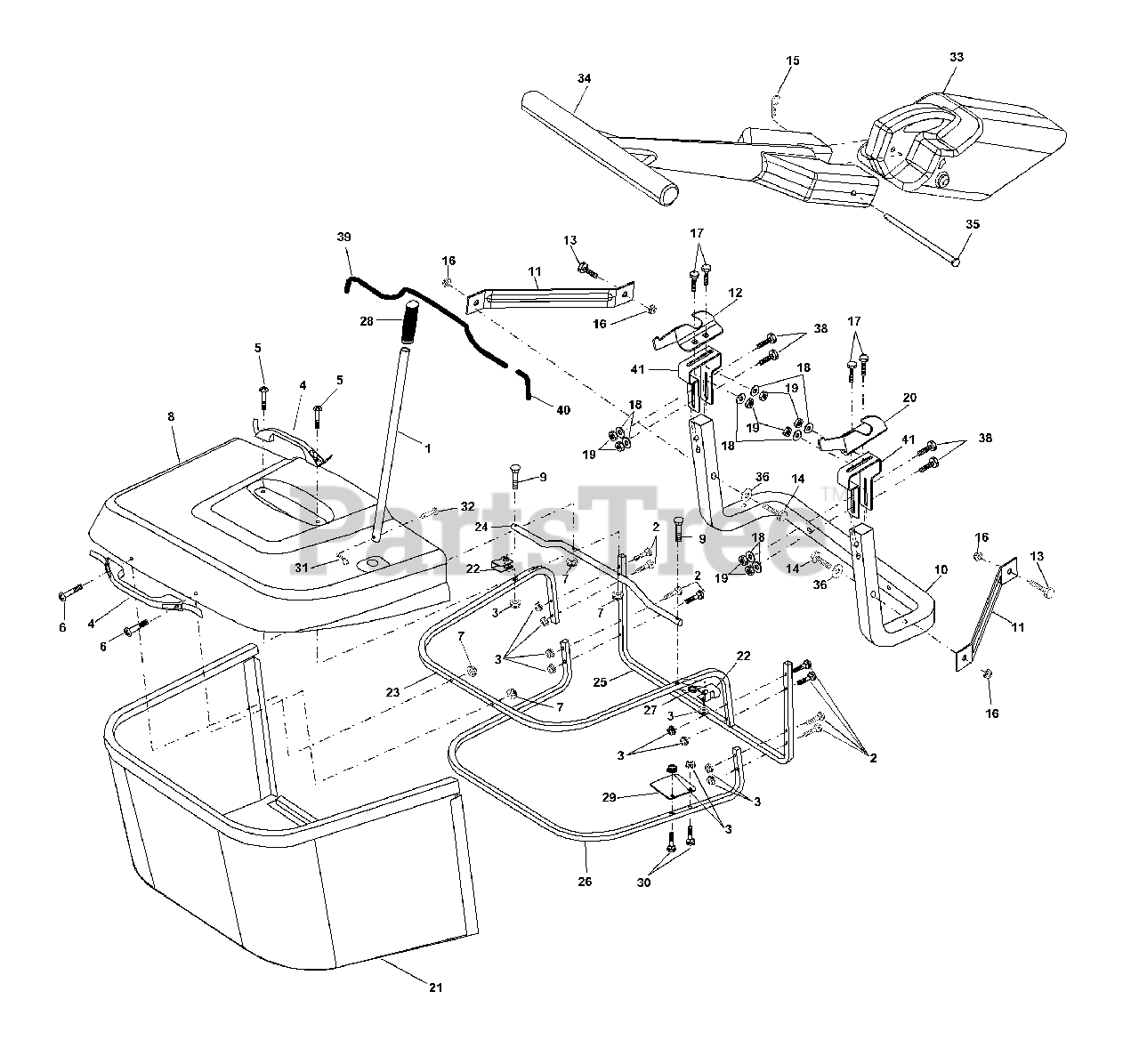

Bagger Parts Diagram

  • Title
1

Husqvarna 532165249

Tube Handle Bagger CRD
(Superseded to 532170690)

$

$

Not available

2

Husqvarna 532171270

Bolt Carriage 1/4-20 x 2.0 Gr.5
(Superseded to 872140416)

$

$

Not available

3

Husqvarna 532171041

Nut Lock 1/4 Lge Flg Gr. 5 Zinc
(Superseded to 586668901)

$4.99

$

In Stock, Qty 16

0

4

Husqvarna 532169916

Handle Bagger w/Lvrs Blk CRD

$11.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532171266

Screw Pan Head #10-24 x 1.50 Blk
(Superseded to 874981024)

$9.99

$

In Stock, Qty 9

0

6

Husqvarna 532171267

Screw Pan Hd
(Superseded to 532750029)

$6.49

$

Usually ships in 3-10 days

0

7

Husqvarna 532171268

Nut Wiz Lock Hex Serr/Hd 10-24
(Superseded to 873401000)

$7.99

$

Usually ships in 3-10 days

0

8

Husqvarna 532167980

Cover Bagger Plastic CRD MS422
(Superseded to 532165715)

$

$

Not available

9

Husqvarna 532171265

Bolt Carriage 1/4-20 x 2.25d x Gr.5
(Superseded to 872140418)

$

$

Not available

10

Husqvarna 532169688

Tube Support Bagger CRD
(Superseded to 583110201)

$

$

Not available

11

Husqvarna 532165719

Bracket Support Upper Bag CRD

$11.99

$

Usually ships in 3-10 days

0

12

Husqvarna 532171481

Bracket Pnt Adj Bagger Lh CRD
(Superseded to 532169685)

$

$

Not available

13

Husqvarna 532171272

Bolt Rdhd Sht Sqnk 3/8-16 x 3/4
(Superseded to 872110606)

$4.99

$

Usually ships in 3-10 days

0

14

Husqvarna 532171273

Bolt Hex 3/8-16 x 2-1/2 Gr.5
(Superseded to 874520640)

$

$

Not available

15

Husqvarna 532171211

Retainer Spring
(Superseded to 532004939)

$

$

Not available

16

Husqvarna 532171275

Nut Lock Flg 3/8-16 Unc
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

17

Husqvarna 532171221

Bolt Rdhd Sht Sqnk 5/16 -18 Unc x 3/4
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

18

Husqvarna 532171392

Washer 11/32 x 3/4 x 16 Ga.
(Superseded to 596204101)

$3.99

$

In Stock, Qty 20+

0

19

Husqvarna 532171026

Nut Crown Lock 5/16-18 Unc Blk
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

20

Husqvarna 532171482

Bracket Pnt Adj Bagger Rh CRD
(Superseded to 532188847)

$9.49

$

Usually ships in 3-10 days

0

21

Husqvarna 532165780

Bag Asm CRD
(Superseded to 532180880)

$157.99

$

Usually ships in 3-10 days

0

22

Husqvarna 532165781

Bracket Side Bagger CRD
(Superseded to 532428236)

$11.99

$

Usually ships in 3-10 days

0

23

Husqvarna 532165782

Tube Upper Bagger CRD

$

$

Not available

24

Husqvarna 532165783

Tube Pivot Bagger CRD

$26.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532165784

Tube Front Bagger CRD

$

$

Not available

26

Husqvarna 532165785

Tube Lower Bagger CRD

$

$

Not available

27

Husqvarna 532169692

Bushing Snap Bagger CRD

$

$

Not available

28

Husqvarna 532165787

Grip Handle Black

$6.99

$

In Stock, only 2 left!

0

29

Husqvarna 532165839

Plate Stop Bagger handle CRD

$4.99

$

Usually ships in 3-10 days

0

30

Husqvarna 532171269

Bolt Carriage 1/4-20 x 1-1/4 Gr.5
(Superseded to 872140410)

$

$

Not available

31

Husqvarna 532171160

Retainer Spring 1" Zinc/Cad
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

32

Husqvarna 532171271

Rivet Rd Hd Drilled 3/8 Dia
(Superseded to 532126875)

$6.49

$

In Stock, Qty 20+

0

33

Husqvarna 532165571

Plug Mulcher
(Superseded to 583448501)

$

$

Not available

34

Husqvarna 532165570

Handle Mulcher

$60.99

$

Usually ships in 3-10 days

0

35

Husqvarna 532171276

Pin Mulcher
(Superseded to 532165572)

$14.99

$

Usually ships in 3-10 days

0

36

Husqvarna 532171274

Washer 13/32 x 1-1/4 x 16 Ga.
(Superseded to 596134901)

$3.49

$

Usually ships in 3-10 days

0

38

Husqvarna 532171393

Bolt 5/16-18 x 2-1/2
(Superseded to 872010520)

$6.49

$

Usually ships in 3-10 days

0

39

Husqvarna 532169999

Trim, Long
(Superseded to 532169997)

$36.99

$

Usually ships in 3-10 days

0

40

Husqvarna 532170000

Trim, Short
(Superseded to 532169997)

$36.99

$

Usually ships in 3-10 days

0

41

Husqvarna 532171483

Bracket Pnt Adj Pvt Bagger CRD
(Superseded to 532169683)

$9.49

$

Usually ships in 3-10 days

0
