CTH 126 (960410151-00) - Husqvarna Lawn Tractor (2010-01) CHASSIS & ENCLOSURES Parts Diagram

Lawn Tractor

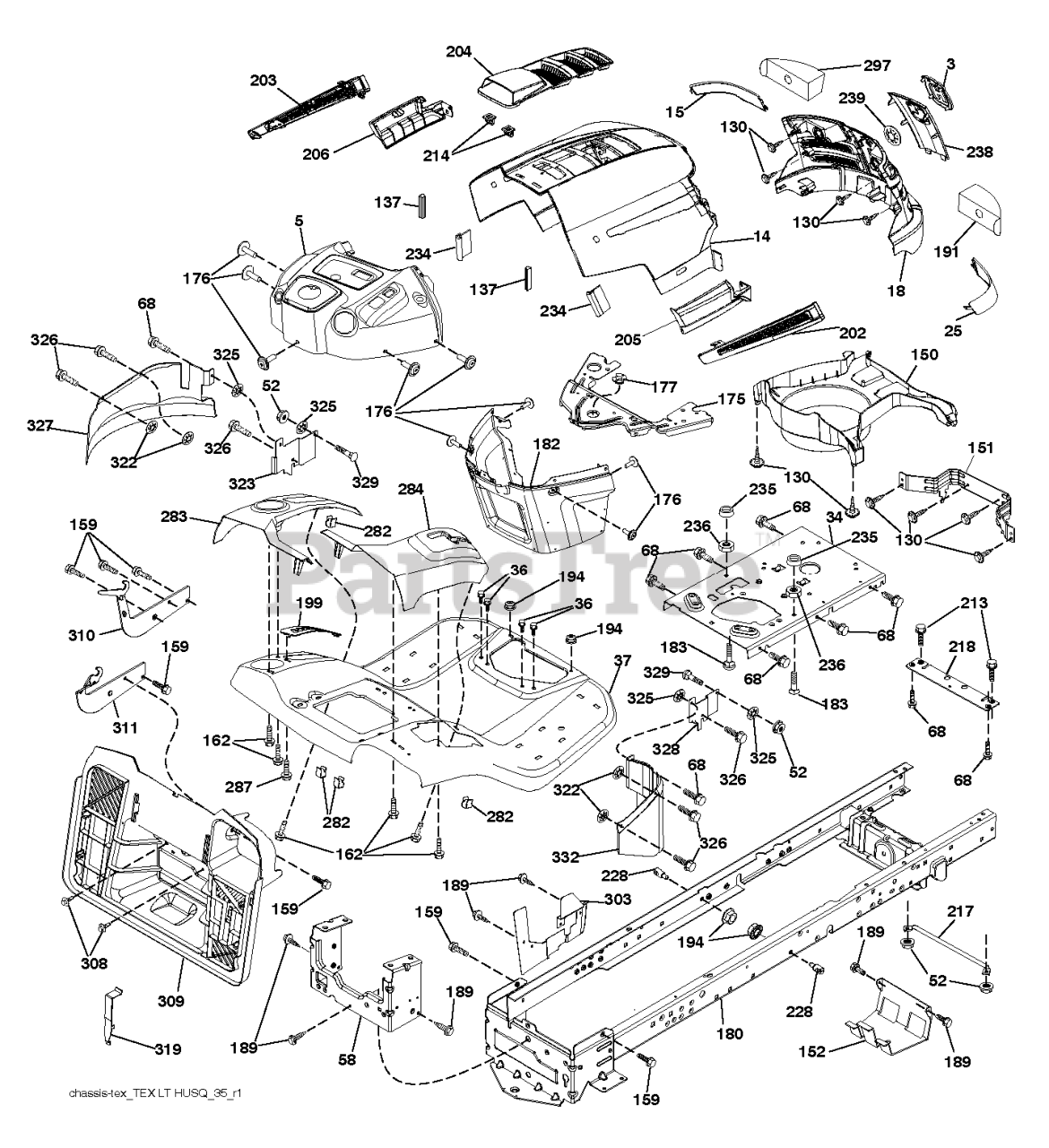

CHASSIS & ENCLOSURES Parts Diagram

  • Title

199

Husqvarna 532418739

PLATE DECK LIFT
(Superseded to 583371401)

$9.99

$

Usually ships in 3-10 days

0

327

Husqvarna 532431483

GUARD LEFT
(Superseded to 583470101)

$30.99

$

Usually ships in 3-10 days

0

175

Husqvarna 532199472

CROSSMEMBER

$28.99

$

Usually ships in 3-10 days

0

310

Husqvarna 532417195

Bracket Hangar Bag LH

$

$

Not available

325

Husqvarna 532423063

WASHER 5/16"
(Superseded to 583400601)

$4.99

$

Usually ships in 3-10 days

0

180

Husqvarna 532414685

CHASSIS.WLDMNT.14GA.2PC.18".TI
(Superseded to 597630801)

$250.99

$

Usually ships in 3-10 days

0

152

Husqvarna 532199535

SHIELD.BROWNING.W/TEX

$

$

Not available

311

Husqvarna 532417196

Bracket Hangar Bag RH

$

$

Not available

162

Husqvarna 532142432

SCREW.HI-LO.CONSOLE

$6.49

$

Usually ships in 3-10 days

0

309

Husqvarna 532430246

BACKPLATE.BAGGER.V2.SRD
(Superseded to 584454501)

$182.99

$

Usually ships in 3-10 days

0

287

Husqvarna 817600406

SCREW 1/4X20

$6.49

$

In Stock, only 2 left!

0

283

Husqvarna 532425249

CONSOLE.DCKLFT.SRD.BGR
(Superseded to 532440531)

$66.99

$

Usually ships in 3-10 days

0

323

Husqvarna 532431488

GUARD FRONT LEFT
(Superseded to 583470301)

$30.99

$

Usually ships in 3-10 days

0

189

Husqvarna 817000512

SCREW
(Superseded to 532428867)

$6.49

$

In Stock, Qty 14

0

234

Husqvarna 532404742

BUMPER.HOOD.TEX.HUSQVARNA

$6.99

$

In Stock, only 2 left!

0

303

Husqvarna 532425151

SHIELD CHASSIS LEFT
(Superseded to 583417601)

$26.99

$

Usually ships in 3-10 days

0

322

Husqvarna 532423062

PALNUT 1/4

$4.99

$

In Stock, only 4 left!

0

5

Husqvarna 532407594

$

$

Currently unavailable

3

Husqvarna 532405012

RP LOGO
(Superseded to 532430771)

$8.99

$

In Stock, only 1 left!

0

319

Husqvarna 532174662

BRACKET.ACTUATOR.BAGGER.SRD

$5.99

$

Usually ships in 3-10 days

0

202

Husqvarna 532411075

VENT SIDE HOOD LH
(Superseded to 532406670)

$13.99

$

Usually ships in 3-10 days

0

52

Husqvarna 873680500

LOCKNUT
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

203

Husqvarna 532411074

VENT SIDE HOOD RH
(Superseded to 532406671)

$10.99

$

Usually ships in 3-10 days

0

176

Husqvarna 532400776

SCREW.#10-24X5/8.RN.QU

$10.99

$

Usually ships in 3-10 days

0

328

Husqvarna 532431487

GUARD FRONT RIGHT
(Superseded to 583470201)

$27.99

$

Usually ships in 3-10 days

0

150

Husqvarna 532406662

AIR DUCT

$30.99

$

Usually ships in 3-10 days

0

159

Husqvarna 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, only 4 left!

0

15

Husqvarna 532411079

LENS.HUSQVARNA LT.LH
(Superseded to 532406664)

$24.99

$

Usually ships in 3-10 days

0

36

Husqvarna 817060512

SCREW 5/16"
(Superseded to 817490508)

$3.99

$

Usually ships in 3-10 days

0

238

Husqvarna 532411119

TRIM
(Superseded to 532407881)

$22.99

$

Usually ships in 3-10 days

0

235

Husqvarna 532406129

SPACER FENDER

$4.99

$

Usually ships in 3-10 days

0

137

Husqvarna 532407590

BUMPER DASH

$6.49

$

In Stock, Qty 6

0

239

Husqvarna 532404883

IS ITO

$15.99

$

Usually ships in 3-10 days

0

282

Husqvarna 532414110

CLIP.RETAINER.CONSOLE.LT.HUSQ

$6.49

$

In Stock, Qty 15

0

68

Husqvarna 817490508

Screw 5/16-18 x 1/2 Hex, Self Tapping 5/16-18 x 1/2
(Superseded to 539990858)

$3.99

$

Usually ships in 3-10 days

0

236

Husqvarna 873930500

NUT.CENTERLOCK.5/16-

$7.49

$

Usually ships in 3-10 days

0

218

Husqvarna 532196395

X-PIECE.HOOD.STOP.NON/

$7.99

$

Usually ships in 3-10 days

0

14

Husqvarna 532441267

HOOD.HUSQVARNA.LT.ORANGE

$91.99

$

Usually ships in 3-10 days

0

284

Husqvarna 532425248

CONSOLE.SHFT.SRD.RH.PE
(Superseded to 532440530)

$60.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532411078

LENS.HUSQVARNA LT.RH
(Superseded to 532406663)

$24.99

$

Usually ships in 3-10 days

0

228

Husqvarna 532195161

STUD.FASTNER.W/ANTI-ROTATE

$

$

Not available

194

Husqvarna 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 583612701)

$

$

Not available

214

Husqvarna 532199145

CLIP.RETAINER.TINNER.

$6.49

$

In Stock, only 4 left!

0

191

Husqvarna 532416500

INSERT.REFLECTIVE.RH.

$9.49

$

Usually ships in 3-10 days

0

217

Husqvarna 532409167

ROD.PIVOT.HOOD

$13.99

$

In Stock, only 2 left!

0

329

Husqvarna 872140505

BOLT
(Superseded to 596136401)

$3.99

$

In Stock, Qty 20+

0

308

Husqvarna 532171877

BOLT.5/16-18UNCX3/4 W/SEMS.BLK

$7.49

$

In Stock, only 2 left!

0

332

Husqvarna 532431482

GUARD RIGHT
(Superseded to 583470001)

$26.99

$

Usually ships in 3-10 days

0

151

Husqvarna 532407807

BRACKET PIVOT

$31.99

$

Usually ships in 3-10 days

0

37

Husqvarna 532441290

NEEDS DESCRIPTION

$

$

Currently unavailable

18

Husqvarna 532426963

GRILLE.SVC.HUSQVARNA.LT.GREY
(Superseded to 584382301)

$72.99

$

Usually ships in 3-10 days

0

204

Husqvarna 532411116

VENT TOP HOOD
(Superseded to 532441375)

$30.99

$

Usually ships in 3-10 days

0

326

Husqvarna 817060410

SCREW 14-20 X 5/8

$7.49

$

Usually ships in 3-10 days

0

205

Husqvarna 532411076

SKIRT SIDE RH
(Superseded to 532406668)

$13.99

$

Usually ships in 3-10 days

0

297

Husqvarna 532406665

INSERT REFLECTIVE

$9.99

$

Usually ships in 3-10 days

0

34

Husqvarna 532196125

PLATE.ENGINE.WELDED.CHASSIS
(Superseded to 580910801)

$68.99

$

In Stock, only 1 left!

0

213

Husqvarna 874760512

BOLT
(Superseded to 874780512)

$4.99

$

In Stock, Qty 20+

0

206

Husqvarna 532411077

SKIRT SIDE LH
(Superseded to 532441345)

$13.99

$

Usually ships in 3-10 days

0

58

Husqvarna 532412280

DRAWBAR UPPER 2PC SMALL FENDER

$46.99

$

Usually ships in 3-10 days

0

130

Husqvarna 532416358

SCREW.#10 X 0.750.BOS

$

$

Not available

183

Husqvarna 874520520

BOLT.5/16-18X1-1/4 FULL THD

$4.99

$

Usually ships in 3-10 days

0

177

Husqvarna 532195228

BUSHING STEERING

$5.99

$

Usually ships in 3-10 days

0

182

Husqvarna 532407176

DASH.LOWER.PREDATOR LT

$79.99

$

Usually ships in 3-10 days

0
