CTB 1442 A - Electrolux/AYP Lawn Tractor (1993) STEERING/14 HP 42" Parts Diagram

Lawn Tractor

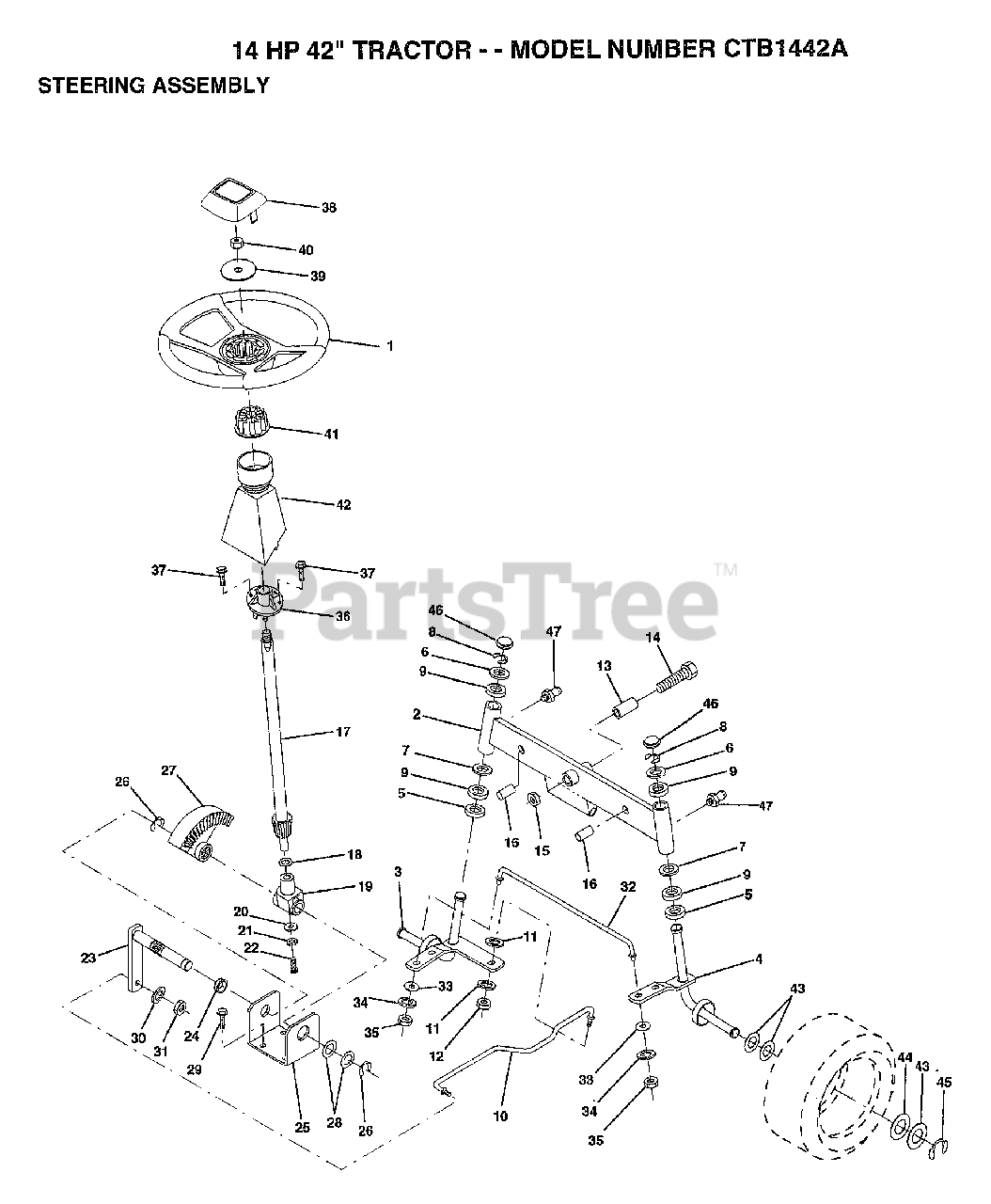

STEERING/14 HP 42" Parts Diagram

  • Title
1

Electrolux/AYP 133741

SUB= 150547
(Superseded to 583261901)

$46.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 133988

SUB= 142033
(Superseded to 532142033)

$

$

Not available

3

Electrolux/AYP 135227

SPINDLE LH
(Superseded to 532135227)

$

$

Not available

4

Electrolux/AYP 135228

SPINDLE RH
(Superseded to 532135228)

$

$

Not available

5

Electrolux/AYP 6266H

WASHER .T
(Superseded to 532006266)

$7.49

$

In Stock, Qty 11

0

6

Electrolux/AYP 121748X

WASHER
(Superseded to 532121748)

$4.99

$

In Stock, Qty 20+

0

7

Electrolux/AYP 19272016

WASHER
(Superseded to 819272016)

$6.49

$

In Stock, only 2 left!

0

8

Electrolux/AYP 12000029

RING
(Superseded to 812000029)

$4.99

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 3366R

COL. SRTG. BEAR.
(Superseded to 532003366)

$4.99

$

In Stock, Qty 20+

0

10

Electrolux/AYP 130468

SUB= 532130468
(Superseded to 532130468)

$93.99

$

In Stock, only 1 left!

0

11

Electrolux/AYP 10040600

LOCKWASHER
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

12

Electrolux/AYP 73610600

SUB= 7810H
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 110438X

BEARING
(Superseded to 532110438)

$

$

Not available

14

Electrolux/AYP 74011056

BOLT HEX 5/8-11
(Superseded to 874011056)

$4.99

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 73901000

"NUT-LOC,FLANGE LT"
(Superseded to 583612401)

$3.49

$

Usually ships in 3-10 days

0

16

Electrolux/AYP 132624

AXLE PIN
(Superseded to 532132624)

$

$

Not available

17

Electrolux/AYP 132614

SHAFT ASM
(Superseded to 582986601)

$74.99

$

Usually ships in 3-10 days

0

18

Electrolux/AYP 57079

THRUST WASHER
(Superseded to 532057079)

$6.49

$

In Stock, Qty 11

0

19

Electrolux/AYP 124035X

SUPPORT.SHAFT
(Superseded to 532160395)

$10.99

$

In Stock, Qty 8

0

20

Electrolux/AYP 126684X

SUB= 532126684

$

$

Not available

21

Electrolux/AYP 10040400

LOCKWASHER
(Superseded to 810040400)

$3.99

$

In Stock, only 2 left!

0

22

Electrolux/AYP 71070410

"SCREW,SPECIAL"
(Superseded to 71070510)

$

$

Not available

23

Electrolux/AYP 127501

SUB= 918127501
(Superseded to 532156365)

$

$

Not available

24

Electrolux/AYP 109816X

NYLINER T
(Superseded to 532109816)

$6.49

$

In Stock, only 2 left!

0

25

Electrolux/AYP 124036X

"BRKT,STEERING"
(Superseded to 532124036)

$

$

Not available

26

Electrolux/AYP 12000029

RING
(Superseded to 812000029)

$4.99

$

Usually ships in 3-10 days

0

27

Electrolux/AYP 136874

GEAR SECTOR
(Superseded to 532136874)

$80.99

$

In Stock, only 1 left!

0

28

Electrolux/AYP 6266H

WASHER .T
(Superseded to 532006266)

$7.49

$

In Stock, Qty 11

0

29

Electrolux/AYP 17490612

SCREW
(Superseded to 817000612)

$4.99

$

In Stock, only 2 left!

0

30

Electrolux/AYP 10040600

LOCKWASHER
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

31

Electrolux/AYP 73610600

SUB= 7810H
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

32

Electrolux/AYP 130467

TIE ROD
(Superseded to 532170162)

$93.99

$

In Stock, only 4 left!

0

33

Electrolux/AYP 19111216

WASHER M
(Superseded to 819111216)

$0.99

$

Usually ships in 3-10 days

0

34

Electrolux/AYP 10040500

LOCKWASHER
(Superseded to 810040500)

$4.99

$

Usually ships in 3-10 days

0

35

Electrolux/AYP 73810500

NUT.LOCK.5/16-24
(Superseded to 873810500)

$5.99

$

Usually ships in 3-10 days

0

36

Electrolux/AYP 132196

SUB= 155106

$

$

Not available

37

Electrolux/AYP 17431008

SUB= 98000165

$

$

Not available

38

Electrolux/AYP 133742

ST WHL INSERT CAP

$

$

Not available

39

Electrolux/AYP 19133808

WASHER T
(Superseded to 583789501)

$

$

Not available

40

Electrolux/AYP 7810H

GRIPCO NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

41

Electrolux/AYP 104820X

ADAPTER-WHEEL LT
(Superseded to 532104820)

$17.99

$

Usually ships in 3-10 days

0

42

Electrolux/AYP 124418X

"TUBE, STR SHAFT"
(Superseded to 583669801)

$

$

Not available

43

Electrolux/AYP 121749X

WASHER
(Superseded to 532121749)

$3.49

$

Usually ships in 3-10 days

0

44

Electrolux/AYP 121748X

WASHER
(Superseded to 532121748)

$4.99

$

In Stock, Qty 20+

0

45

Electrolux/AYP 12000029

RING
(Superseded to 812000029)

$4.99

$

Usually ships in 3-10 days

0

46

Electrolux/AYP 121232X

CAP
(Superseded to 532121232)

$4.99

$

In Stock, Qty 9

0

47

Electrolux/AYP 6855M

ZERK M
(Superseded to 532183226)

$7.49

$

In Stock, only 2 left!

0

56

Electrolux/AYP 19131210

WASHER
(Superseded to 819131210)

$

$

Not available
