CT15068GNSN - Generac 150kW Home Standby Generator (SN: 2408V28069 - 2408V28069) (2008) Mounting Base 6.8L 150KW (0F2975) Parts Diagram

150kW Home Standby Generator

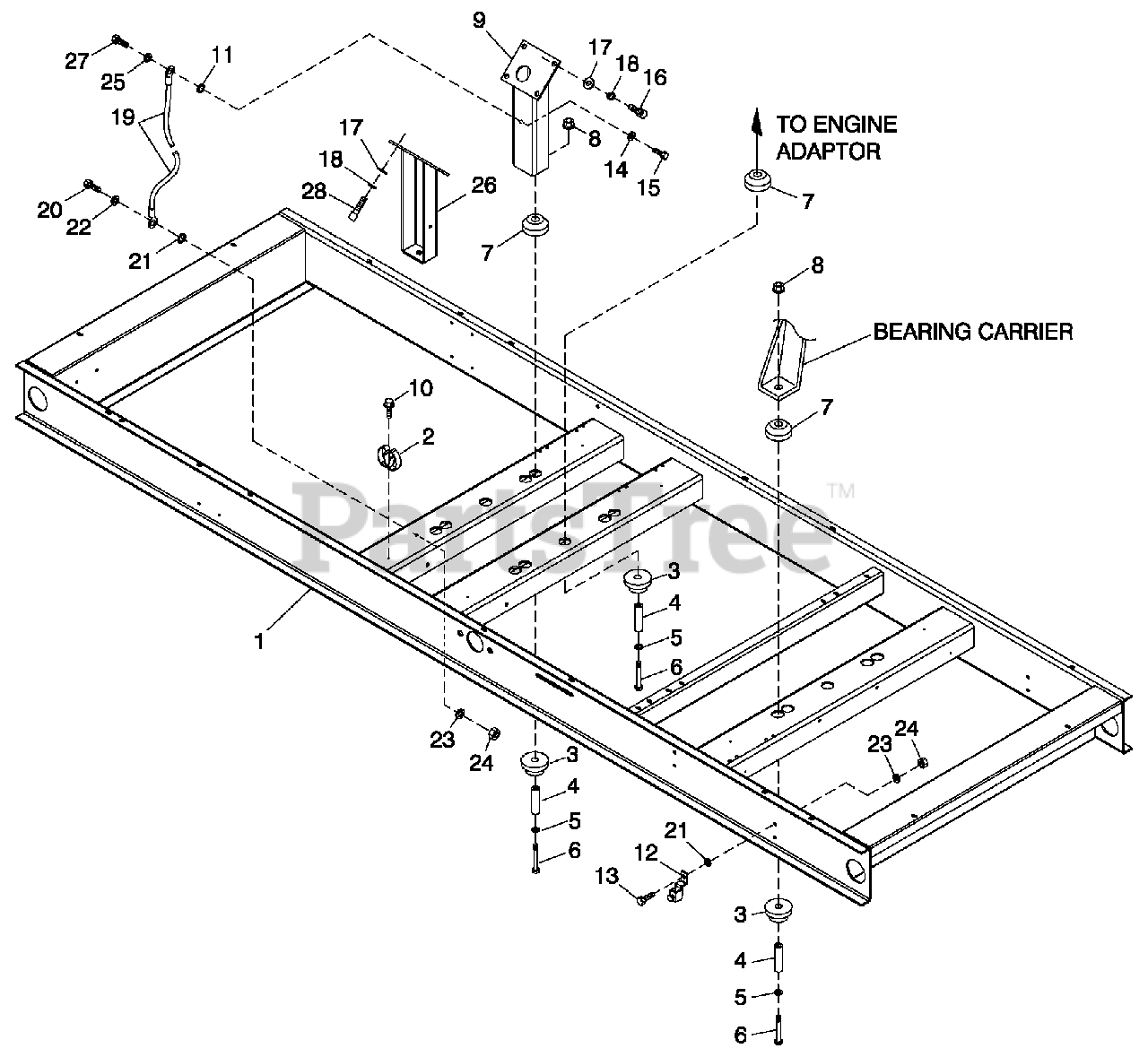

Mounting Base 6.8L 150KW (0F2975) Parts Diagram

  • Title

1

Generac 0F6947

BASE CPL 150KW 2P

$

$

Not available

2

Generac 65852

SPRING CLIP HOLDER .37-.62

$

$

Not available

3

Generac 52252

DAMPENER VIBRATION

$

$

Not available

4

Generac 52257

SPACER .49 X .62 X 1.87 PWDR/ZINC

$

$

Not available

5

Generac 52259

WASHER FLAT M12

$

$

Not available

6

Generac 55597

SCREW HHC M12-1.75 X 85 G8.8

$

$

Not available

7

Generac 052251A

DAMPENER VIBRATION 50 WHITE

$20.99

$

Usually ships in 2-12 days

0

8

Generac 52860

NUT LOCKING M12-1.75

$

$

Not available

9

Generac 0F2895

SUPPORT ENG 5.4L LH/RH 6.8L RH

$287.99

$

Usually ships in 2-12 days

0

10

Generac 45764

SCREW HHTT M4-0.7 X 8 BP

$

$

Not available

11

Generac 22447

WASHER SHAKEPROOF INT 1/4

$

$

Not available

12

Generac 61383

LUG SOLDERLESS 3/0-#4 X 13/32 CU

$

$

Not available

13

Generac 43107

SCREW HHC M8-1.25 X 25 G8.8

$

$

Not available

14

Generac 22473

WASHER FLAT 1/4-M6 ZINC

$

$

Not available

15

Generac 49813

NUT HEX M6 X 1.0 G8 YEL CHR

$

$

Not available

16

Generac 57192

SCREW SHC M10-1.5 X 30 G12.9

$

$

Not available

17

Generac 22131

WASHER FLAT 3/8-M10 ZINC

$

$

Not available

18

Generac 46526

WASHER LOCK M10

$

$

Not available

19

536210360

WIRE ASSEM #4GA GRD

$

$

Not available

20

Generac 42909

SCREW HHC M8-1.25 X 30 G8.8

$

$

Not available

21

Generac 22261

WASHER SHAKEPROOF INT 3/8

$

$

Not available

22

Generac 22129

WASHER LOCK M8-5/16

$

$

Not available

23

Generac 22145

WASHER FLAT 5/16-M8 ZINC

$

$

Not available

24

Generac 45771

NUT HEX M8-1.25 G8 YEL CHR

$

$

Not available

25

Generac 22097

WASHER LOCK M6-1/4

$

$

Not available

26

Generac 0F2910

SUPPORT, ENGINE 6.8L LH SIDE

$180.99

$

Usually ships in 2-12 days

0

27

Generac 38750

SCREW HHC M6-1.0 X 30 G8.8

$

$

Not available

28

Generac 90502

SCREW SHC M10-1.5 X 60 G12.9

$

$

Not available
