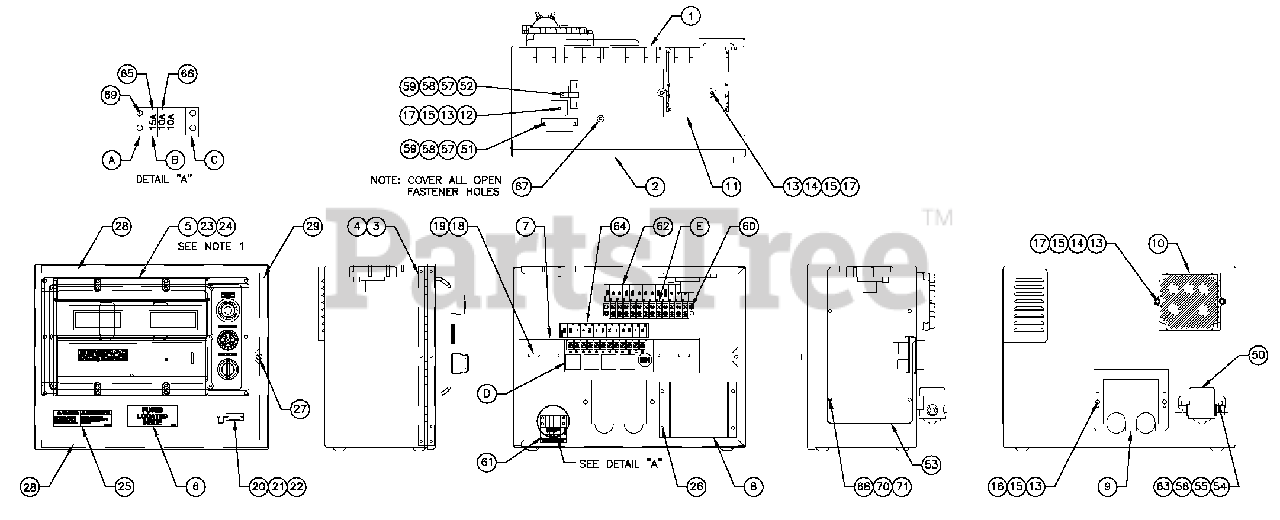

CT15068GNSN - Generac 150kW Home Standby Generator (SN: 2408V28069 - 2408V28069) (2008) H Panel 2A Battery Charger (0G4139D) Parts Diagram

150kW Home Standby Generator

H Panel 2A Battery Charger (0G4139D) Parts Diagram

  • Title

COMPONENTS INCLUDED IN 0G4139E

$

$

Not available

1

Generac 0F1823CST06

ENCL H/G CONTROL PANEL

$1909.99

$

Usually ships in 2-12 days

0

2

Generac 0F1824AST06

COVER CONTROL PANEL

$

$

Not available

3

Generac 0F2606

HINGE CONTINUOUS H PANEL

$18.99

$

Usually ships in 2-12 days

0

4

Generac 36261

RIVET POP .125 X .275 SS

$

$

Not available

5

Generac 0F5763

ASSY PROGRAMMED H-100

Note: ORDER 0F2815

$

$

Not available

6

Generac 0F1732

DECAL FUSES LOCATED INSIDE

$53.99

$

Usually ships in 2-12 days

0

7

Generac 0E9764

RAIL SNAPTRACK PCB HOLDER BULK (12"LG)

$33.99

$

Usually ships in 2-12 days

0

8

Generac 0F1725C

ASSY PCB 2AMP 12V UL BATT CHGR

Note: ORDER P/N 0F1725CSRV.

$

$

Currently unavailable

9

Generac 0F1958

PLATE HARNESS CLAMP

$51.99

$

Usually ships in 2-12 days

0

10

Generac 0F2256

ASSY PCB PWR AVR W/AMP HEADER

$344.99

$

In Stock, only 1 left!

0

11

Generac 0E3161

ASSY PCB BOSCH GOV DRIVER

Note: ORDER P/N 0E31610SRV.

$

$

Not available

12

Generac 29673

DIO BRIDGE 25A 600V

$

$

Not available

13

Generac 49226

WASHER LOCK M5

$

$

Not available

14

Generac 79224

SCREW PPHM M5-0.8 X 30 SS

$

$

Not available

15

Generac 51713

WASHER FLAT M5

$

$

Not available

16

Generac 0F5886

SCREW HHPM M5-0.8X 12

$0.99

$

Usually ships in 2-12 days

0

17

Generac 51716

NUT HEX M5-0.8 G8 YEL CHR

$

$

Not available

18

Generac 43180

WASHER FLAT M4

$

$

Not available

19

Generac 0C3990

SCREW PHTT M4-0.7 X 10 ZYC

$0.99

$

Usually ships in 2-12 days

0

20

Generac 0F4333

CONN DUST CAP W/CHAIN DB9

$10.99

$

Usually ships in 2-12 days

0

21

Generac 0F5883

WASHER FLAT M3.5

$0.99

$

Usually ships in 2-12 days

0

22

Generac 0F5884

SCREW PHTT M3.5-0.6X 10

$

$

Not available

23

Generac 55014

SCREW PPHM M4-0.7 X 8 BLX OX

$

$

Not available

24

Generac 22264

WASHER LOCK #8-M4

$

$

Not available

25

Generac 0G3546

DECAL WRN BATT CHRG 12/24V BI

$8.99

$

Usually ships in 2-12 days

0

26

Generac 0C2265

SCREW PHTT M4-0.7 X 12 ZYC

$0.99

$

Usually ships in 2-12 days

0

27

Generac 0G3648

M5-0.8 CAPTIVE PANEL KNLD HD

$

$

Not available

28

Generac 0F6305

SEAL COVER 3.18X12.7X382

Note: THIS PART IS BASIC WEATHER STRIPPING AVAIL. FROM ANY HARDWARE STORE. WE DO NOT STOCK IT

$

$

Currently unavailable

29

Generac 0F6305A

SEAL COVER 3.18X12.7X283

Note: THIS PART IS JUST BASIC WEATHER STRIPPING AVAILABLE FROM HARDWARE STORES. WE DO NOT STOCK

$

$

Currently unavailable

30

Generac 0G4329

HARNESS H-PNL INTEGRATED SW (NOT SHOWN)

$

$

Not available

COMPONENTS INCLUDED IN WIRE HARNESS

$

$

Not available

A

Generac 0F1263

ADPTRRH SIDE WICKMANN 178.6191

$

$

Not available

B

Generac 0F1262

HOLDER FUSE WICKMANN 178.6150

$8.49

$

Usually ships in 2-12 days

0

C

Generac 0F1264

ADPTR LH SIDE WICKMANN 178.6192

$

$

Not available

D

Generac 0E9049B

ASSY PCB G-PANEL RELAY 12VDC

$292.99

$

Usually ships in 2-12 days

0

E

Generac 55911

BLOCK TERM 20A12 X 6 X1100V

$

$

Not available

COMPONENTS NOT INCLUDED IN 0G4139E OR WIRE HARNESS

$

$

Not available

50

Generac 56739

RELAY CONTACTOR 12VDC

$

$

Not available

51

DPE BREAKER SEE DRAWING 0F9280

$

$

Not available

52

BOOST RESISTOR SEE DRAWING 0F9280

$

$

Not available

53

Generac 0F2627A

COVER CONTROL PANEL SIDE

$107.99

$

Usually ships in 2-12 days

0

54

Generac 22287

SCREW HHC 1/4-20 X 3/4 G5

$

$

Not available

55

Generac 22473

WASHER FLAT M6-1/4

$

$

Not available

56

Generac 22097

WASHER LOCK M6-1/4

$

$

Not available

57

Generac 43182

WASHER LOCK M3

$

$

Not available

58

Generac 51714

NUT HEX M3-0.5 G8YEL CHR

$

$

Not available

59

Generac 52777

WASHER FLAT M3

$

$

Not available

60

Generac 0C2323

SCREW PHTT #6-32 X 5/8 ZYC

$0.99

$

Usually ships in 2-12 days

0

61

Generac 0F5459

DECAL CPL CONTROL PANEL FUSES

$0.99

$

Usually ships in 2-12 days

0

62

Generac 0F5461

DECAL CPL 5.4/6.8L TB3

$

$

Currently unavailable

63

Generac 22127

NUT HEX 1/4-20 STEEL

$

$

Not available

64

Generac 0F5460

DECAL CPL 5.4/6.8L RELAY BOARD

$4.49

$

Usually ships in 2-12 days

0

65

Generac 0E7403C

FUSE ATO TYPE 15 AMP (BLUE)

$2.49

$

Usually ships in 2-12 days

0

66

Generac 0E7403B

FUSE ATO TYPE 10 AMP (RED)

$1.49

$

Usually ships in 2-12 days

0

67

Generac 0F6145

SEAL WEATHER .45"DIA

$1.49

$

Usually ships in 2-12 days

0

68

Generac 91526

SCREW PPHM M5-0.8 X 12 ZNC

$

$

Not available

69

Generac 0C2699

SCREW PHTT #6-32 X 3/8 ZYC

$0.99

$

Usually ships in 2-12 days

0

70

Generac 51713

WASHER FLAT M5

$

$

Not available

71

Generac 49226

WASHER LOCK M5

$

$

Not available
