CT15068GNSN - Generac 150kW Home Standby Generator (SN: 2408V28069 - 2408V28069) (2008) Fuel Lp Vapor C5 CPL 6.8L (0G8617A) Parts Diagram

150kW Home Standby Generator

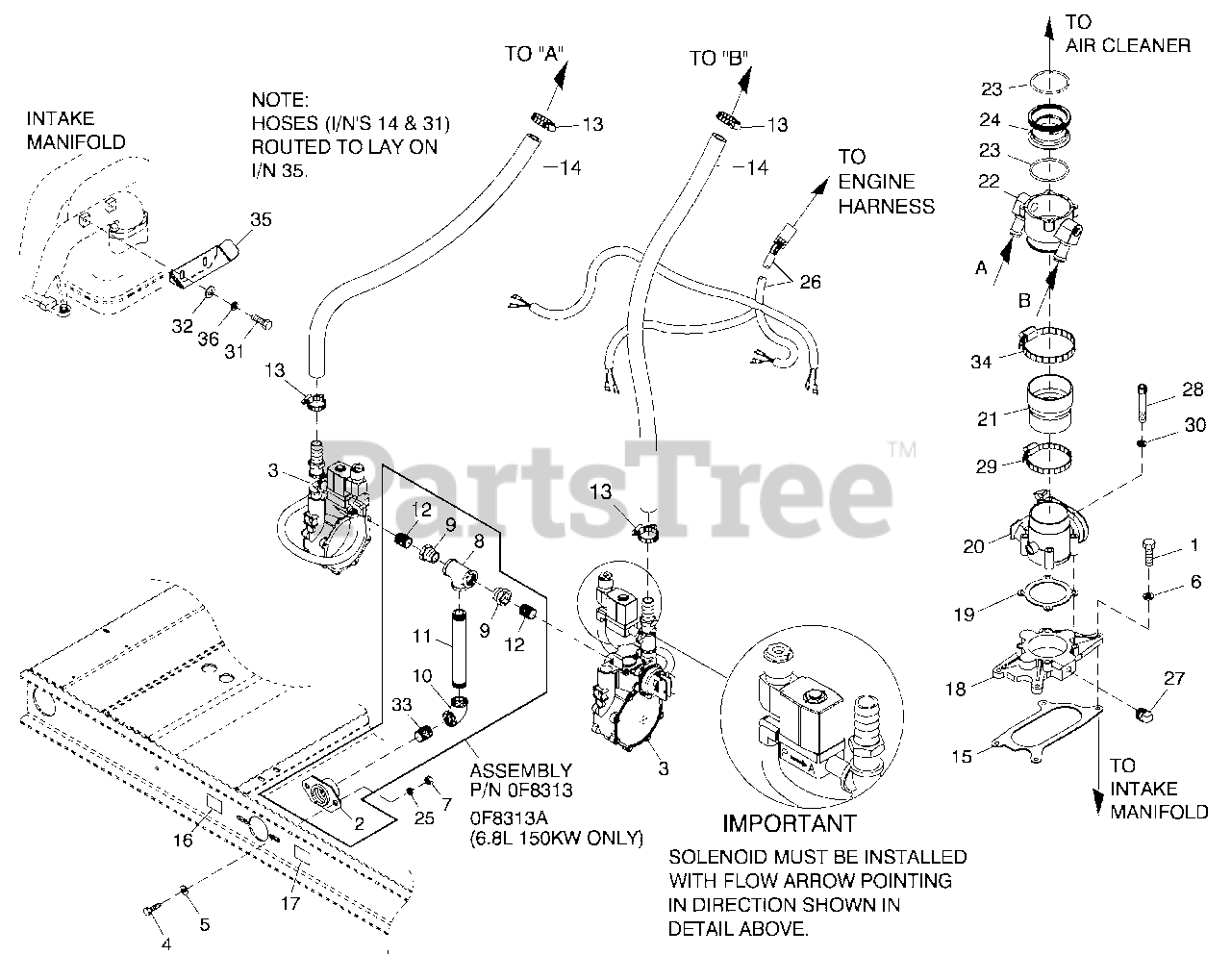

Fuel Lp Vapor C5 CPL 6.8L (0G8617A) Parts Diagram

  • Title

1

Generac 33212

SCREW HHC 5/16-18 X 1-1/4 G5

$

$

Not available

2

Generac 65908

SUPPORT NAT GAS SOLENOID

$

$

Not available

3

0G9191L

REG ASSY 6.8L 130 KW DUAL LP QT

$

$

Not available

0G9191M

REG ASSY 6.8L 150 KW DUAL LP QT

$

$

Not available

Generac 0G9190A

REG ASSY 6.8L 100 KW LPV CPL

Note: ORDER 0G9190ASRV ALSO ORDER QTY 2 026915 NIPPLE

$

$

Not available

0G9239A

REG ASSY 5.4L 80KW LPV CPL

$

$

Not available

4

Generac 52617

SCREW HHC M12-1.75 X 20 G8.8

$

$

Not available

5

Generac 22304

WASHER FLAT 1/2 ZINC

$

$

Not available

6

Generac 22129

WASHER LOCK M8-5/16

$

$

Not available

7

Generac 45773

NUT HEX M12-1.75 G8 YEL CHR

$

$

Not available

8

Generac 64346

PIPE TEE 1-1/4 NPT

$

$

Not available

9

Generac 0A8064

BSHG RDCR HEX1-1/4-3/4

$35.99

$

Usually ships in 2-12 days

0

10

Generac 30131

ELBOW 90D1-1/4 NPT

$

$

Not available

11

Generac 31015

NIPPLE PIPE 1-1/4 NPT X 3 (100 KW & 130 KW)

$

$

Not available

Generac 88963

NIPPLE PIPE 1.25 NPT X 5.5 BLIRN (150 KW)

$

$

Not available

12

Generac 26915

NIPPLE CLOSE 3/4X1.375

$

$

Not available

13

Generac 57823

CLAMP HOSE #10 .56-1.06

$

$

Not available

14

Generac 59057

HOSE 3/4 ID SAE-30R2 (45" LG)

$

$

Not available

15

Generac 0D2698

GASKET ADAPTER THROT BODY

$48.99

$

Usually ships in 2-12 days

0

16

Generac 0D1509

DECAL INLET PRESSURE

$8.49

$

Usually ships in 2-12 days

0

17

Generac 50280

DECAL FUEL INLET LPG

$

$

Not available

18

Generac 0D2696B

ADAPTOR THROTTLE BODY

Note: NO LONGER AVAILABLE. ORDER 0J7476

$

$

Not available

Generac 0F2756A

MACHINING, INTA KE ADAPTOR 60MM

$

$

Not available

19

Generac 0E4390

GASKET GOVERNOR ACTUATOR

$2.99

$

Usually ships in 2-12 days

0

20

Generac 0E4392

ACTUATOR BOSCH 60 GOVERNOR

$753.99

$

Usually ships in 2-12 days

0

21

Generac 0F0960

REDUCER 3.0" TO 2.75" TURBO

$141.99

$

Usually ships in 2-12 days

0

22

Generac 0F3885

MIXER 40/60MM ACTUATOR ASSY

$144.99

$

Usually ships in 2-12 days

0

23

Generac 0G3167

RING 2-3/4X3/32X2-15/16

$1.49

$

Usually ships in 2-12 days

0

24

Generac 0F3691E

VENTURI THROTTLE 42MM (6.8L 100 KW)

$5.99

$

Usually ships in 2-12 days

0

Generac 0F3691F

VENTURI THROTTLE 44MM (6.8L 130 KW)

$5.99

$

Usually ships in 2-12 days

0

Generac 0F3691J

VENTURI THROTTLE 50MM (6.8L 150 KW)

$5.49

$

Usually ships in 2-12 days

0

Generac 0F3691B

VENTURI, THROTTLE 36MM (5.4L 80 KW)

$6.49

$

Usually ships in 2-12 days

0

25

Generac 22195

WASHER LOCK 1/2

$

$

Not available

26

Generac 0G5989

HARNESS, FUEL JUMPER DUAL REG

$584.99

$

Usually ships in 2-12 days

0

27

Generac 026073A

PLUG STD PIPE 1/4 STEEL SQ HD

$1.99

$

Usually ships in 2-12 days

0

28

Generac 46580

SCREW SHC M6-1.0 X 45 G12.9

$

$

Not available

29

Generac 39294

CLAMP HOSE #44 2.31-3.25

$

$

Not available

30

Generac 22097

WASHER LOCK M6-1/4

$

$

Not available

31

Generac 42568

SCREW HHC M6-1.0X 20 G8.8

Note: G6.8L UNITS ONLY

$

$

Not available

32

Generac 49811

WASHER FLAT M6

Note: G6.8L UNITS ONLY

$

$

Not available

33

Generac 39130

NIPPLE CLOSE 1.25 NPT X 1.625

$

$

Not available

34

Generac 66212

CLAMP HOSE #52 2.81-3.75

$

$

Not available

35

Generac 0G46350ST03

BRAC KET, HOSE RISER

Note: G6.8L UNITS ONLY

$38.99

$

Usually ships in 2-12 days

0

36

Generac 22097

WASHER LOCK M6-1/4

Note: G6.8L UNITS ONLY

$

$

Not available
