CT15068GNSN - Generac 150kW Home Standby Generator (SN: 2408V28069 - 2408V28069) (2008) Engine Common Parts R/H Side (6.8L CPL) (0F3058) Parts Diagram

150kW Home Standby Generator

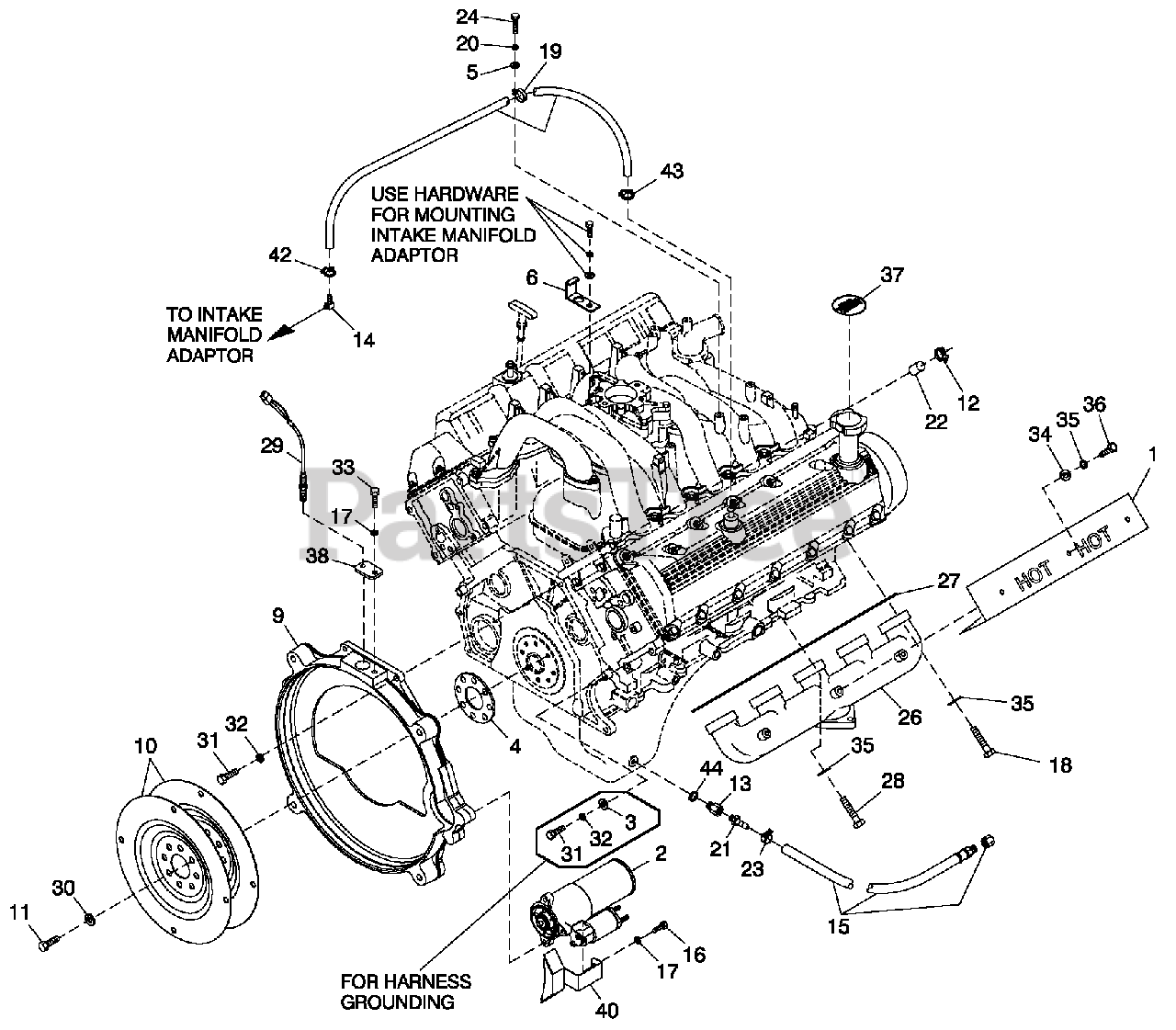

Engine Common Parts R/H Side (6.8L CPL) (0F3058) Parts Diagram

  • Title

1

Generac 0D5623

HEAT SHIELD EXHAUST

$111.99

$

Usually ships in 2-12 days

0

2

Generac 0D5418

STARTER MOTOR FORD V-10 ENGINE

$795.93

$

Usually ships in 2-12 days

0

3

Generac 22131

WASHER FLAT 3/8-M10 ZINC

$

$

Not available

4

Generac 0F3514

SPACER FLEXPLATE 5.4L/6.8L (1800 RPM UNITS ONLY)

$3.99

$

Usually ships in 2-12 days

0

5

Generac 22473

WASHER FLAT 1/4-M6 ZINC

$

$

Not available

6

Generac 0F2776A

BRACKET SIGNAL CONDITIONER

$3.99

$

Usually ships in 2-12 days

0

7

Generac 029333A

TIE WRAP UL 7.4" X .19" BLK (NOT SHOWN)

Note: NOTE: l/N 7 IS FOR HOLDING SENSORS TO l/N 6.

$0.99

$

Usually ships in 2-12 days

0

8

Generac 57772

WASHER NYLON .565

$

$

Not available

9

Generac 0F2929

ENGINE ADA PTER 5.4L/6.8L

$518.99

$

Usually ships in 2-12 days

0

10

Generac 0F9965C

FLEX PLATE 2 POLE (1800 RPM UNITS ONLY)

$58.99

$

Usually ships in 2-12 days

0

Generac 0F9965C

FLEX PLATE 2 POLE (3600 RPM UNITS ONLY)

$58.99

$

Usually ships in 2-12 days

0

11

Generac 0D5417

SCREW HHC M10-1.0 X 25 G10.9

Note: NOTE: l/N 11 IS PART OF ENGINE P/N 0D3454.

$3.49

$

Usually ships in 2-12 days

0

12

Generac 57823

CLAM P HOSE #10 .56 - 1.06 (1800 RPM UNITS ONLY)

$

$

Not available

13

Generac 57765

ADAPTER M14-1.50X 3/8 N PT

$

$

Not available

14

Generac 53660

BARBED STR 1/4 N PTX5/8

$

$

Not available

15

Generac 069860E

HOSE DRAIN ASSY 28"

$59.99

$

Usually ships in 2-12 days

0

16

Generac 42909

SCREW HHC M8-1.25X 30 G8.8

$

$

Not available

17

Generac 22129

WASHER LOCK M8-5/16

$

$

Not available

18

Generac 0D9913

SCREW SHC M8-1.25X35 SS

$7.99

$

Usually ships in 2-12 days

0

19

Generac 055934M

CLAM P VINYL .75X.343Z

$3.49

$

Usually ships in 2-12 days

0

20

Generac 22097

WASHER LOCK M6-1/4

$

$

Not available

21

Generac 55596

BARBED STR 3/8 N PTX3/8

$

$

Not available

22

Generac 77996

CAP HOSE (1800 RPM UNITS ONLY)

$

$

Not available

23

Generac 048031J

HOSE CLAM P BAND 5/8"

Note: ON ALL PORTABLE, HSB, INDUSTRIAL & L&G ENGINES THAT USE THE 0D3083 OIL DRAIN HOSE USE 0G3662

$1.49

$

Usually ships in 2-12 days

0

24

Generac 47411

SCREW HHC M6-1.0X 16 G8.8

$

$

Not available

25

Generac 0G0321

HOSE COOL 5/8" ID 250#W P (14")

$26.99

$

Usually ships in 2-12 days

0

26

Generac 0D3808

EXH MANIFOLD MACH 6.8L V-10

$519.99

$

Usually ships in 2-12 days

0

27

Generac 0D4255

GASKET EXHAUST MANIFOLD

$26.99

$

Usually ships in 2-12 days

0

28

Generac 70010

SCREW HHC M8-1.25 X 35 SS G8.8

$

$

Not available

29

Generac 0D2244M

ASSY MAG PICKUP (3/8-24 MALE)

Note: FOR INFORMATION ON THIS MAGNETIC PICK-UP REFER TO PIB08-15-S WIB07-08-S

$245.99

$

Usually ships in 2-12 days

0

30

Generac 0F3844

WASHER FLAT .43X1.00

$4.99

$

Usually ships in 2-12 days

0

31

Generac 52647

SCREW SHC M10-1.5 X 25 G12.9

$

$

Not available

32

Generac 46526

WASHER LOCK M10

$

$

Not available

33

Generac 39253

SCREW HHC M8-1.25X 20 G8.8

$

$

Not available

34

Generac 70008

WASHER FLAT M8 SS

$

$

Not available

35

Generac 70006

WASHER LOCK M8 SSTL

$

$

Not available

36

Generac 0D2608

SCREW HHC 5/16-18 X 1/2 SSTL

$2.99

$

Usually ships in 2-12 days

0

37

Generac 0F5114

DECAL REFER TO OWNERS MANUAL

$0.99

$

Usually ships in 2-12 days

0

38

Generac 0F5454

PLATE MAG PICK-U P ADAPTOR

$63.99

$

Usually ships in 2-12 days

0

40

Generac 0F6104

COVER STARTER 5.4 & 6.8 FORD CPL

$42.99

$

Usually ships in 2-12 days

0

43

Generac 57823

CLAM P HOSE #10 .56-1.06

$

$

Not available

44

Generac 46964

ELBOW 90D 1/4 N PT F-M BRASS

$

$

Not available
