CT15068GNSN - Generac 150kW Home Standby Generator (SN: 2408V28069 - 2408V28069) (2008) Cooling System & Fan Drive (0F2703) Parts Diagram

150kW Home Standby Generator

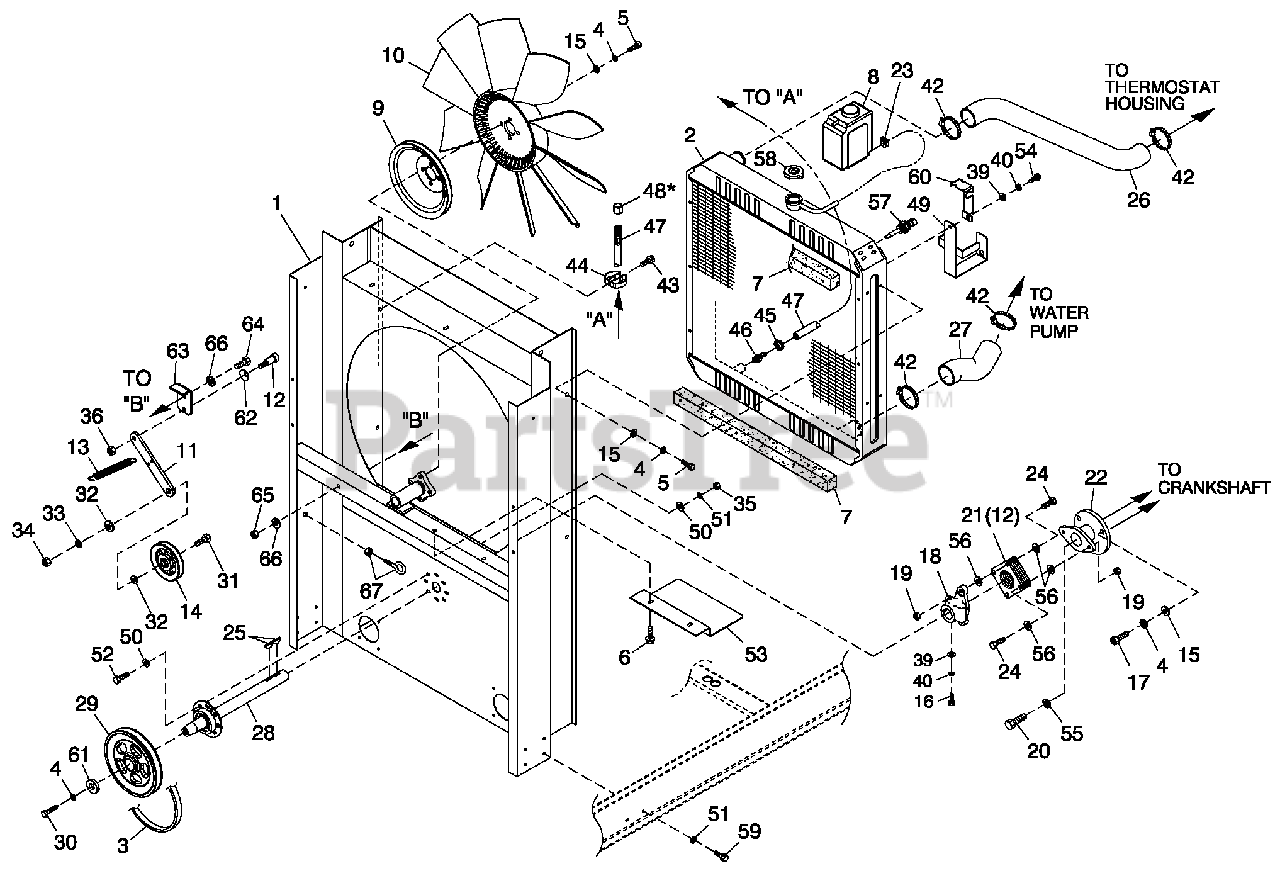

Cooling System & Fan Drive (0F2703) Parts Diagram

  • Title

1

Generac 0F2687

WELDMENT RADIATOR SUPP0RT150

Note: ORDER 0H81850SRV

$

$

Not available

2

Generac 0F2611

RADIATOR 680 X 680 X 70 CPL

Note: MUST SHIP VIA LTL TRUCK CANNOT SHIP UPS.

$2533.99

$

Usually ships in 2-12 days

0

3

Generac 0F5254

V-BELT 31/64' 1 X 62-3/8' 1

$40.99

$

In Stock, only 1 left!

0

Generac 0F5253

V-BELT 31/64" X 61-3/8" (5.4L 100KW ONLY)

$39.99

$

Usually ships in 2-12 days

0

Generac 0F7077

V-BELT 1/2 1 1X 63-3/8' 1 (6.8L 100 130KW)

$142.99

$

Usually ships in 2-12 days

0

4

Generac 46526

WASHER LOCK M10

$

$

Not available

5

Generac 51756

SCREW HHCM10-1.5X20 G8.8

$

$

Not available

6

Generac 0C2454

SCREW THF M6-1 X 16 N WA Z/JS

$3.49

$

Usually ships in 2-12 days

0

7

Generac 52250

TAPE FOAM 1 X 1 (26.75" LG)

$

$

Not available

8

Generac 76749

TANK COOLANT RECOVERY

$

$

Not available

9

Generac 0F2573

PULLEY FAN V-GROOVE 9"

$76.99

$

Usually ships in 2-12 days

0

10

Generac 0F2610

FAN 26" LH ROTATION

$237.99

$

Usually ships in 2-12 days

0

11

Generac 0G56820ST03

FLAT TENSIONER ARM

$157.99

$

Usually ships in 2-12 days

0

12

Generac 0G2990

SHOULDER BOLT 3/8 X 1/2' 1

$2.99

$

Usually ships in 2-12 days

0

13

Generac 0F2862

SPRING TENSION CPL

$9.99

$

Usually ships in 2-12 days

0

14

Generac 0F2560

PULLEY V-BELT 4' 1 FLANGED

$27.99

$

In Stock, only 1 left!

0

15

Generac 22131

WASHER FLAT 3/8-M10 ZINC

$

$

Not available

16

Generac 39414

SCREW HHC M8-1.25 X 35 G8.8

$

$

Not available

17

Generac 52625

SCREW SHC M10-1.5X 35 G12.9

$

$

Not available

18

Generac 0F2561

HUB FLEX PLATE

$48.99

$

Usually ships in 2-12 days

0

19

Generac 0C8165

NUT HEX LOCK 5/16-24 NY INS

$0.99

$

Usually ships in 2-12 days

0

20

Generac 0D6795

SCREW HHC M12-1.5X 60 G8.8

$19.99

$

Usually ships in 2-12 days

0

21

Generac 0C7043

DISK FLEX

Note: IF YOU NEED KIT ORDER P/N 0E33940SRV.KIT CONTAINS QTY-12 OF 0C7043.

$

$

Not available

22

Generac 0E8909

COUPLING HUB FLEX (MACH)

Note: IF THE HARMONIC BALANCER IS STAMPED WITH PART # 05C3E-A USE 0E8909 IF THE HARMONIC BALANCER IS STAMPED WITH 7C3E-6316-AA USE 0E8909A THE DIFFERENCE IS IN THE PILOT HOLE OF THE PULLY 0E8909 PILOT HOLE IS 57.05 TO 57.2 MM 0E8909A PILOT HOLE IS 59.05 TO 59.20

$272.99

$

Usually ships in 2-12 days

0

Generac 0E8909A

COUPLING HUB FLEX (MACHINING)

Note: IF THE HARMONIC BALANCER IS STAMPED WITH PART # 05C3E-A USE 0E8909 IF THE HARMONIC BALANCER IS STAMPED WITH 7C3E-6316-AA USE 0E8909A THE DIFFERENCE IS IN THE PILOT HOLE OF THE PULLY 0E8909 PILOT HOLE IS 57.05 TO 57.2 MM 0E8909A PILOT HOLE IS 59.05 TO 59.20

$279.99

$

Usually ships in 2-12 days

0

23

Generac 048031C

CLAMP HOSE BAND 1/4

$0.99

$

In Stock, Qty 5

0

24

Generac 0C8146

SCREW HHC 5/16-24X1.124

$2.49

$

Usually ships in 2-12 days

0

25

Generac 82774

KEY WOODRUFF 4X 1 9D

$

$

Not available

26

Generac 0F2686

HOSE RADIATOR UPPER CPL

$94.99

$

Usually ships in 2-12 days

0

27

Generac 0F5463

HOSE LOWER RAD CPL C5 6.8L

$23.99

$

Usually ships in 2-12 days

0

28

Generac 0F8695

ASSY BRG/SHAFT CPL FANDRIVE

Note: ORDER P/N 0F86950SRV

$

$

Not available

29

Generac 0F4028

PULLEY 6.5'' DIA MACHINED (6.8L 100KW)

$53.99

$

Usually ships in 2-12 days

0

Generac 0F4030

PULLEY 6' 1 DIA MACHINED (6.8L 130KW)

$49.99

$

Usually ships in 2-12 days

0

Generac 0F4032

PULLEY 5.5' 1 DIA MACHINED (5.4L 80KW & 6.8L 150KW)

$53.99

$

Usually ships in 2-12 days

0

Generac 0F4496

PULLEY 4.5'1 DIA MACHINED (5.4L 100KW)

$54.99

$

Usually ships in 2-12 days

0

30

Generac 42911

SCREW HHC M10-1.5X 30 G8.8

$

$

Not available

31

Generac 0F2872

SCREW HHC 1/2 -13X2 1 1 G8

$19.99

$

Usually ships in 2-12 days

0

32

Generac 22304

WASHER FLAT 1/2 ZINC

$

$

Not available

33

Generac 22195

WASHER LOCK 1/2

$

$

Not available

34

Generac 22196

NUT HEX 1/2-13 STEEL

$

$

Not available

35

Generac 49813

NUT HEX M6 X 1.0 G8 YEL CHR

$

$

Not available

36

Generac 70015

NUT HEX LOCK 5/16-18 NY INS SS

$

$

Not available

39

Generac 22145

WASHER FLAT 5/16-M8 ZINC

$

$

Not available

40

Generac 22129

WASHER LOCK M8-5/16

$

$

Not available

42

Generac 35685

CLAMP HOSE #28 1.32-2.25

$

$

Not available

43

Generac 45764

SCREW HHTT M4-0.7 X 8 BP

$

$

Not available

44

Generac 65852

SPRING CLIP HOLDER.37-.62

$

$

Not available

45

Generac 0C7649

CLAMP HOSE .38-.87

Note: USE 0G4020 FOR OIL LINES USE 0C7649 FOR FUEL LINES

$2.49

$

In Stock, only 2 left!

0

46

Generac 55596

BARBED STR 3/8 N P TX3 /8

$

$

Not available

47

Generac 069860E

HOSE DRAIN ASSY 28''

$59.99

$

Usually ships in 2-12 days

0

48

Generac 69811

CAP HEX 1/4 NPT BRASS

Note: ITEM 48 IS INCLUDED WITH 47.

$

$

Not available

49

Generac 80713

BRACKET COOLANT TANK

$

$

Not available

50

Generac 22473

WASHER FLAT 1/4-M6 ZINC

$

$

Not available

51

Generac 22097

WASHER LOCK M6-1/4

$

$

Not available

52

Generac 42568

SCREW HHC M6-1.0X 20 G8.8

$

$

Not available

53

Generac 0F5050

SHIELD RADIATOR C5

$48.99

$

Usually ships in 2-12 days

0

54

Generac 39253

SCREW HHC M8-1.25 X 20 G8.8

$

$

Not available

55

Generac 51769

WASHER LOCK M12

$

$

Not available

56

Generac 0C8145

WASHER FLEX (THIN)

$2.99

$

Usually ships in 2-12 days

0

57

Generac 0E2507

PROBE, COOLANT LEVEL 3/8 NPTF

Note: FOR H & G PANELS ORDER 0H50530SRV. FOR R-200,R-200A,R-200B, R-200C ORDER 0H50540SRV. FOR EXTERNAL MOUNTED PROBES IN ALUM. BLOCKS & ALL OTHER PRODUCT ORDER 0E2507.

$192.99

$

Usually ships in 2-12 days

0

58

Generac 90283

CAP RADIATOR 13 PSI

$

$

Not available

59

Generac 0C8566

SCREW HHFCM6-1.0X 20 G8.8

Note: ON MODELS 4858-0, 4857-0 AND 4806-0 USE 0C8563

$9.49

$

Usually ships in 2-12 days

0

60

Generac 0F2776A

BRACKET, SIGNAL CONDITIONER

$3.99

$

Usually ships in 2-12 days

0

61

Generac 52644

SPACER .5 X 1.5 X .25 STL/ZINC

$

$

Not available

62

Generac 0G4376

WASHER BELLEVILLE .75X.38X.028

$21.99

$

Usually ships in 2-12 days

0

63

Generac 0G56830ST03

BENT 90 TENSIONER ARM SUPPORT

$153.99

$

Usually ships in 2-12 days

0

64

Generac 51698

SCREW HHC M8-1.25 X 75 C8.8

$

$

Not available

65

Generac 49820

NUT HEX LOCK M8-1.25 NY INS

$

$

Not available

66

Generac 22145

WASHER FLAT 5/16-M8 ZINC

$

$

Not available

67

Generac 0G6151

EYEBOLT 3/8-16 X 3.5 1 1 TURNED

$8.99

$

Usually ships in 2-12 days

0
