CT13068GNSN - Generac 130kW Home Standby Generator (SN: 2808V28689 - 2808V28689) (2008) Gearbox 390 (0F1792) Parts Diagram

130kW Home Standby Generator

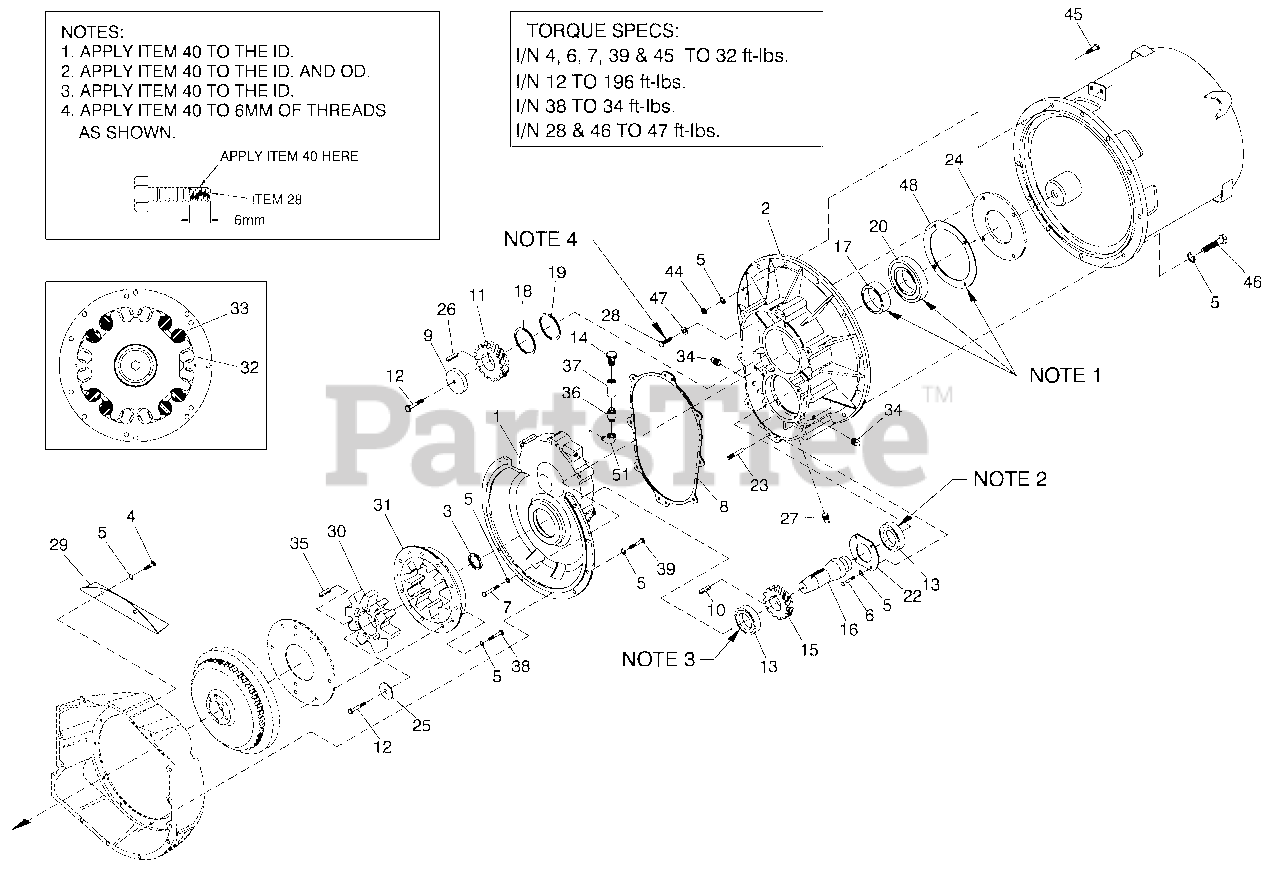

Gearbox 390 (0F1792) Parts Diagram

  • Title

1

Generac 0F2123

GEAR CASE ENG. MACHINED

$1337.99

$

Usually ships in 2-12 days

0

2

Generac 0F2122

GEAR CASE ALT. MACHINED

$1389.99

$

Usually ships in 2-12 days

0

3

Generac 95613

SEALOIL

$

$

Not available

4

Generac 51756

S CREW HHC M10l1.5X 20 G8.8

$

$

Not available

5

Generac 46526

WASHER LOCK M10

$

$

Not available

6

Generac 49814

S CREW HHC M10l1.5X 25 G8.8

$

$

Not available

7

Generac 51735

S CREW HHC M10l1.5X 70 G8.8

$

$

Not available

8

Generac 0F2097

GASKET 390 GEAR BOX

$28.99

$

Usually ships in 2-12 days

0

9

Generac 72879

S PACER .69 X 2.75 X .37 ST/ZNC

$

$

Not available

10

Generac 097557B

KEY 1 0X 1 6 X 4 6

$9.99

$

Usually ships in 2-12 days

0

11

Generac 0H3114

GEAR OUTPUT 1.65:1

$1220.99

$

Usually ships in 2-12 days

0

Generac 95970

GEAR OUT 390l50H37T

$

$

Not available

Generac 95968

GEAR OUT 390l60H35T

$

$

Not available

0E6866

GEAR OUTPUT 2:1 50HZ390

$

$

Not available

12

Generac 70263

SCREW HHC M16-2.0X 35 G10.9

$

$

Not available

13

Generac 57019

BALLBRG65X 120X23

$

$

Not available

14

Generac 26847

BREATHER

$

$

Not available

15

Generac 0H3113

GEAR INPUT 1.65:1

$915.99

$

Usually ships in 2-12 days

0

Generac 95969

GEAR IN PT 390-50 25T

$

$

Not available

Generac 95967

GEAR INPT 390-60 27T

$

$

Not available

0E6865

GEAR INPUT 2:1 50HZ390

$

$

Not available

16

Generac 95966

SHAFT 390 INPUT GEAR

$

$

Not available

17

Generac 95976

COLLAR HARDENED

$

$

Not available

18

Generac 95971

SEALOIL

$

$

Not available

19

Generac 96777

SNAP RING INT 120MM

$

$

Not available

20

Generac 057019S

BEARING #6213 SEALED

$189.99

$

Usually ships in 2-12 days

0

22

Generac 96379

PLATE INTRNLBRG RET

$

$

Not available

23

Generac 48189

PIN DOWEL M8X 24

$

$

Not available

24

Generac 95979

PLATE BEARING THRST

$

$

Not available

25

Generac 21159

SPACER STRESSPROOF

$

$

Not available

26

Generac 097557A

KEY 1 0X 1 6 X 4 0

$10.99

$

Usually ships in 2-12 days

0

27

Generac 57163

PLUG PIPE 3/8"MAGNETIC

$

$

Not available

28

Generac 0F6518

SCREW HHFC M10-1.5X 25 G10.9

$2.99

$

Usually ships in 2-12 days

0

29

Generac 0F3201

COVER GEARBOX GUARD

$

$

Currently unavailable

30

Generac 20443

COUPLING INNER DRAWN

$

$

Not available

31

Generac 094666A

COUPLING OUTER MACHN

$

$

Not available

32

Generac 99828

DAMPER GB CPLRVIBRA

$

$

Not available

33

Generac 099828A

DAMPER GB CPLRVIBRA

$6.49

$

Usually ships in 2-12 days

0

34

Generac 26925

PLUG STD PIPE 3/8 STEEL SQ HD

$

$

Not available

35

Generac 097557C

KEY 1 0X 1 6 X 5 0

$10.99

$

Usually ships in 2-12 days

0

36

Generac 38591

NIPPLE PIPE3/8NPTX 3-1/2

$

$

Not available

37

Generac 25066

COUPLING FULL 3/8-18

$

$

Not available

38

Generac 31578

SCREW HHC 3/8-16 X1-1/2G8

$

$

Not available

Generac 52625

SCREW SHC M10-1.5X35G12.9 (FORD ENGINES)

$

$

Not available

39

Generac 49814

SCREW HHC M10l1 .5X 25 G8.8

$

$

Not available

40

0A1786

RETAINING COMPOUND

$

$

Not available

41

27175

LUBE GREASE SAE #9080W90 (NOT SHOWN)

$

$

Not available

44

Generac 45772

NUT HEX M10-1.5G8 YELCHR

$

$

Not available

45

Generac 52243

SCREW HHC M10l1 .5X 60 G8.8

$

$

Not available

46

Generac 57642

SCREW HHC M10l1 .5X 40 G10.9

$

$

Not available

47

Generac 0F6487

WAS HER FLAT M10 S EALING COPPER

$10.99

$

Usually ships in 2-12 days

0

48

Generac 0F6355

GASKET SEAL PLATE 390 G B

$9.49

$

Usually ships in 2-12 days

0

49

0F6477

ENHANCER GEAR OIL (NOT SHOWN)

$

$

Not available

50

0F6557

THREADLOCK AND SEALANT

$

$

Not available

51

Generac 26924

ELB OW 90DSTREET3/8

$

$

Not available
