CT04842GNAN - Generac 48kW Home Standby Generator (SN: 3908V30381 - 3908V30381) (2008) Mounting Base (0G5965) Parts Diagram

48kW Home Standby Generator

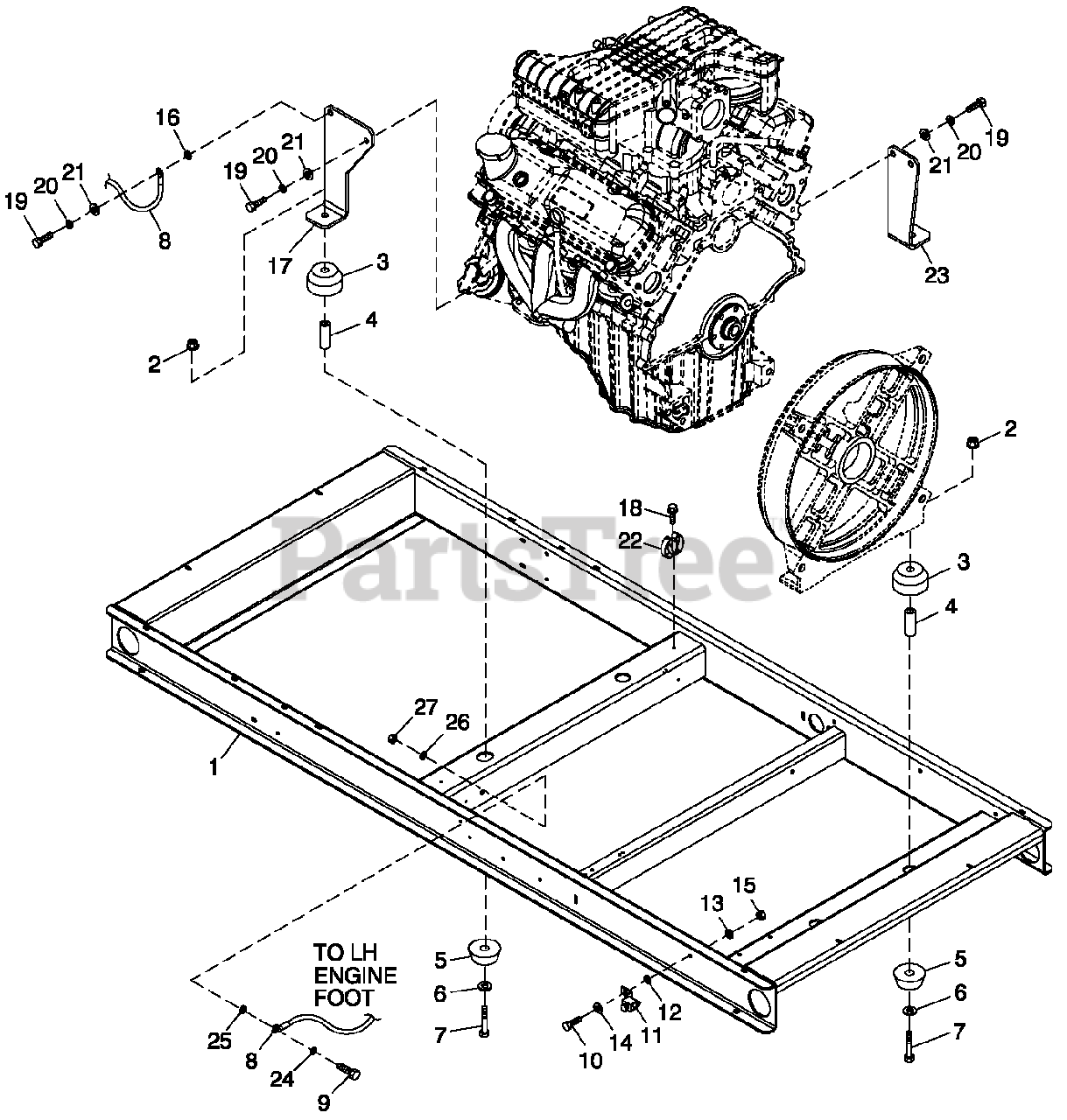

Mounting Base (0G5965) Parts Diagram

  • Title
1

Generac 0G5313

WELDMENT BASEFRAME 4.2L G3

$2273.99

$

Usually ships in 2-12 days

0

2

Generac 052860

NUT FLANGED HEX M12-1.75

$

$

Not available

3

Generac 052251

DAMPENER VIBRATION 40 BLUE

$

$

Not available

4

Generac 052257

SPACER .49 X .62 X 1.87 PWDR/ZNC

$

$

Not available

5

Generac 052252

DAMPENER VIBRATION
(Superseded to G052252)

$4.49

$

Usually ships in 2-12 days

0

6

Generac 052259

WASHER FLAT M12

$

$

Not available

7

Generac 052891

SCREW HHC M12-1.75 X 80 G8.8

$

$

Not available

8

Generac 0536210410

ASSY WIRE 14.00"

$

$

Not available

9

Generac 042909

SCREW HHC M8-1.25X 30 G8.8
(Superseded to G042909)

$0.99

$

In Stock, only 4 left!

0

10

Generac 047411

SCREW HHC M6-1.0X 16 G8.8
(Superseded to G047411)

$1.99

$

In Stock, Qty 6

0

11

Generac 055414

LUG SLDLSS #2-#8X 17/64 CU
(Superseded to G055414)

$5.49

$

In Stock, only 2 left!

0

12

Generac 022447

WASHER SHAKEPROOFINT 1/4

$

$

Not available

13

Generac 022097

WASHER LOCK M6-1/4
(Superseded to G022097)

$2.99

$

In Stock, only 1 left!

0

14

Generac 022473

WASHER FLAT M6-1/4 ZINC
(Superseded to G022473)

$2.99

$

In Stock, only 2 left!

0

15

Generac 049813

NUT HEX M6 -1.0 G8YEL CHR
(Superseded to G049813)

$3.49

$

In Stock, only 4 left!

0

16

Generac 022261

WASHER SHAKEPROOF INT 3/8

$

$

Not available

17

Generac 0G52280ST03

ENGINE FOOT L/H 4.2L CPL

$97.99

$

Usually ships in 2-12 days

0

18

Generac 045764

SCREW HHTT M 4-0 .7X 8B P
(Superseded to G045764)

$0.99

$

In Stock, only 1 left!

0

19

Generac 059981

SCREW HHC M10-1.5 X 30 C10.9

$

$

Not available

20

Generac 022302

WASHER LOCK 7/16

$

$

Not available

21

Generac 022131

WASHER FLAT 3/8-M10 ZINC
(Superseded to G022131)

$0.99

$

Usually ships in 2-12 days

0

22

Generac 065852

SPRING CLIP HOLDER .37-.62

$

$

Not available

23

Generac 0G52300ST03

ENGINE FOOT R/H 4.2L CPL

$84.99

$

Usually ships in 2-12 days

0

24

Generac 022129

WASHER LOCK M8-5/16
(Superseded to G022129)

$2.49

$

In Stock, Qty 5

0

25

Generac 026204

WASHER SHAKEPROOF INT 5/16

$

$

Not available

26

Generac 022145

WASHER FLAT 5/16-M8 ZINC
(Superseded to G022145)

$0.99

$

In Stock, Qty 10

0

27

Generac 045771

NUT HEX M8-1.25 G8 CLEAR ZINC
(Superseded to G045771)

$1.99

$

In Stock, Qty 5

0
