CT03624JNAX - Generac 36kW Home Standby Generator (SN: 4610V40394 - 4610V40394) (2010) Engine Common Prt 2.4l G2 Turbo 36k (0H7321) Parts Diagram

36kW Home Standby Generator

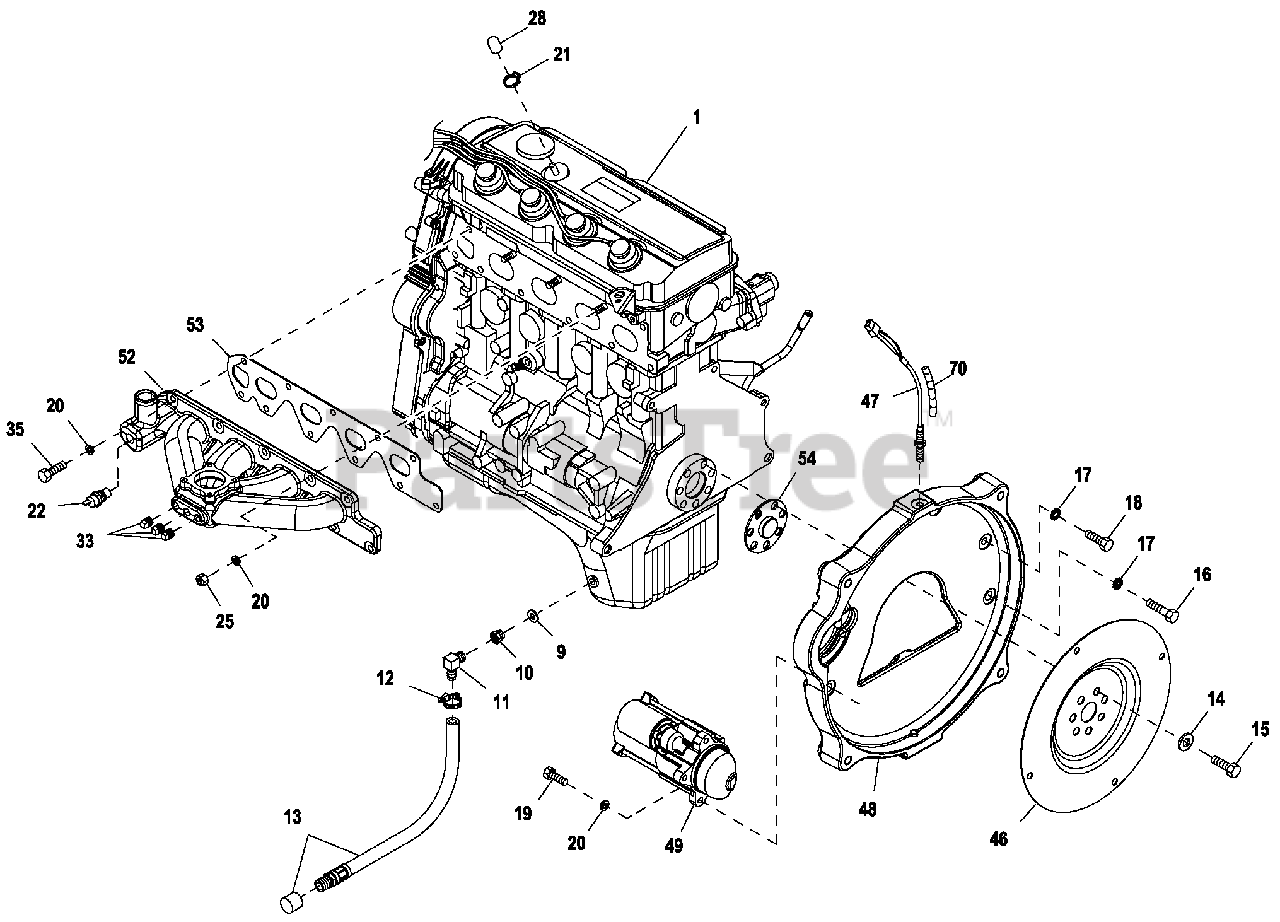

Engine Common Prt 2.4l G2 Turbo 36k (0H7321) Parts Diagram

  • Title

1

Generac 0H1619

ENGINE 2.4L G2 CERTIFIED

Note: FOR A FIELD REPLACEMENT ENGINE, PIB14-01-ERPL MUST BE FILLED OUT, SUBMITTED AND APPROVED BEFORE A REPLACEMENT ENGINE CAN BE ORDERED. CONTACT THE SERVICE DEPARTMENT WITH ANY QUESTIONS.

$

$

Not available

9

Generac 057772

WASHER NYLON .565
(Superseded to G057772)

$2.99

$

Usually ships in 2-12 days

0

10

Generac 057765

ADAPTER M14-1.50 X 3/8 NPT

$

$

Not available

11

Generac 043790

BARBED EL 90 3/8 NPT X 3/8

$

$

Not available

12

Generac 0C7649

CLAMP HOSE .38-.87

Note: USE 0G4020 FOR OIL LINES USE 0C7649 FOR FUEL LINES

$2.49

$

In Stock, only 2 left!

0

13

Generac 069860E

HOSE DRAIN ASSY 28"

$59.99

$

Usually ships in 2-12 days

0

14

Generac 063076

WASHER FLAT .531 ID X 1.062 OD

$

$

Not available

15

Generac 0G1394

SCREW HHC M12-1.25 X 20 G10.9

Note: APPLY MEDIUM STRENG TH BLUE THREAD LOCKING FLUID TO THE THREADS.

$8.99

$

Usually ships in 2-12 days

0

16

Generac 052830

SCREW HHC M10-1.25 X 45 G8.8

$

$

Not available

17

Generac 025507

WASHER SHAKEPROOF EXT 7/16 STL

$

$

Not available

18

Generac 062963

SCREW HHC M10-1.25 X 30 G8.8

$

$

Not available

19

Generac 049821

SCREW SHC M8-1.25 X 30 G12.9
(Superseded to G049821)

$2.49

$

Usually ships in 2-12 days

0

20

Generac 022129

WASHER LOCK M8-5/16
(Superseded to G022129)

$2.49

$

In Stock, Qty 5

0

22

Generac 0E0502

TEMPERATU RE SENDER

$53.99

$

Usually ships in 2-12 days

0

25

Generac 045771

N U T HEX M8-1.25 G8 CLEAR ZINC
(Superseded to G045771)

$1.99

$

In Stock, Qty 5

0

35

Generac 0A8258

SCREW HHC M8-1.25 X 25 G10.9

$0.99

$

Usually ships in 2-12 days

0

46

Generac 0F9965E

FLEX PLATE 2 POLE 2.4L G2

$51.99

$

Usually ships in 2-12 days

0

47

Generac 0D2244M

ASSY MAGPICK U P(3/8-24 MALE)

Note: FOR INFORMATION ON THIS MAGNETIC PICK-UP REFER TO PIB08-15-S WIB07-08-S

$245.99

$

Usually ships in 2-12 days

0

48

Generac 0F9420

ADAPTER ENGINE 2.4L MACHINE

$675.99

$

Usually ships in 2-12 days

0

49

Generac 0G7461

MOTOR STARTER

Note: ORDER P/N 0G7461RWK AND 1 PC. OF 0G0860. ORDER 0D5418 FOR 0H5610 5.4L ENG (80KW) GEARBOX

$

$

Currently unavailable

52

Generac 0G8488

MANIFOLD INTAKE (MACHINED)

$305.99

$

Usually ships in 2-12 days

0

53

Generac 0G0950

GASKET INTAKE MANIFOLD

Note: SUPPLIED WITH ENG INE.

$63.99

$

Usually ships in 2-12 days

0

54

Generac 0F9583

SPACER 2.4L G2 FLEX PLATE

$31.99

$

Usually ships in 2-12 days

0

70

Generac 077043H

CONDUIT FLEX .25"ID

$1.99

$

Usually ships in 2-12 days

0
