CT02724JNAN - Generac 27kW Home Standby Generator (SN: 4508V30914 - 4508V30914) (2008) Mounting Base 2.4L Parts Diagram

27kW Home Standby Generator

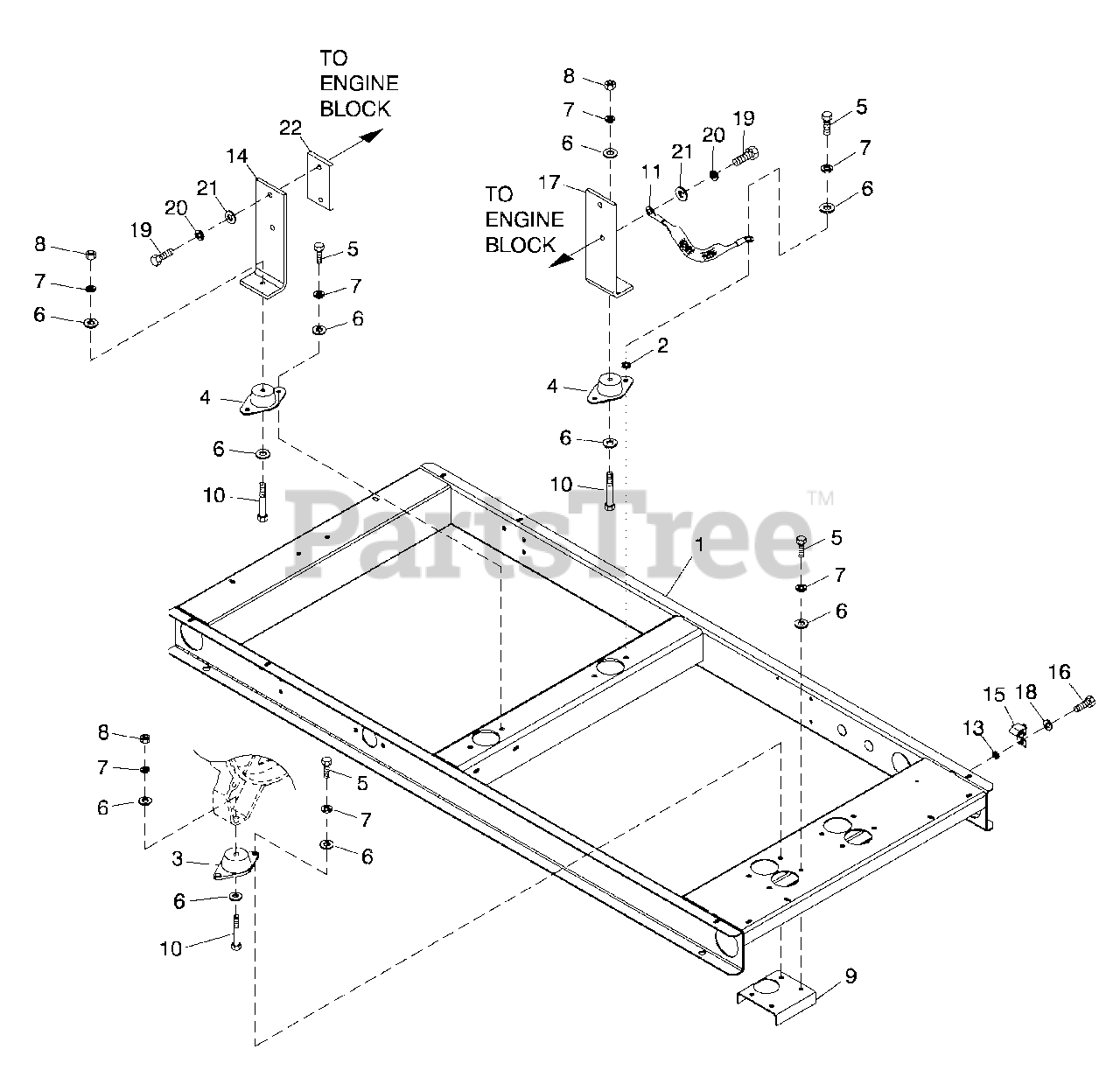

Mounting Base 2.4L Parts Diagram

  • Title
1

Generac 0G83760ST03

MOUNTING BASE 2.4L

Note: MUST SHIP VIA LTL TRUCK CANNOT SHIP UPS.

$1007.99

$

Usually ships in 2-12 days

0

2

Generac 027482

WASHER SHAKEPROOF EXT 5/16 STL

$

$

Not available

3

Generac 070936

DAMPENER VIBRATION
(Superseded to G070936)

$59.99

$

Usually ships in 2-12 days

0

4

Generac 070936C

VIB. ISO. 70-75 DURO

$38.99

$

Usually ships in 2-12 days

0

5

Generac 039253

SCREW HHC M8-1.25 X 20 G8.8
(Superseded to G039253)

$2.99

$

In Stock, only 2 left!

0

6

Generac 022145

WASHER FLAT 5/16 ZINC
(Superseded to G022145)

$2.49

$

In Stock, Qty 10

0

7

Generac 022129

WASHER LOCK M8-5/16
(Superseded to G022129)

$2.49

$

In Stock, Qty 5

0

8

Generac 045771

NUT HEX M8-1.25 G8 YEL CHR
(Superseded to G045771)

$1.99

$

In Stock, Qty 5

0

9

Generac 0G3461

ALTERNATOR SUPPORT BLOCK OFF

$409.99

$

Usually ships in 2-12 days

0

10

Generac 051730

SCREW HHC M8-1.25 X 60 G8.8

$

$

Not available

11

Generac 021991

EARTH STRAP

$

$

Not available

13

Generac 026850

WASHER SHAKEPROOF EXT 1/4 STL

$

$

Not available

14

Generac 0G8429AST03

SUPPORT ENGINE LEFT SIDE

$50.99

$

Usually ships in 2-12 days

0

15

Generac 055414

LUG SLDLSS #2-#8 X 17/64 CU
(Superseded to G055414)

$5.49

$

In Stock, only 2 left!

0

16

Generac 047411

SCREW HHC M6-1.0 X 16 G8.8
(Superseded to G047411)

$1.99

$

In Stock, Qty 6

0

17

Generac 0G84290ST03

SUPPORT ENGINE RIGHT SIDE

$50.99

$

Usually ships in 2-12 days

0

18

Generac 022473

WASHER FLAT 1/4-M6 ZINC
(Superseded to G022473)

$2.99

$

In Stock, only 2 left!

0

19

Generac 062963

SCREW HHC M10-1.25 X 30 C8.8

$

$

Not available

20

Generac 046526

WASHER LOCK M10

$

$

Not available

21

Generac 022131

WASHER FLAT 3/8-M10 ZINC
(Superseded to G022131)

$0.99

$

Usually ships in 2-12 days

0

22

Generac 0F9596A

SPACER LH ENGINE MOUNT

$15.99

$

Usually ships in 2-12 days

0
