CT 91C-00 - Paramount Trimmer, Cordless TRIMMER ASSEMBLY Parts Diagram

Trimmer, Cordless

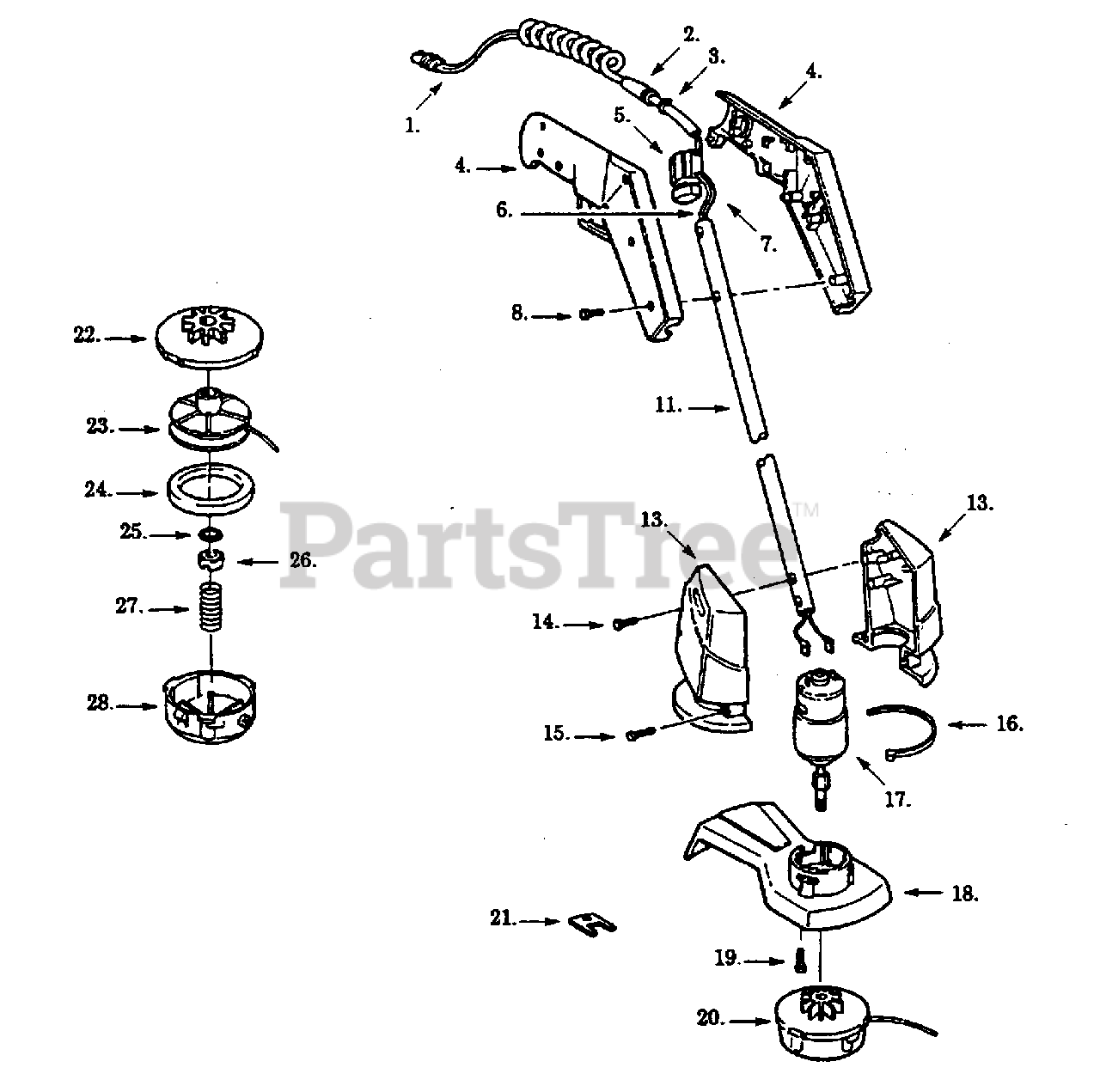

TRIMMER ASSEMBLY Parts Diagram

  • Title

1

Poulan 534898300

Coiled Cord

$8.99

$

Usually ships in 3-10 days

0

2

Poulan 534459100

Rubber Strain Relief

$2.49

$

Usually ships in 3-10 days

0

3

Poulan 534356003

Strain Relief

$

$

Not available

4

Poulan 534356782

Handle Set

$9.99

$

Usually ships in 3-10 days

0

5

Poulan 534193001

Trigger Switch

$

$

Not available

6

Poulan 534896601

Lead Wire (Black)

$

$

Not available

7

Poulan 534896701

Lead Wire (Red)

$

$

Not available

8

Poulan 534826801

Screw

$

$

Not available

11

Poulan 534897000

Tube

$

$

Not available

13

Poulan 534194042

Housing Set

$10.99

$

Usually ships in 3-10 days

0

14

Poulan 534826800

Screw

$3.99

$

In Stock, only 2 left!

0

15

Poulan 534790301

Screw

$

$

Not available

16

Poulan 534134702

Tie Wrap

$

$

Not available

17

Poulan 534896401

Motor/Adapter Ass'y.

$46.99

$

Usually ships in 3-10 days

0

18

Poulan 534896201

Guard/Blade Ass'y.

$

$

Not available

19

Poulan 534183400

Screw

$

$

Not available

20

Poulan 534966501

Head Ass'y.

$

$

Not available

21

Poulan 534166800

Spanner Wrench

$

$

Not available

22

Poulan 534167235

Rear Plate

$6.49

$

Usually ships in 3-10 days

0

23

Poulan 534167805

Spool & Line

$

$

Not available

24

Poulan 534167700

Foam Pad

$

$

Not available

25

Poulan 534316200

O-Ring

$1.49

$

In Stock, only 1 left!

0

26

Poulan 534166700

Adapter Nut

$3.99

$

In Stock, only 1 left!

0

27

Poulan 534819200

Spring

$

$

Not available

28

Poulan 534167935

Hub Ass'y.

$

$

Not available
