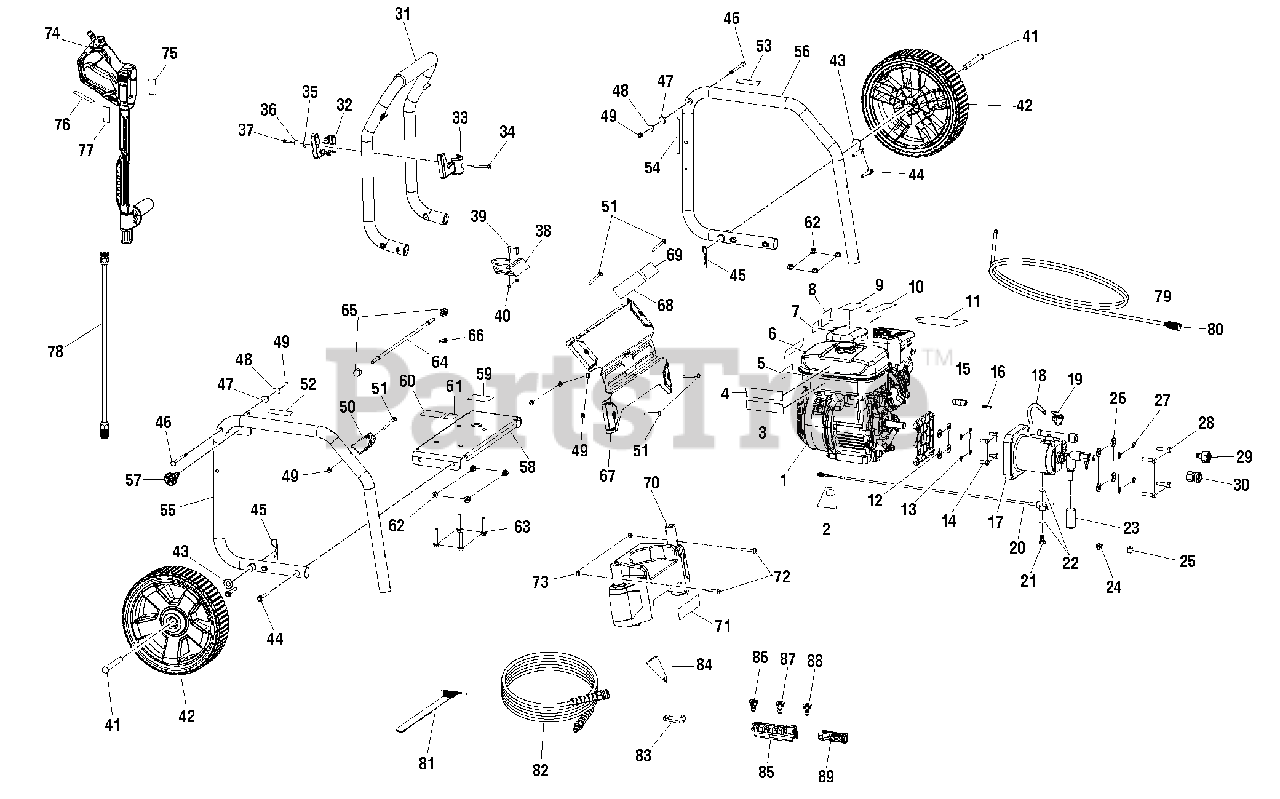

CT 80806 - Homelite Pressure Washer Figure A Parts Diagram

Pressure Washer

Figure A Parts Diagram

  • Title

1

Engine (Subaru, SP 170, Hori, EPA)

$

$

Not available

2

Homelite 940889005

Oil Dipstick Label

$

$

Not available

3

Homelite 940708007

Lubricant Label

$

$

Not available

4

Homelite 940947003

UL Fire Warning Label Spark Arrestor)

$

$

Not available

5

Homelite 941742001

License Label

$

$

Currently unavailable

6

Homelite 940654053

Warning Label

$

$

Not available

7

Homelite 941613004

Pressure Release Label

$

$

Not available

8

Homelite 940899003

Do Not Mix Label

$

$

Not available

9

Homelite 940778005

Hot Muffler Label

$

$

Not available

10

Homelite 940872003

E85 Label

$1.99

$

In Stock, only 2 left!

0

11

Homelite 940971011

Warning Hangtag

$

$

Not available

12

Homelite 638675002

Washer (5/16 in.)

$3.49

$

Usually ships in 3-7 days

0

13

Homelite 638678001

Lock Washer (5/16 in.)

$3.49

$

Usually ships in 3-7 days

0

14

Homelite 661557001

Bolt (5/16-24 x 3/4 in., Hex Hd.)

$8.99

$

Usually ships in 3-7 days

0

15

Homelite 678169004

Thermal Release Valve

$

$

Not available

16

Homelite 678041008

Output Shaft Key (27 mm)

$2.49

$

Usually ships in 3-7 days

0

17

Homelite 308694021

Pump Assembly (3GXT27)
(Superseded to 308694026)

$

$

Not available

18

Homelite 570358044

Vent Tube (11 in.)

$2.99

$

Usually ships in 3-7 days

0

19

Homelite 310438001

Vent Cap

$

$

Not available

20

Homelite 310437002

Idle Down Assembly

$

$

Not available

21

Homelite 660971005

Bolt (M10 x 1.5 in., Special)

$6.49

$

Usually ships in 3-7 days

0

22

Homelite 310928001

Compression Seal
(Superseded to 310928002)

$

$

Not available

23

Homelite 570410002

Unloader Cap

$

$

Not available

24

Homelite 524014001

Cable Clamp (Engine)

$

$

Not available

25

Homelite 524013002

Swivel Bushing

$2.49

$

Usually ships in 3-7 days

0

26

Homelite 638386002

Washer (3/8 in.)

$2.49

$

Usually ships in 3-7 days

0

27

Homelite 638679001

Lock Washer (3/8 in.)

$2.49

$

Usually ships in 3-7 days

0

28

Homelite 661558001

Bolt (3/8-16 x 1-3/8 in., Hex Hd.)

$

$

Not available

29

Homelite 308692003

Garden Hose Coupler w/Filter

$

$

Not available

30

Homelite 308661004

3/8 in. Quick Connect (NPT)

$

$

Not available

31

Homelite 308940004

Handle Assembly

$

$

Currently unavailable

32

Homelite 518930001

Rear Hook

$

$

Not available

33

Homelite 518929001

Front Hook

$

$

Not available

34

Homelite 660592004

Screw (1/4-20 x .75 in.)

$

$

Not available

35

Homelite 638128004

Washer (1/4 in.)

$1.99

$

In Stock, Qty 5

0

36

Homelite 678016006

Lock Nut (1/4-20)
(Superseded to 678016002)

$1.49

$

In Stock, only 2 left!

0

37

Homelite 660752001

Screw (8-10 x 3/4 in., Truss Hd.)

$

$

Not available

38

Homelite 308316006

Wand Storage (Front)

$8.99

$

Usually ships in 3-7 days

0

39

Homelite 660976002

Bolt (M5 x 16 mm, Pan Hd.)

$1.99

$

Usually ships in 3-7 days

0

40

Homelite 678390001

Hex Nut (M5)

$

$

Not available

41

Homelite 620598002

Axle

$5.99

$

Usually ships in 3-7 days

0

42

Homelite 308451040

Wheel

$63.99

$

Usually ships in 3-7 days

0

43

Homelite 638275002

Washer (1/4 in.)

$1.99

$

In Stock, Qty 5

0

44

Homelite 660962001

Bolt w/Washer (M8 x 55 mm, Hex Hd.)
(Superseded to 660969001)

$1.99

$

Usually ships in 3-7 days

0

45

Homelite 678899001

Cotter Pin

$

$

Not available

46

Homelite 678406004

Connector Pin (1/4 in.)

$1.99

$

Usually ships in 3-7 days

0

47

Homelite 518724002

Washer (OD20 x ID8 x 4.5t)

$1.99

$

Usually ships in 3-7 days

0

48

Homelite 638128004

Washer (1/4 in.)

$1.99

$

In Stock, Qty 5

0

49

Homelite 678016006

Lock Nut (1/4-20)
(Superseded to 678016002)

$1.49

$

In Stock, only 2 left!

0

50

Homelite 518931003

Lower Wand Holder

$

$

Not available

51

Homelite 661501001

Screw (1/4-20 x 1.85 in., T30 Torx Hd.)

$

$

Not available

52

Homelite 940693003

Release Pin Label

$1.99

$

Usually ships in 3-7 days

0

53

Homelite 940778004

Hot Surface Label

$2.49

$

Usually ships in 3-7 days

0

54

Homelite 940996011

Quick Start Label (Engine)

$

$

Currently unavailable

55

Homelite 310704014

Frame Assembly (Right)

$

$

Currently unavailable

56

Homelite 310703013

Frame Assembly (Left)

$

$

Currently unavailable

57

Homelite 308910005

Handle Lock Assembly

$23.99

$

In Stock, only 1 left!

0

58

Homelite 638662005

Engine Plate

$

$

Not available

59

Homelite 941531027

Data Label

$

$

Currently unavailable

60

Homelite 940617111

Quick Start Label (Pump)

$

$

Currently unavailable

61

Homelite 940871002

Add Oil Label

$1.99

$

Usually ships in 3-7 days

0

62

Homelite 678774002

Flange Lock Nut (M8)

$

$

Not available

63

Homelite 661505004

Bolt (M8 x 45 mm, Flange Hd.)

$1.99

$

In Stock, Qty 5

0

64

Homelite 678617007

Bar

$

$

Currently unavailable

65

Homelite 678681001

Acorn Nut

$1.99

$

Usually ships in 3-7 days

0

66

Homelite 518650002

Cable Clamp (Frame)

$2.49

$

Usually ships in 3-7 days

0

67

Homelite 638671007

Face Plate

$

$

Currently unavailable

68

Homelite 940779087

Performance Label

$

$

Currently unavailable

69

Homelite 940743001

Idle Control Label

$

$

Currently unavailable

70

Homelite 308909014

Foot

$

$

Currently unavailable

71

Homelite 941741002

Logo Label

$

$

Currently unavailable

72

Homelite 660592005

Screw (1/2-20 x 1.75 in.)

$

$

Not available

73

Homelite 678016006

Lock Nut (1/4-20)
(Superseded to 678016002)

$1.49

$

In Stock, only 2 left!

0

74

Homelite 308760031

Trigger Handle Assembly

$

$

Currently unavailable

75

Homelite 940654061

Warning Label

$

$

Not available

76

Homelite 941749001

Trigger Guard Warning Label

$1.99

$

Usually ships in 3-7 days

0

77

Homelite 940654058

Max Rating Label

$

$

Not available

78

Homelite 308494004

Wand
(Superseded to 308494058)

$

$

Not available

79

Homelite 561399003

Chemical Siphon Tube

$2.99

$

In Stock, only 2 left!

0

80

Homelite 308103015

Chemical Siphon Filter

$2.49

$

In Stock, Qty 5

0

81

Homelite 308350001

Velcro Strap

$4.49

$

Usually ships in 3-7 days

0

82

Homelite 308835037

Hose Assembly (30 ft.)
(Superseded to 308835090)

$98.99

$

Usually ships in 3-7 days

0

83

Homelite 638637002

Carabineer

$2.49

$

Usually ships in 3-7 days

0

84

Homelite 519314001

Funnel

$1.99

$

Usually ships in 3-7 days

0

85

Homelite 570727004

Nozzle Holder

$8.99

$

Usually ships in 3-7 days

0

86

Homelite 308700012

40deg Nozzle

$6.99

$

Usually ships in 3-7 days

0

87

Homelite 308699012

25deg Nozzle

$7.99

$

Usually ships in 3-7 days

0

88

Homelite 308697012

0deg Nozzle
(Superseded to 308697014)

$15.99

$

Usually ships in 3-7 days

0

89

Homelite 310660007

Soap Nozzle

$10.99

$

Usually ships in 3-7 days

0

Oil (SAE 30 or SAE 10W30)

Note: Not Shown

$

$

Not available

Homelite 987009002

Wand Holder Accessory Bag

Note: Not Shown

$

$

Currently unavailable

Homelite 987009001

Accessory Bag

Note: Not Shown

$

$

Currently unavailable

Homelite 988000979

Operator's Manual

Note: Not Shown

$

$

Currently unavailable

Homelite 988000981

Assembly Guide

Note: Not Shown

$

$

Currently unavailable
