CT 80801 - Homelite Pressure Washer Figure B Parts Diagram

Pressure Washer

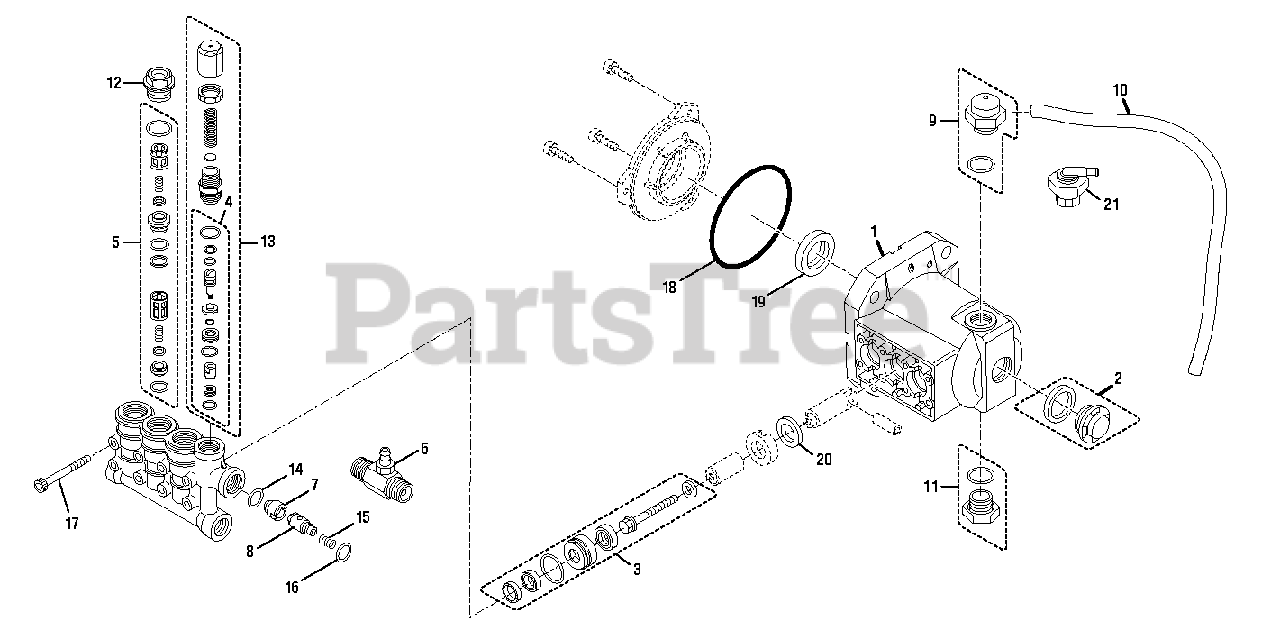

Figure B Parts Diagram

  • Title

1

Homelite 308694014

Pump Assembly
(Superseded to 308694018)

Note: (Inc Key Nos 2-9 and 11-20)

$

$

Not available

2

Homelite 308688006

Bubble Oil Gauge w/Gasket

$48.99

$

Usually ships in 3-7 days

0

3

Homelite 120440001

Seal Kit

$650.99

$

Usually ships in 3-7 days

0

4

Homelite 120442001

O-Ring Kit

$83.99

$

Usually ships in 3-7 days

0

5

Homelite 120441001

Valve Kit

$526.99

$

Usually ships in 3-7 days

0

6

Homelite 310735002

Chemical Injector
(Superseded to 310735003)

$

$

Not available

7

Homelite 678842001

Check Valve Seat

$7.49

$

Usually ships in 3-7 days

0

8

Homelite 308826003

Check Valve w/O-Ring

$56.99

$

Usually ships in 3-7 days

0

9

Homelite 310438002

Vent Cap (CAT)
(Superseded to 310438001)

$

$

Not available

10

Homelite 570358044

Tube (Optional, 11 in)

$2.99

$

Usually ships in 3-7 days

0

11

Homelite 310923001

Drain Plug

$51.99

$

Usually ships in 3-7 days

0

12

Homelite 679405002

Plug
(Superseded to 526473001)

$112.99

$

Usually ships in 3-7 days

0

13

Homelite 310924001

Unloader Assembly

Note: (Inc Key No 4)

$

$

Not available

14

Homelite 570742012

O-Ring

$6.49

$

Usually ships in 3-7 days

0

15

Homelite 679444001

Spring

$

$

Not available

16

Homelite 570742010

O-Ring

$6.49

$

Usually ships in 3-7 days

0

17

Homelite 661557012

Bolt

$

$

Not available

18

Homelite 570742070

O-Ring

$17.99

$

Usually ships in 3-7 days

0

19

Homelite 570742069

Oil Seal

$35.99

$

Usually ships in 3-7 days

0

20

Homelite 570763007

Oil Seal

$21.99

$

Usually ships in 3-7 days

0

21

Homelite 310438001

Vent Cap (Optional)

$

$

Not available
