CT 80701 - Homelite Pressure Washer Figure B Parts Diagram

Pressure Washer

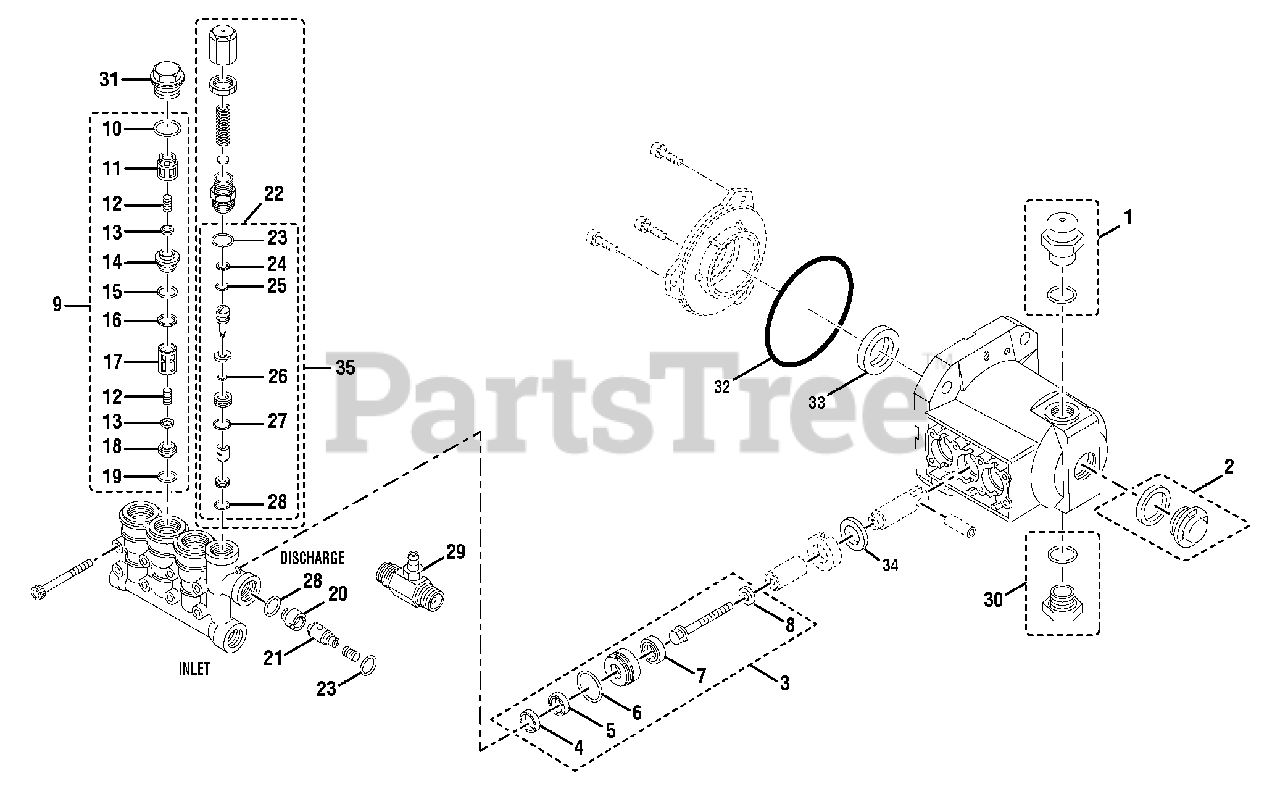

Figure B Parts Diagram

  • Title

1

Homelite 310733003

Oil Fill Cap w/O-ring

$74.99

$

Usually ships in 3-7 days

0

2

Homelite 308688006

Gauge

$48.99

$

Usually ships in 3-7 days

0

3

Homelite 120440001

Seal Kit

Note: (Inc. Key Nos. 4-8)

$650.99

$

Usually ships in 3-7 days

0

4

Homelite 308405004

Adapter (Male)

$

$

Not available

5

Homelite 570436001

V-Packing

$

$

Not available

6

Homelite 570742004

Seal Case O-Ring

$

$

Not available

7

Homelite 570763004

Seal

$

$

Not available

8

Homelite 570435001

Washer (Seal)

$

$

Not available

9

Homelite 120441001

Valve Assembly

Note: (Inc. Key Nos. 10-19)

$526.99

$

Usually ships in 3-7 days

0

10

Homelite 570742007

O-Ring (Plug)

$

$

Not available

11

Homelite 521407001

Spring Retainer

$

$

Not available

12

Homelite 678519005

Spring

$

$

Not available

13

Homelite 678169008

Valve

$

$

Not available

14

Homelite 310402001

Discharge Seat

$

$

Not available

15

Homelite 570742006

O-Ring (Discharge Seat)

$

$

Not available

16

Homelite 521409001

O-Ring (Discharge Seat)

$

$

Not available

17

Homelite 521406001

Spring Retainer (Inlet)

$15.99

$

Usually ships in 3-7 days

0

18

Homelite 521408001

Inlet Seat

$

$

Not available

19

Homelite 570742005

O-Ring (Inlet Seat)

$8.49

$

Usually ships in 3-7 days

0

20

Homelite 678842001

Check Valve Seat

$7.49

$

Usually ships in 3-7 days

0

21

Homelite 308826003

Valve

$56.99

$

Usually ships in 3-7 days

0

22

Homelite 120442001

O-Ring Kit

Note: (Inc. Key Nos. 23-28)

$83.99

$

Usually ships in 3-7 days

0

23

Homelite 570742010

O-Ring (Piston Retainer)

$6.49

$

Usually ships in 3-7 days

0

24

Homelite 310403001

Back-up-Ring (Piston Stem)

$

$

Not available

25

Homelite 570742008

O-Ring (Piston Stem)

$

$

Not available

26

Homelite 570742011

O-Ring (Inner Valve Retainer)

$

$

Not available

27

Homelite 570742009

O-Ring (Outer)

$

$

Not available

28

Homelite 570742012

Seat O-Ring

$6.49

$

Usually ships in 3-7 days

0

29

Homelite 310735002

Fixed Injector (M18 x 1 mm)
(Superseded to 310735003)

$

$

Not available

30

Homelite 310923001

Drain Plug

$51.99

$

Usually ships in 3-7 days

0

31

Homelite 679405002

Plug
(Superseded to 526473001)

$112.99

$

Usually ships in 3-7 days

0

32

Homelite 570742070

O-Ring

$17.99

$

Usually ships in 3-7 days

0

33

Homelite 570742069

Oil Seal

$35.99

$

Usually ships in 3-7 days

0

34

Homelite 570763007

Oil Seal

$21.99

$

Usually ships in 3-7 days

0

35

Homelite 310924001

Unloader Assembly

Note: (Inc. Key No. 22)

$

$

Not available
