CT 80020 - Homelite Pressure Washer Figure A Parts Diagram

Pressure Washer

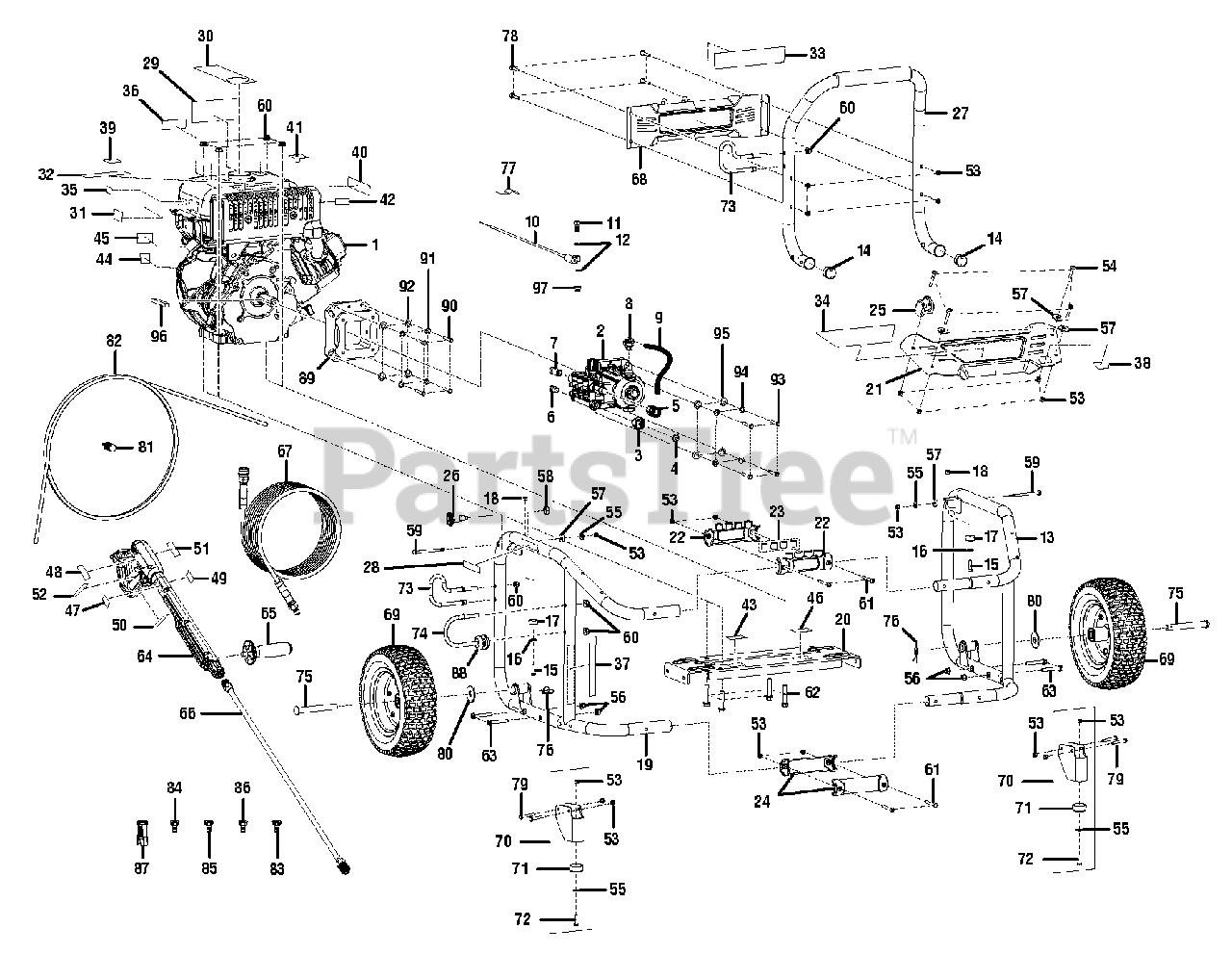

Figure A Parts Diagram

  • Title

1

Engine (Yamaha MZ300)

Note: Parts available at your local Yamaha dealer

$

$

Not available

2

Homelite 308653027

Pump (See Figure B)

$

$

Not available

3

Homelite 308692003

Garden Hose Coupler w/Filter

$

$

Not available

4

Homelite 308662001

Filter Screen

$

$

Not available

5

Homelite 308661004

Quick Disconnect (Female)

$

$

Not available

6

Homelite 678169004

Thermal Release Valve

$

$

Not available

7

Homelite 678169007

Pressure Relief Valve

$

$

Not available

8

Homelite 310438001

Vent Cap

$

$

Not available

9

Homelite 570358045

Tube (14 in.)

$

$

Not available

10

Homelite 310437003

Idle Down Assembly

$

$

Not available

11

Homelite 660971005

Idle Down Bolt (Special)

$6.49

$

Usually ships in 3-7 days

0

12

Homelite 678821004

Seal
(Superseded to 310928002)

$

$

Not available

13

Homelite 310703004

Left Frame Assembly

$

$

Not available

14

Homelite 518932001

Handle Tube Cap

$1.49

$

Usually ships in 3-7 days

0

15

Homelite 661555001

Hex Screw (M4 x 12 mm, Hex Button Hd.)

$

$

Not available

16

Homelite 678600002

Washer (M4)

$

$

Not available

17

Homelite 570712001

Rubber Bumper

$1.49

$

Usually ships in 3-7 days

0

18

Homelite 678610002

Flange Nut (M4)

$

$

Not available

19

Homelite 310704004

Right Frame Assembly

$

$

Not available

20

Homelite 638662016

Engine Plate

$

$

Not available

21

Homelite 638671005

Face Plate (Front)

$

$

Not available

22

Homelite 522901001

Nozzle Holder

$

$

Not available

23

Homelite 561383017

Grommet

$

$

Not available

24

Homelite 522951001

Lower Frame Cover

$

$

Not available

25

Homelite 518931005

Wand Holder Assembly

$

$

Not available

26

Homelite 308910005

Handle Knob

$23.99

$

In Stock, only 1 left!

0

27

Homelite 308638029

Handle Assembly

Note: (Inc. Key No. 14)

$

$

Not available

28

Homelite 940693003

Handle Release Label

$1.99

$

Usually ships in 3-7 days

0

29

Homelite 940707028

Danger Label (English)

$2.49

$

Usually ships in 3-7 days

0

30

Homelite 940971011

Hang Tag (Engine)

$

$

Not available

31

Homelite 940708007

Check Oil Label

$

$

Not available

32

Homelite 940778004

Hot Surface Label (Engine)

$2.49

$

Usually ships in 3-7 days

0

33

Homelite 940779060

Performance Label (Upper)

$

$

Not available

34

Homelite 940779061

Performance Label (Lower)

$

$

Not available

35

Homelite 940947003

Combustion Label

$

$

Not available

36

Homelite 940617084

Quick Start Label (Engine)

$

$

Not available

37

Homelite 940780049

Quick Start Label (Pump)

$

$

Not available

38

Homelite 940639005

Idle Down Label (Engine)

$

$

Not available

39

Homelite 940872001

E-85 Label

$

$

Not available

40

Homelite 940707086

Danger Label (French)

$

$

Not available

41

Homelite 940893002

Cat License Label

$

$

Not available

42

Homelite 940803018

EMC Label

$1.99

$

Usually ships in 3-7 days

0

43

Homelite 940871002

Add Lubricant Label

$1.99

$

Usually ships in 3-7 days

0

44

Homelite 940517007

Lubricant Label (Trilingual)

$1.99

$

Usually ships in 3-7 days

0

45

Homelite 941505001

Pressure Release Label

$

$

Not available

46

Homelite 941531009

Data Label

$

$

Currently unavailable

47

Homelite 940705096

Trigger Handle Label

$

$

Not available

48

Homelite 940893001

Trigger Handle Max Pressure Label

$

$

Not available

49

Homelite 940890037

Hot Surface Label

$

$

Currently unavailable

50

Homelite 940324017

Trigger Guard Warning Label (French/Spanish)

$

$

Not available

51

Homelite 940324016

Trigger Guard Warning Label (English)

$

$

Not available

52

Homelite 940489004

Specifications Label

$

$

Not available

53

Homelite 678016006

Lock Nut (1/4-20)
(Superseded to 678016002)

$1.49

$

In Stock, only 2 left!

0

54

Homelite 661501001

Screw (1/4-20 x 1.85 in., T30, Torx Hd.)

$

$

Not available

55

Homelite 638128004

Washer (1/4 in.)

$1.99

$

In Stock, Qty 5

0

56

Homelite 678774002

Lock Nut (M8 x 1.25 mm)

$

$

Not available

57

Homelite 518724002

Washer (OD20 x ID8 x 4.5t)

$1.99

$

Usually ships in 3-7 days

0

58

Homelite 678518002

Lock Nut (1/2-20, Hex)

$4.99

$

Usually ships in 3-7 days

0

59

Homelite 678406004

Connector Pin (1/4 in.)

$1.99

$

Usually ships in 3-7 days

0

60

Homelite 678297001

Lock Nut (M10)

$

$

Not available

61

Homelite 661501002

Screw (1/4-20 x 2.27 in., T30, Torx Hd.)
(Superseded to 660592006)

$2.49

$

Usually ships in 3-7 days

0

62

Homelite 660974001

Bolt (M10 x 50 mm)

$2.99

$

Usually ships in 3-7 days

0

63

Homelite 660962001

Bolt (M8 x 55 mm, Hex Hd.)
(Superseded to 660969001)

$1.99

$

Usually ships in 3-7 days

0

64

Homelite 308760018

Trigger Handle Assembly

$

$

Not available

65

Homelite 521830001

Auxiliary Handle

$

$

Not available

66

Homelite 308494026

Spray Wand

$46.99

$

Usually ships in 3-7 days

0

67

Homelite 308835042

High Pressure Hose (50 ft.)

$

$

Not available

68

Homelite 310447001

Rear Panel

$

$

Not available

69

Homelite 308451025

Wheel

$60.99

$

Usually ships in 3-7 days

0

70

Homelite 308909011

Foot Assembly

Note: (Inc. Key Nos. 53, 55 and 71-72)

$8.99

$

Usually ships in 3-7 days

0

71

Homelite 570554001

Wear Pad

$1.49

$

Usually ships in 3-7 days

0

72

Homelite 661503001

Bolt (1/4-20 x 1 in.)

$1.99

$

Usually ships in 3-7 days

0

73

Homelite 308316004

Trigger Handle Holder

$

$

Not available

74

Homelite 678243010

Spray Wand Storage Hook

$

$

Not available

75

Homelite 620505001

Axle

$

$

Not available

76

Homelite 678899001

Retaining Pin

$

$

Not available

77

Homelite 524014001

Idle Down Cable Clamp

$

$

Not available

78

Homelite 660592005

Bolt (1/4 x 42 mm, Pan Hd.)

$

$

Not available

79

Homelite 660869005

Bolt (1/4-20 x 52 mm, Hex Hd.)

$2.49

$

Usually ships in 3-7 days

0

80

Homelite 638128001

Washer (5/8 in.)

$1.49

$

Usually ships in 3-7 days

0

81

Homelite 518391001

Injection Hose Filter

$

$

Not available

82

Homelite 561399003

Injection Hose

$2.99

$

In Stock, only 2 left!

0

83

Homelite 308697024

Nozzle (0deg)

$

$

Not available

84

Homelite 308698021

Nozzle (15deg)

$

$

Not available

85

Homelite 308699023

Nozzle (25deg)

$

$

Not available

86

Homelite 308700023

Nozzle (40deg)

$

$

Not available

87

Homelite 310660006

Soap Blaster Nozzle

$14.99

$

Usually ships in 3-7 days

0

88

Homelite 570478001

Rubber Spacer

$

$

Not available

89

Homelite 679405001

Pump Adaptor

$

$

Not available

90

Homelite 661558001

Bolt (3/8-16 x 1-3/8 in., Hex Hd.)

$

$

Not available

91

Homelite 638679001

Lock Washer (3/8 in.)

$2.49

$

Usually ships in 3-7 days

0

92

Homelite 638386002

Washer (3/8 in.)

$2.49

$

Usually ships in 3-7 days

0

93

Homelite 661557001

Bolt (5/16-24 x 3/4 in., Hex Hd.)

$8.99

$

Usually ships in 3-7 days

0

94

Homelite 638678001

Lock Washer (5/16 in.)

$3.49

$

Usually ships in 3-7 days

0

95

Homelite 638675002

Washer (5/16 in.)

$3.49

$

Usually ships in 3-7 days

0

96

Homelite 678041010

Output Shaft Key (59 mm)

$

$

Not available

97

Homelite 638054001

Idle Down Plug

$126.99

$

Usually ships in 3-7 days

0

Homelite 988000375

Operator's Manual

Note: Not Shown

$

$

Not available

Homelite 988000376

Replacement Parts List

Note: Not Shown

$1.99

$

Usually ships in 3-7 days

0

Homelite 988000377

Assembly Guide

Note: Not Shown

$1.99

$

Usually ships in 3-7 days

0
