CT 46185 A - Electrolux/AYP Lawn Tractor (1998) SEAT Parts Diagram

Lawn Tractor

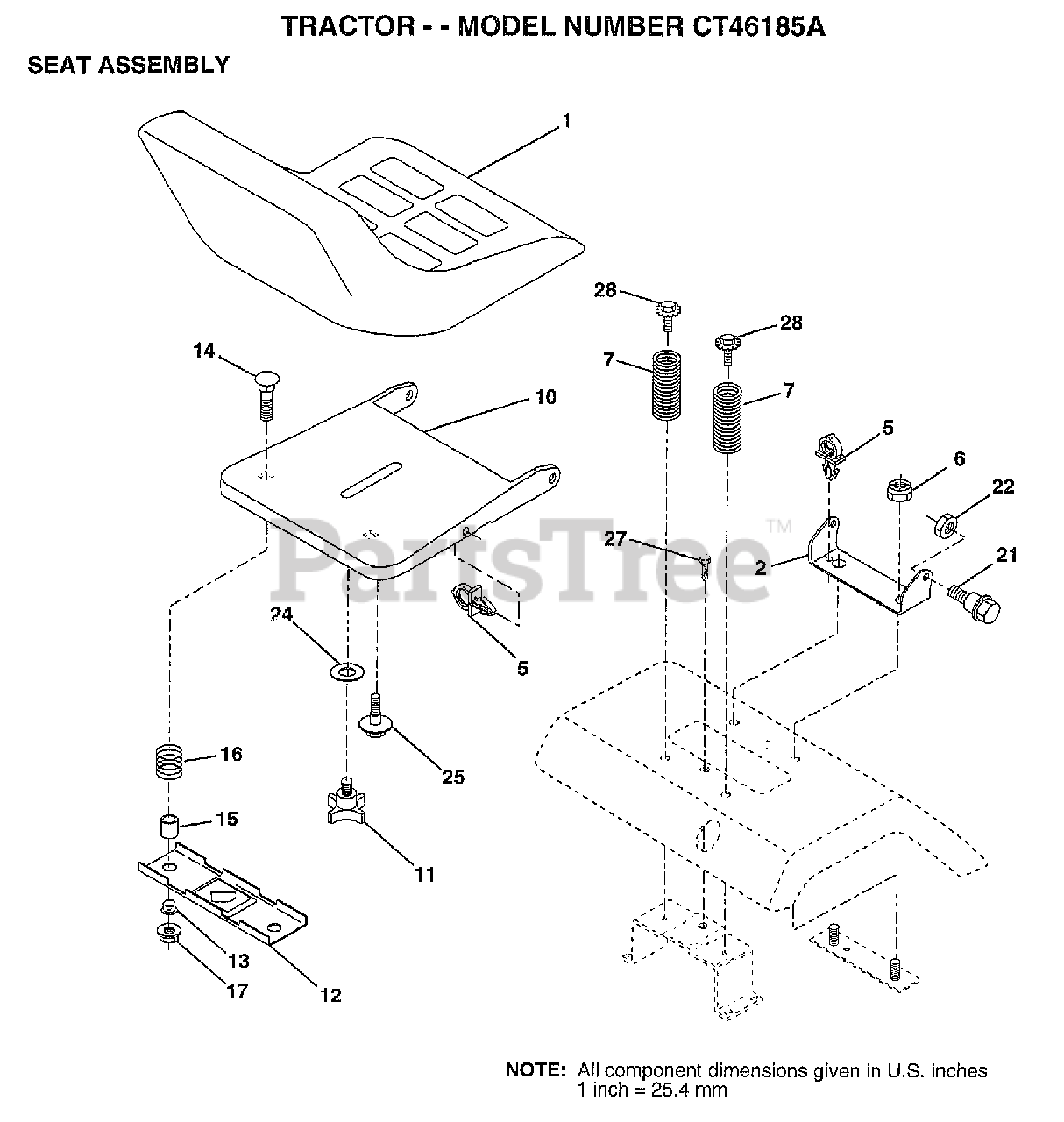

SEAT Parts Diagram

  • Title

1

Electrolux/AYP 127440

SUB= 140121
(Superseded to 532401043)

$

$

Not available

2

Electrolux/AYP 140551

BRACKET PVT SEAT
(Superseded to 532140551)

$6.49

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 145006

CLIP.PUSH-IN.HING
(Superseded to 532145006)

$6.49

$

Usually ships in 3-10 days

0

6

Electrolux/AYP 73800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 124181X

SPRING COMPRESSIO
(Superseded to 587613301)

$6.99

$

In Stock, only 4 left!

0

10

Electrolux/AYP 155925

PAN-SEAT
(Superseded to 532195530)

$21.99

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 120068X

"KNOB 1/2"" YT"
(Superseded to 532166369)

$10.99

$

In Stock, only 1 left!

0

12

Electrolux/AYP 121246X

BRKT SWITCH
(Superseded to 532174648)

$10.99

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 121248X

BUSHING
(Superseded to 532121248)

$6.49

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 72050412

BOLT-RD HD SQ NK
(Superseded to 872050412)

$6.49

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 121249X

SPACER SPLIT
(Superseded to 532121249)

$6.49

$

In Stock, only 2 left!

0

16

Electrolux/AYP 123740X

SPRING COMPRESSED
(Superseded to 532123740)

$6.49

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 123976X

SUB= 73900400
(Superseded to 586668901)

$4.99

$

In Stock, Qty 16

0

21

Electrolux/AYP 153236

"BOLT,SHOULDER"
(Superseded to 532171852)

$4.99

$

In Stock, Qty 8

0

22

Murray 73680500

SUB= 73690500
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

24

Electrolux/AYP 19171912

WASHER
(Superseded to 819171912)

$7.49

$

In Stock, only 1 left!

0

25

Electrolux/AYP 127018X

"BOLT,SHOULDER"
(Superseded to 532127018)

$7.49

$

Usually ships in 3-10 days

0

27

Electrolux/AYP 17490608

SCREW LT
(Superseded to 817490608)

$6.49

$

Usually ships in 3-10 days

0

28

Electrolux/AYP 150176

BOLT.5/16-18.UNC
(Superseded to 532149741)

$7.49

$

In Stock, Qty 5

0
